SoloShot™ Extra-High Strength Copper Clad Steel Tracer Wire - 12AWG

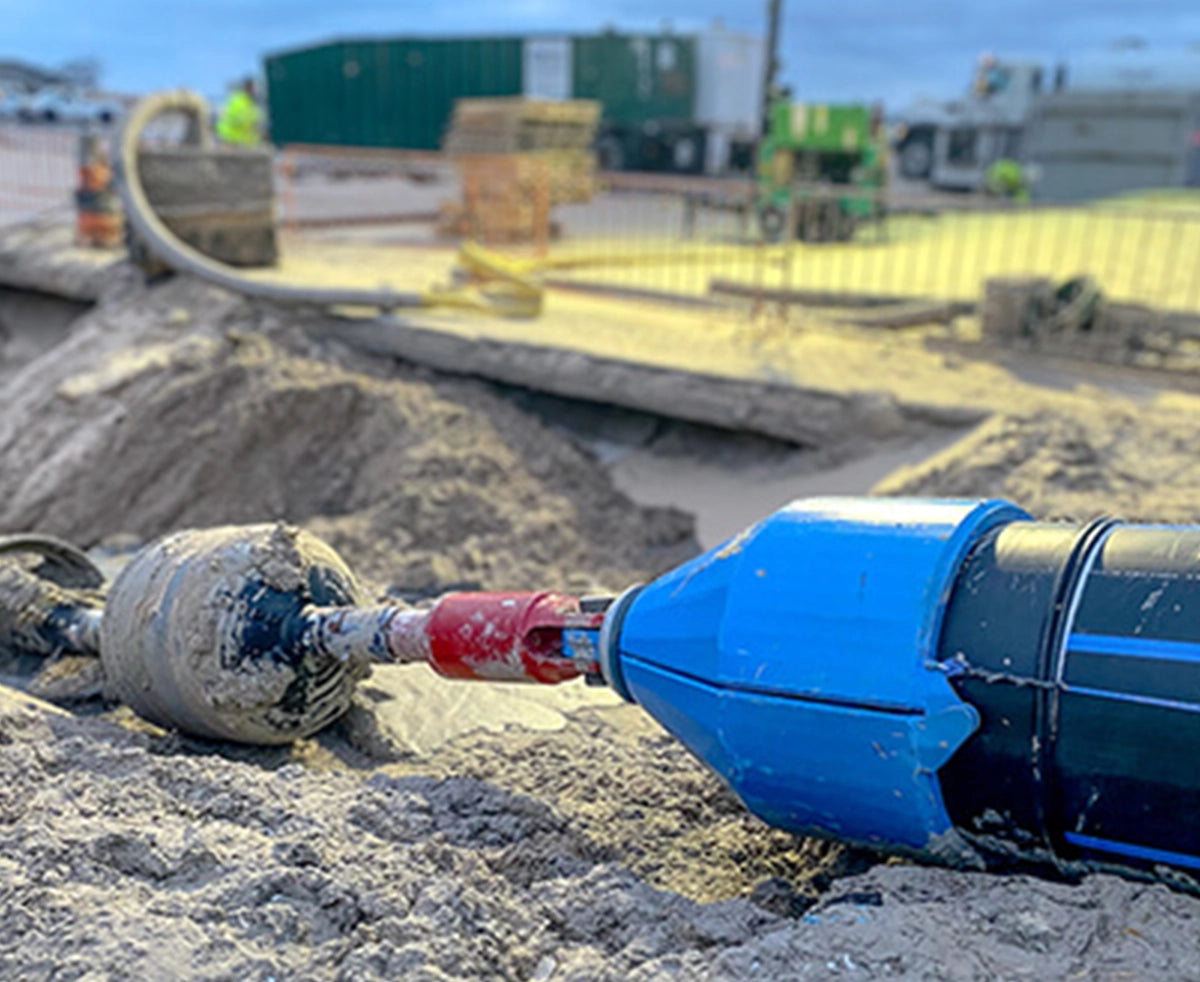

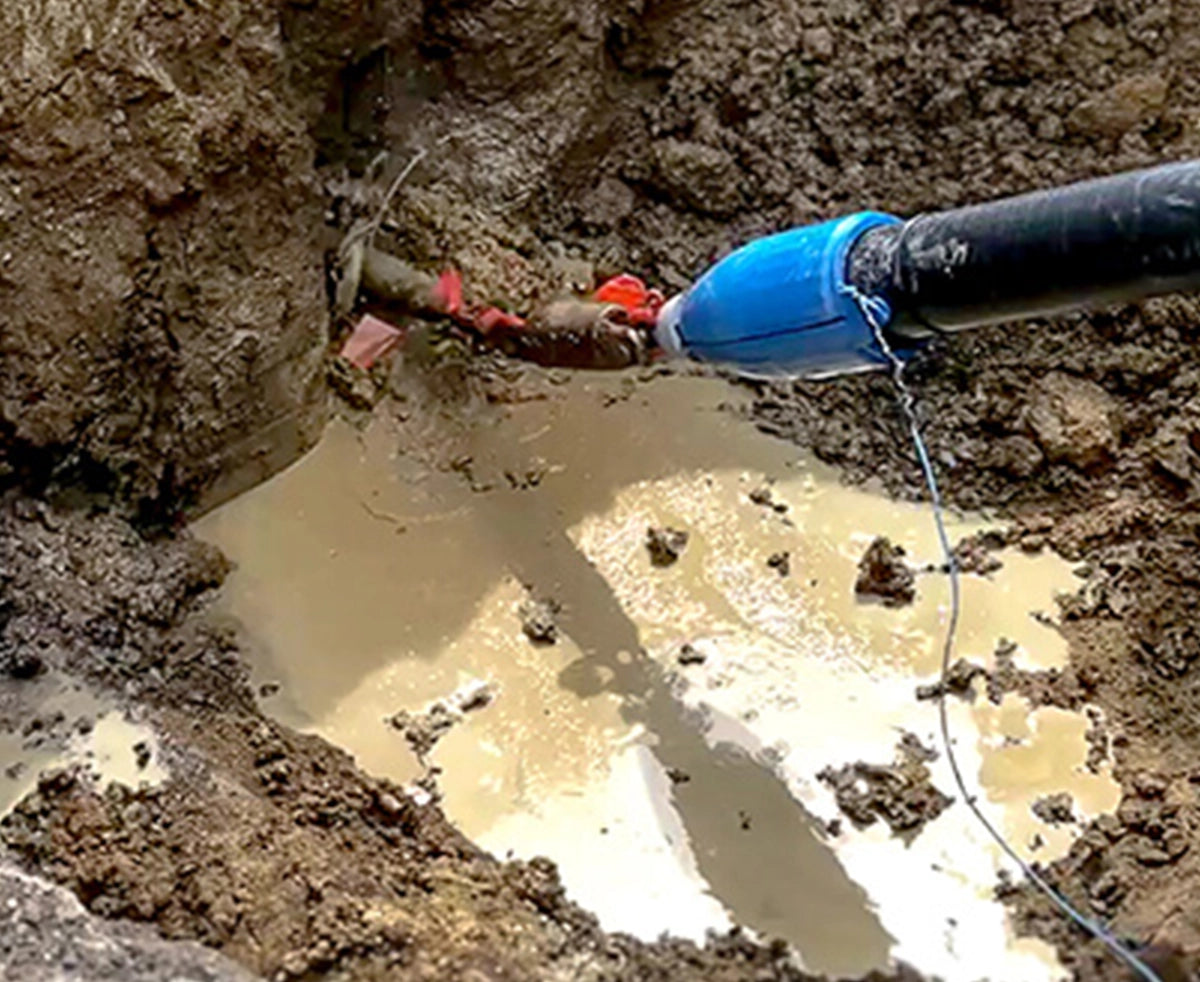

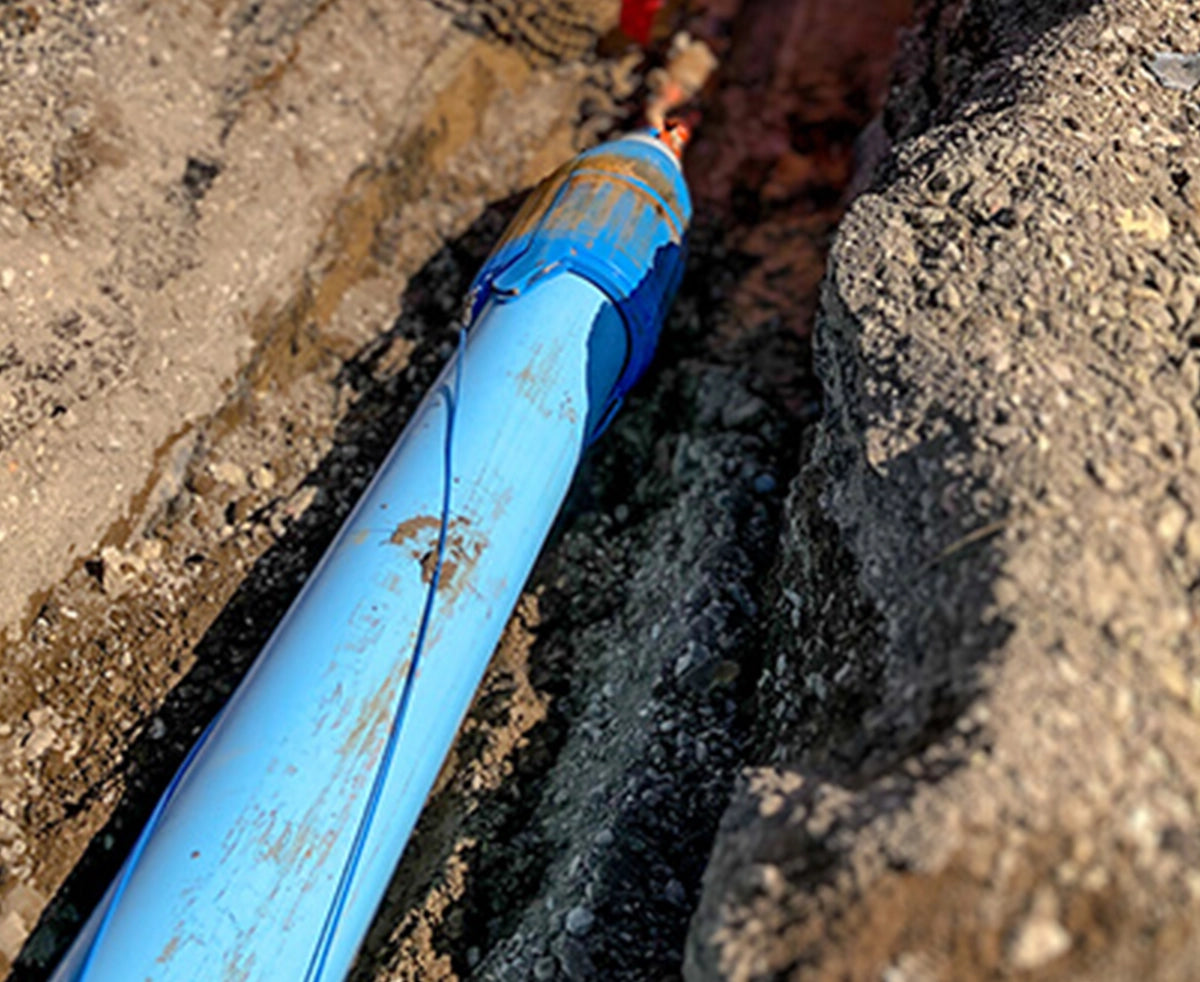

Copperhead SoloShot™ Extra-High Strength copper-clad steel tracer wire delivers unmatched performance for directional drilling applications. Engineered to handle the rigors of directional drilling, this wire provides six times the breaking strength of solid copper, making it the only tracer wire you'll need for horizontal directional drilling. Ideal for bores under roads, sidewalks, buildings, or existing land that cannot be disturbed.
- 1150 lb break load for maximum strength in horizontal directional drilling
- Six times the breaking strength of solid copper
- 11% lighter than solid copper
- Extra-high strength copper-clad steel (CCS) core for strength and corrosion resistance
- No theft incentive - bonded metals cannot be separated
- 21% conductivity ensures reliable locate performance
- Direct burial HDPE insulation (45 mil only)
- Color-coded for APWA utility identification
- Stable, long-term pricing vs. copper
- Made in the USA
- 5-Year Warranty
Features
Features
- Ultra Heavy Duty Strength – Industry-leading performance for directional drilling
- Extra-High Strength CCS – Optimized for extreme tensile loads and long service life
- APWA Colors – Compliant marking for any utility
- Direct Bury Insulation – 45 mil thick-walled, stress crack-resistant HDPE
- American Made – Domestic manufacture for assured quality
Specifications
Specifications
| Gauge | 12 AWG |
| Conductor Type | SoloShot Extra-High Strength Copper-Clad Steel (CCS) |
| Break Load | 1150 lbs |
| Conductor Diameter | 0.0808" |
| DC Resistance | 19.22 ohms/1000 ft |
| Insulation | 45 mil HDPE - 600V |
| Conductivity | 21% IACS minimum |
| Temperature Rating | -40°F to +176°F |
| Standards | ASTM B1010, ASTM B910, ASTM D1248 |
| Available Colors | Blue, Green, Black, Orange, Purple, Red, White, Yellow |
Additional Information
Additional Information
SoloShot™ Extra-High Strength Tracer Wire System
Engineered for horizontal directional drilling projects requiring maximum reliability and strength.
For more utility locating solutions, see the Copperhead Utility Locating System.
What's in the Box
What's in the Box

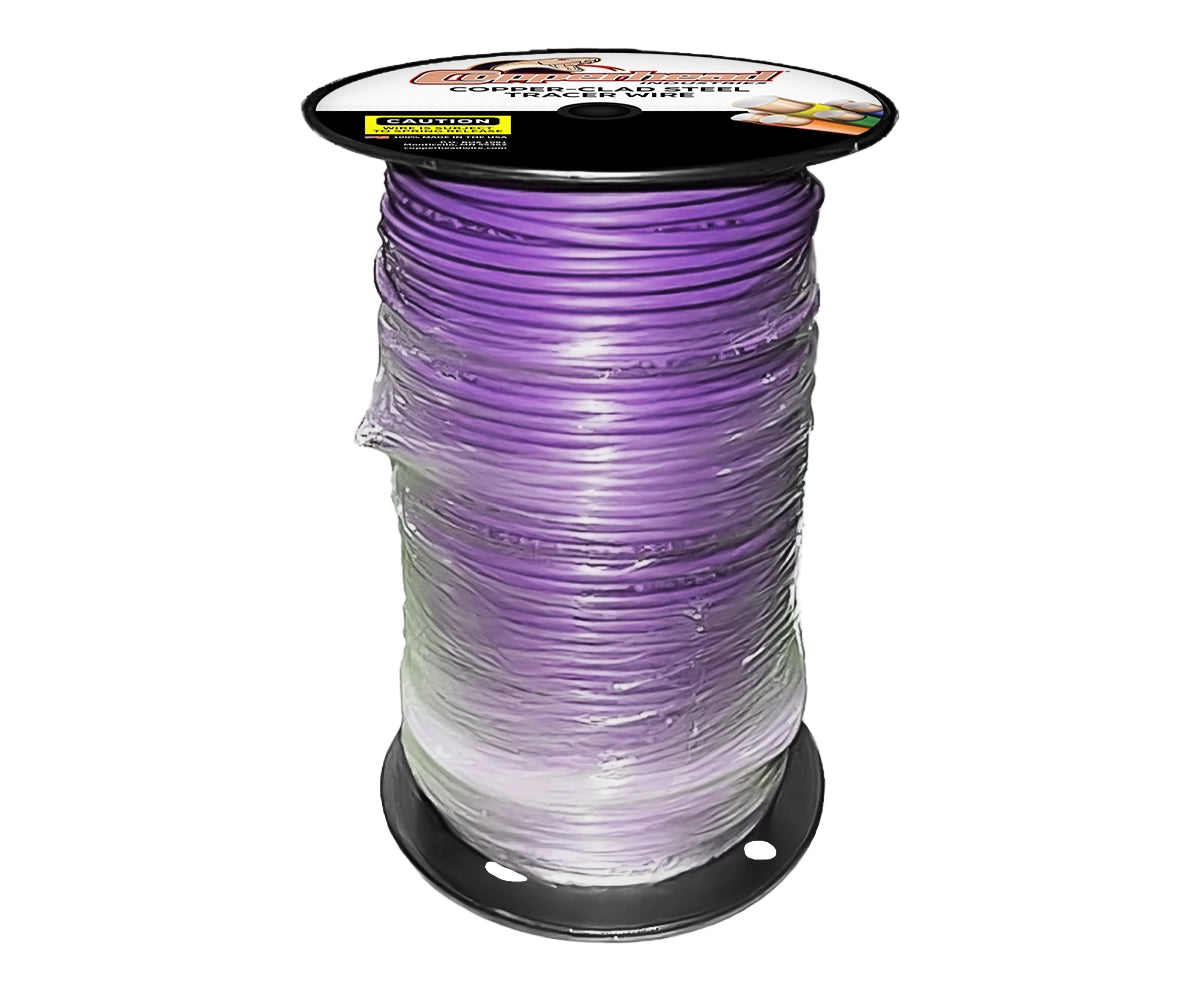

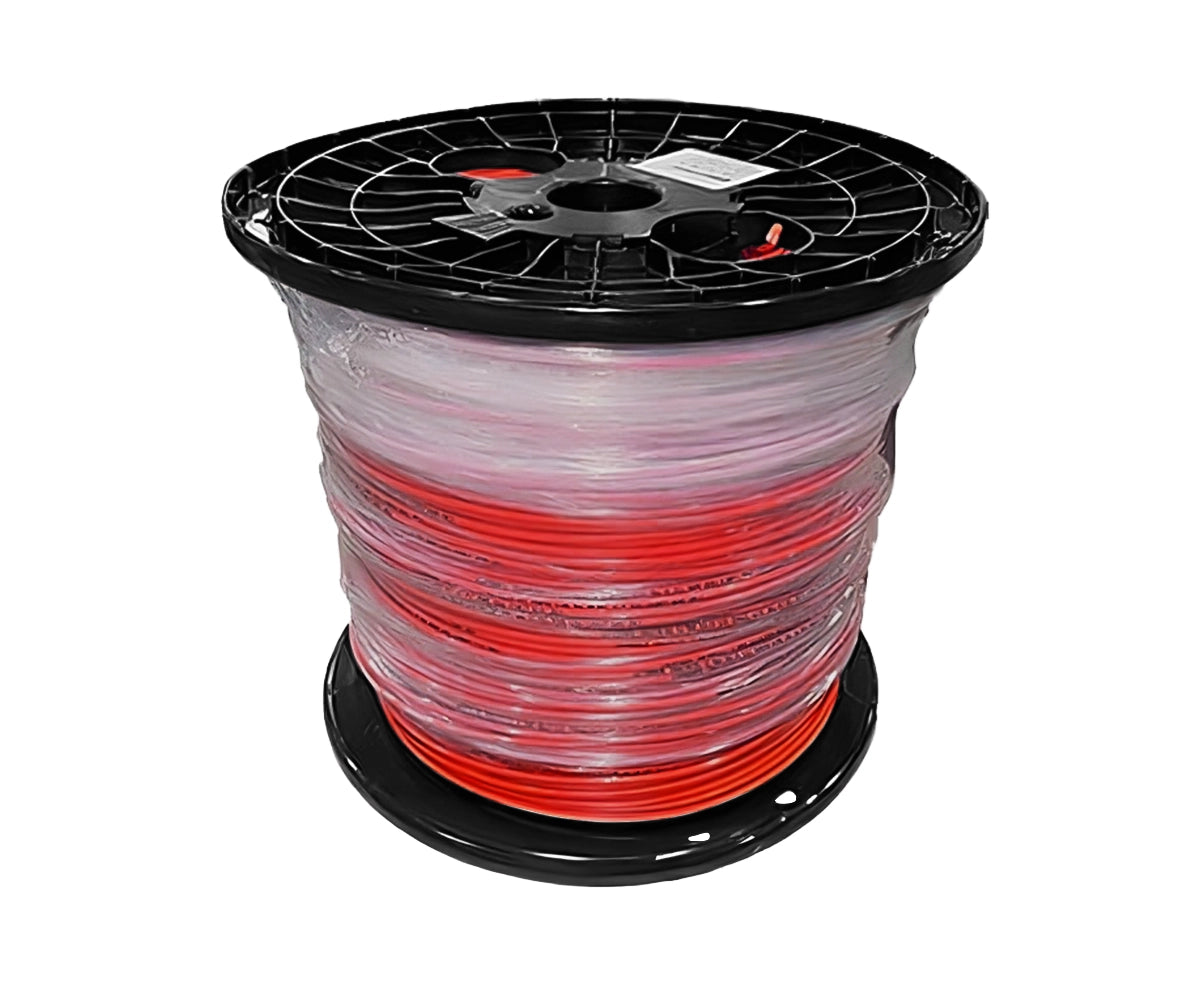

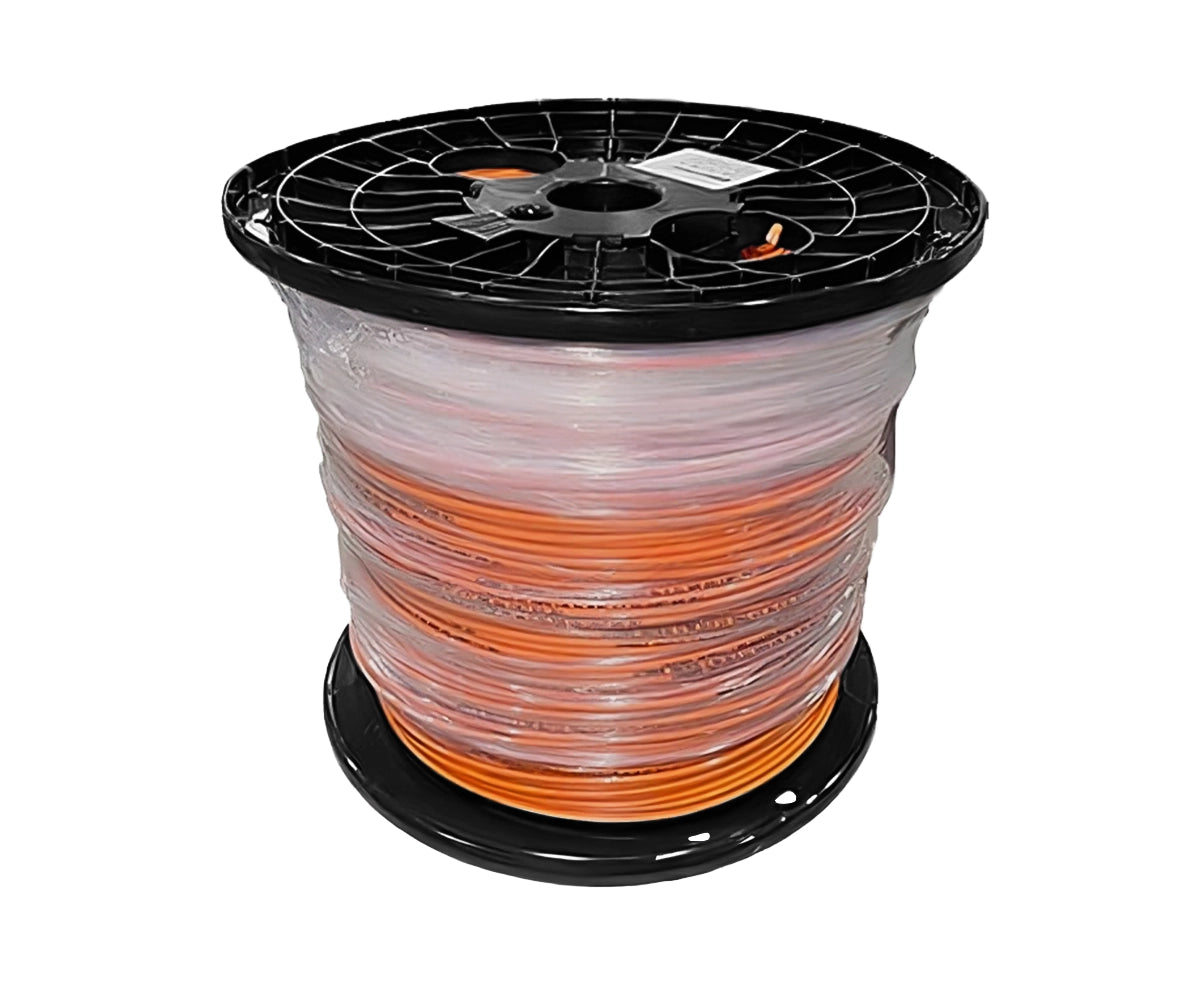

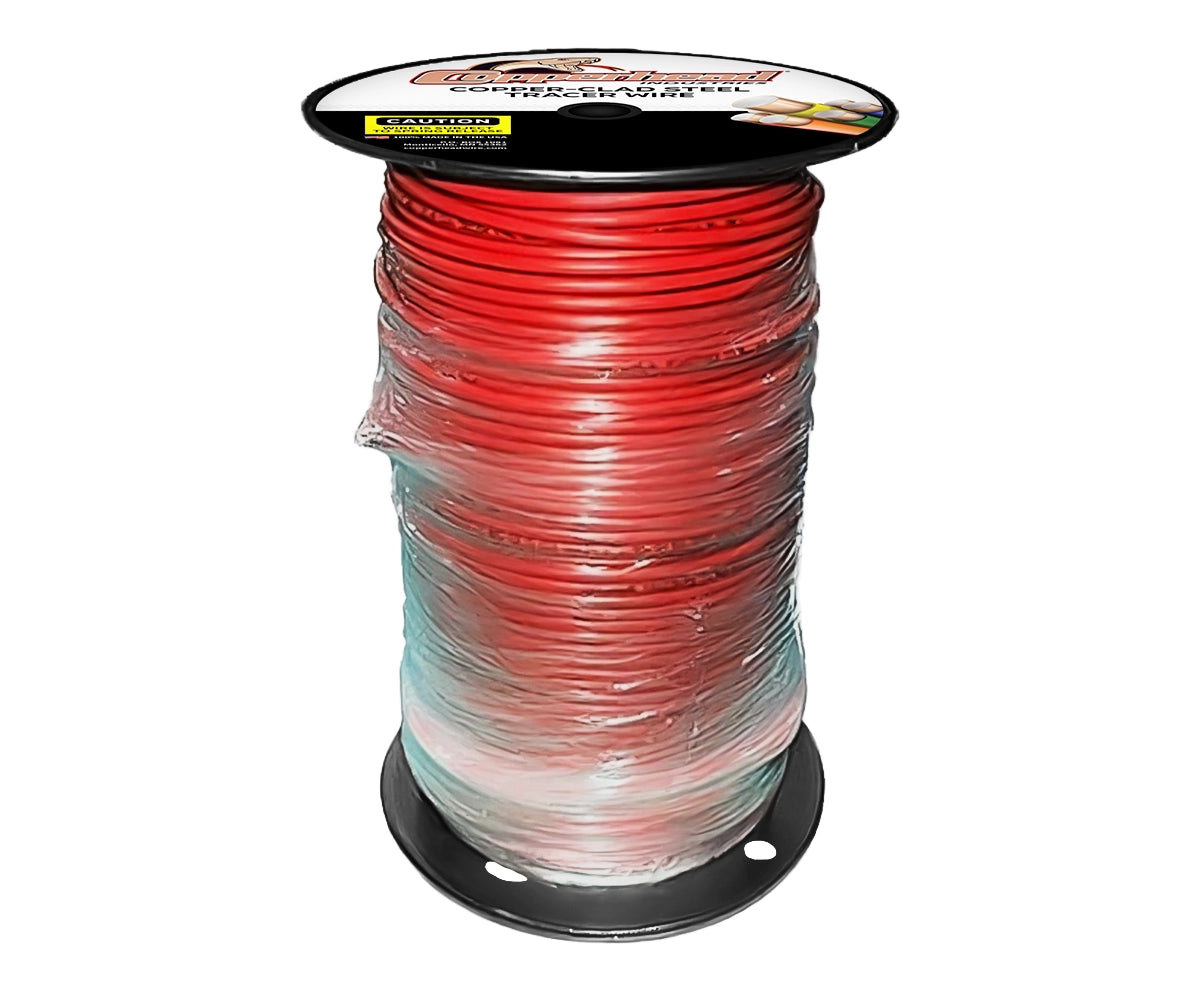

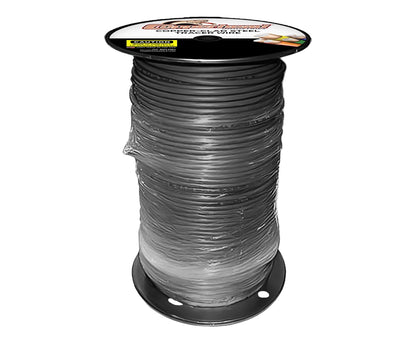

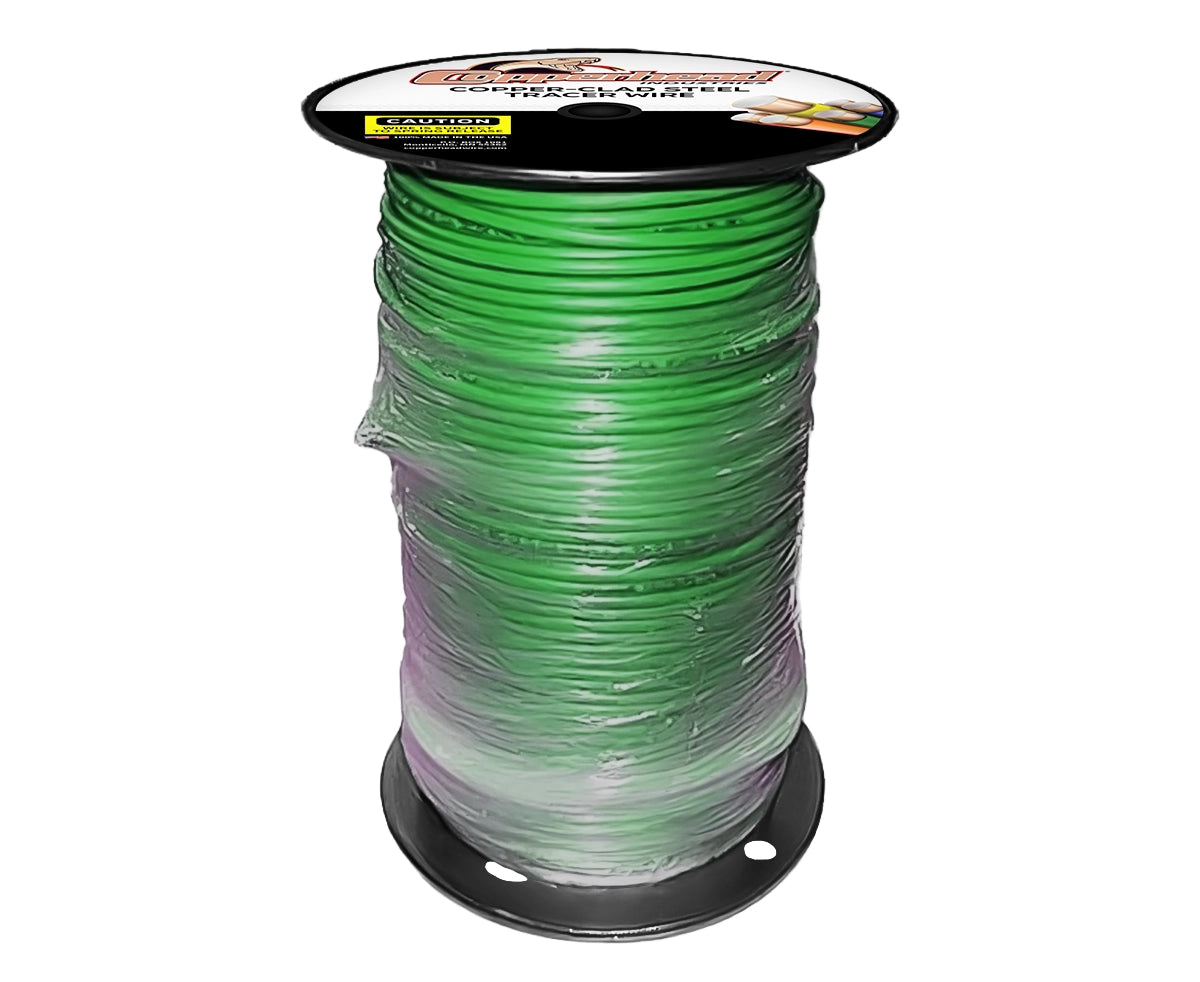

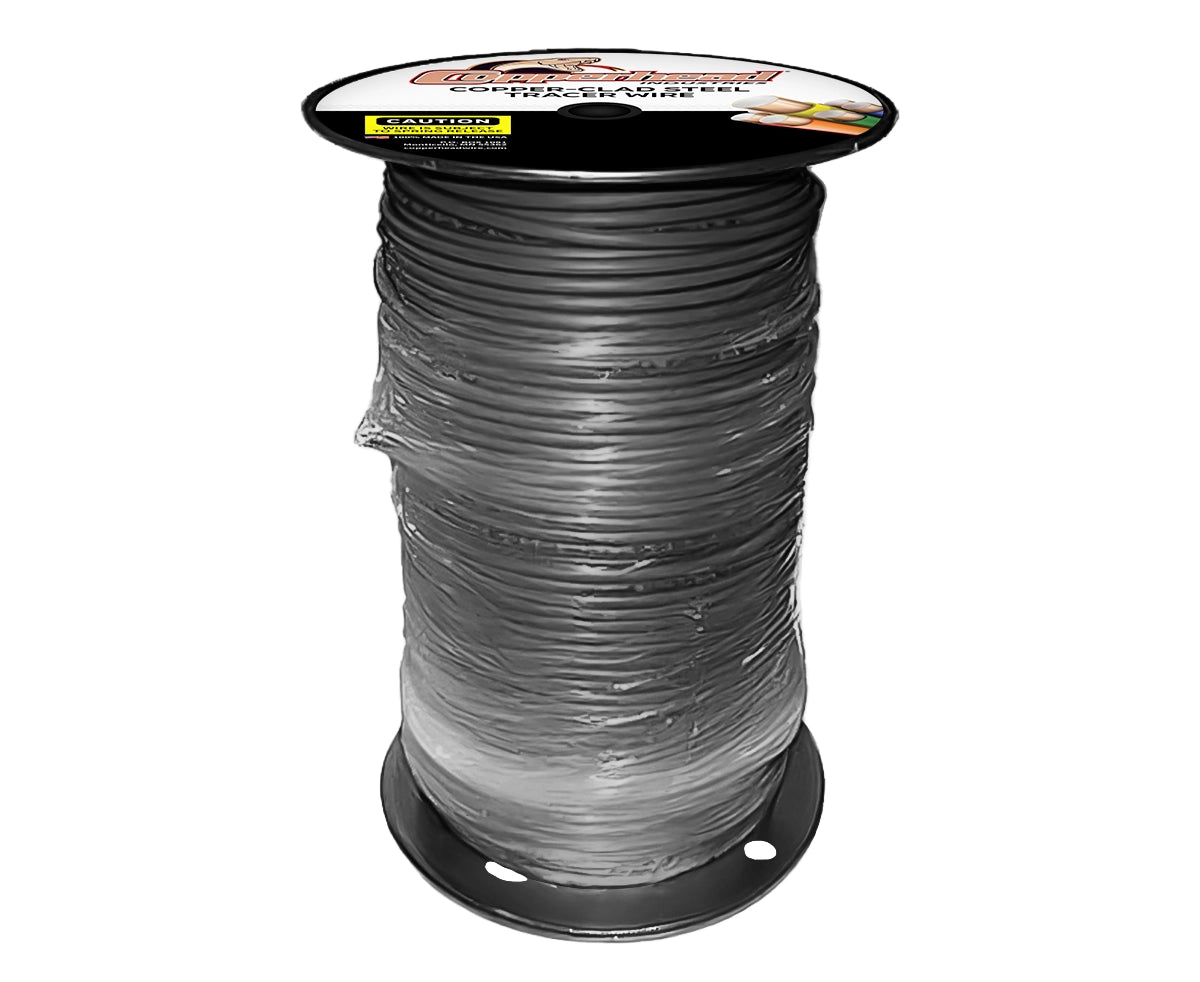

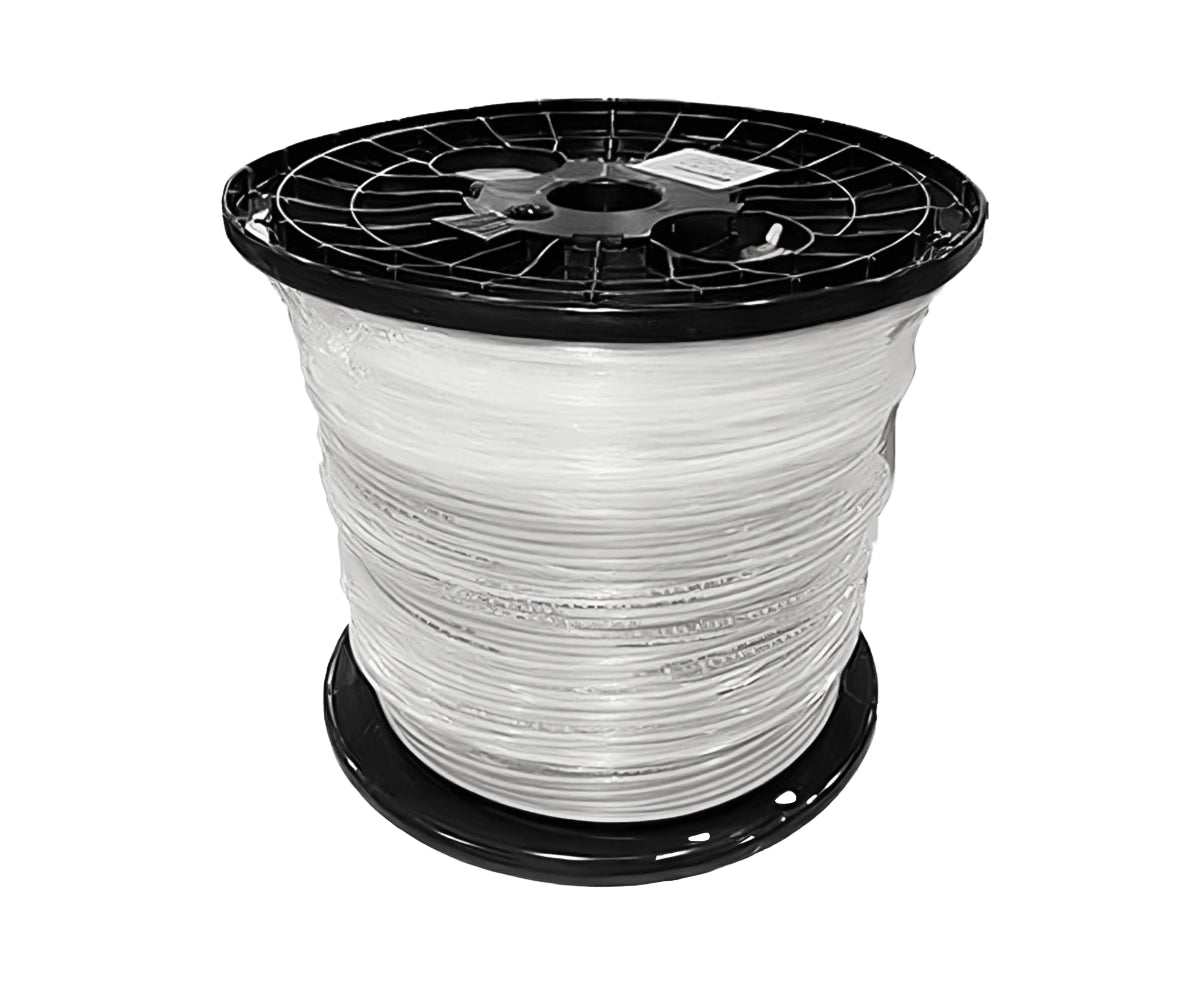

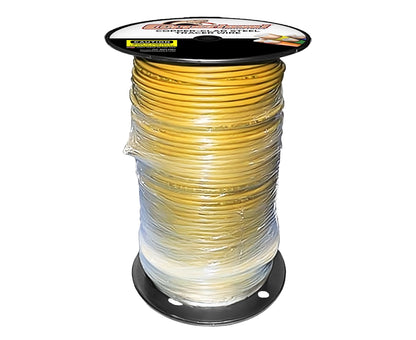

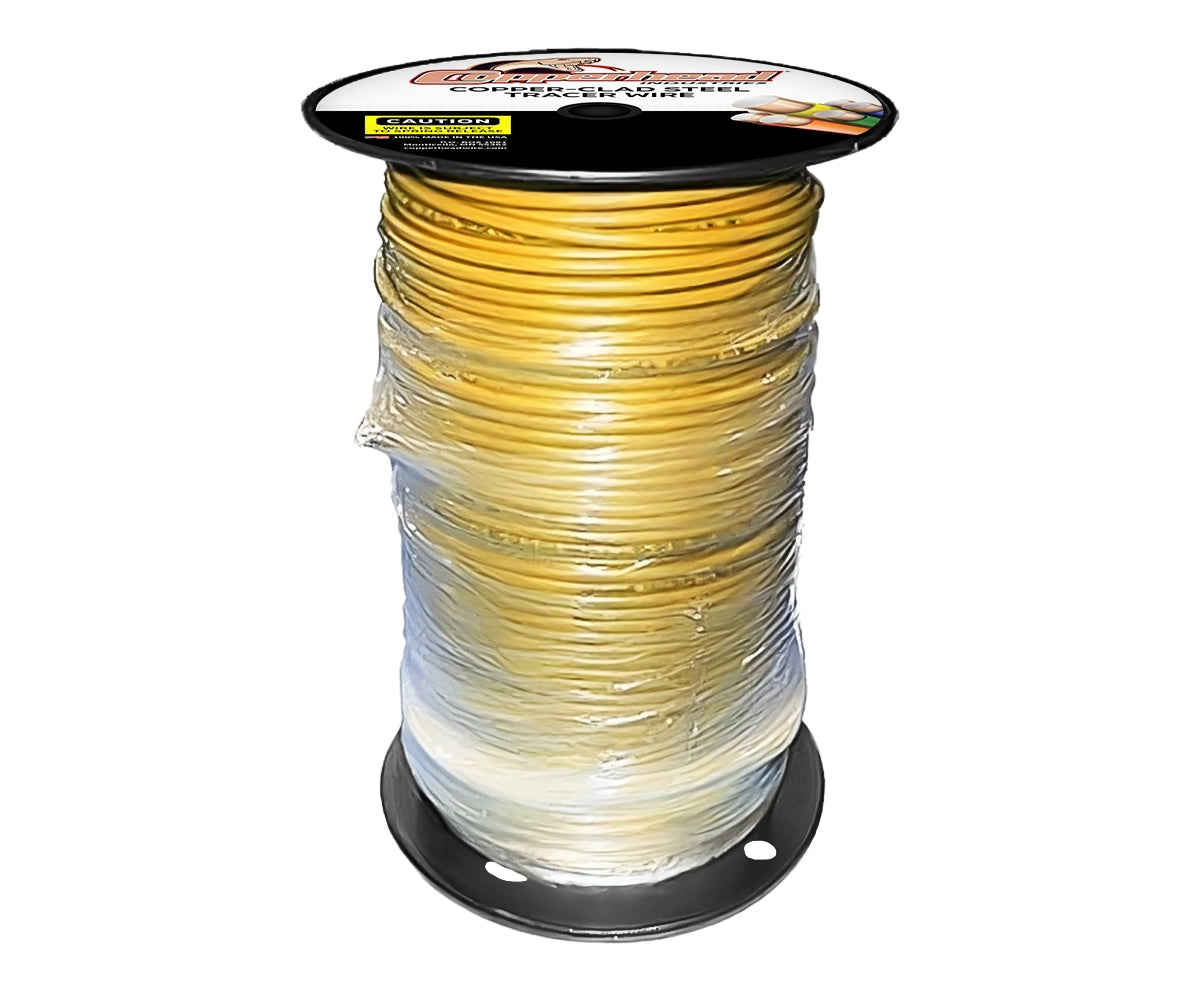

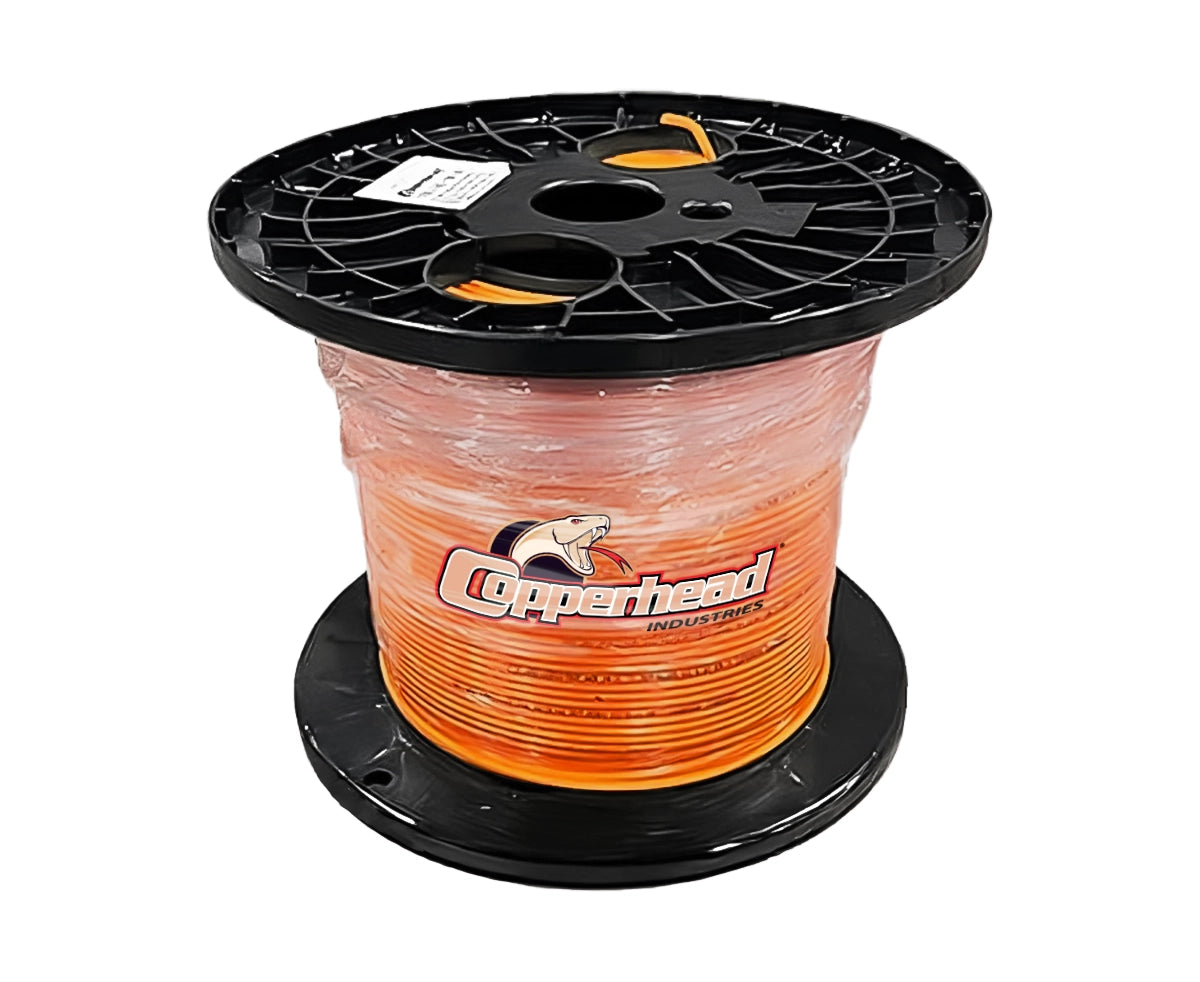

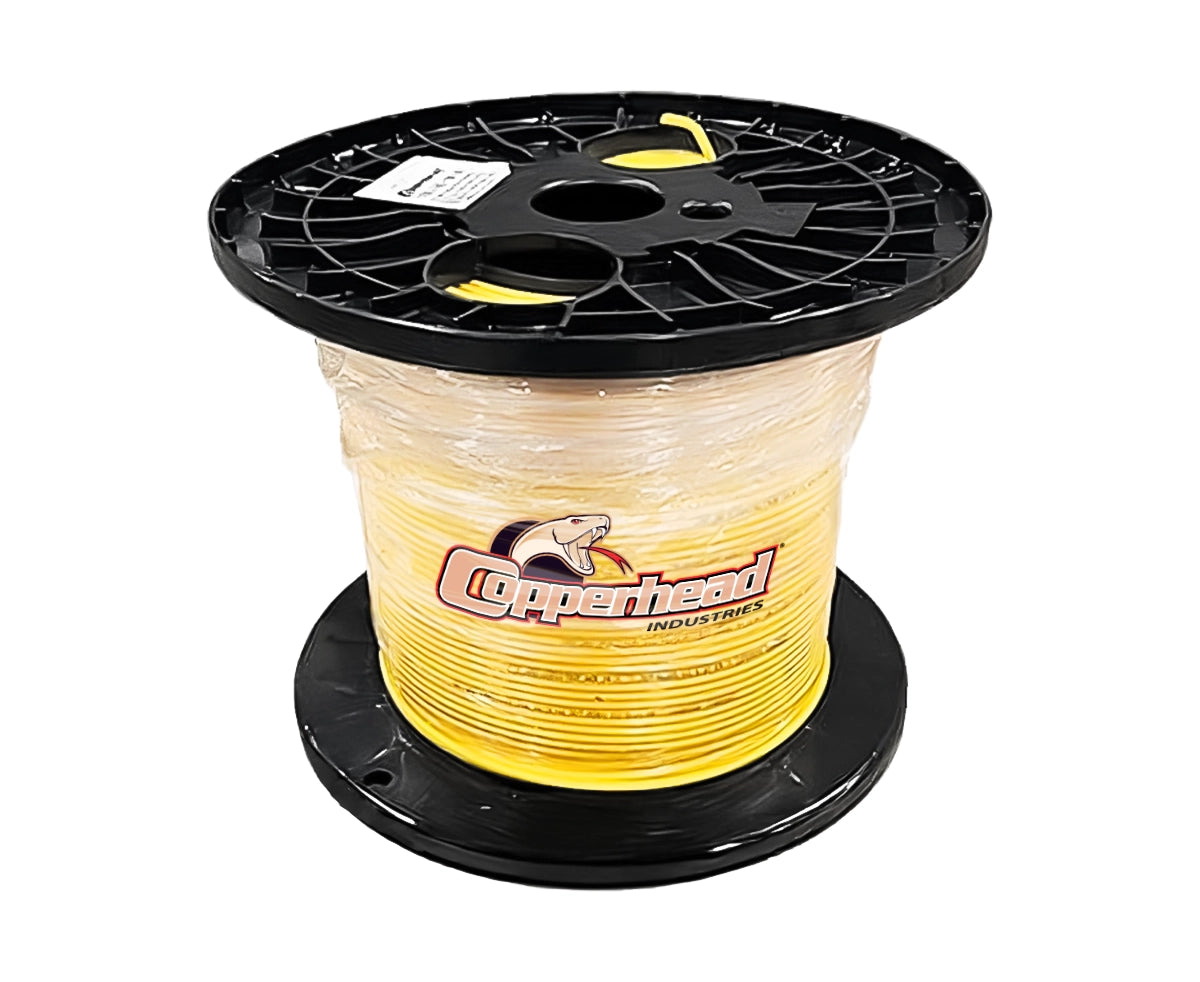

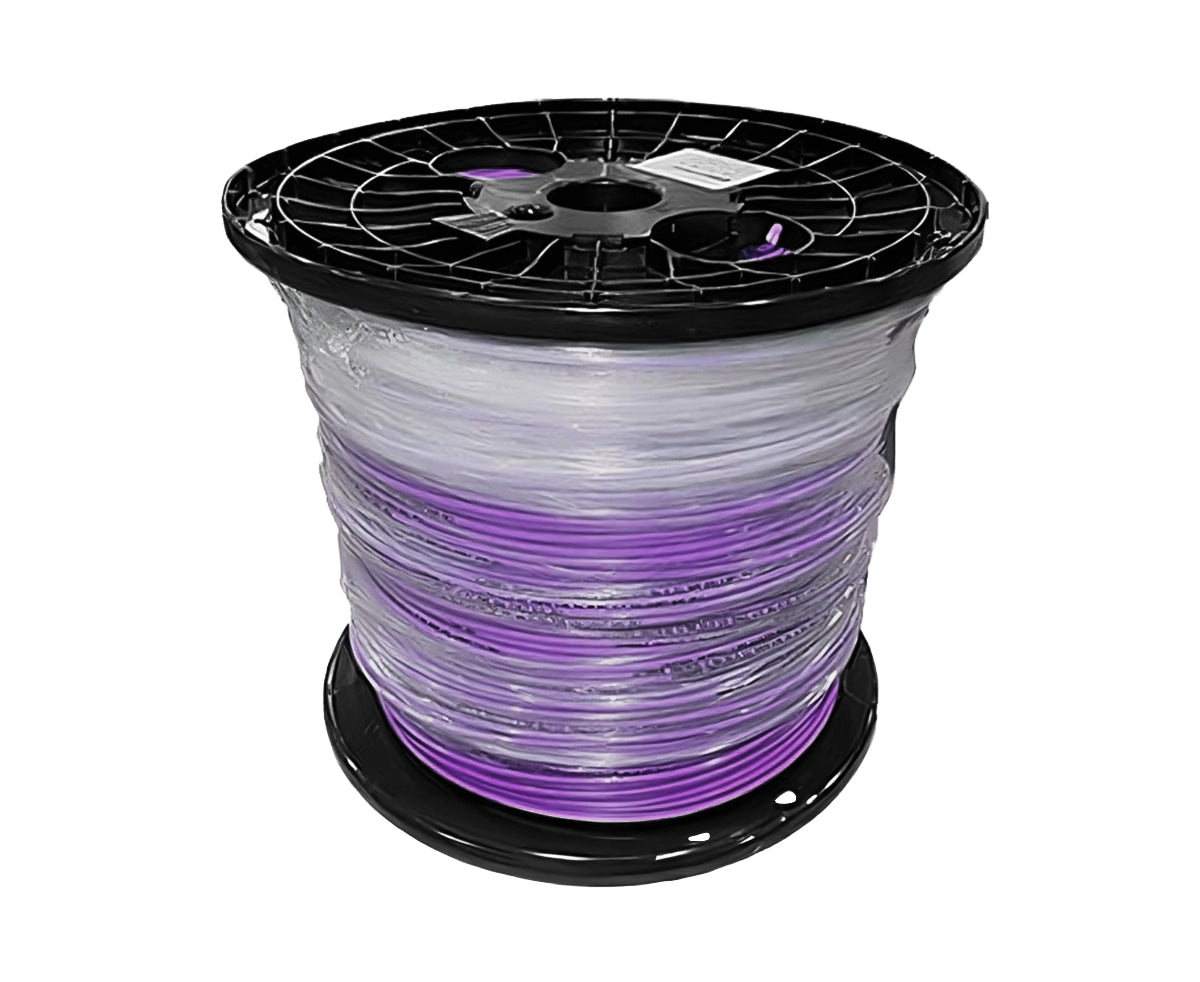

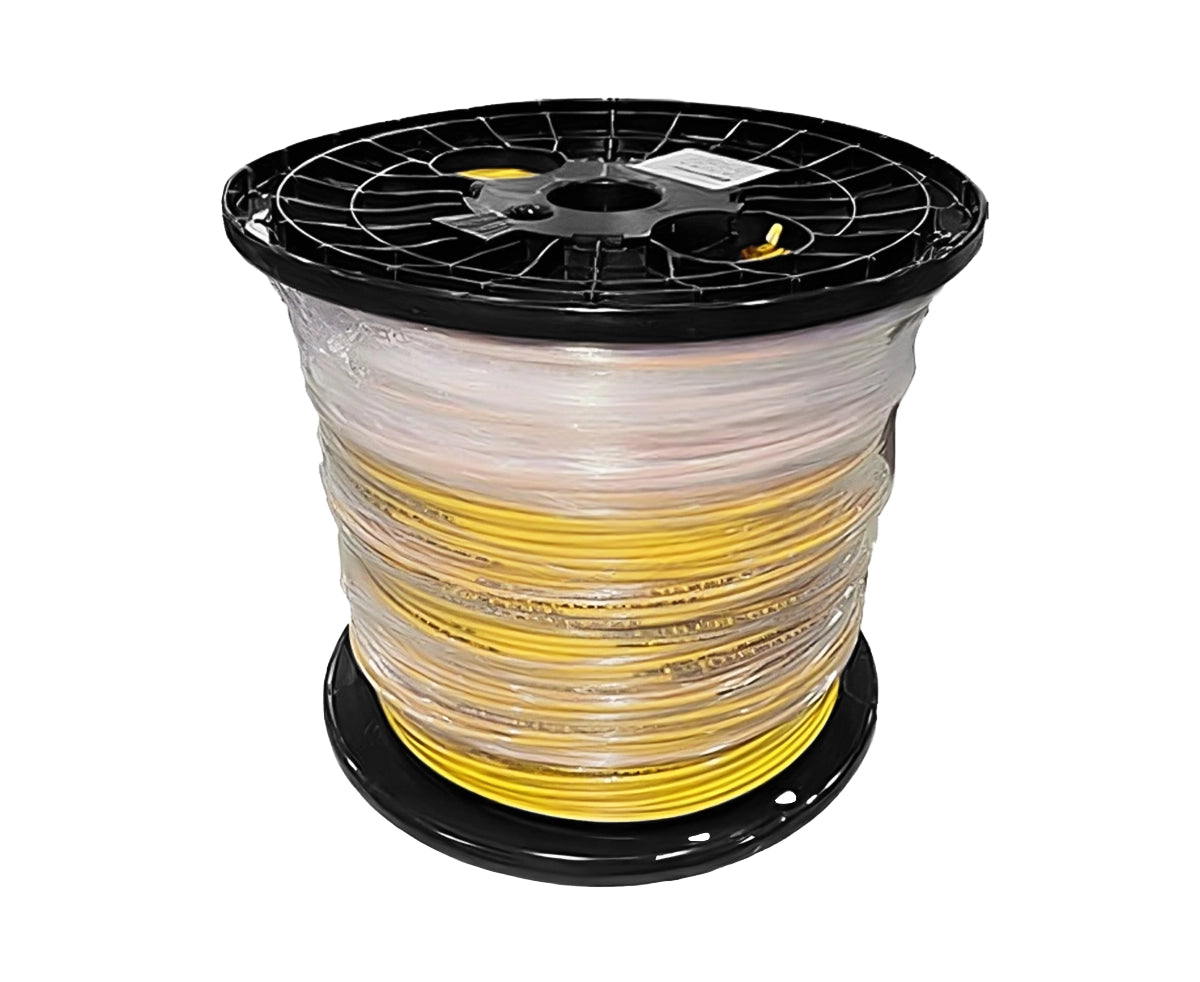

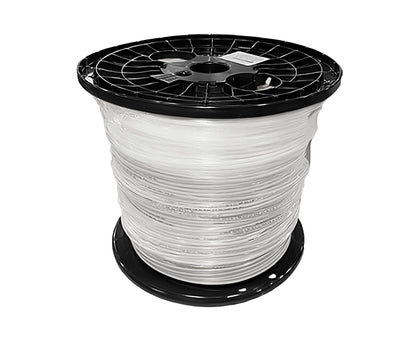

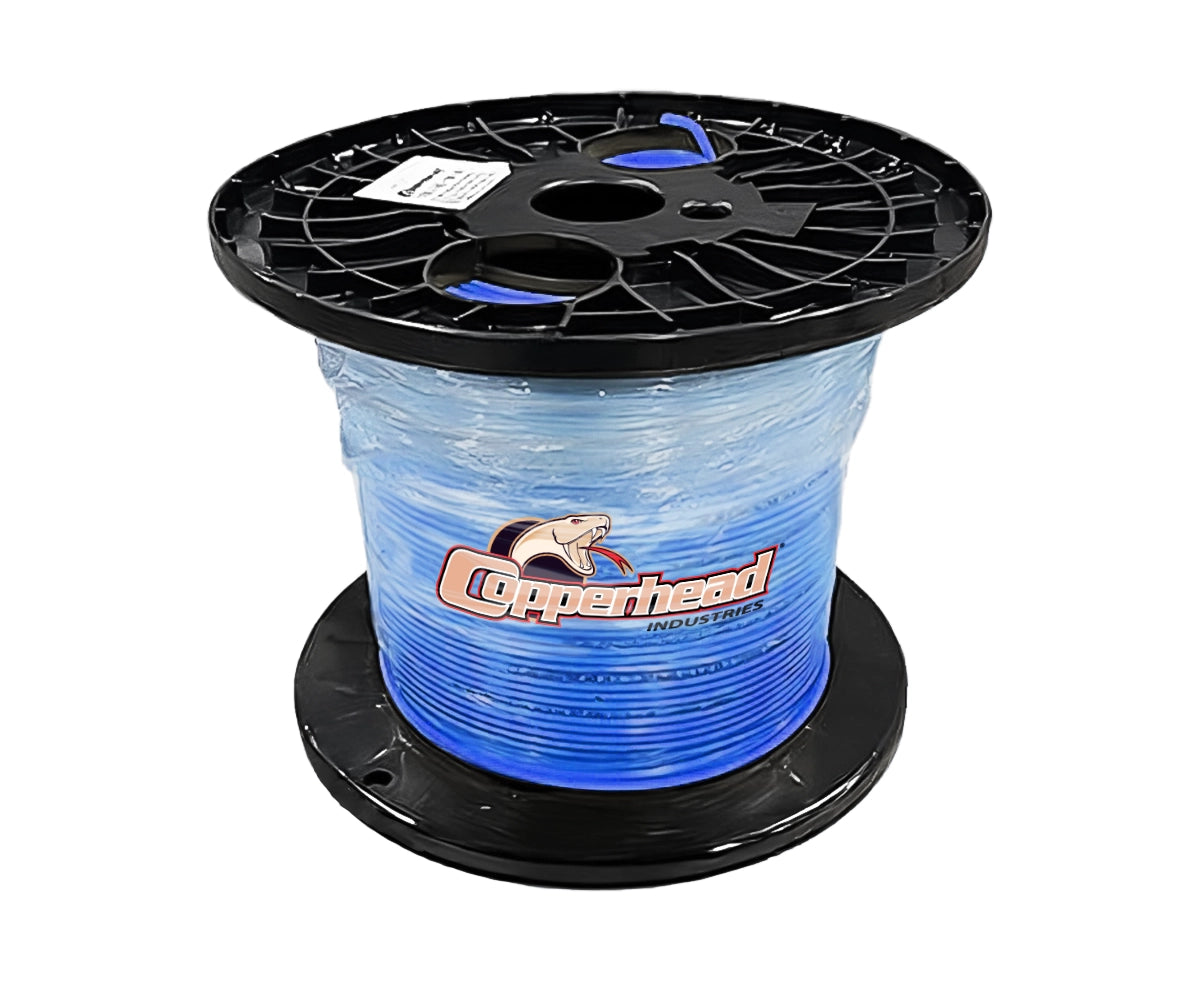

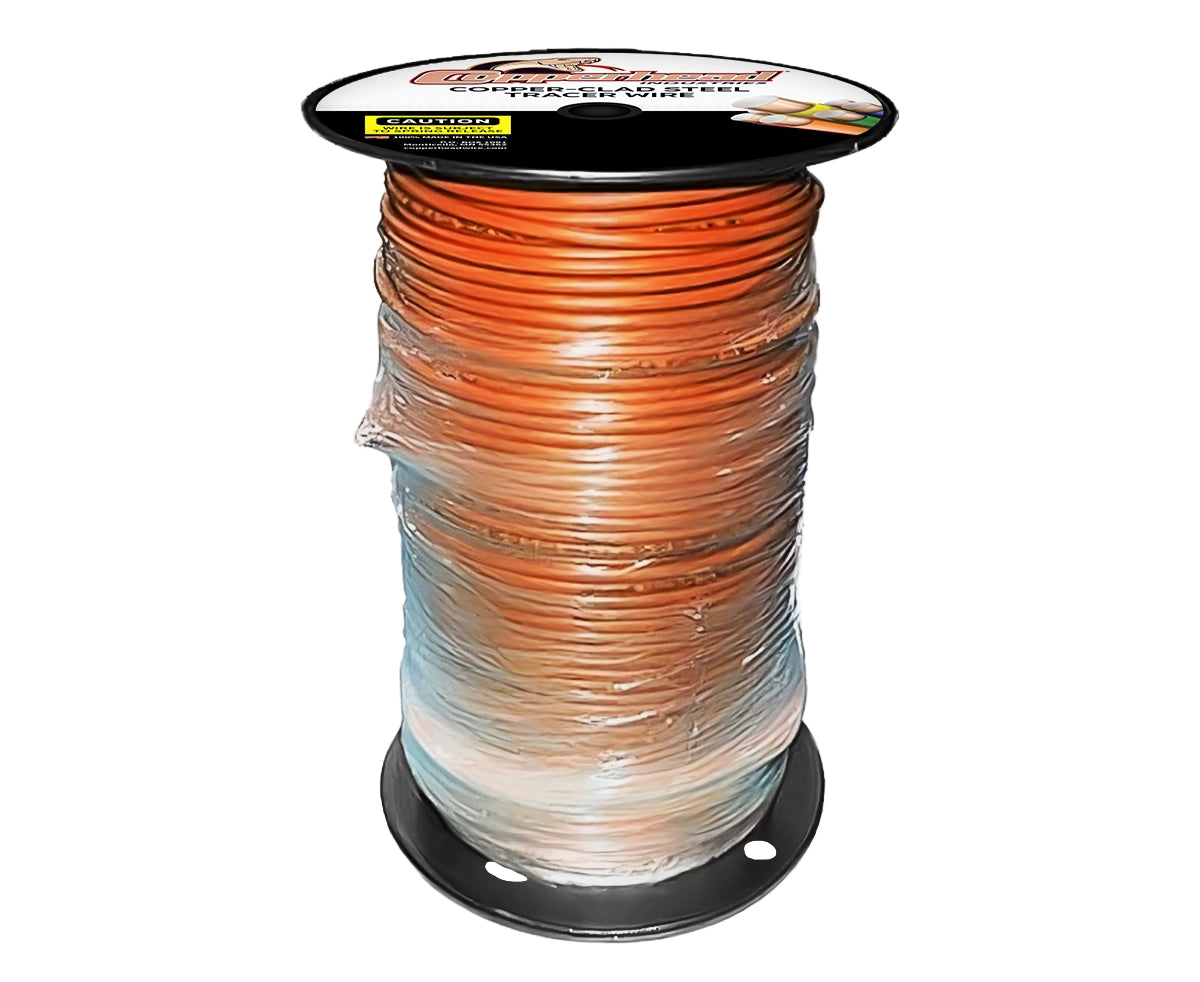

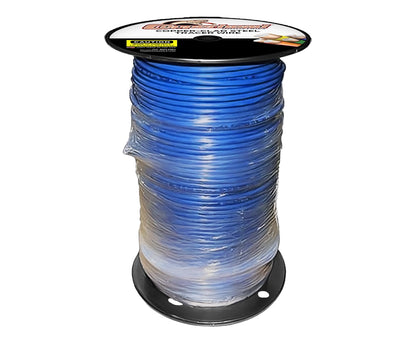

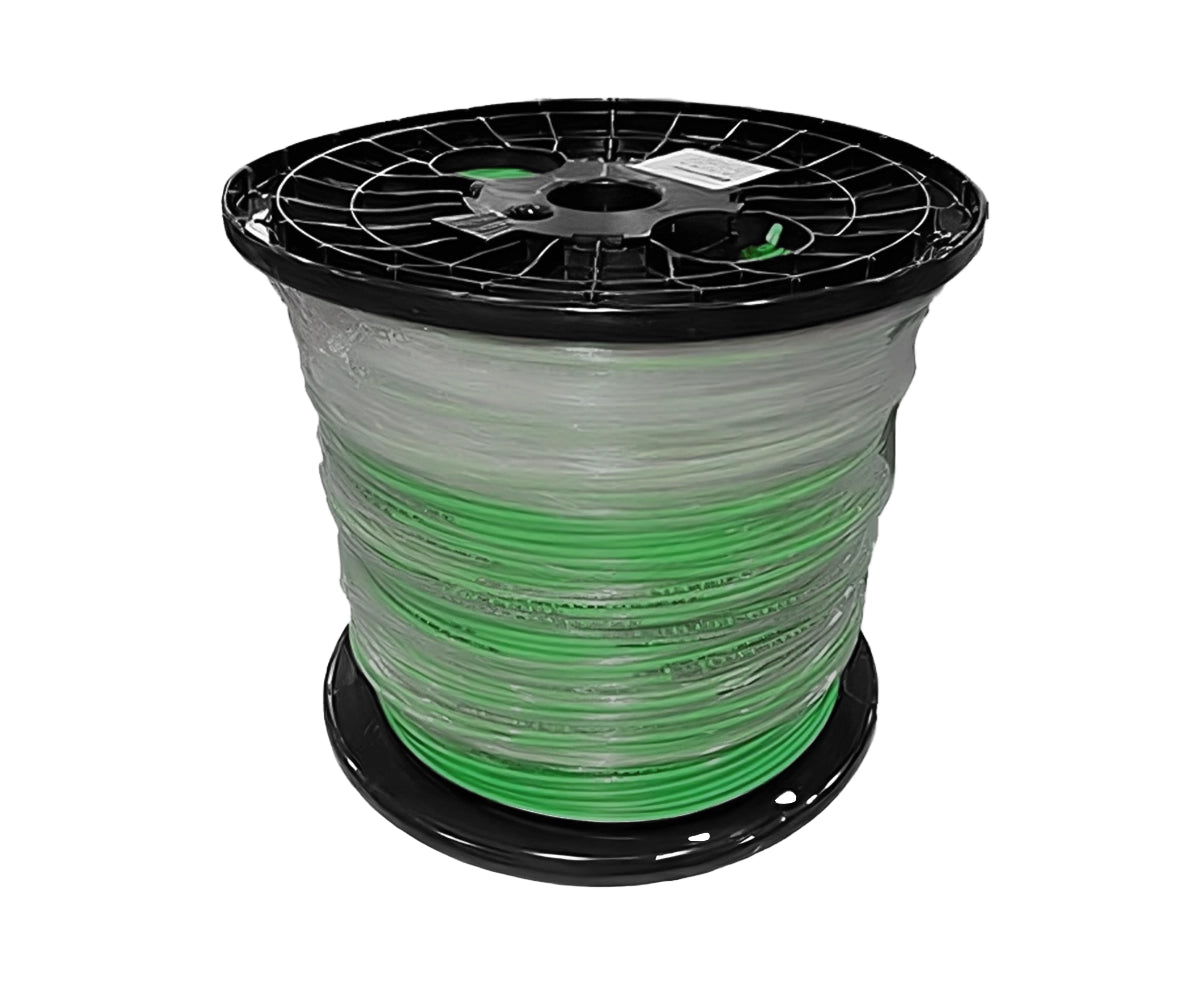

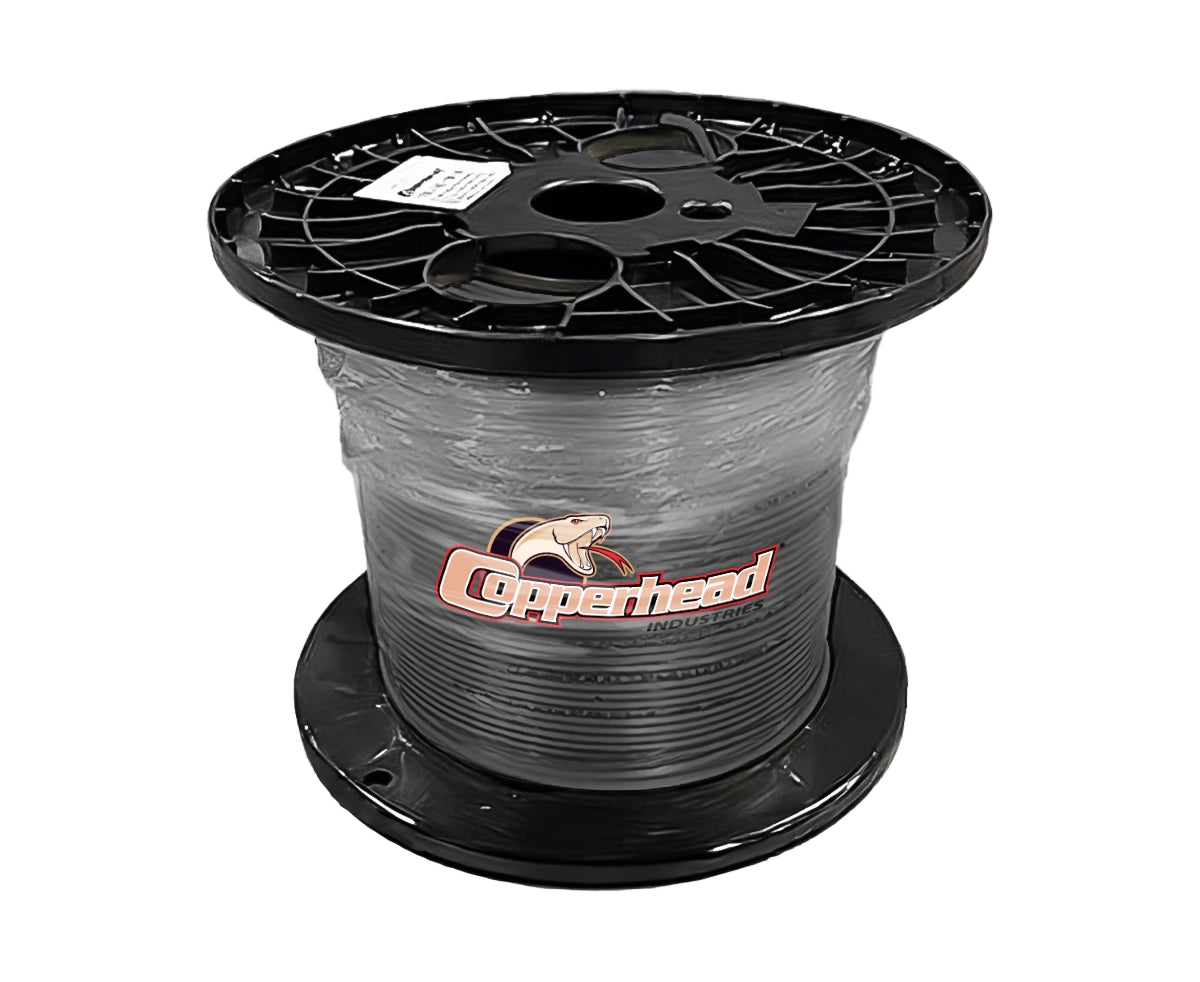

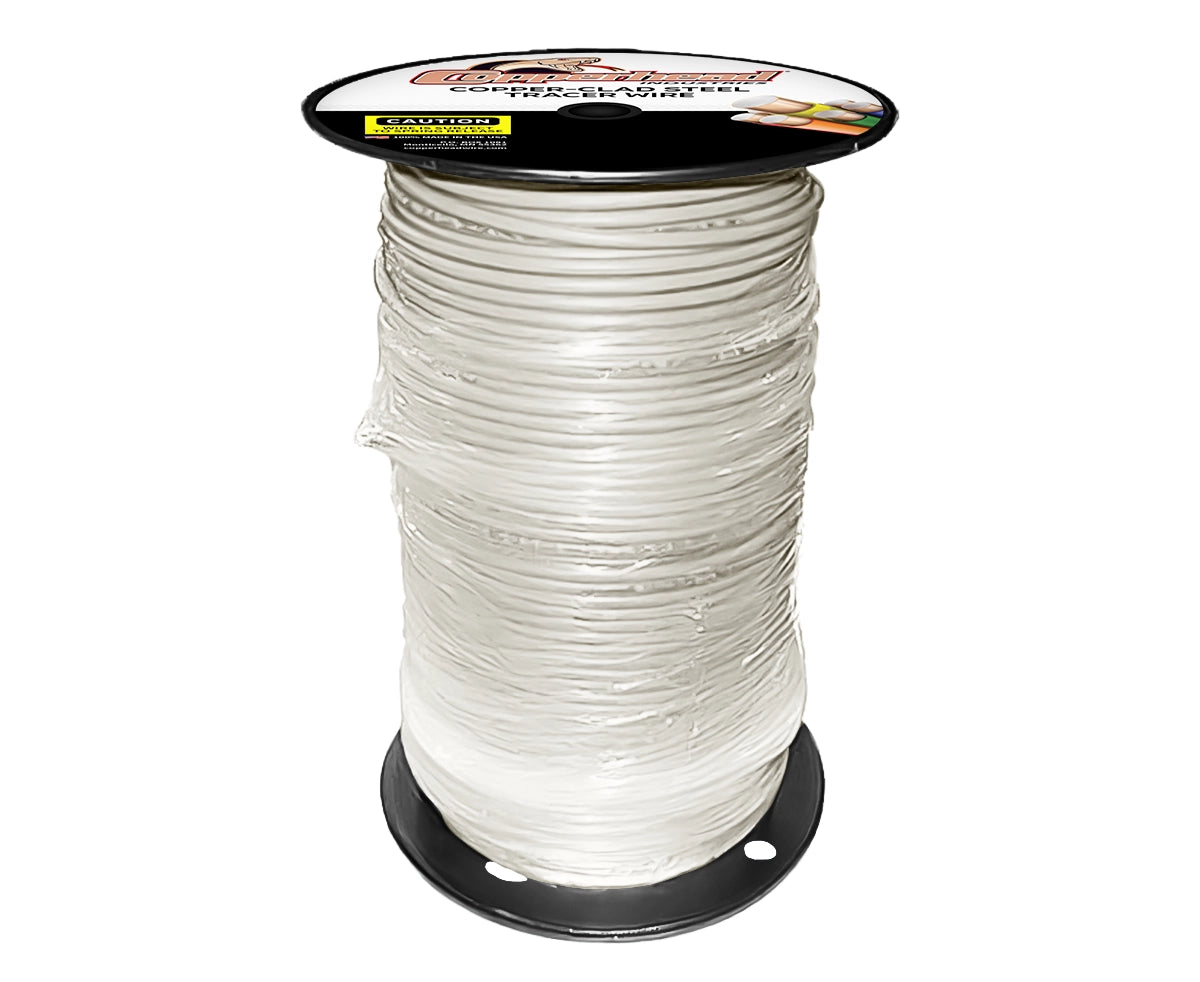

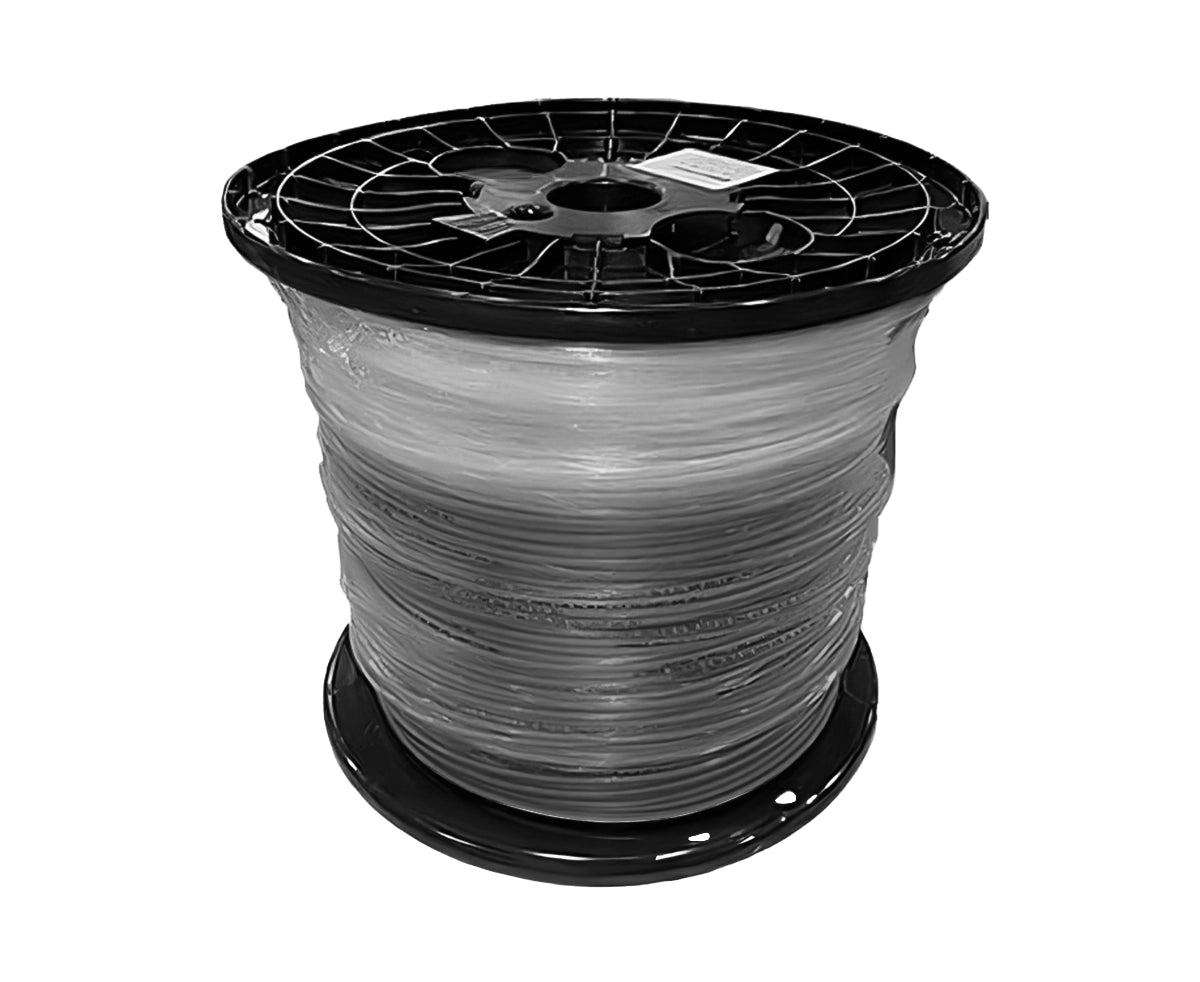

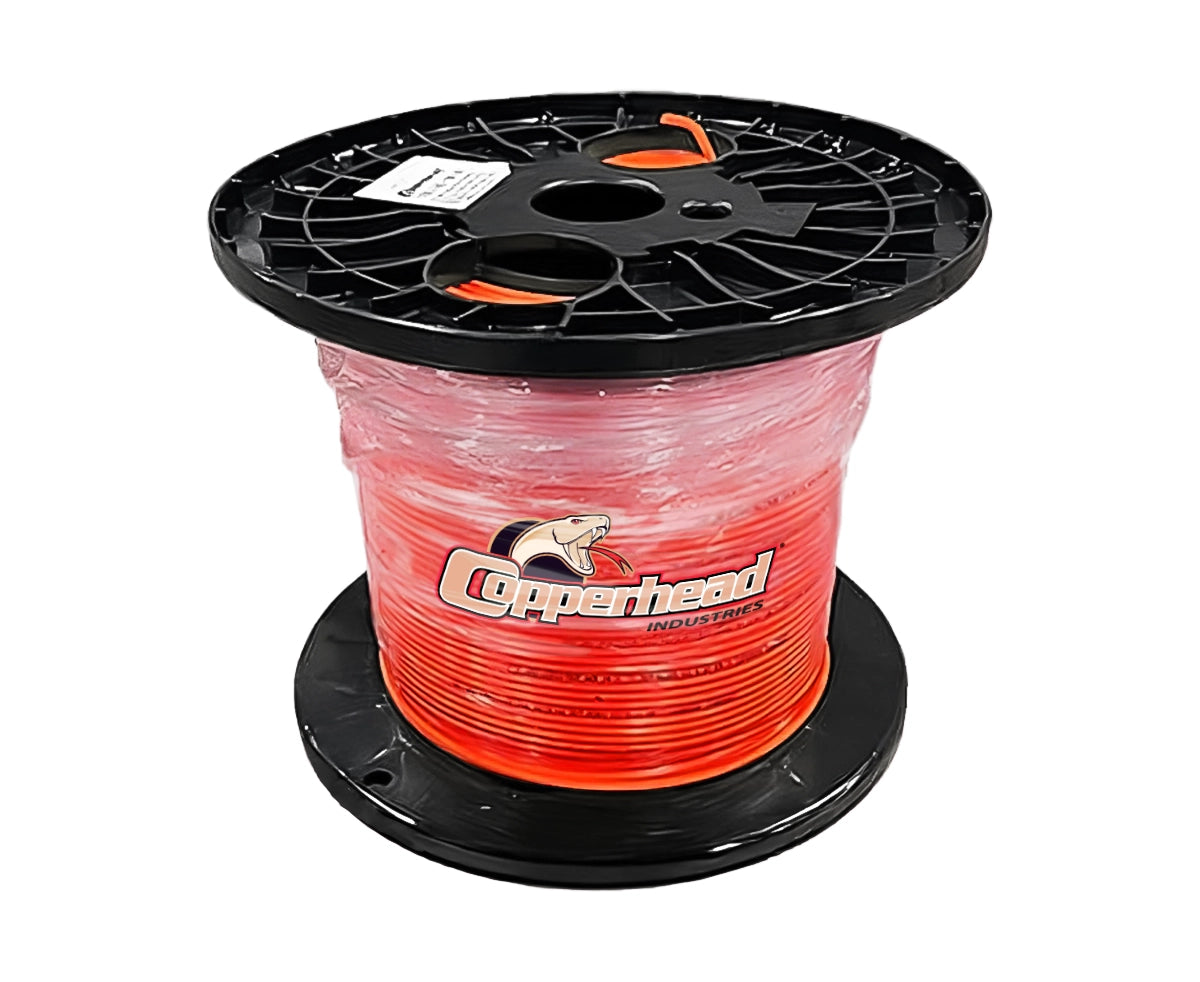

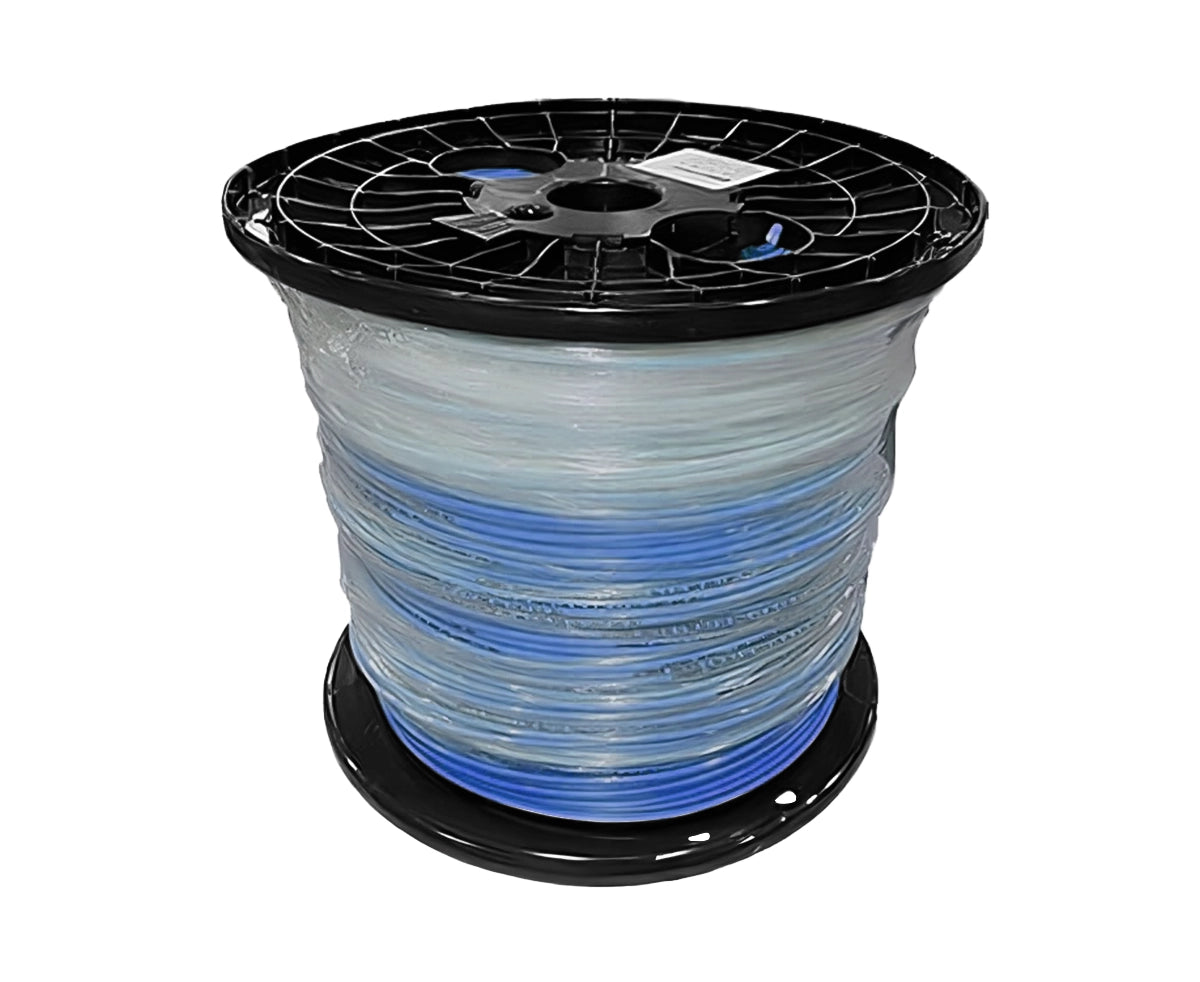

- Qty 1 - SoloShot™ Extra-High Strength 12AWG Tracer Wire Spool (500' / 1000' / 2500' length)
