Description

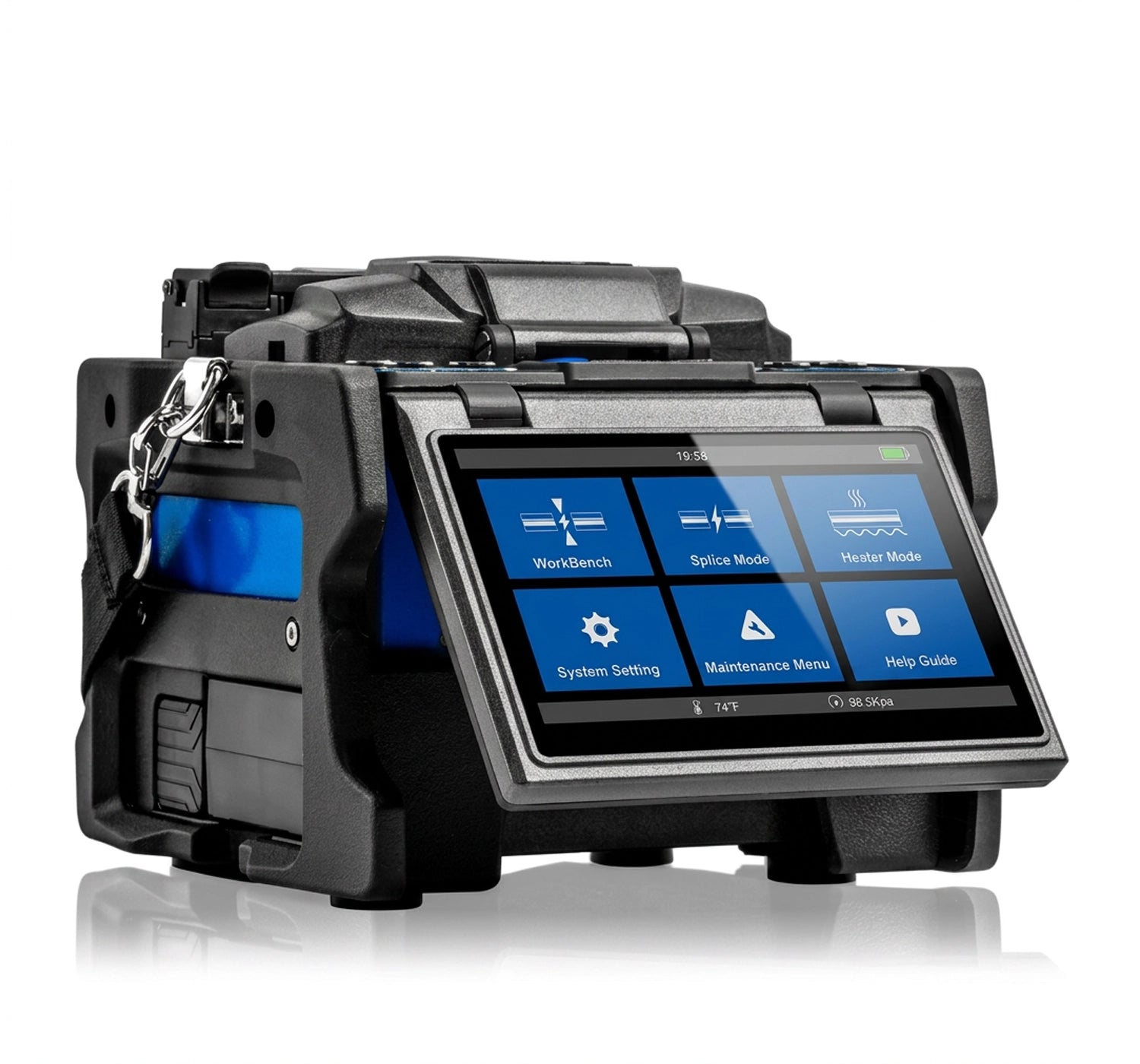

The SPARC Fusion Splicer, Clad Alignment II is an advanced Clad Alignment Fusion Splicer. The device is engineered for fiber optic professionals, combining rapid splicing times with advanced features for reliability and efficiency.The full touch screen and improved lighting make it suitable for use even in challenging environments.
Features
Features
- Splices fiber optic cables in as little as 4 seconds
- Pressure Heater Technology reduces heating time to only 9 seconds
- Versatile fiber holder for easy switching between standard and loose-tube fibers
- Improved lighting for higher visibility in dark settings
- Intuitive full touch screen for enhanced user experience
- 7000 mAh battery provides up to 300 cycles (splicing and heating) on one charge
- Limited Warranty
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| ALIGNMENT METHOD | ACTIVE V-GROOVE CLAD ALIGNMENT |
| APPLICABLE FIBER | SINGLE |
| TYPICAL SPLICE LOSS | SM: 0.03 DB / MM: 0.01 DB / DS: 0.05 DB / NZDS: 0.05 DB / G.657: 0.03 DB |
| SPLICE TIME | QUICK MODE: AVG. 4 SEC / SM MODE: AVG. 5 SEC |
| SPLICE PROGRAMS | MAX 300 MODES |
| HEATING TIME | AVERAGE: 13 SECONDS |
| PROTECTION SLEEVE | 20 MM - 60 MM |
| SPLICE MEMORY | 100,000 DATA / 10,000 IMAGES |
| BATTERY CAPACITY | 7000 MAH / 350+ CYCLES (SPLICING + HEATING) |
| POWER SUPPLY | AC INPUT: 100-240V ~ 50/60HZ; DC INPUT (USB-C): 5-20V (USB PD MAX 45W) |
| MAGNIFICATION | X360, X520 WITH UNLIMITED DIGITAL ZOOM |
| DIMENSIONS (W X D X H) | 6.18" X 5.79" X 5.39" (157 MM X 147 MM X 137 MM) |
| WEIGHT | 3.97 LBS (1.80 KG) |
| UPC# | 810215350759 |
What's in the Box
What's in the Box
- Qty 1 - SPARC Fusion Splicer, Clad Alignment II
