Description

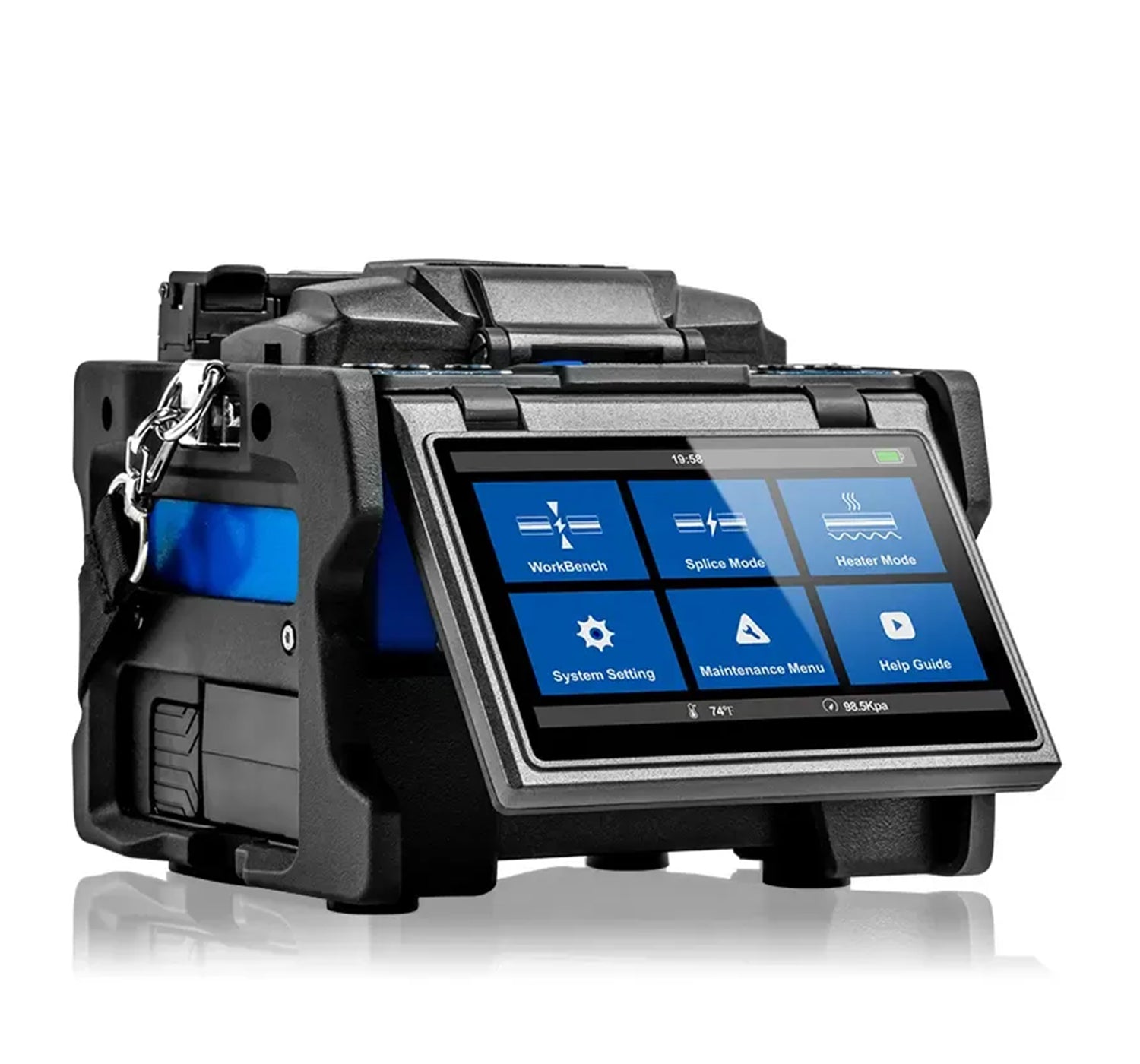

The SPARC™ Core Alignment Fusion Splicer II is an advanced Core Alignment Fusion Splicer. It ensures impeccable fiber splicing precision, reliability, and efficiency. Engineered for fiber optic professionals, it combines rapid splicing times with cutting-edge features, offering a seamless and dependable splicing experience even in challenging environments.
Features
Features
- Splices fiber optic cables in as little as 4 seconds
- Magnetic fiber holder to work continuously from cleaving to splicing
- Versatile fiber holder to easily switch between standard and loose-tube fibers
- Improved lighting for higher visibility in dark settings
- Intuitive full touch screen for enhanced user experience
- 7000 mAh battery provides up to 300 cycles (splicing and heating) on one charge
- Limited Warranty
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| SPARC™ FIRE CORE | |
| ALIGNMENT METHOD | CORE ALIGNMENT |
| APPLICABLE FIBER | SINGLE |
| TYPICAL SPLICE LOSS | SM: 0.01DB / MM: 0.01DB / DS: 0.03DB / NZDS: 0.03DB / G.657: 0.01DB |
| SPLICE TIME | QUICK MODE: AVG. 4 SEC. / SM MODE: AVG. 5 SEC / AUTO MODE: AVG. 7 SEC |
| SPLICE PROGRAMS | MAX 300 MODES |
| HEATING TIME | AVERAGE: 13S |
| PROTECTION SLEEVE | 20 MM - 60 MM |
| SPLICE MEMORY | 100,000 DATA / 10,000 IMAGES |
| BATTERY CAPACITY | 7000MAH / OPERATION CYCLE: 350+ CYCLES (SPLICING + HEATING) |
| POWER SUPPLY | AC INPUT: 100-240V ~ 50/60HZ DC INPUT (USB-C): 5-20V (USB PD MAX 45W) |
| MAGNIFICATION | X360, X520 WITH UNLIMITED DIGITAL ZOOM |
| MOTORS | 6 |
| DIMENSIONS (DXWXH) | 6.18" W X 5.79" D X 5.39" H / 157 MM (W) X 147 MM (D) X 137 MM (H) |
| WEIGHT | 4.14 LBS. (1.88KG) |
| UPC # | 810215350766 |
What's in the Box
What's in the Box
- Qty 1 - SPARC Fusion Splicer, Core Alignment II
