Description

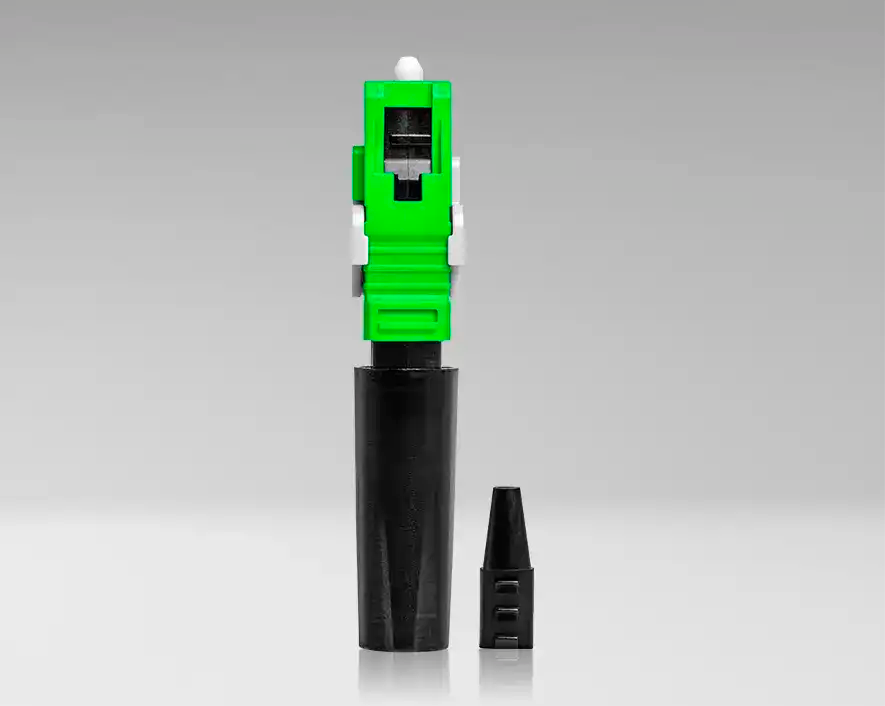

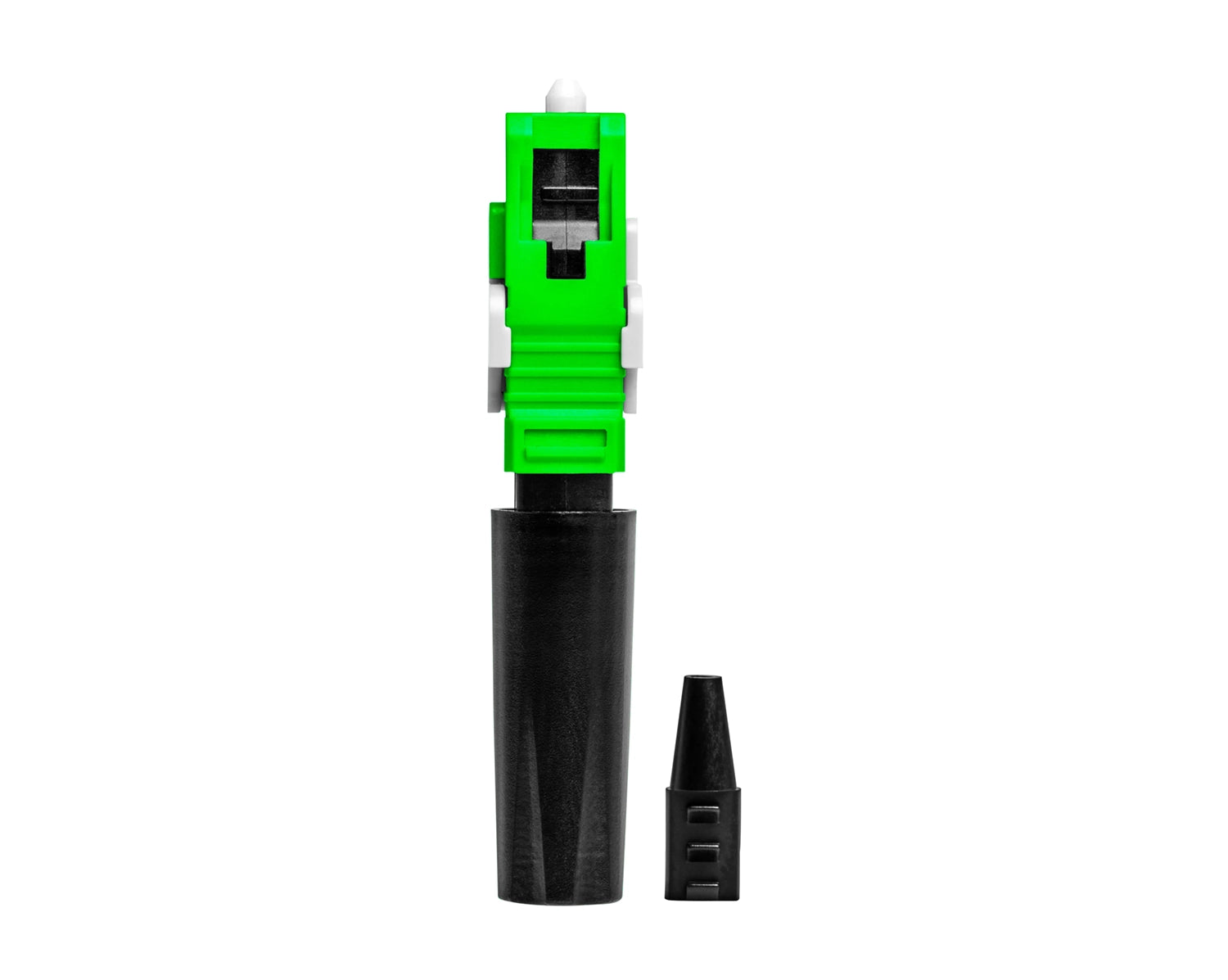

Jonard Tools' Mechanical Connectors for fiber optic cables provide a reliable and efficient solution for connectorizing 250 µm and 900 µm coated fibers. These connectors are ideal for quick field installations, offering a simple, tool-free setup that saves time and enhances productivity.
Features
Features
- SC/APC polish for excellent performance and minimal signal loss
- Works with both 250 µm and 900 µm coated fiber cables
- Easy to use with no special tools required, making it ideal for quick fieldwork
- Built to withstand demanding environments, ensuring long-lasting reliability
- INCLUDES: (10) SC/APC mechanical connectors
Specifications
| Technical Specifications | |
|---|---|
| CONNECTOR TYPE | SC |
| POLISH TYPE | APC (Singlemode) |
| FIBER TYPE | Singlemode |
| CABLE TYPES | 900 μm & 250 μm |
| INSERTION LOSS | AVG ≤ 0.3dB MAX ≤ 0.5dB |
| RETURN LOSS | APC ≥ 55dB |
| OPERATING TEMPERATURE | -40/+85℃ |
| STANDARDS | TIA/EIA 604-3 |
| DIMENSIONS | 2” x 0.35” x 0.43” (5.08 cm x 0.89 cm x 1.09 cm) |
| WEIGHT | 0.1 lb (45.4 g) |
| UPC # | 810132438523 |
Additional Information
| Product Videos | |
|---|---|
JONARD TOOLS RAPID LINC CONNECTOR GUIDE (SRL-SCA) |
What's in the Box
What's in the Box
- Qty 10 – SC/UPC mechanical fiber connectors
