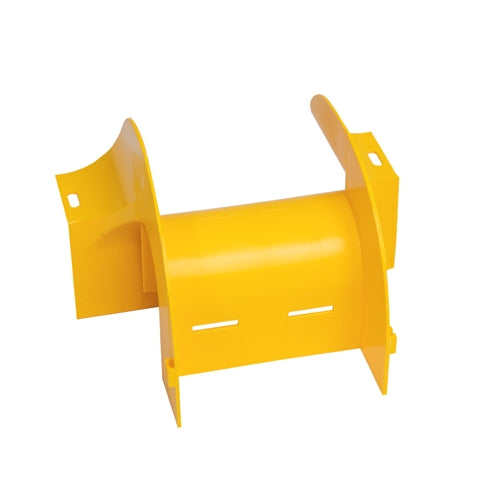

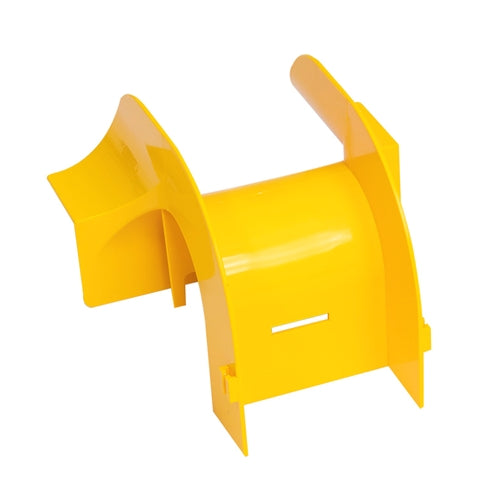

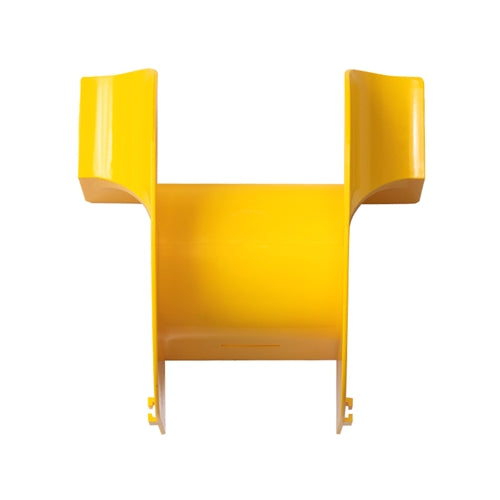

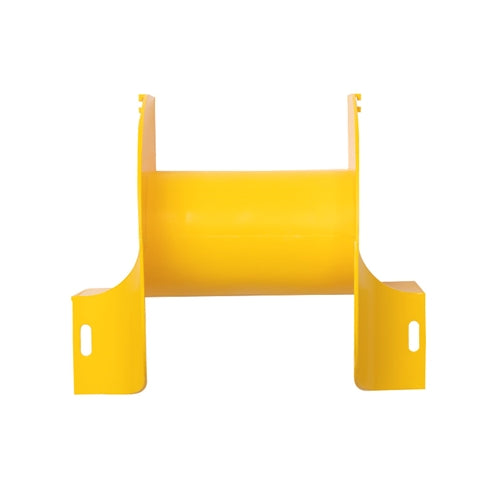

Spill Over

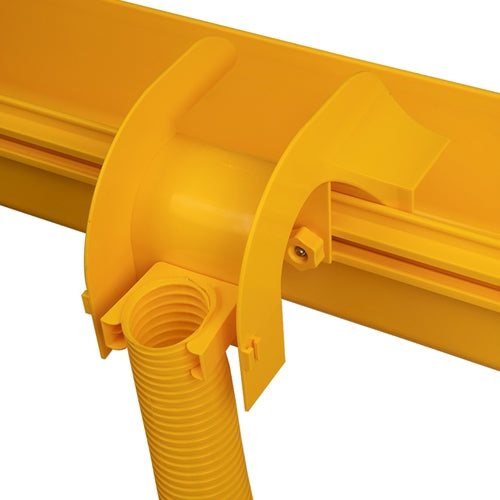

Side mounted spill overs provide a vertical exit from a horizontal fiber tray run, allowing cables to route into cabinets and racks below. Tool-free installation allows this spill over to be located and/or repositioned anywhere along a straight channel section.
Features
Features
- Use with appropriate Flexible Hose and Hose Bracket (each sold separately) to protect cables throughout the vertical drop
- Maintains minimum cable bend radius requirements
- Tool-free installation
- Lightweight, flame-retardant PVC (V-0 rated)
Specifications
Specifications
| Document | Description | Download |
|---|---|---|
| Spec Sheet | Product overview and specifications | |
| 2.5” Tech Drawing | Technical drawing for 2.5” Spill Over model | N/A |
| 3.5” Tech Drawing | Technical drawing for 3.5” Spill Over model | |
| 5” Tech Drawing | Technical drawing for 5” Spill Over model | N/A |
Additional Information
Additional Information
Installation Animation
What's in the Box
What's in the Box
-
Qty 1 - Spill Over

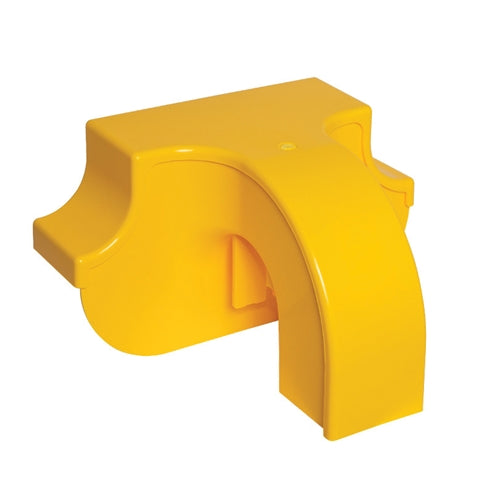

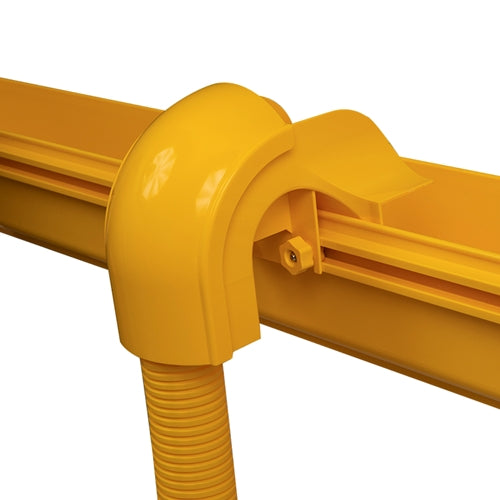

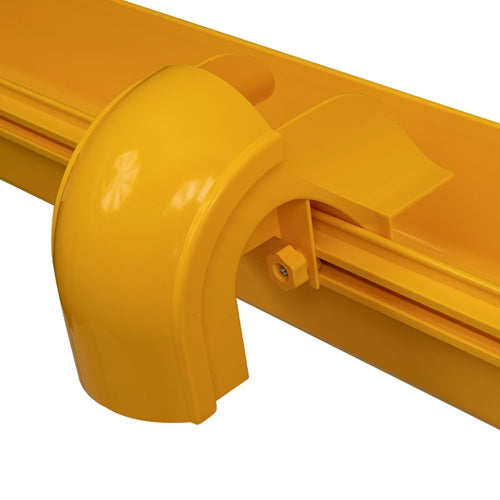

- Qty 1 - Snap-on cover included
- Qty 2 - Sets of Plastic T-bolts and Hex Nuts
