Description

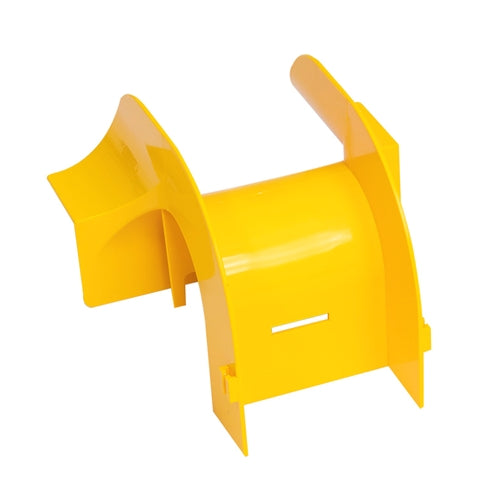

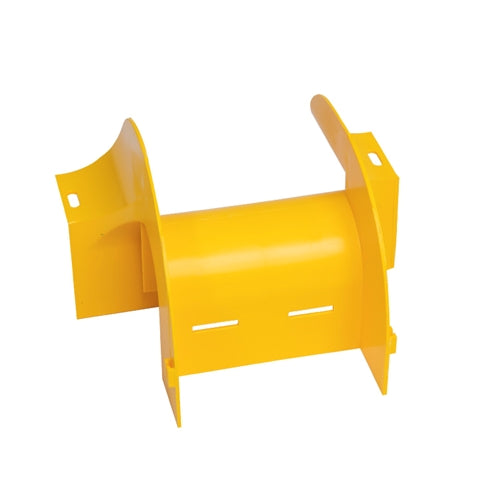

2.5", 3.5", 5" Wide Spill Over with Cover
Side mounted spill overs provide a vertical exit from a horizontal fiber tray run, allowing cables to route into cabinets and racks below. Tool-free installation allows this spill over to be located and/or repositioned anywhere along a straight channel section.
Features
Features
- Use with appropriate CM-T4-4754-H3 Flexible Hose and CM-T4-4755-U4 Hose Bracket (each sold separately) to protect cables throughout the vertical drop
- Connects to Straight Channel product to provide a secure vertical pathway
- Maintains minimum cable bend radius requirements
- Tool-free installation
- Lightweight, flame-retardant PVC (V-0 rated)
- Includes 2 sets of plastic T-bolts and hex nuts
- Snap-on cover included
- UL Listed
Specifications
| TECHNICAL SPECIFICATIONS | |||
|---|---|---|---|
| PRODUCTS | 2.5” WIDE SPILL OVER | 3.5” WIDE SPILL OVER | 5” WIDE SPILL OVER |
| Material | Lightweight, flame-retardant PVC (V-0 rated) | ||
| Color | Yellow | ||
| Dimensions (L x W x H) | 10.1” x 8.7” x 5.6” | 7.7” x 7.3” x 5.6” | 8,5” x 8.75” x 8.125” |
| Weight | 0.8 lbs | 0.85 lbs | 0.90 lbs |
| Hardware | 1 pc each plastic T-bolt and hex nut (included) | 2 sets of plastic t-bolt and hex nuts (included) | |
| Compliance & Standards | UL2024 & UL94-V0 | ||
| Selling Unit | 1 set | ||
Additional Information
| TECHNICAL ILLUSTRATION & ANIMATION | |
|---|---|
 |
 |
What's in the Box
What's in the Box
-
Qty 1 - Wide Spill Over with Cover
- Qty 1 - Snap-on cover included
- Qty 2 - Sets of Plastic T-bolts and Hex Nuts
