Description

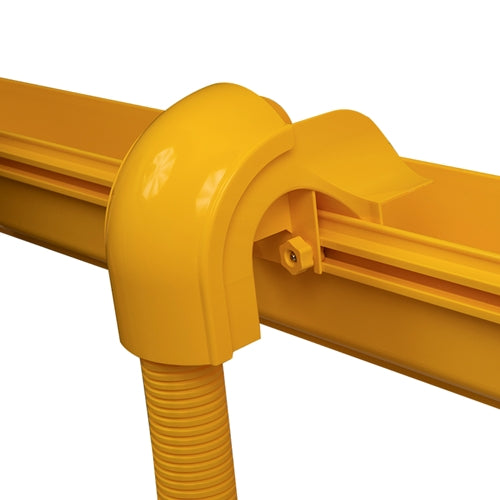

2.5", 3.5", 5" Wide Spill Over with Cover
Side mounted spill overs provide a vertical exit from a horizontal fiber tray run, allowing cables to route into cabinets and racks below. Tool-free installation allows this spill over to be located and/or repositioned anywhere along a straight channel section.
Features
Features
- Use with appropriate CM-T4-4754-H3 Flexible Hose and CM-T4-4755-U4 Hose Bracket (each sold separately) to protect cables throughout the vertical drop
- Connects to Straight Channel product to provide a secure vertical pathway
- Maintains minimum cable bend radius requirements
- Tool-free installation
- Lightweight, flame-retardant PVC (V-0 rated)
- Includes 2 sets of plastic T-bolts and hex nuts
- Snap-on cover included
- UL Listed
Specifications
| TECHNICAL SPECIFICATIONS | |||
|---|---|---|---|
| PRODUCTS | 2.5” WIDE SPILL OVER | 3.5” WIDE SPILL OVER | 5” WIDE SPILL OVER |
| MATERIAL | LIGHTWEIGHT, FLAME-RETARDANT PVC (V-0 RATED) | ||
| COLOR | YELLOW | ||
| DIMENSIONS (L X W X H) | 10.1” X 8.7” X 5.6” | 7.7” X 7.3” X 5.6” | 8.5” X 8.75” X 8.125” |
| WEIGHT | 0.8 LBS | 0.85 LBS | 0.90 LBS |
| HARDWARE | 1 PC EACH PLASTIC T-BOLT AND HEX NUT (INCLUDED) | 2 SETS OF PLASTIC T-BOLT AND HEX NUTS (INCLUDED) | |
| COMPLIANCE & STANDARDS | UL2024 & UL94-V0 | ||
| SELLING UNIT | 1 SET | ||
Additional Information
| TECHNICAL ILLUSTRATION & ANIMATION | |
|---|---|
 |
 |
What's in the Box
What's in the Box
-
Qty 1 - Wide Spill Over with Cover
- Qty 1 - Snap-on cover included
- Qty 2 - Sets of Plastic T-bolts and Hex Nuts
