Description

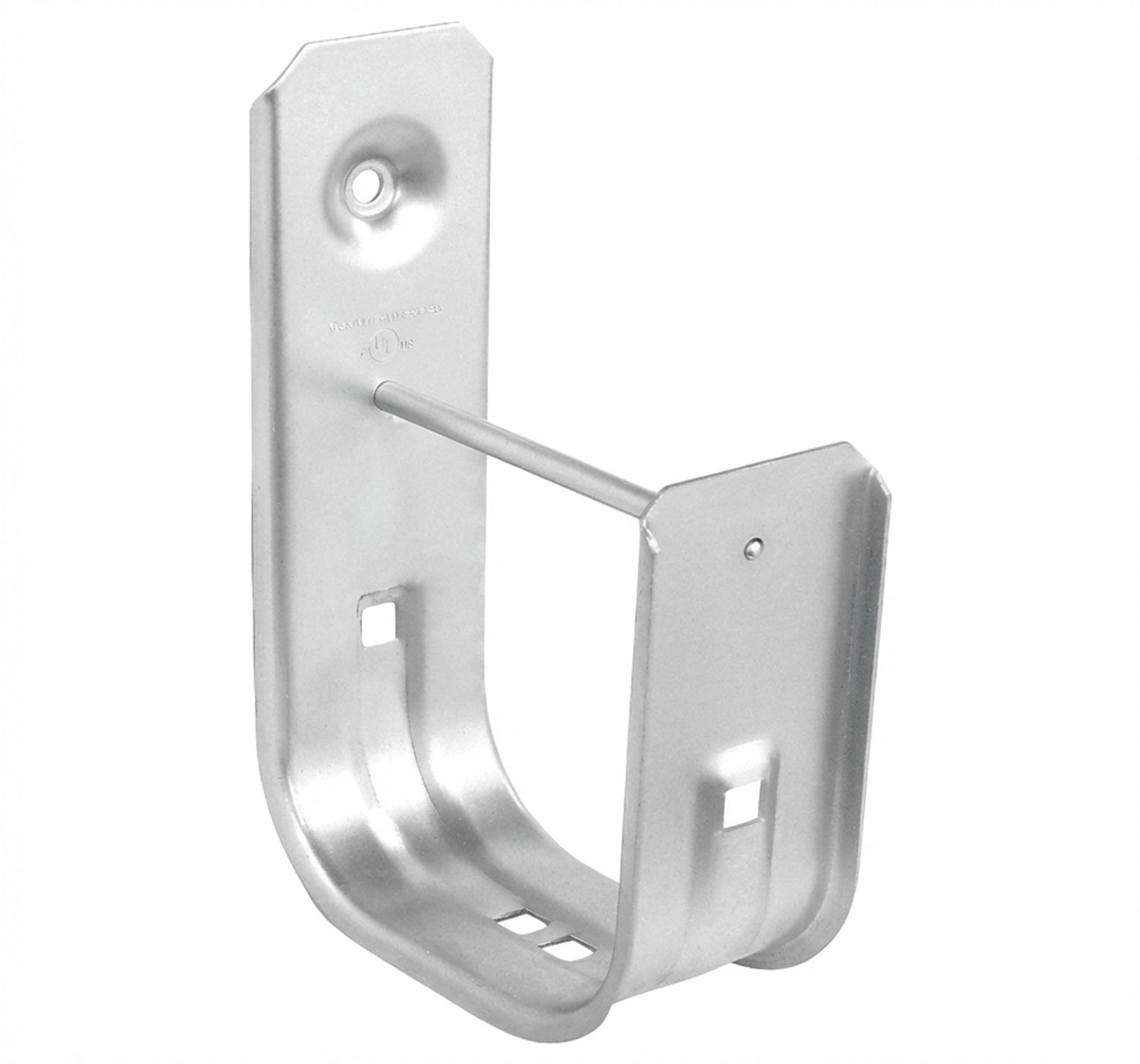

4" Standard J-Hook with Retainer Bar
Our Standard J-Hooks support up to 50 lbs and are perfect for hanging applications. This J-Hook is versatile and adheres to traditional J-Hook styling. This product can be attached to a wide variety of structures using beam clamps, clips, and other support components. This support hook eliminates the problem of point loads that can cause bandwidth damage to sensitive cables such as fiber optic, CAT5E, CAT6, CAT7, and many others.
Product Quality
This J-Hook is versatile and can be attached to a wide variety of structures using beam clamps, clips, and other support components. The continuous wide base radius design supports the natural bends and curves of cable.
Durability & Strength
These J-Hooks provide excellent support for CAT5, CAT6, CAT6A, and Fiber Optic cables. This product is lightweight, and ideal as a cost-effective alternative to cable trays or ladder runway racks.
Features
Features
- Material: Zinc Plated Steel
- All Steel Construction
- Super Smooth Edges Eliminate Cable Snags
- UL, CUL, RoHS Compliant
Applications
- Telcom/Voice
- Network/Data
- Broadband, Satellite
- CCTV
- Fiber
- Flexible Conduit
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
 |
|
| HOOK DIMENSIONS | |
| HOOK DIAMETER | 4" |
| A | 4.48" |
| B | 2.50" |
| C | 1.91" |
| MATERIAL & FINISH | |
| MATERIAL | G60 Galvanized Steel, 1.2mm thick |
| FINISH | Zinc Plated |
| FEATURES & CAPACITY | |
| SPECIAL FEATURES | Includes snap-in retainer bar |
| COMPLIANCE AND STANDARDS | |
| COMPLIANCE | UL, CUL, RoHS Compliant |
| TIA/EIA | Meets and Exceeds TIA/EIA Requirements for Structured Cabling Systems |
| Max Amount Of Cables That Will Fit Each J-Hook | |||||
|---|---|---|---|---|---|
| Part Number | CAT 5e (4-pair) | CAT 6 (4-pair) | ScTP/FTP (4-pair) | STP (4-pair) | Load Rating |
| JH1-6670-12 | 16 | 10 | 7 | 5 | 30 lbs |
| JH1-6671-21 | 50 | 32 | 25 | 17 | 30 lbs |
| JH1-6672-32 | 80 | 50 | 40 | 25 | 30 lbs |
| JH1-6673-64 | 200 | 185 | 18 | 120 | 30 lbs |
Additional Information
Wire & Cable Management Accessories
Having an effective cable management system in place keeps your networking cable organized, which helps make system maintenance easier. We carry a wide assortment of cable management solutions. Our wire management solutions help organize and protect your network cabling by keeping it off the floor.
To learn more about our Wire & Cable Management please visit our overview page. Our J-Hooks can be combined with a wide array of products such as:
- Flat Cable Lacing Panel
- Flanged Lacing Bar
- 2 Post Free Standing Relay Racks
- 4 Post Server Rack, Open Frame Rack Systems
What’s In The Box
What’s In The Box
- Qty 1 - Standard J-Hook with Retainer Bar
