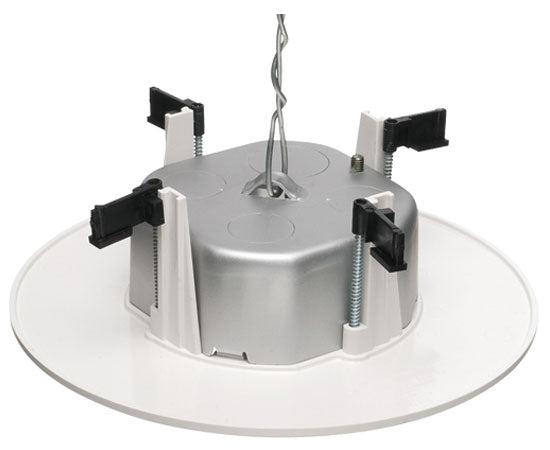

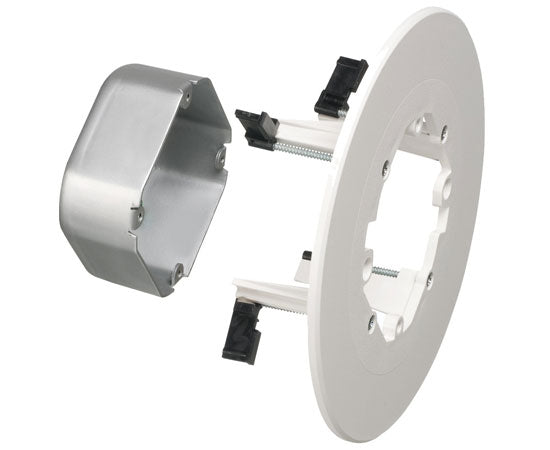

Steel Cam-Light™ Box for Suspended Ceilings (Steel)

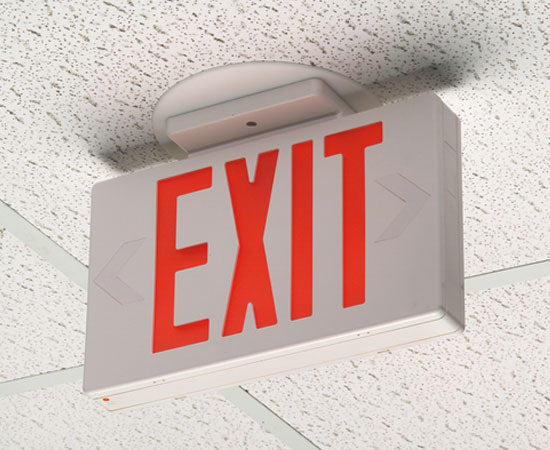

Introducing our CAM-LIGHT™ Box: the perfect solution for installing fixtures, smoke detectors, and more on suspended or drywall ceilings, or walls. Tested to hold up to 50 lbs, it saves time and money. Compatible with any security camera hole pattern as you drill holes in the mounting plate. Additionally, larger cameras (4.5" to 7" diameter base) can be mounted directly to the box flange.
Features
Features
- Designed to install security cameras to a suspended ceiling panel - fast with a 4" hole saw
- Rated up to 50 lbs on a suspended ceiling (or drywall ceiling) in combination with the drop wire for support
- Rated up to 10 lbs on a drywall ceiling without drop wire
- Rated up to 7 lbs on walls
- For security cameras, it fits any hole pattern because you drill the holes in the appropriate location in the flange, cameras with mounting holes set wider than 4.5" apart install directly to the box flange
- Mounting wings hold the bracket securely against a wall when screws are tightened
- White, non-metallic, paintable flange
- Steel version for use where metal raceways are required
- Steel version installs with 4-1/2" hole saw
- 1/2" and 3/4" knockouts
- Box rotates in either direction for proper camera position
Specifications
Specifications
| PHYSICAL INFORMATION | |
| Weight | 0.983 lbs/each |
| Height | 7.345" |
| Width | 7.345" |
| Color | White |
| Material(s) | Steel |
| Paintable | Yes |
| TECHNICAL INFORMATION | |
| Application | Install fixtures, smoke detectors, and more on a suspended ceiling, drywall ceiling, or wall where metal raceways are required. |
| Cubic Inches | 17.0 |
| Knockout Size(s) | 1/2" and 3/4" |
| Trade Size | 17.0 cu. in. |
Additional Information
Additional Information
What's In The Box
What’s In The Box
- (1) Steel Box
- (1) NM95 Cable Connector
- (1) NM94 Cable Connector
- (1) Mounting Flange
- (1) 12 Foot Support Wire
