SuperFlex™ Copper Clad Steel Tracer Wire - 14AWG
The Copperhead SuperFlex™ copper-clad steel tracer wire combines the flexibility of solid copper with superior strength for reliable underground utility location. This tracer wire is ideal for open-cut, trenching, or plowing applications where ground above utilities can be disturbed and there are no buildings, roadways, or other obstructions. SuperFlex™ features color-coded HDPE insulation for APWA-compliant identification, superior kink resistance, and is 100% made in the USA.
- 194 lb break load - strength with exceptional flexibility
- Low recoil installation
- 11% lighter than solid copper means reduced freight expenses
- Copper-clad steel (CCS) wire with bonded metals - no separating, no corrosion
- No theft appeal due to steel core
- More stable pricing than solid copper
- 21% conductivity for optimal locating performance
- Color-coded to meet APWA standards for utility identification
- Direct burial rated HDPE insulation
- Made in the USA
- 5-Year Warranty
Features
Features
- Superior Flexibility – as flexible as copper, with superior strength
- Copper-Clad Steel Construction – metallurgically bonded copper cladding over high-strength steel core
- APWA Color Coding – available in all standard APWA utility colors
- Direct Burial Rated – robust HDPE insulation for open-cut jobs
- American Manufacturing – 100% made in the USA using domestic materials
Specifications
Specifications
| Gauge | 14 AWG |
| Conductor Type | Copper-Clad Steel (CCS) |
| Break Load | 194 lbs |
| Conductor Diameter | 0.0641" |
| DC Resistance | 12.027 ohms/1000 ft |
| Insulation | [30 mil HDPE - 30V] or [45 mil HDPE - 600V] |
| Conductivity | 21% IACS minimum |
| Temperature Rating | -40°F to +176°F |
| Standards | ASTM B1010, ASTM B910, ASTM D1248 |

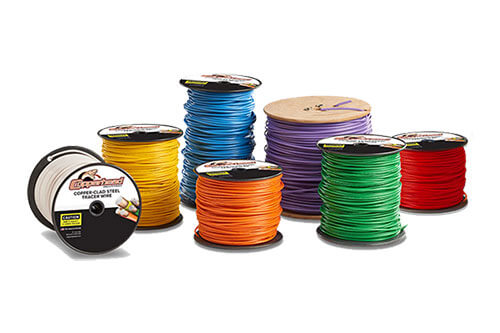

| Available Colors | Blue, Green, Black, Orange, Purple, Red, White, Yellow |
Additional Information
Additional Information
SuperFlex™ Tracer Wire System

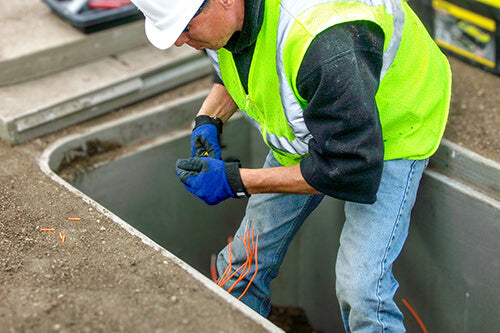

Installs with underground plastic utility pipes, wires, and cables to ensure accurate future location.
See the Copperhead Utility Locating System for details.
What's in the Box
What's in the Box

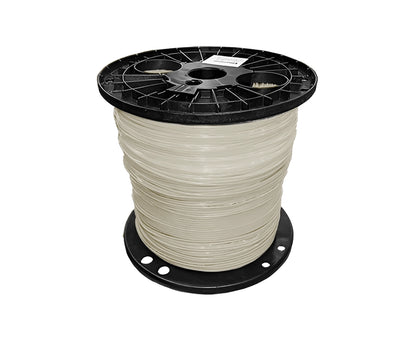

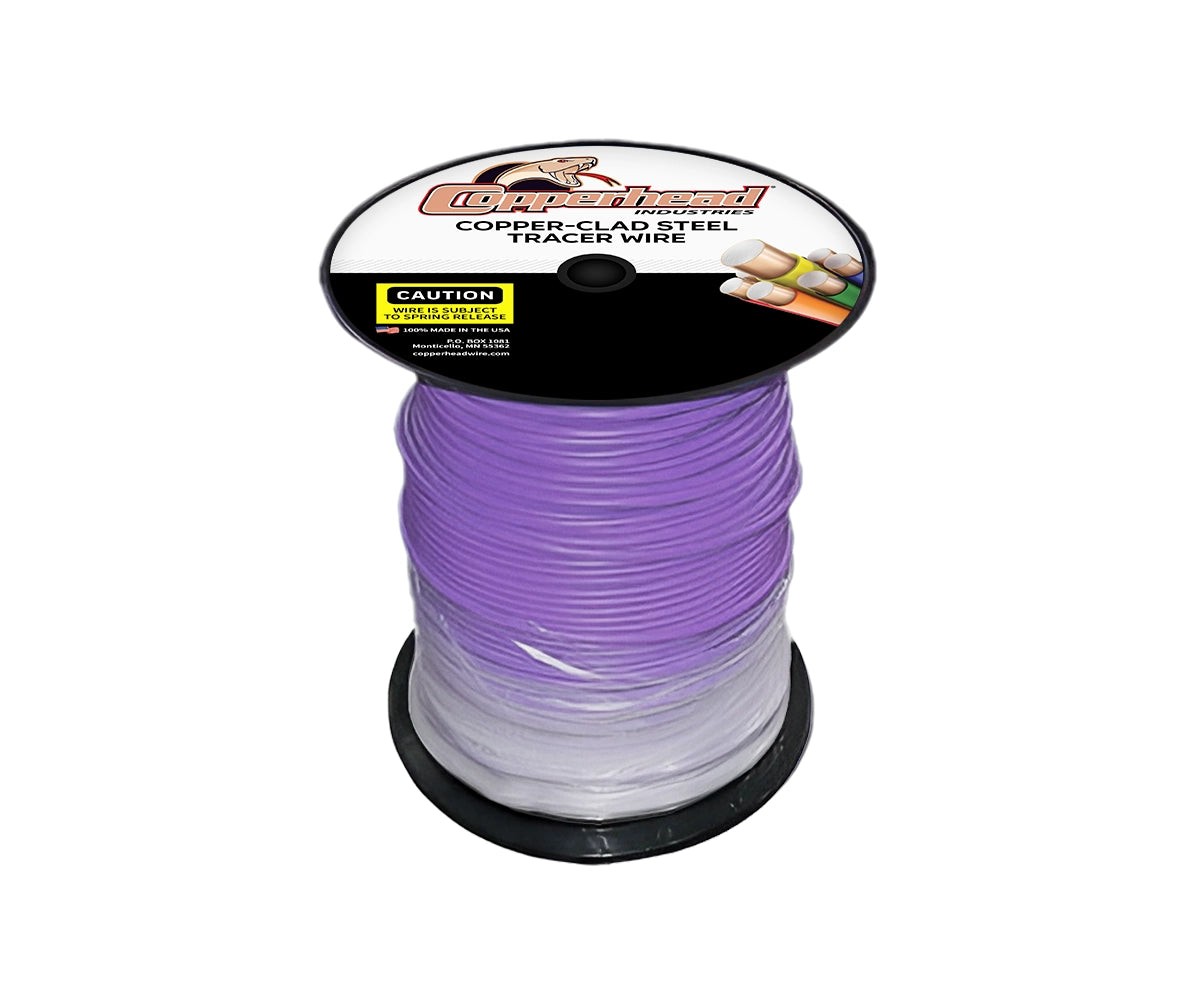

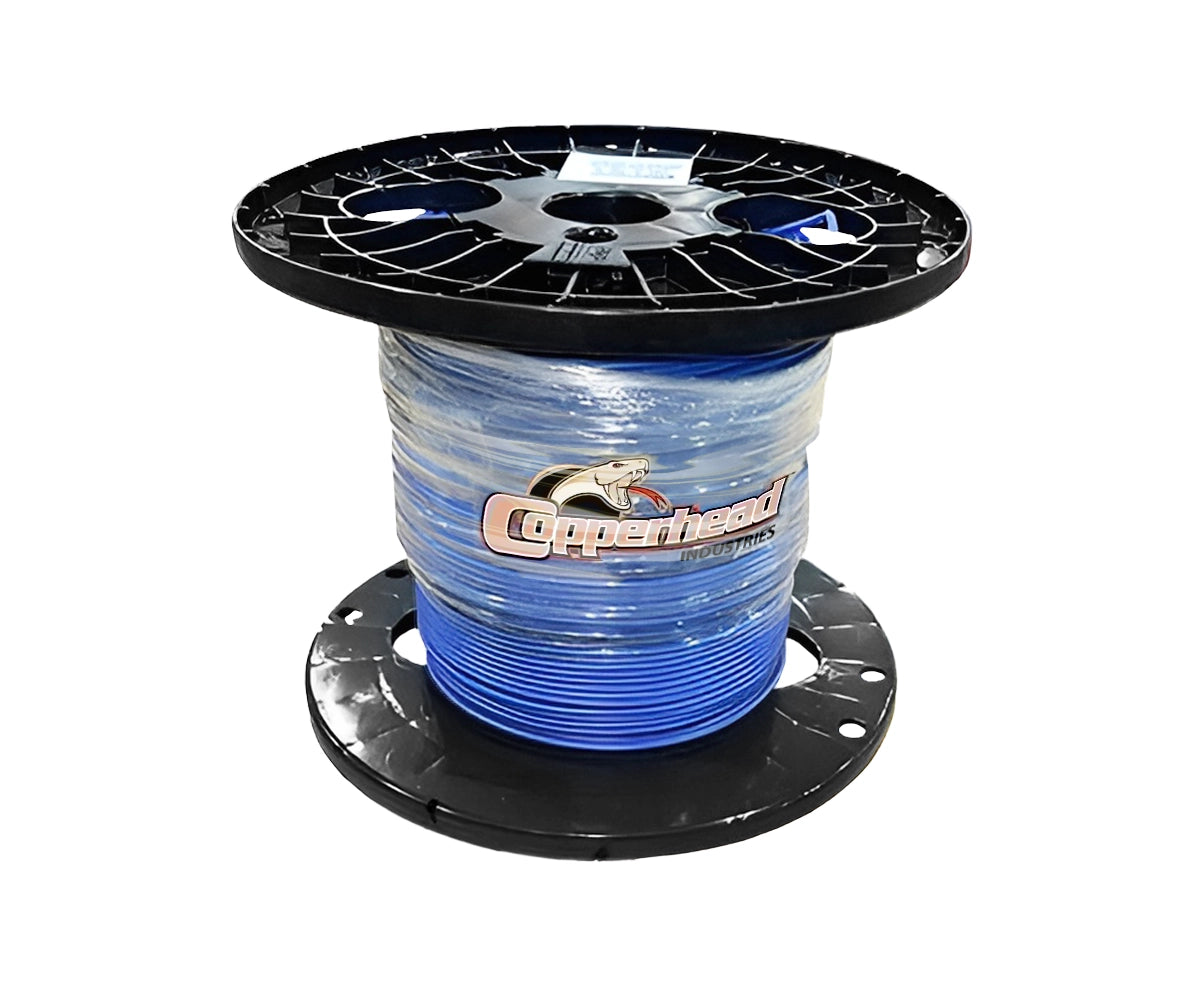

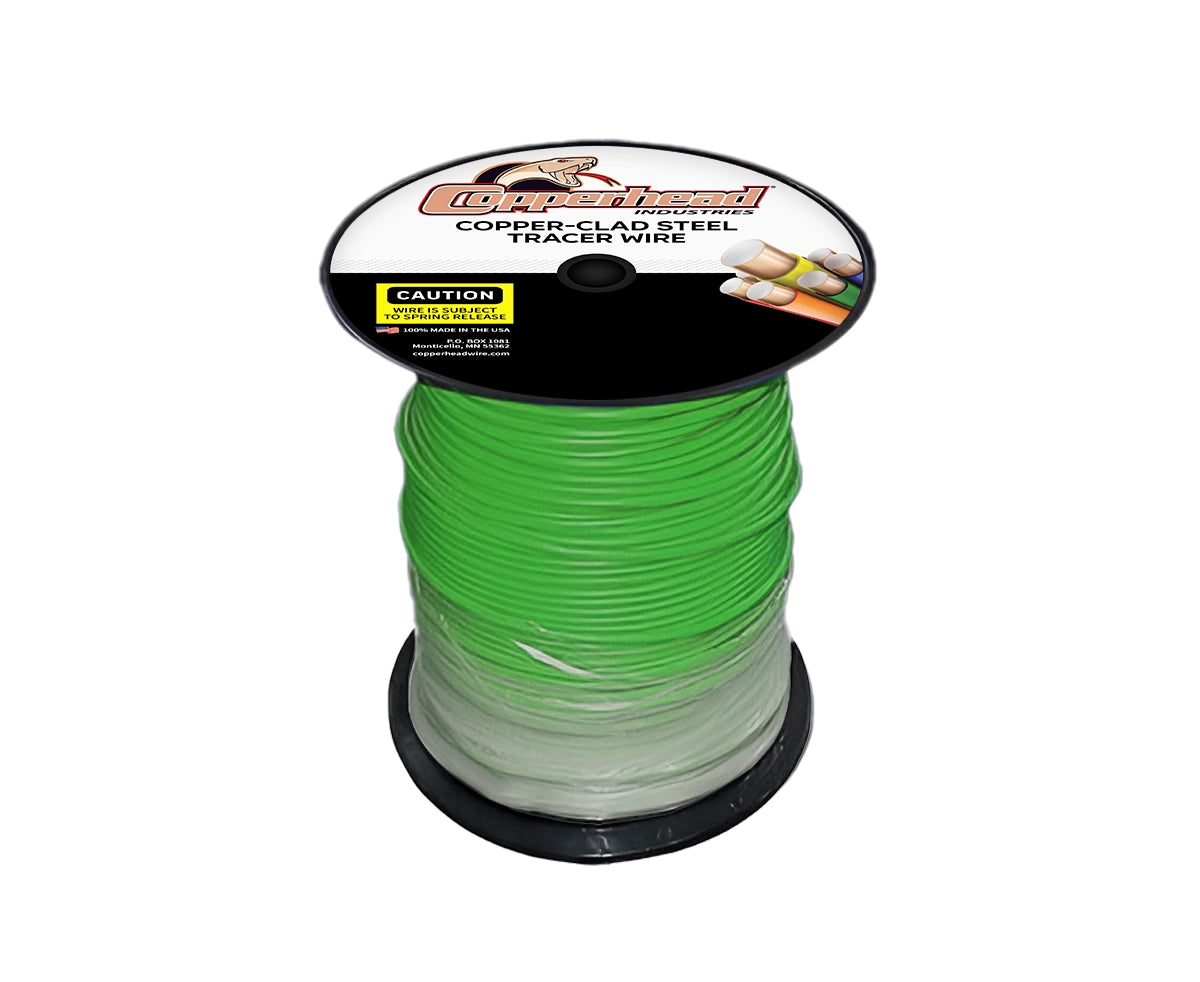

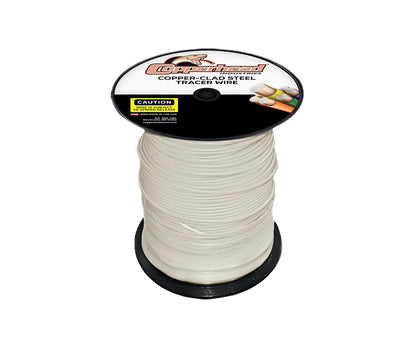

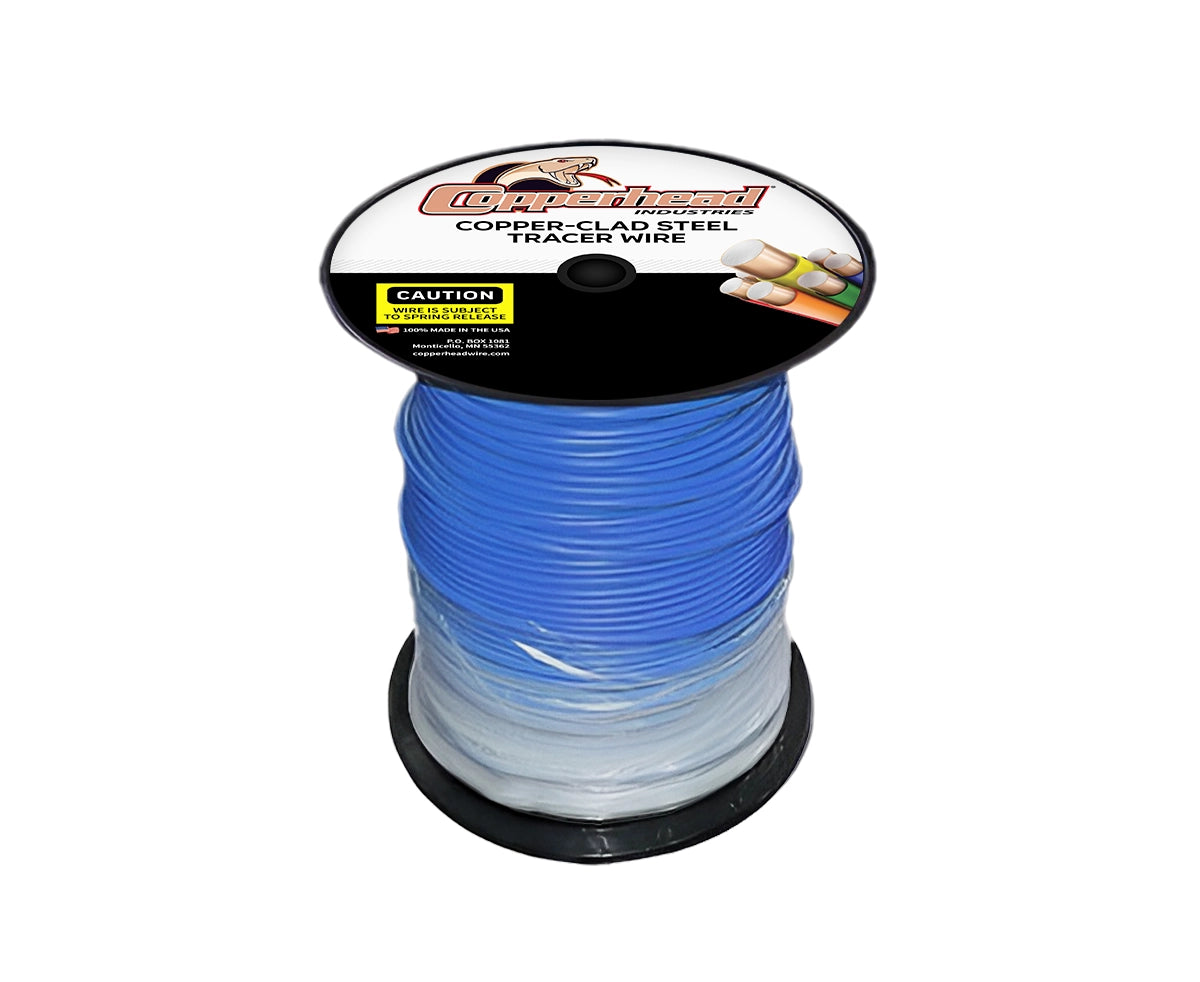

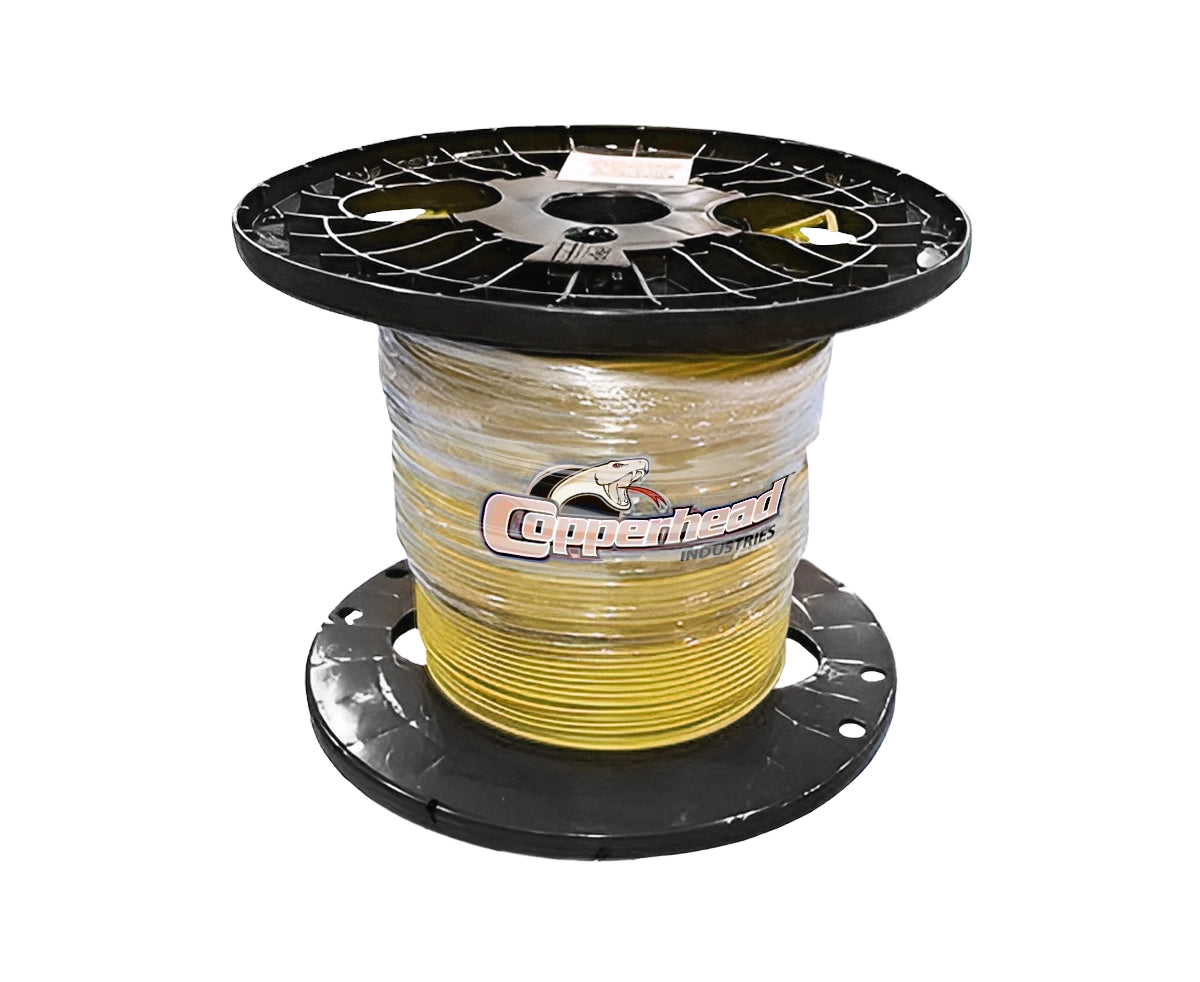

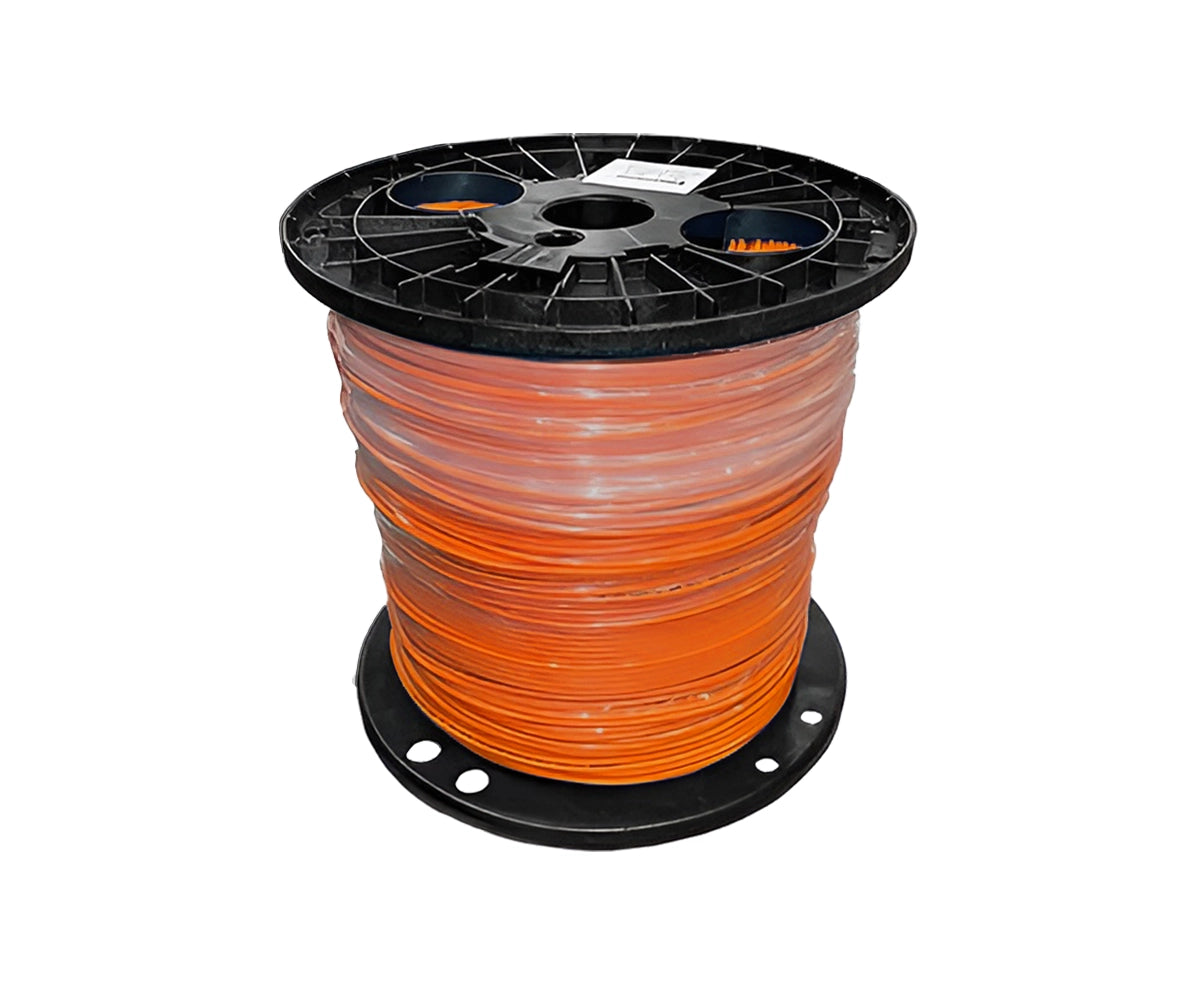

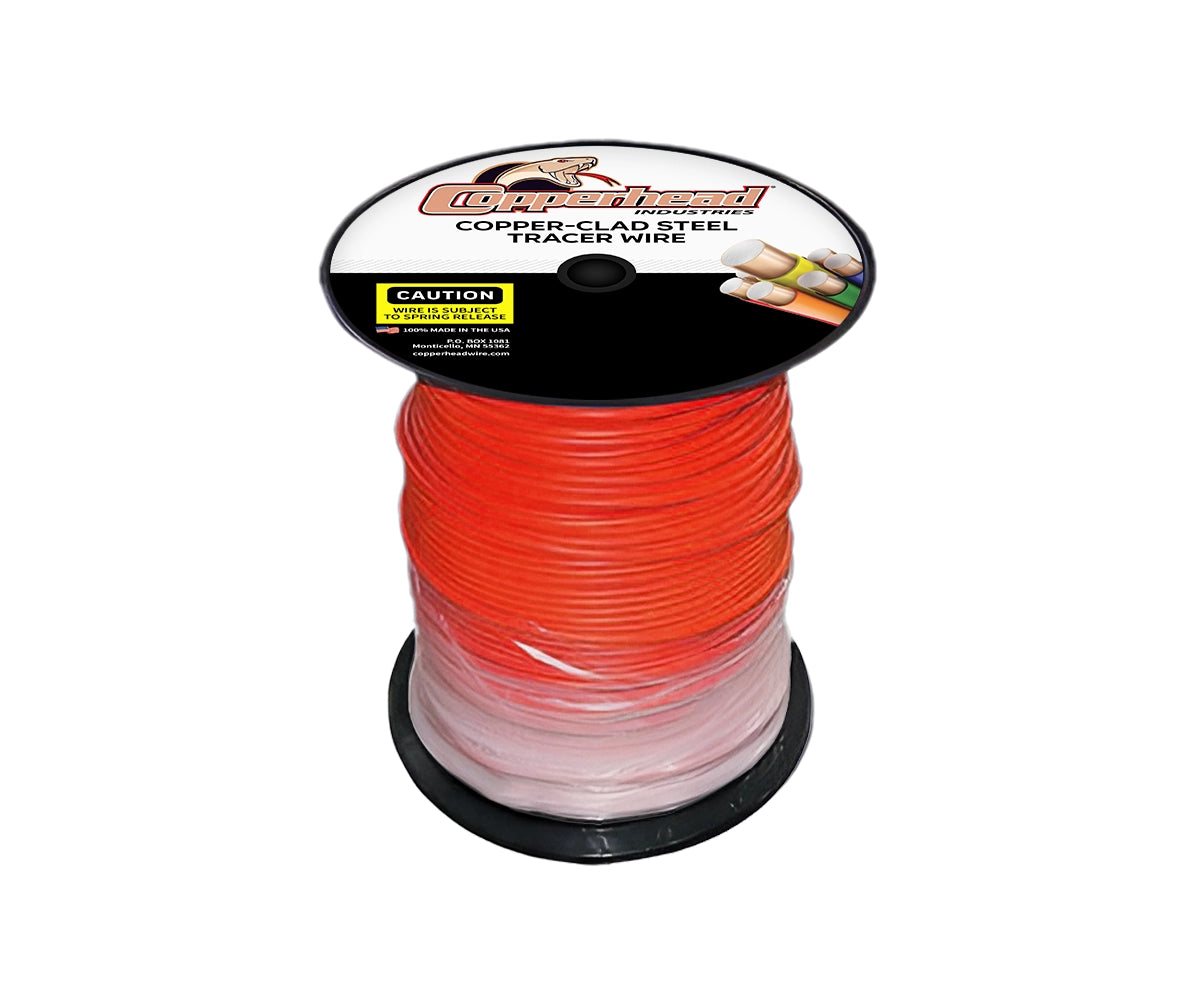

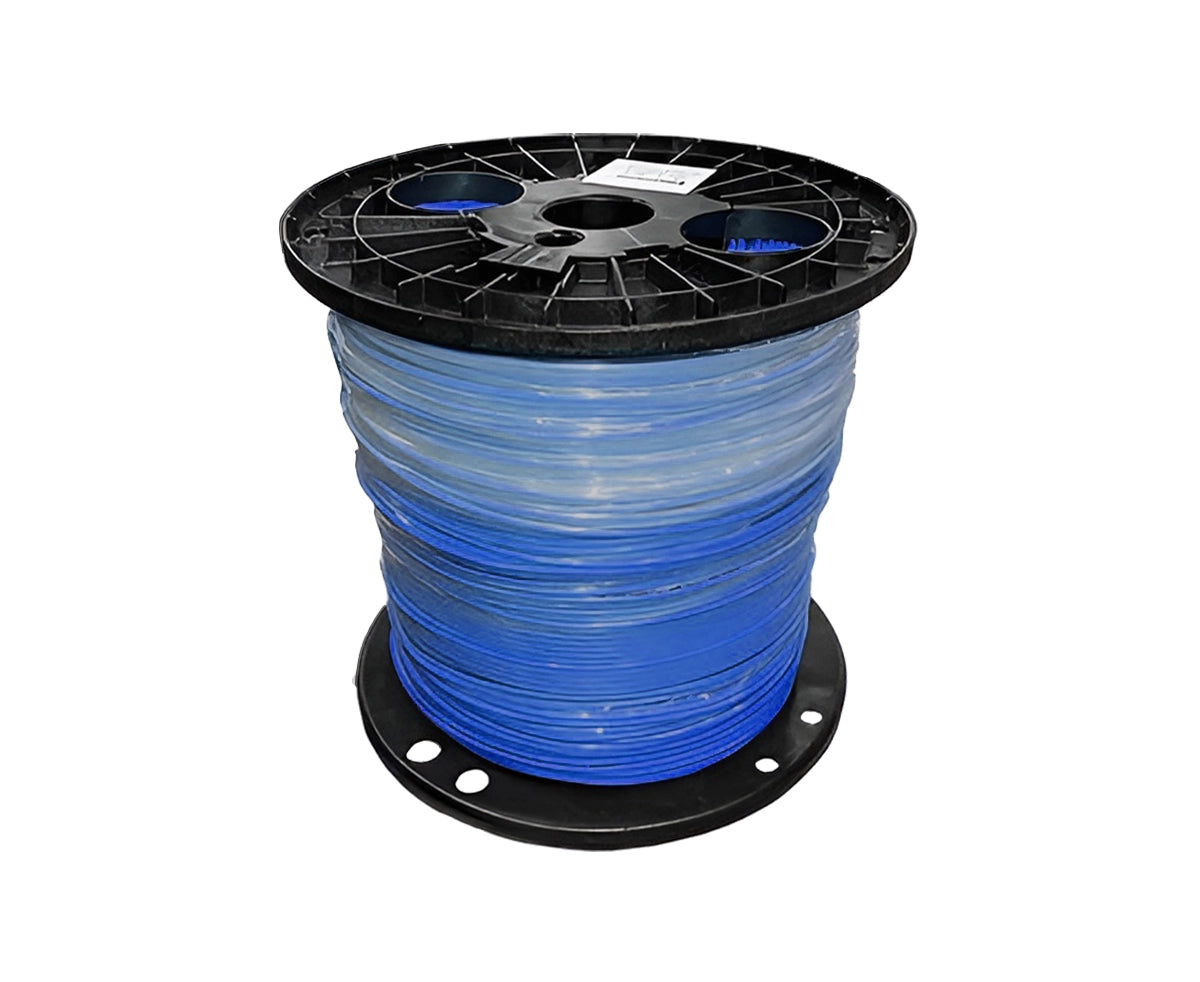

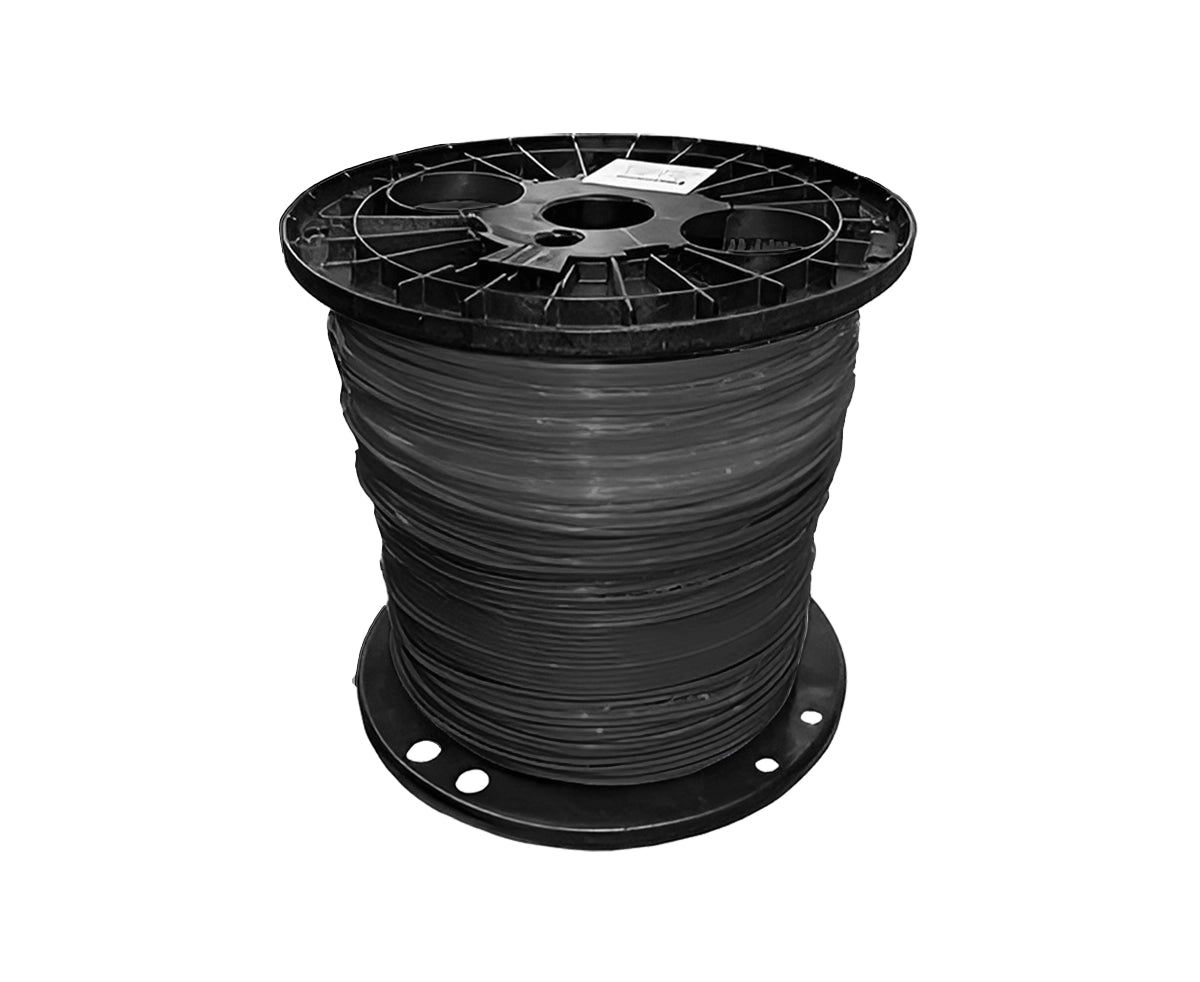

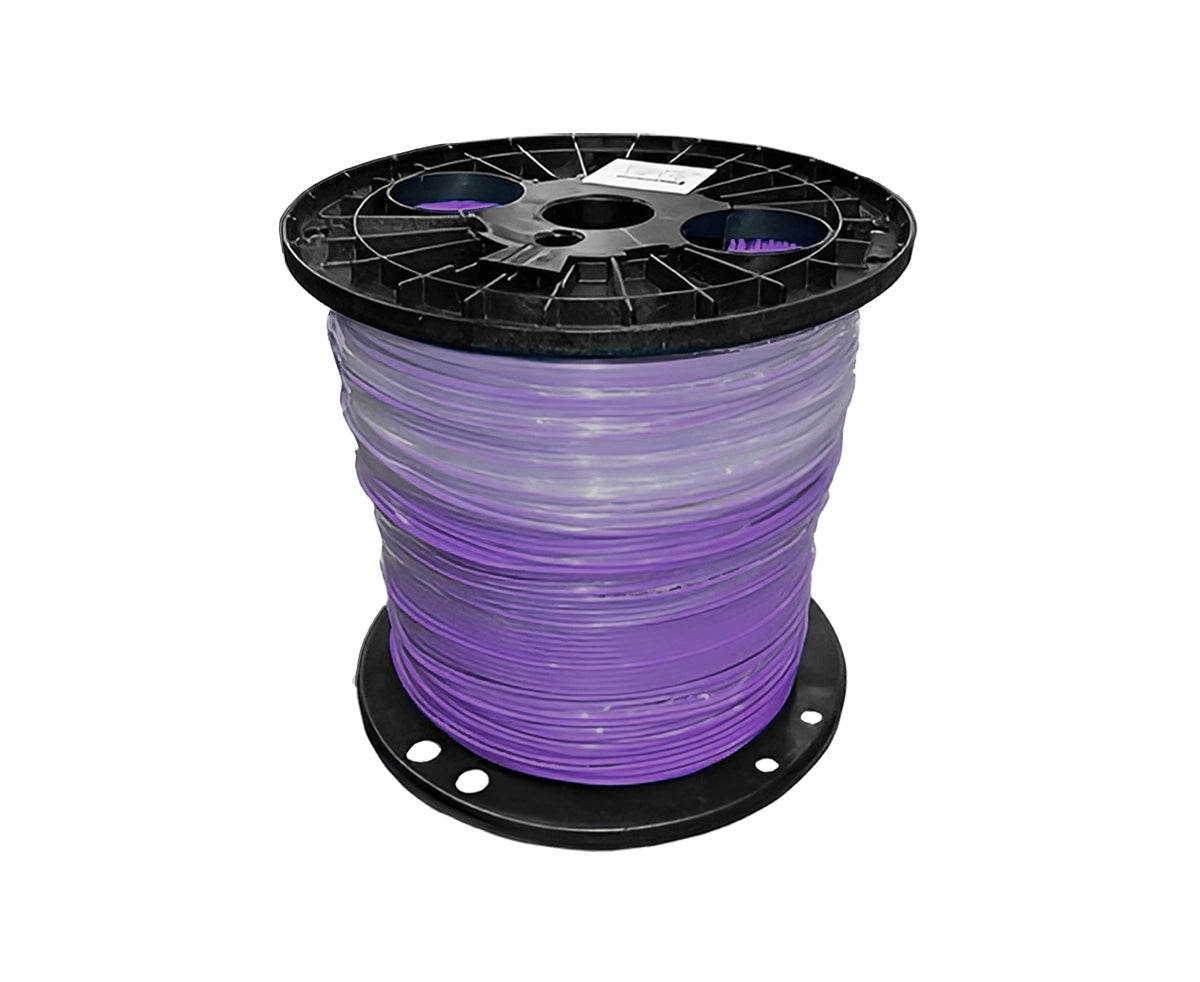

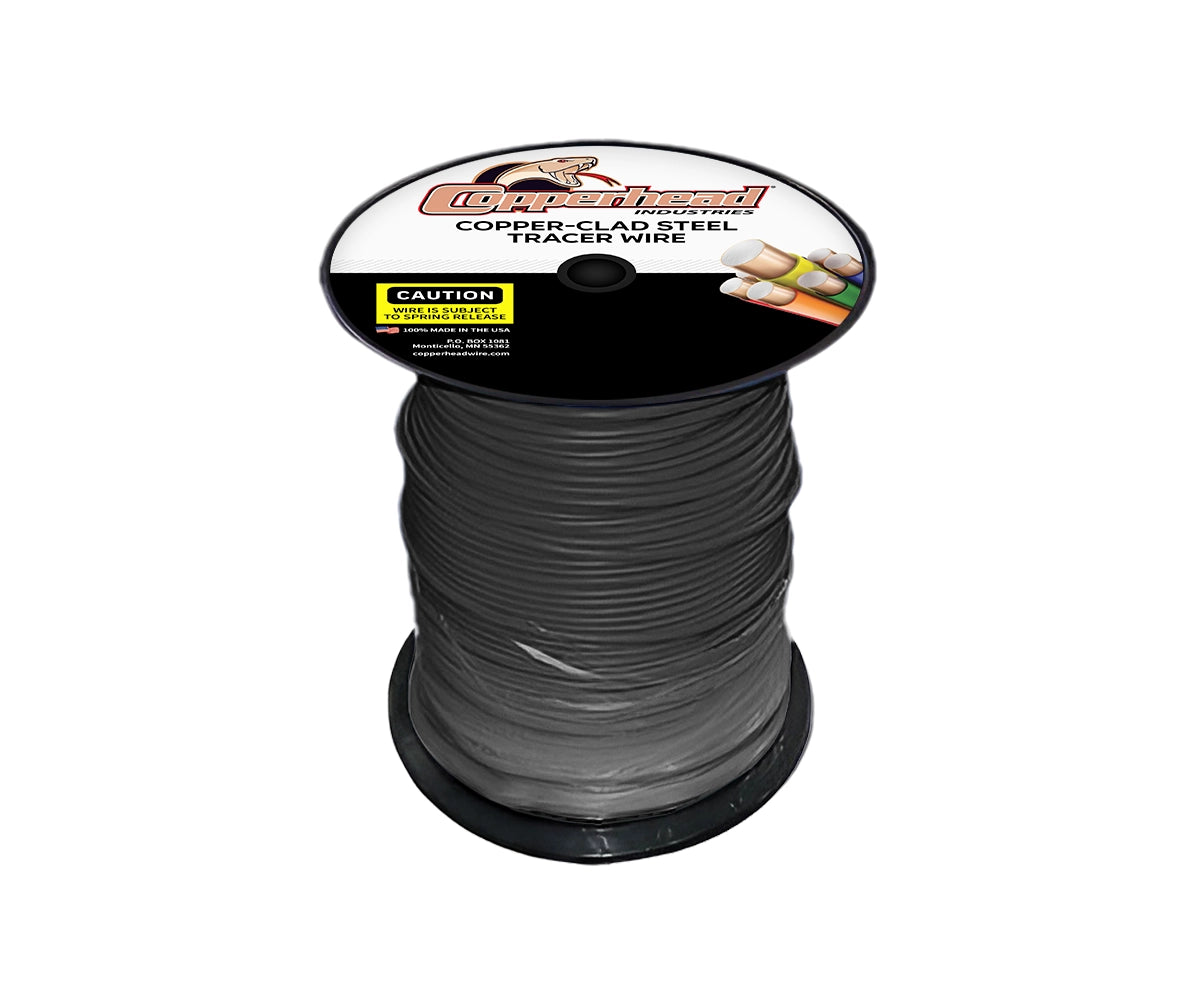

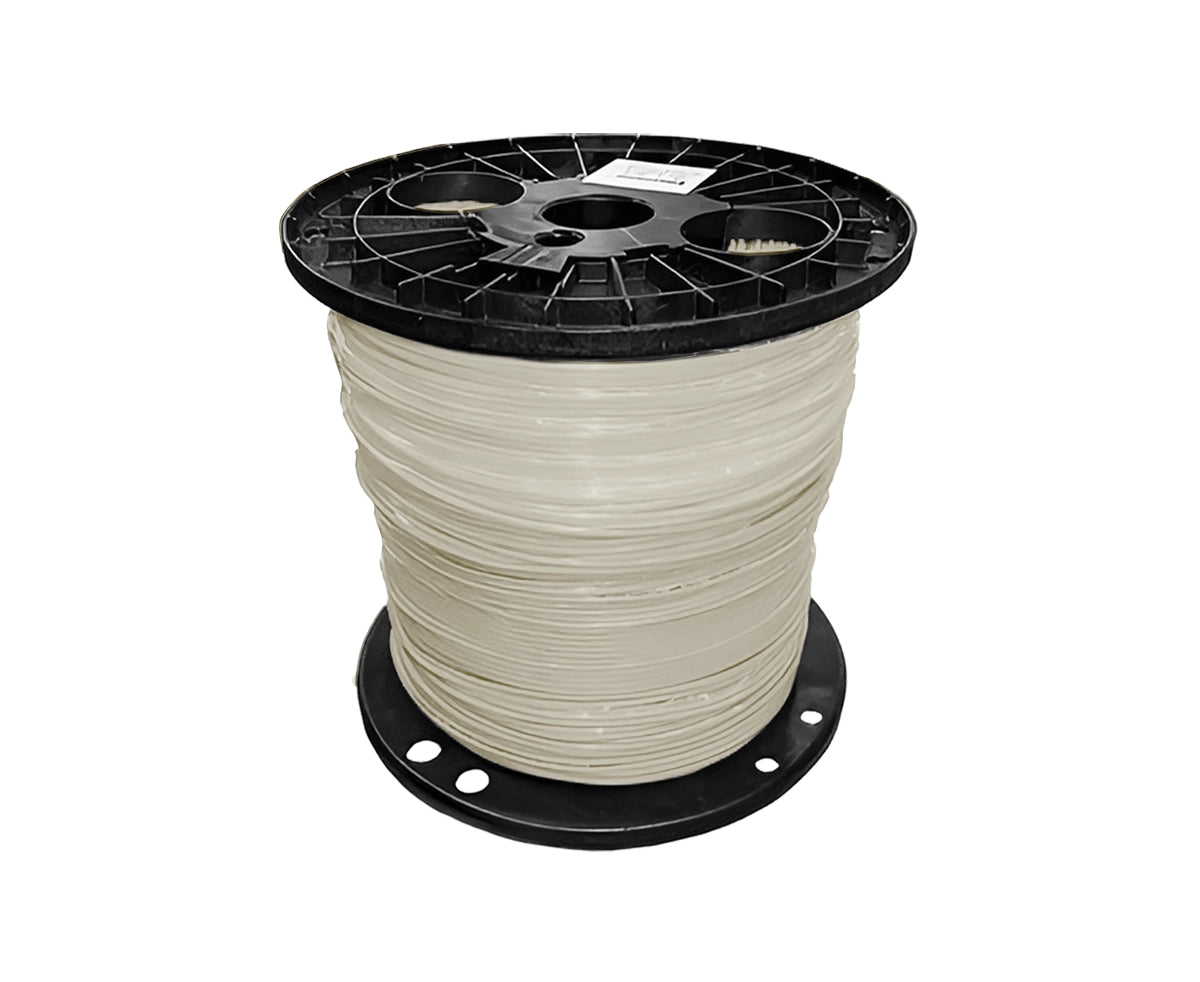

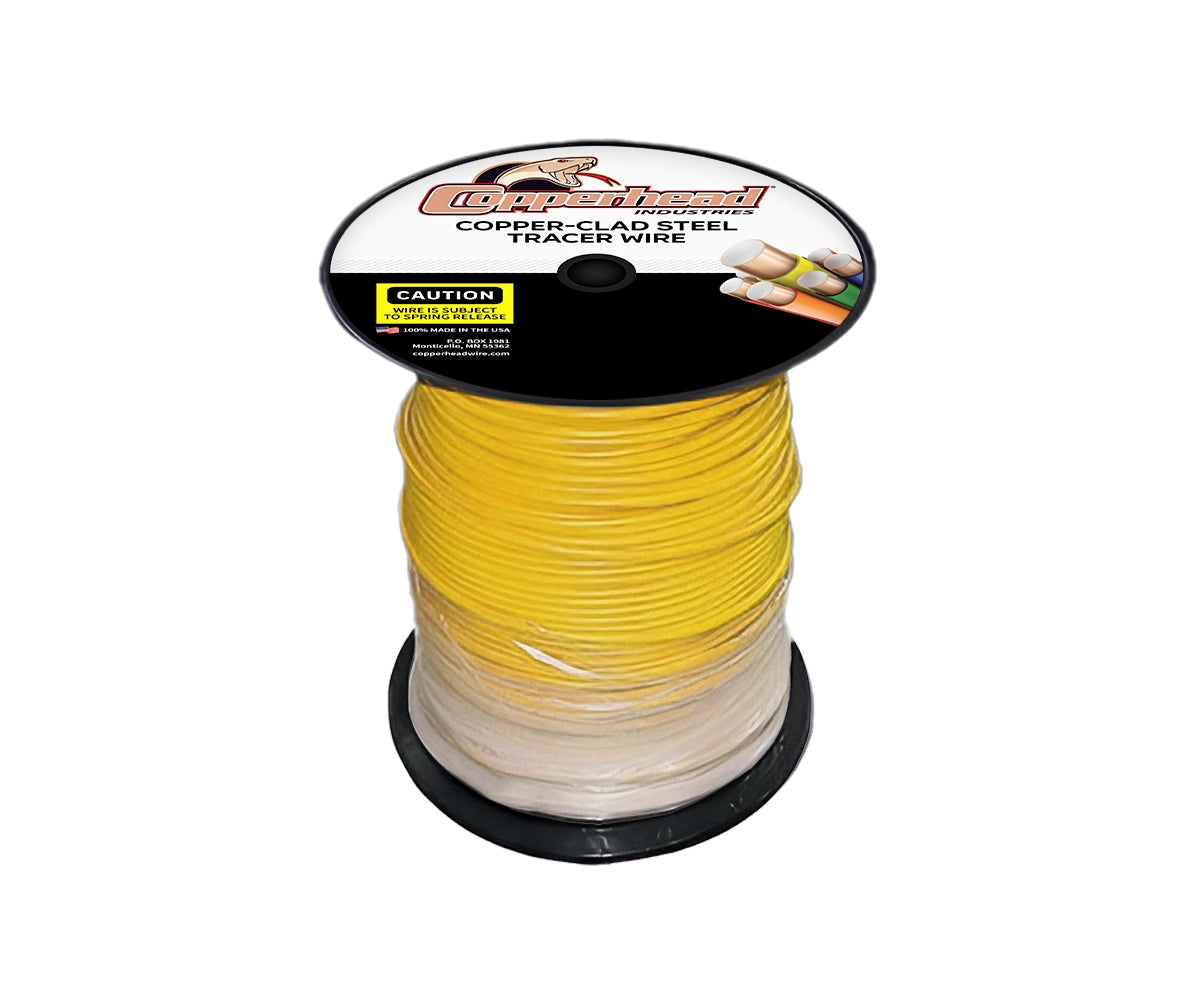

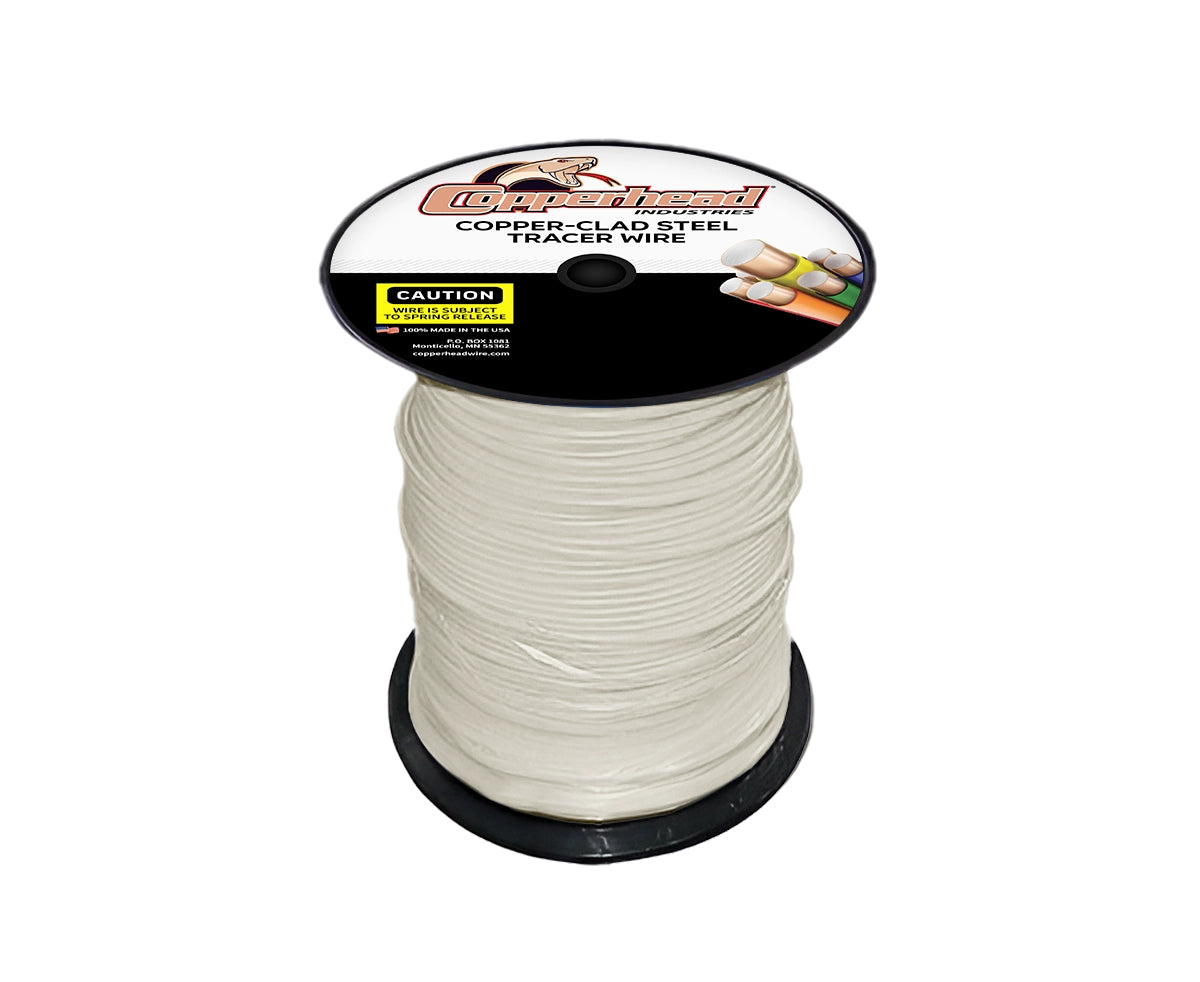

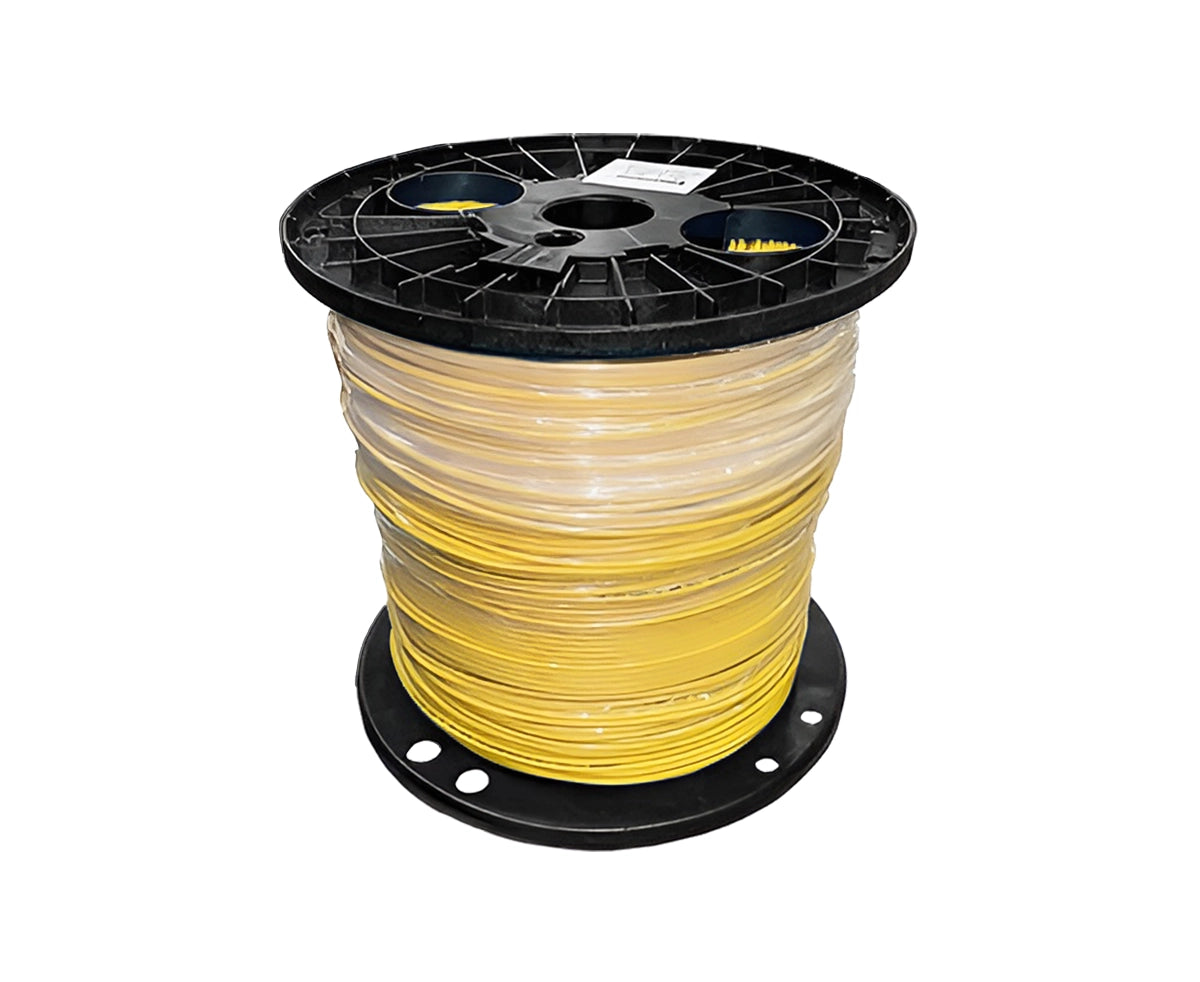

- Qty 1 - SuperFlex™ 14AWG Tracer Wire Spool (500' / 1000' / 2500' length)
