Description

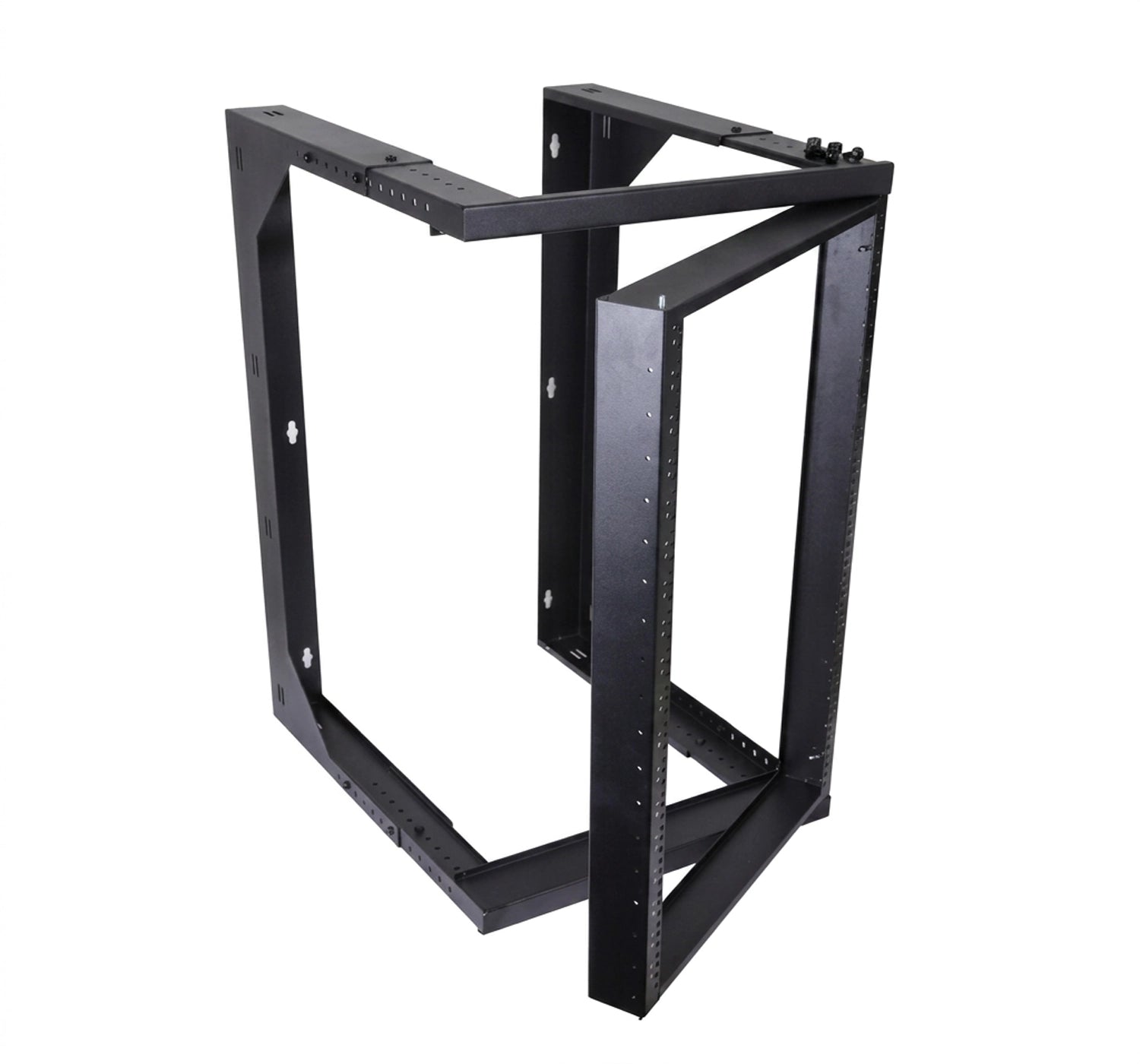

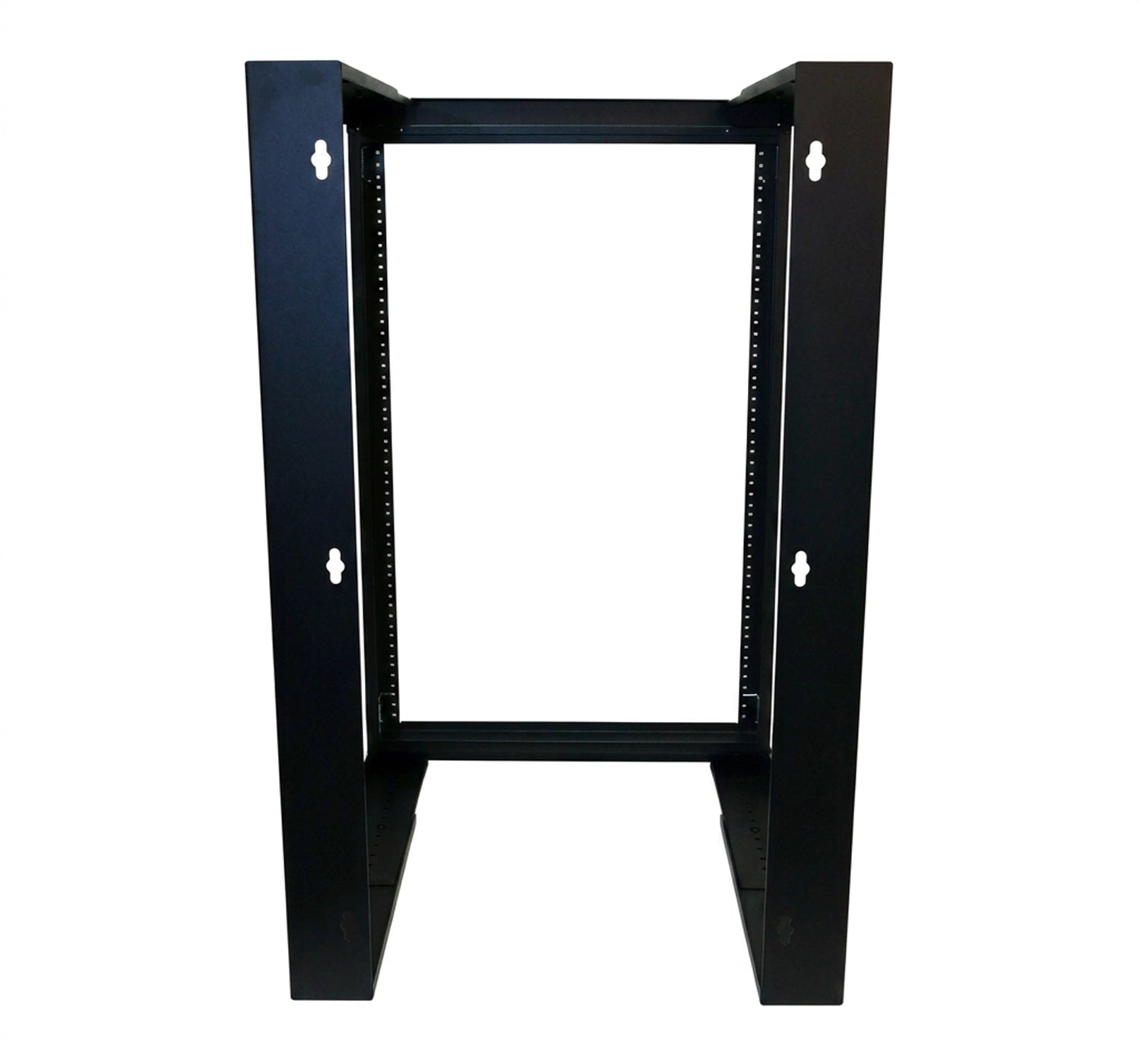

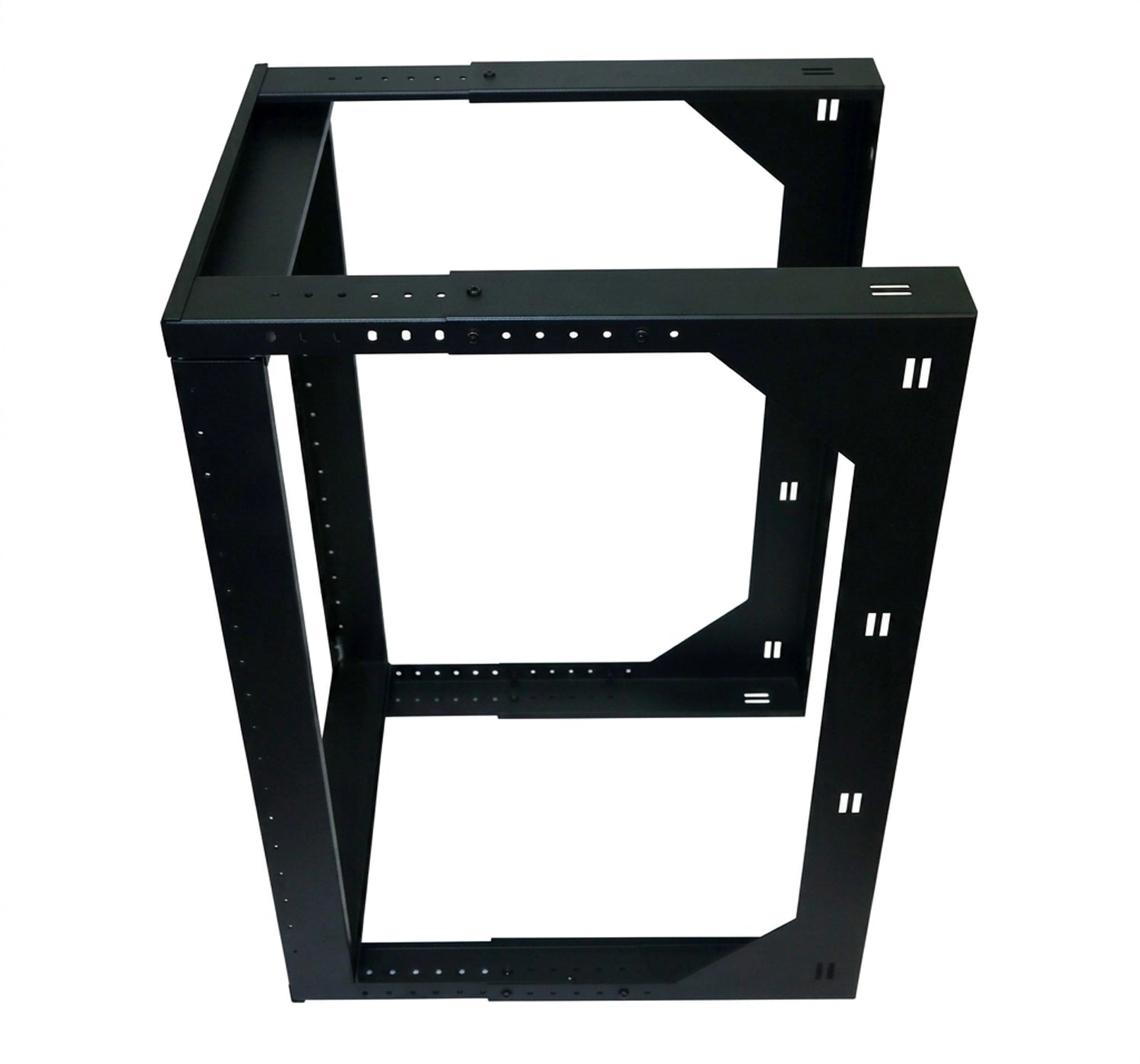

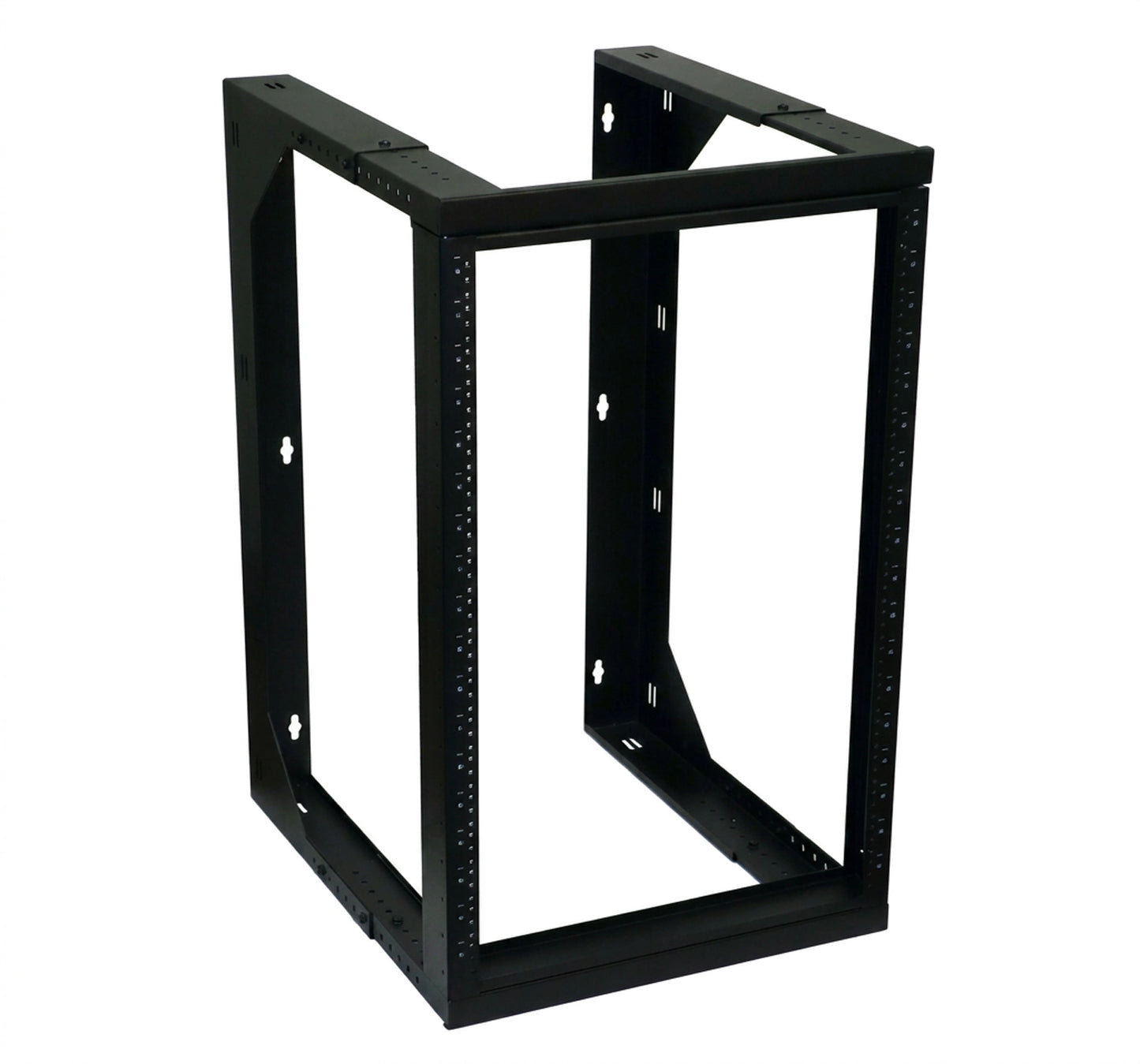

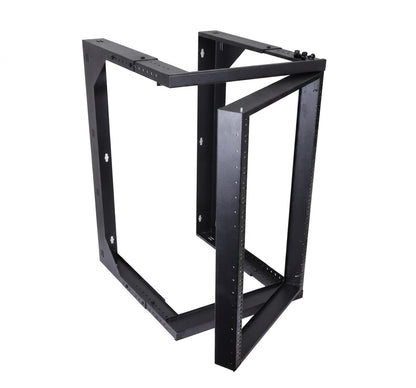

Swing Gate Wall Mount Rack, 12U, 18U
The Swing Gate Wall Mount Racks provide easy and flexible access to the back of IT equipment in secure environments. The equipment mounting frame swings open more than 180 degrees to the left or right, and the depth is adjustable from 18 in. to 26 in. to accommodate a variety of equipment sizes.
Features
Features
- EIA-compliant 19 in. mounting rails with 12-24 tapped holes and printed RU markings
- Keyholes spaced 16 in. apart for convenient wall mounting
- Cable lashing slots on rear frame
- 50 lb. weight capacity
- Available in 12U and 18U
- RoHS Compliant
Specifications
| TECHNICAL SPECIFICATIONS | ||
|---|---|---|
| Rack Units | 12U | 18U |
| Weight | 28.7 lbs. | 35.3 lbs. |
| Height | 25.7" | 36.2" |
| Product Type | Swing Gate Wall Mount Rack | |
| Frame Material | 14 Gauge Cold Rolled Steel | |
| Finish | Black | |
| Dimensions (HxWxD) | Depth (Min.) 18.1" Width 20.7” Depth (Max.) 26.1” | |
| Rack Unit Quantity | 12U, or 18U | |
| Weight Capacity | 50 lbs. | |
| Hardware | 12 pieces 12-24 screws | 24 pieces 12-24 screws |
| Selling Unit | 1 piece | |
| Compliance & Standards | RoHS, ANSI/EIA RS-310D, IEC60297-2 DIN41194; Part 1, DIN41494; Part 7 | |
What's in the box
What's in the box
- Qty 1 - Swing Gate Wall Rack, 12U
- Qty 1 -Swing Gate Wall Rack, 18U
