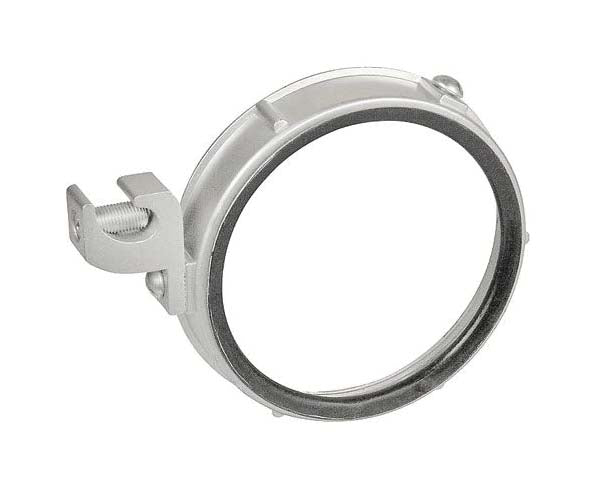

Threaded Grounding Bushing, Malleable Iron

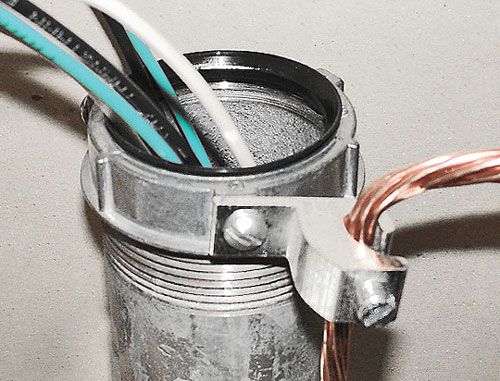

Threaded grounding bushings are used to provide a means of grounding rigid or IMC conduits. Primus Cables’ lay in lug style threaded grounding bushings make it easy to insert a grounding wire. They feature dual rated aluminum grounding lugs that may be used with both copper and aluminum grounding conductors. Their insuliner temperature is rated at 150° C, and their construction ensures mechanical protection for the raceway. Threaded grounding bushings are made out of Malleable Iron material.
Features
Features
- Lay-in lug-style threaded grounding bushings make it easy to insert a grounding wire
- Feature dual-rated aluminum grounding lugs that may be used with both copper and aluminum grounding conductors
- Insuliner temperature is rated at 150 ° C, and their construction ensures mechanical protection for the raceway
Specifications
Specifications
| Part Number | Trade Size |
|---|---|
| NPNB-UGB-50 | 1/2" |
| NPNB-UGB-75 | 3/4" |
| NPNB-UGB-100 | 1" |
| NPNB-UGB-125 | 1-1/4" |
| NPNB-UGB-150 | 1-1/2" |
| NPNB-UGB-200 | 2" |
| NPNB-UGB-250 | 2-1/2" |
| NPNB-UGB-300 | 3" |
| NPNB-UGB-350 | 3-1/2" |
| NPNB-UGB-400 | 4" |
| NPNB-UGB-500 | 5" |
| NPNB-UGB-600 | 6" |
What's in the box
What's in the box
- Qty 1 - Threaded Grounding Bushing, Malleable Iron
