Three-Gang Recessed TV Box

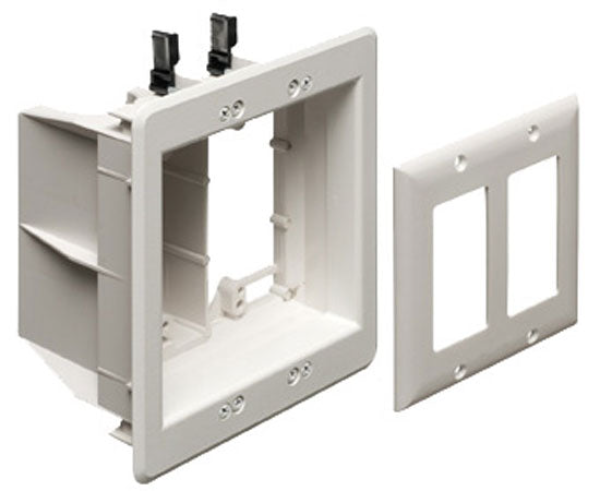

Our Recessed TV Box offers you a convenient way to mount LCD and plasma TVs flush against the wall. The plugs and connectors stay inside this recessed box. Designed for new or existing construction, the TVBU505 and TVBU507 are combo boxes with power on one side and one low-voltage opening for Class 2 wiring on the other. This box ensures a secure installation with good looks and a great finish.
Features
Features

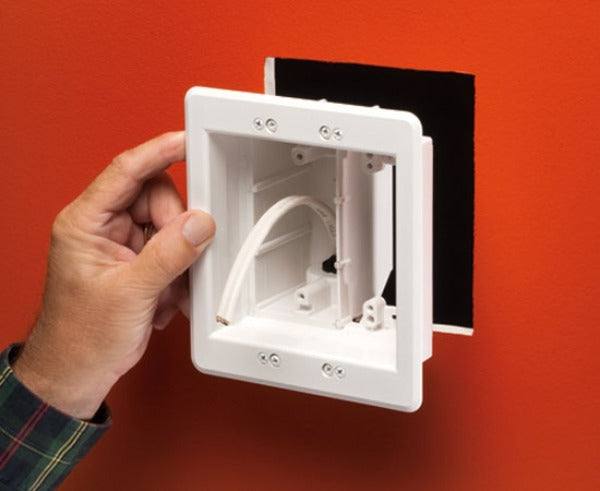

- No wobble! In retrofit projects, mounting wings hold the box securely against the wallboard when screws are tightened. The box mounts directly to a stud for use in new construction
- Adjusts to fit walls from 1/4" to 1-1/2" thick in retrofit applications
- Fast and easy installation

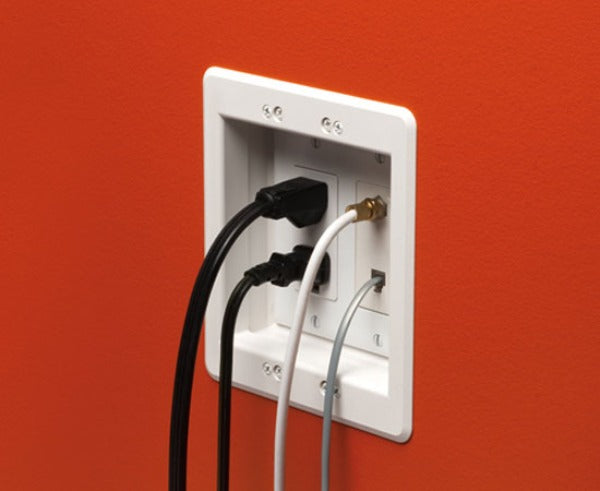

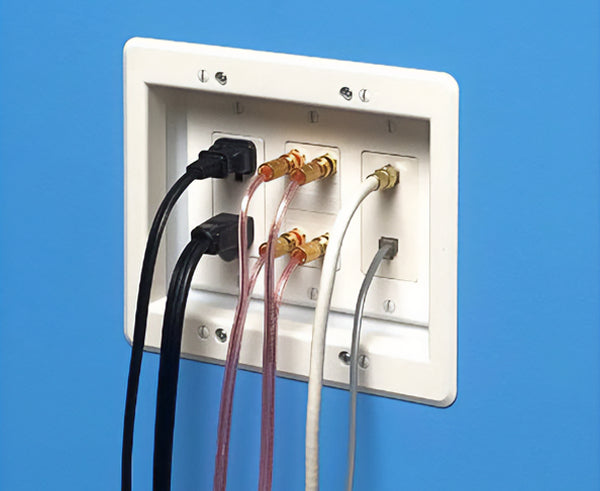

- A recessed combo box allows you to mount LCD/plasma TVs and other system components flush against the wall
- For new work use supplied screws to install on a stud. For convenience, box positioning tabs are set for 1/2" or 5/8" drywall
- Trim plate is textured/paintable and covers the edges of a cut wall surface
- Mounting wings hold the bracket securely against a wall when screws are tightened
- For walls up to 1-1/2" thick
- UL Listed
- Paintable white trim plate

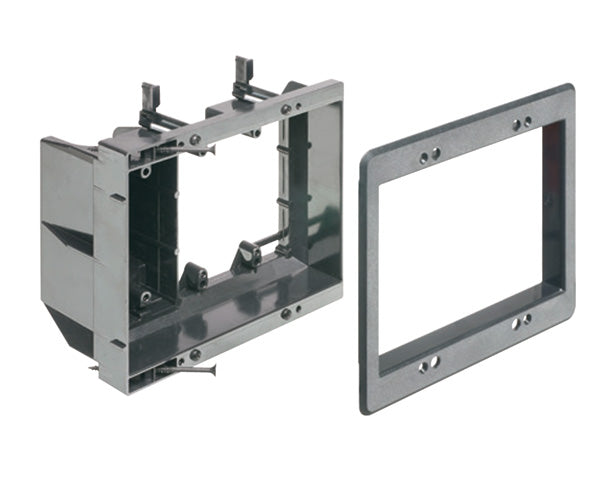

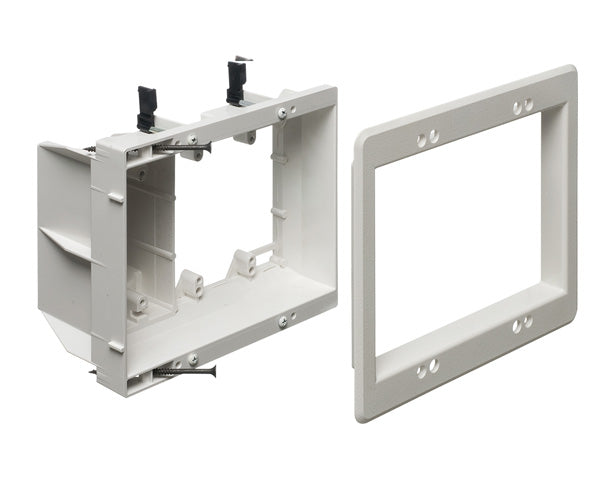

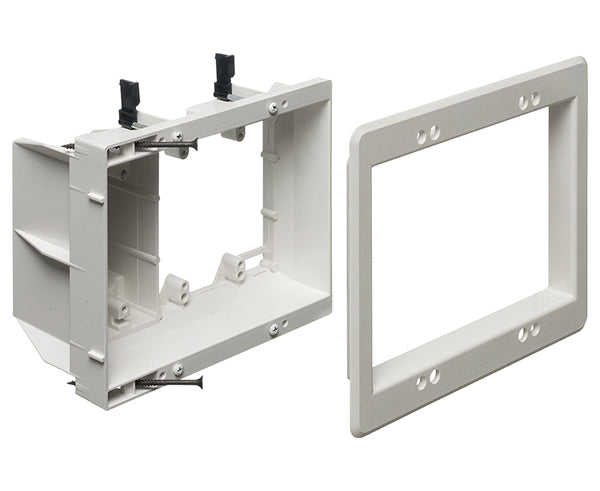

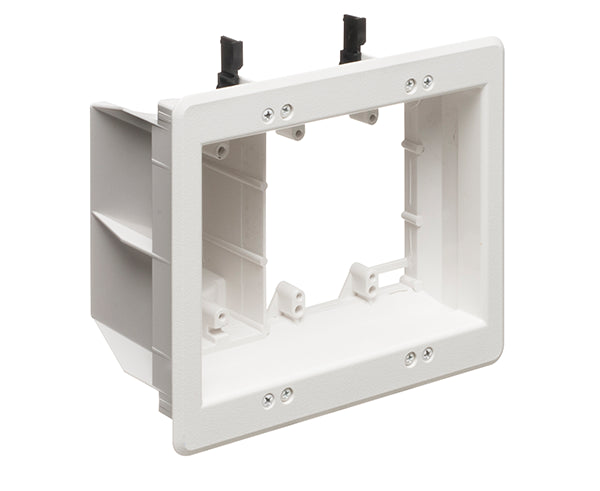

The Image shown is the 3-gang (TVU507)
Specifications
Specifications
Physical Information |
|
|---|---|
| Product Number | TVBU507 |
| Width | 7.930" |
| Height | 6.818" |
| Weight | 0.840 lbs |
| Color | White |
| Material | Plastic |
| UPC | 018997096616 |
| Line Drawing | |
Technical Information |
|
|---|---|
| Style | Three-Gang Recessed Power and Low-Voltage TV Box™ |
| wall depth | 1/2", 5/8", and up to 1-1/2" |
Additional Information
Additional Information
Multiple Gang Recessed TV Box™ Video
Installation Instructions are shown with the 3-gang (TVU507)
What's In The Box
What's In The Box
| Product Number | TVBU507 |
| Comes With | (1) Trim Plate (1) Recessed Combo Box (1) NM94 Cable Connector (1) 3-Gang Decorator-Style / GFCI Wall Plate with screws (2) #8 x 3" Long Screws (4) #6-32 x 1/2" Long Screws |
