Description

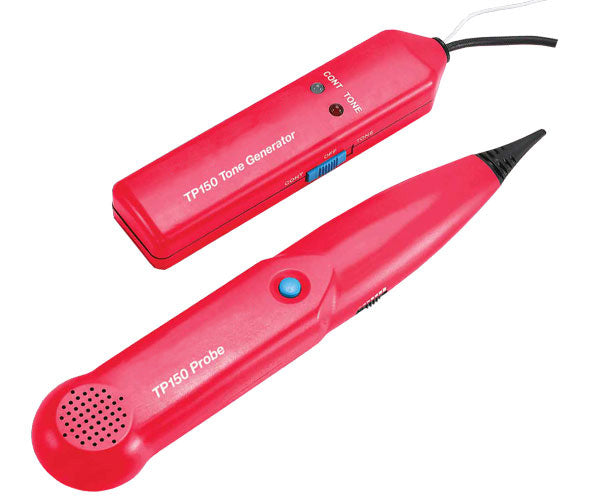

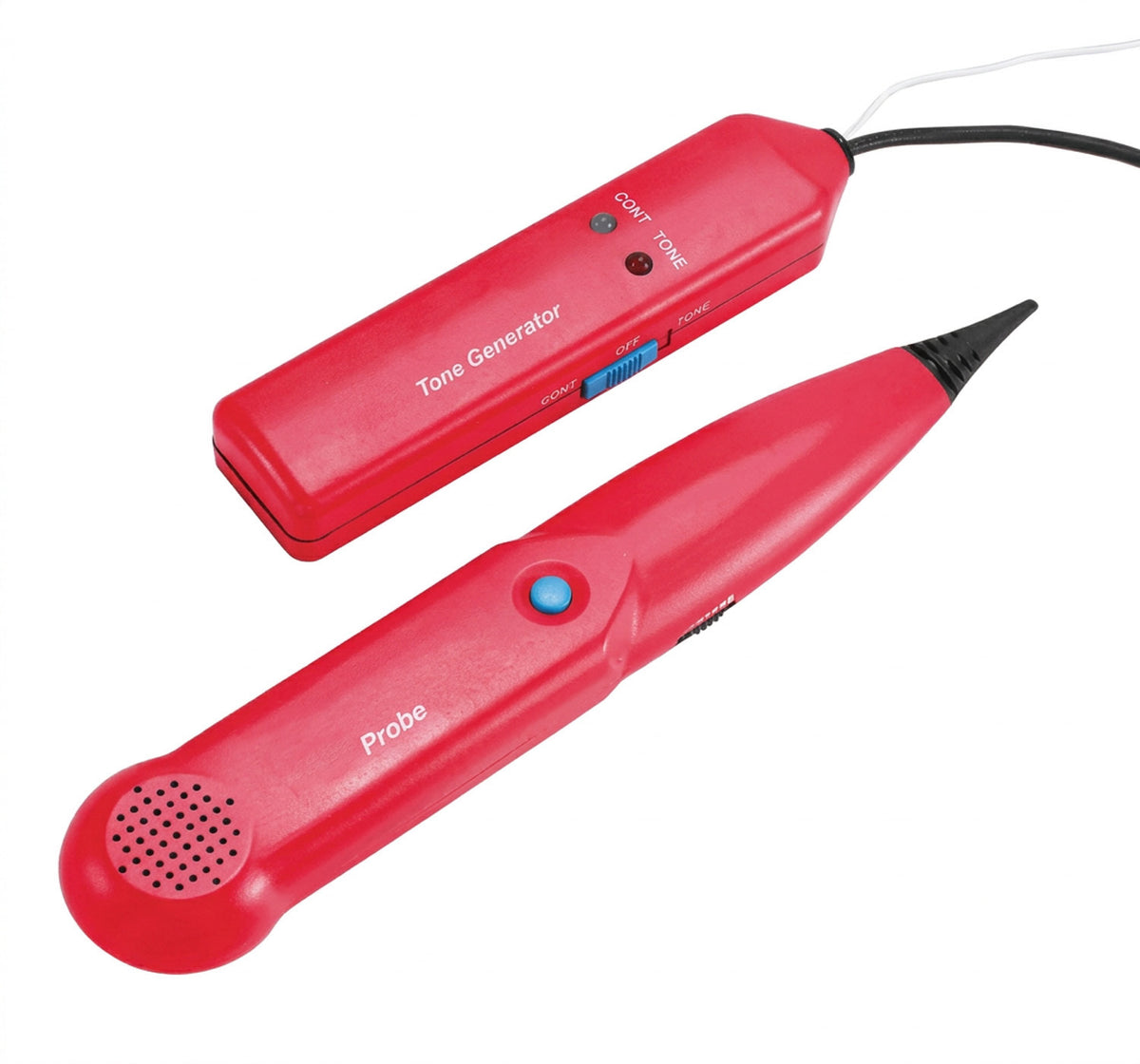

Tone Generator and Probe Set
Make cable tracing and identification easy with the Tone and Probe set. It has a clear, steady tone with its loudspeaker and a push-to-scan button for simple operation. Control probe volume with the thumbwheel and easily insert the probe into the cable with a tapered tip. This tone and probe have a continuity function to detect if a wire is broken. Alligator clips are available to test pairs, and an RJ11 connector for data and phone line testing.
Features
Features
Probe Features
- Recessed Push-Button Activates Tone Scanning
- Tapered Til Facilitates Using Probe on Cable Bundles
- Side Thumb Wheel Controls Volume and Power to Save Battery
- Probe Sensitivity: 100Hz~300KHz
Tone Generator Features
- Slide switch to select TONE/OFF/CONT
- Continuity mode to verify if a wire is broken
- Alligator clips to test pairs and an RJ11 connector for data or phone lines
- Tone Generator Output: 1.5 KHz square waveform
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| TONE GENERATOR | |
| LENGTH | 5.7"X1.7"X1.1" (145MM X 43MM X 28MM) |
| WEIGHT | 4.3OZ (122.8G) |
| PROBE | |
| LENGTH | 9.0"X1.8"X1.0" (229MM X 46MM X 25MM) |
| WEIGHT | 3.8OZ (106.2G) |
Additional Information
| Product Videos | |
|---|---|
INSTRUCTIONAL VIDEO |
What's In The Box
What’s In The Box
- Qty 1 - Tone Generator
- Qty 1 - Probe
- Qty 2 - Alligator Clips (1 Red/1 Black)
- Qty 1 - RJ11 Connector
- Qty 1 - Carrying Case
- Qty 1 - 9 Volt Batteries
- Qty 1 - Instructions
