Recessed TV Box for Power and Low Voltage

$28.76
SKU: TVB613
Various lead times may apply to this product. Please contact us for more details.

Description

Description

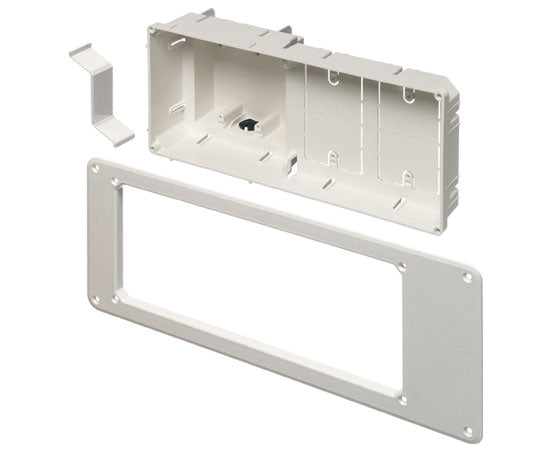

Recessed TV Box for Power and Low Voltage

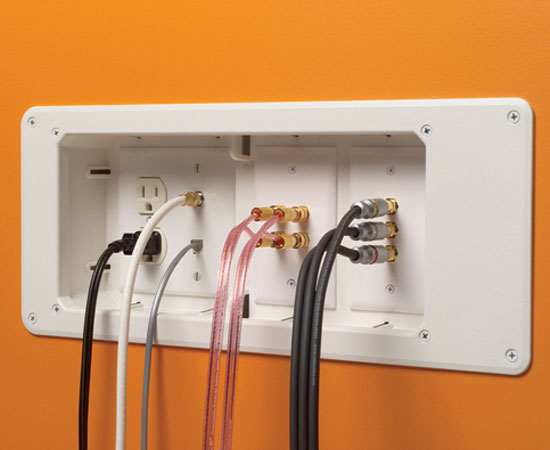

Our recessed TV Box is for new or old work and allows LCD and plasma TVs to be placed flush against the wall. Its double-gang, combo box design lets you install two duplex (power) receptacles or allows you to use the box separator to install one low-voltage device and one power duplex receptacle.

This product has two additional built-in mounts for low-voltage, data/media connections such as speakers, satellite TV, surround sound, etc. The 13" wide, non-metallic TV Box mounts securely between 16" on center studs. The box is recessed, so plugs don't extend past the wall. You can mount TVs flush or push furniture closer to the wall.

Features

Features

  • Use metallic boxes where metal raceways are required
  • Perfect for flat-screen plasma/LCD televisions
  • For new or existing construction
  • Recessed, so plugs do not protrude from the wall
  • Trim ring covers cut edge of drywall
  • Trim ring and cover are textured/paintable
  • (2) low voltage mounts are built-in
  • Low voltage separator provided for built-in 2-gang device box so power and low voltage can be combined
  • Textured, paintable trim plate covers edges of cut drywall Positioning tabs for 1/2" wall thickness assures accurate placement of box on stud
  • UL Listed - CSA Listed with grounding lug
  • Horizontal or vertical mounting

Specifications

Basic Information
Part Number TVB613
Description Non Metallic TV BOX for power and low voltage. Recessed so plugs do not protrude from wall. For new construction and retrofit. Comes with low voltage divider in power box. 4 Gang.
UPC-A 018997096302
Unit Packaging 1pc
Standard Packaging 1pc
Available w/ Grounding Clip Yes - Order Part Number TVB613GC
Physical Information
Weight 1.850 lbs/each
Height 7.000"
Width 17.000"
Color White
Material(s) Plastic
Technical Information
Trade Size 4-Gang


Additional Information

Additional Information

Four Gang Recessed TV Box™ Video

Recessed TV Box Instructions

What's In The Box

What's In The Box

  • Qty 1 - Voltage Separator
  • Qty 1 - Trim Plate
  • Qty 1 - NM Cable Connector
  • Qty 1 - Box Section
  • Qty 4 - #8 x 3/4" Long Screws
  • Qty 4 - #8 x 1-1/2" Long Screws
