Description

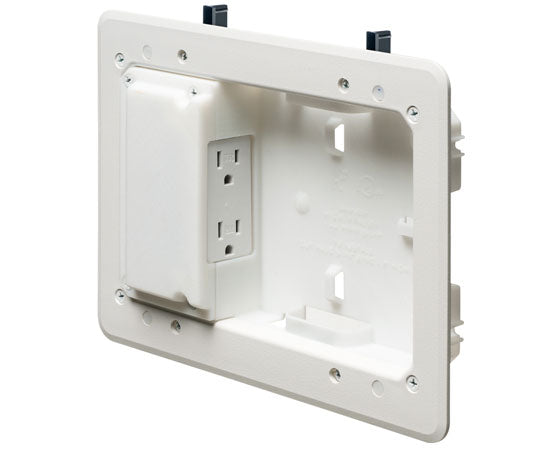

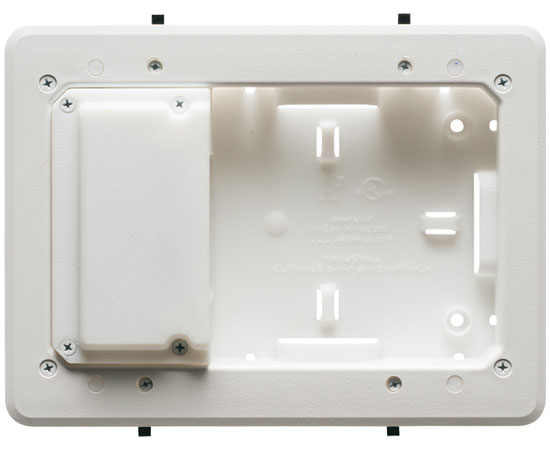

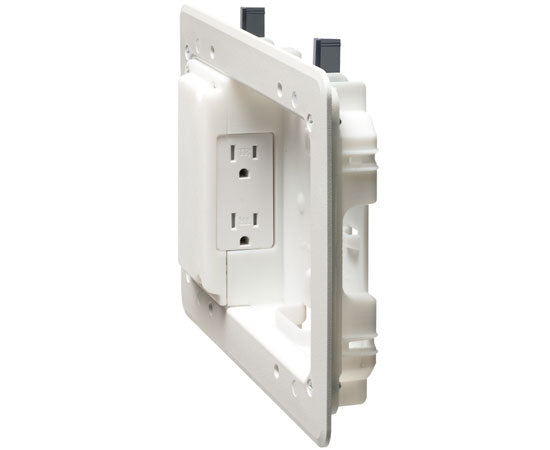

TV Box 5" x 8" Low Profile For Shallow Walls

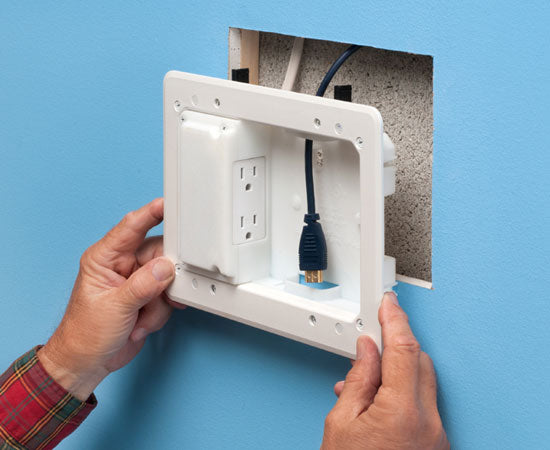

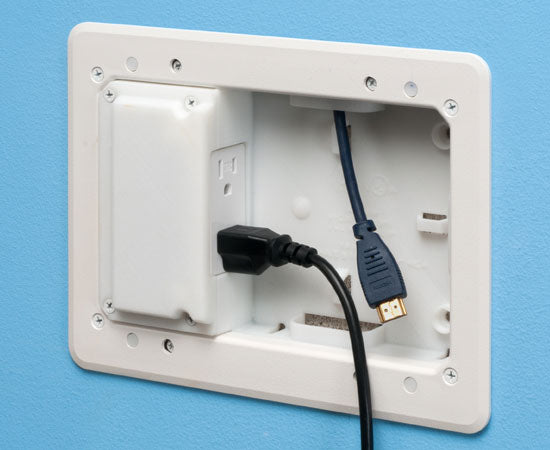

Our low profile 5" x 8" TV BOX™ is ideal for flat screen TV installations on 1/2" or 5/8" drywall with wall cavity depths of 3/4" and larger. Offering versatility, this product can install horizontally or vertically to ensure proper positioning of low voltage connections behind the TV. This product is ideal for home theater systems where multiple connections are needed for sound systems, satellite TV, cable TV, DVRs, and more.
Features
Features
- Mounting wing screws hold the box secure against a wall
- Supplied with 1 - TVL508 Low-Profile TV Box™ and 1 - UL Listed Decorator Style Receptacle
- Made in the USA
- White (Paintable Trim Plate)
- UL/CSA Listed
Specifications
Specifications
| Item | Dim A | Dim B | Dim C |
| TVL508 | 10.5" | 2.5" | 8" |
Specifications |
|||
|---|---|---|---|
| Height | Width | Color | Material |
| 5" | 8" | White (Paintable Trim Plate) | Plastic |
Technical |
|||||
|---|---|---|---|---|---|
| Height | Trade Size | Box Depth | Stud Size | Application | In the Box |
| 5" x 8" | 1-1/4" | 2 x 2 2 x 3 2 x 4 or larger |
Flat Screen Installations (LCD, LED, Plasma) on 1/2" or 5/8" drywall |
Low Profile TV Box UL Listed Decorator Style Receptacle |
|
What's in the box
What's in the box
- Qty 1 - TVL508 Low-Profile TV Box™
- Qty 1 - UL Listed Decorator Style Receptacle
