Recessed TV Box with Angled Openings - Standard

Recessed TV Box with Angled Openings - Standard

BY Arlington

Regular price $29.55 USD
Regular price Sale price $29.55 USD
Sale Sold out

SKU: SKU: TVB712

Size

 Various lead times may apply to this product. Please contact us for more details.

View full details

Description

Description

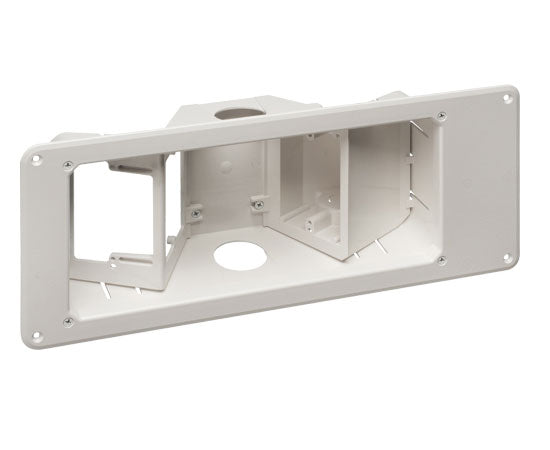

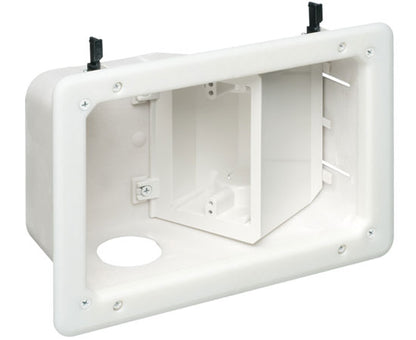

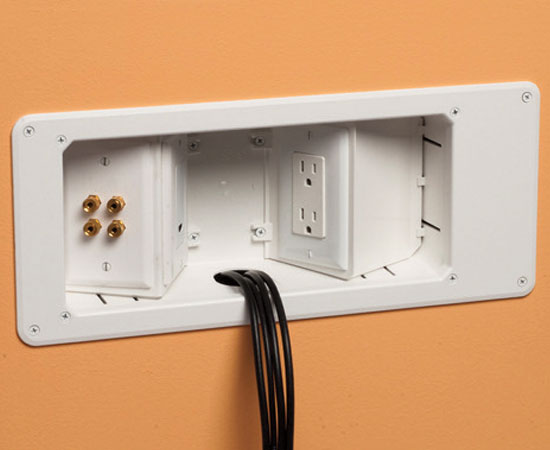

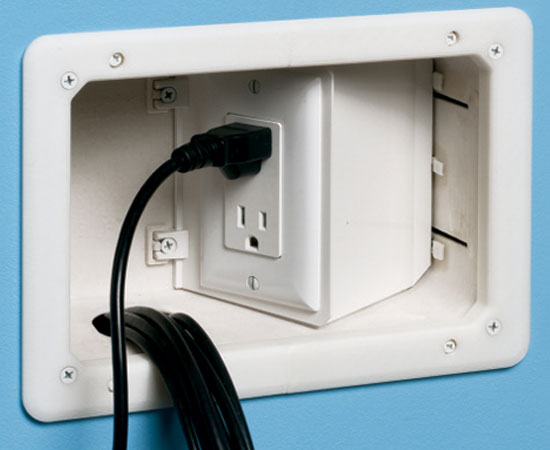

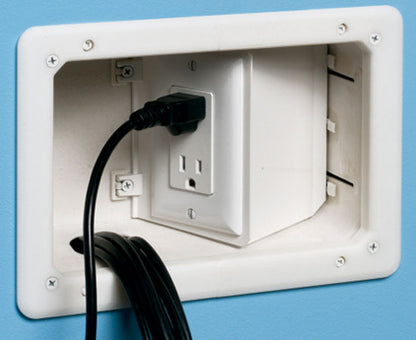

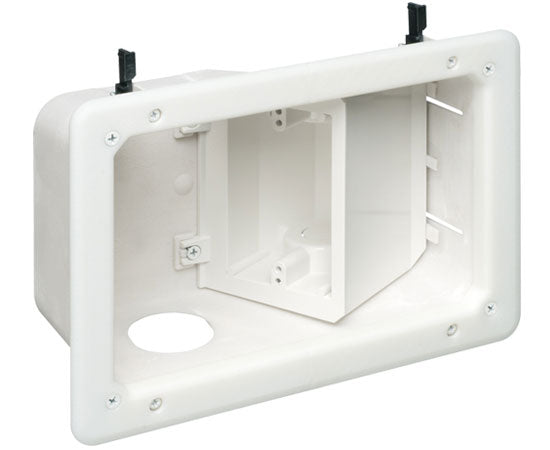

Recessed TV Box with Angled Openings

Our plastic recessed combination power and low voltage TV Box offers a secure, easy way to mount flat screen TVs flush against a wall. Designed for new or old work, this product has angled outlet boxes that take convenience to a new level.

Features

Features

  • Non-metallic, paintable trim plate with angled outlet
  • Available in two sizes: Standard, Large
  • The standard TVB712 offers power and/or low-voltage

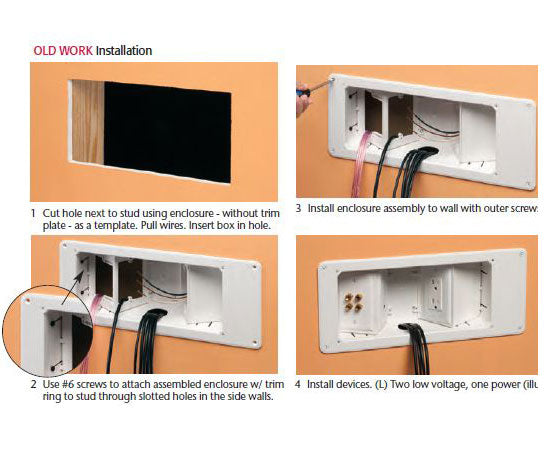

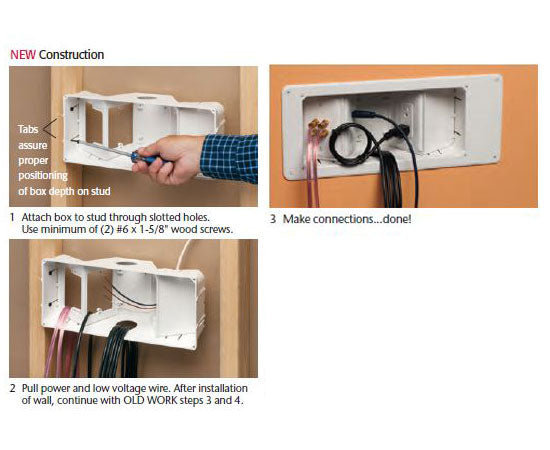

  • For new or old work:- (a) Positioning tabs for 1/2" wall thickness that assure accurate placement on stud in new construction (b)For retrofit, use an enclosure (without the trim plate) as a template for the wall opening

Specifications

Specifications

INFORMATION TVB712 TVB713
Width 10.210" 17.000"
Height 7.561" 7.000"
Weight 1.260 lbs 1.606 lbs
Color White White
Material Plastic Plastic
UPC 018997097125 018997097132
Line Drawing

Specification

Instruction Sheet


Additional Information

Additional Information

Plastic recessed TV BOX Instruction Video

What's In The Box

What's In The Box

  • Qty 1 - Trim Plate
  • Qty 1 - NM Cable Connector
  • Qty 1 - Mounting Bracket
  • Qty 1 - Low Voltage PLate
  • Qty 1 - Line Voltage Box
  • Qty 1 - Accessory tray
  • Qty 4 - #8-32 x 1/2" Long Screws
  • Qty 4 - #8 x 3/4" Long Screws
  • Qty 4 - #8 x 1-1/2" Long Screws
