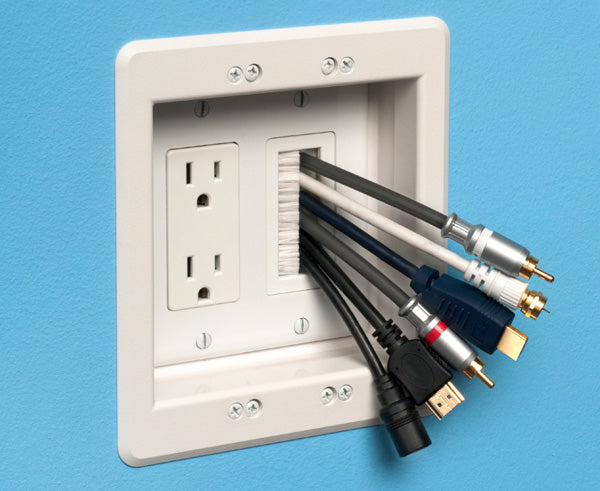

Recessed TV Box Kit 2-Gang Power & Cable Entry Box /w Brush Style Entry
Our Recessed Two-gang TV Box Kit with a brush-style entry is for power and low voltage cable. This kit can be installed in new or existing construction and is a non-metallic, recessed combo box for power and low voltage for class 2 wiring of satellite or cable TV, speakers, and more.
This box utilizes the easy-to-use mounting wings and a textured/printable Trim Plate that covers the edges of the cut wall surface for a professional finish. Kit includes one 2-port power outlet and one low-voltage brush-style cable entry plate.
Features
Features
- Two-Gang Recessed combo box allows you to mount LCD/plasma TVs and other system components flush against the wall
- For new work...Use supplied screws to install on a stud. For convenience, box positioning tabs are set for 1/2" or 5/8" drywall
- Trim plate is textured/paintable and covers the edges of the cut wall surface
- Mounting wings hold the bracket securely against a wall when screws are tightened
- For walls up to 1-1/2" thick
- Includes one brush-style entrance plate
Specifications
Specifications
| Basic Information | |
|---|---|
| Part Number | TVBU505K |
| Description | Plastic recessed TV BOX for power and low voltage. For new and old construction. Kit includes recessed combo box, (1) tamper resistant duplex receptacle, Arlington's SCOOP, Arlington's PASS THROUGH devices and cover plate. |
| UPC-A | 018997096821 |
| Unit Packaging | 1pc |
| Standard Packaging | 4pcs |
| Physical Information | |
|---|---|
| Weight | 0.992 lbs/each |
| Height | 6.942" |
| Width | 6.254" |
| Color | White |
| Material(s) | Plastic |
| Technical Information | |
|---|---|
| Application | Mount LCD/Plasma TVs and other System Components Flush Against-the-Wall for New or Existing Work |
| Style | Two-Gang Recessed Power and Low-Voltage TV Box™ |
| Trade Size | 2-Gang |
| Wall Depth | 1/2", 5/8", and up to 1-1/2" |
Additional Information
Additional Information
Installation Instructions are shown with the 3-gang (TVU507)

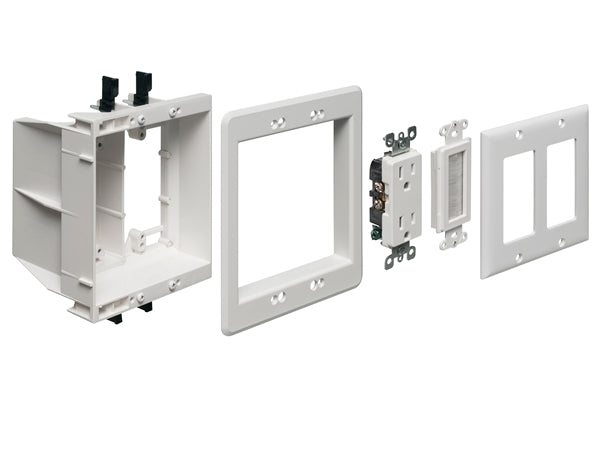

What's In The Box
What's In The Box
- Qty 1 - Trim Plate
- Qty 1 - Tamper-Resistant Duplex Receptacle
- Qty 1 - Recessed Combo Box
- Qty 1 - NM94 Cable Connector
- Qty 1 - CED135 SCOOP™
- Qty 1 - 2-Gang Decorator-Style / GFCI Wall Plate with screws
- Qty 2 - #8 x 3" Long Screws
- Qty 4 - #6-32 x 1/2" Long Screws
