Recessed Power/Low Voltage TV Box Kit

Recessed Power/Low Voltage TV Box Kit

BY Arlington

Regular price $51.12 USD
Regular price Sale price $51.12 USD
Sale Sold out

SKU: SKU: TVBU810

 Various lead times may apply to this product. Please contact us for more details.

View full details

UL Listed    CSA logo    Made in USA

Description

Description

Recessed Power & Low Voltage Electrical Box 8" x 10" Kit

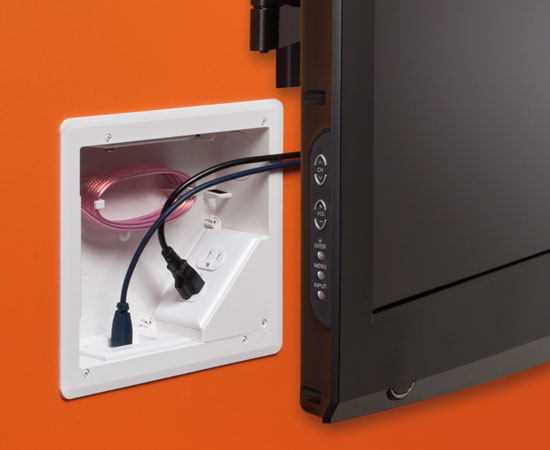

Our recessed TV Box kit is for power and low voltage. This kit can be installed in new or existing construction and is non-metallic-ideal for home theater systems where multiple connections are necessary for sound systems, satellite TV, cable TV, DVRs, and more.

Features

Features

  • Accepts standard-style plates with receptacles and decorator-style devices with plates - and Arlington's SCOOP series entrance plates and hoods
  • Mounting wing screws hold-box secure against the wall
  • Supplied with cover blanks, wall plate, a SCOOP cable entry device (CED130), and cable connectors for unused openings

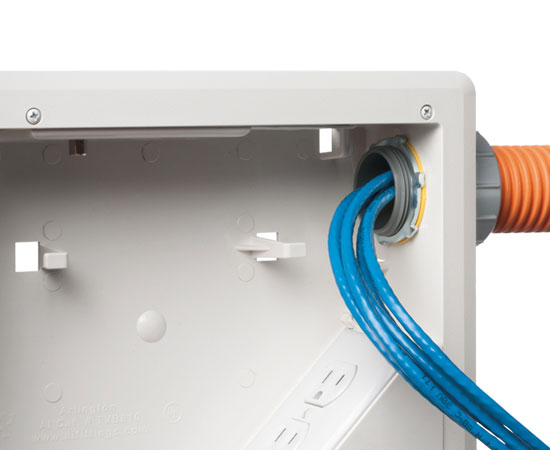

  • 1-1/2" knockout for ENT or other low-voltage wiring
  • UL/CSA Listed

Specifications

Specifications

Specification

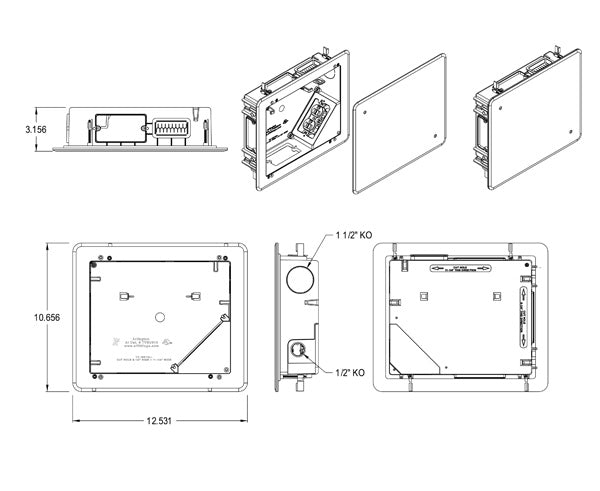

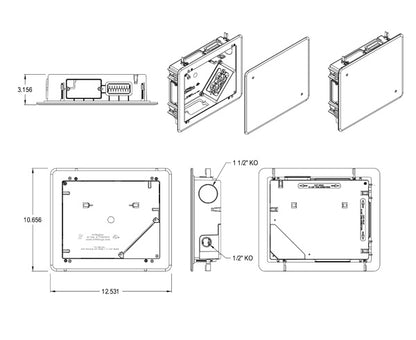

Width 12.531"
Height 10.656"
Weight 1.828 lbs
Color White
Material Plastic
UPC 018997097583


Additional Information

Additional Information

Plastic recessed TV BOX Instruction Video

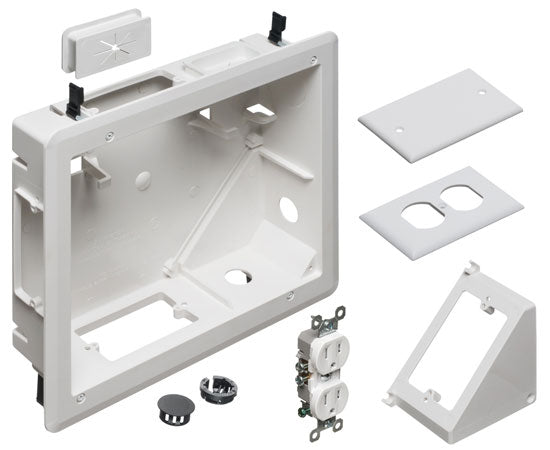

What's In The Box

What's In The Box

  • Qty 1 - TVBU810 Frame
  • Qty 1 - TVBU810 Box
  • Qty 1 - Tamper-Resistant Duplex Receptacle
  • Qty 1 - Single-Gang Wall Plate with screw(s)
  • Qty 3 - Single-Gang Blank Wall Plates with screws
  • Qty 1 - Receptacle Mounting Bracket
  • Qty 1 - NM Snap-In Blank
  • Qty 1 - NM Cable Connector
  • Qty 1 - CED130 Insert
  • Qty 7 - #8-32 x 1/2" Long Screws
