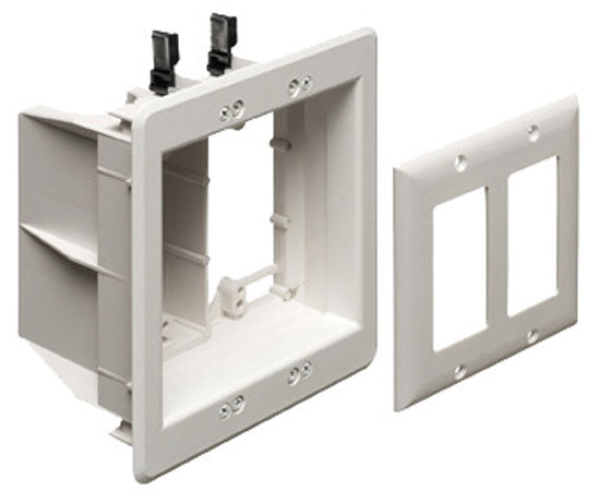

Two-Gang Recessed TV Box - White

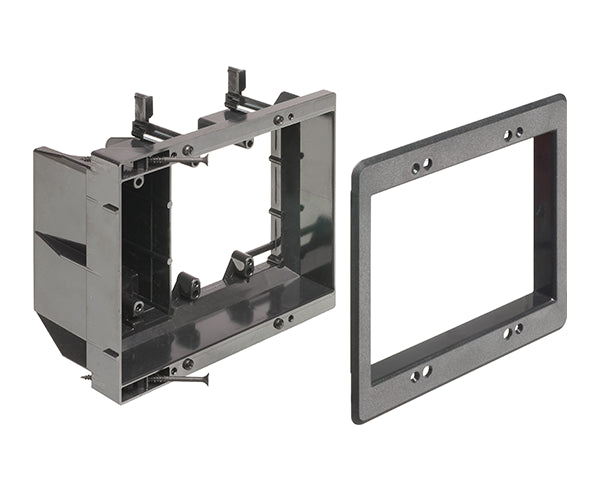

Two/Three Gang Recessed TV Box for Power and Low Voltage

by Arlington
$22.37
SKU: TVBU505
Size
Color: White

UL Listed Made in USA

Description

Two/Three Gang Recessed TV Box

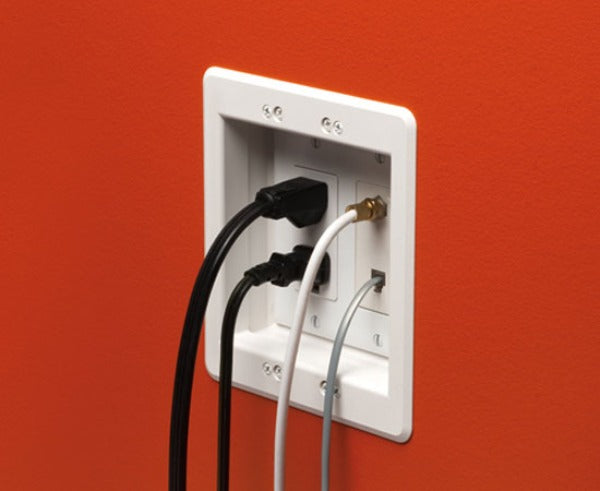

Our Recessed TV Box offers you a convenient way to mount LCD and plasma TVs flush against the wall. The plugs and connectors stay inside this recessed box. Designed for new or existing construction, the TVBU505 and TVBU507 are combo boxes with power on one side and one low-voltage opening for Class 2 wiring on the other. This box ensures a secure installation with good looks and a great finish.

Key Features

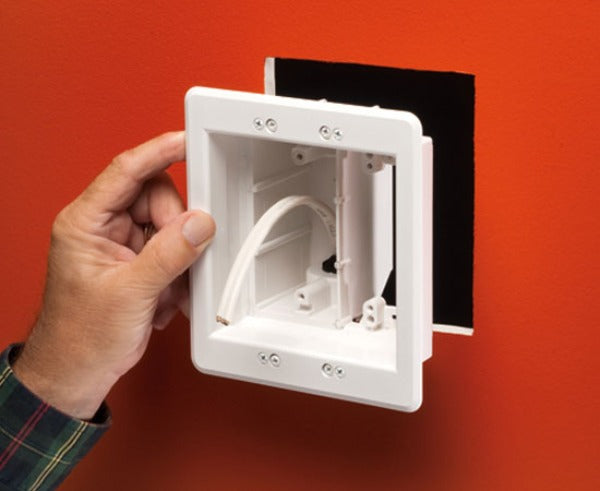

  • No wobble! In retrofit projects, mounting wings hold the box securely against the wallboard when screws are tightened. The box mounts directly to a stud for use in new construction.
  • Adjusts to fit walls from 1/4" to 1-1/2" thick in retrofit applications

Features

Features

  • Fast and easy installation
  • A recessed combo box allows you to mount LCD/plasma TVs and other system components flush against the wall
  • For new work use supplied screws to install on a stud. For convenience, box positioning tabs are set for 1/2" or 5/8" drywall
  • Trim plate is textured/paintable and covers the edges of a cut wall surface
  • Mounting wings hold the bracket securely against a wall when screws are tightened
  • For walls up to 1-1/2" thick
  • UL Listed
  • paintable white trim plate

TVBU recessed TV Box

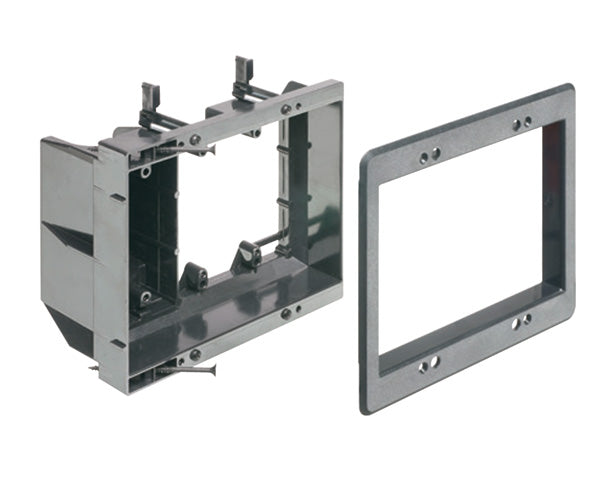

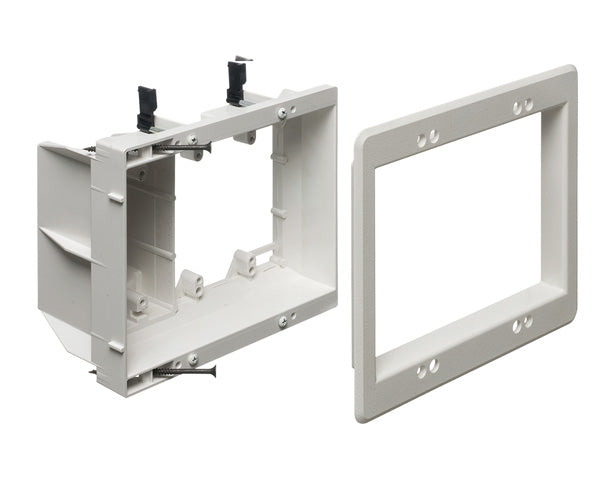

The Image shown is the 3-gang (TVU507)

Specifications

Specifications



Physical Information
Product Number TVBU505 TVBU507
Width 6.254" 7.930"
Height 6.942" 6.818"
Weight 0.726 lbs 0.840 lbs
Color Black/White Black/White
Material Plastic Plastic
UPC 018997096807 018997096616
Line Drawing



Technical Information
Style Two-Gang Recessed Power and Low-Voltage TV Box™ Three-Gang Recessed Power and Low-Voltage TV Box™
wall depth 1/2", 5/8", and up to 1-1/2" 1/2", 5/8", and up to 1-1/2"

Additional Information

Additional Information

Multiple Gang Recessed TV Box™ Video



TV Box Instructions

Installation Instructions are shown with the 3-gang (TVU507)

What's in the Box

What's in the Box

    Product Number TVBU505 TVBU507
    Comes With (1) Trim Plate
    (1) Recessed Combo Box
    (2) NM94 Cable Connector
    (1) 2-Gang Decorator-Style / GFCI Wall Plate with screws
    (2) #8 x 3" Long Screws
    (4) #6-32 x 1/2" Long Screws
    		 (1) Trim Plate
    (1) Recessed Combo Box
    (1) NM94 Cable Connector
    (1) 3-Gang Decorator-Style / GFCI Wall Plate with screws
    (2) #8 x 3" Long Screws
    (4) #6-32 x 1/2" Long Screws
