Twisted 3 Strand Manila Rope, Natural Fiber

Call for Pricing
SKU: NPNB-TWM080600
Length
Diameter
Various lead times may apply to this product. Please contact us for more details.

 Made in USA

These products are all Made to Order

Which means they are non-cancelable and non-refundable

Minimum Order Quantities May Apply

Description

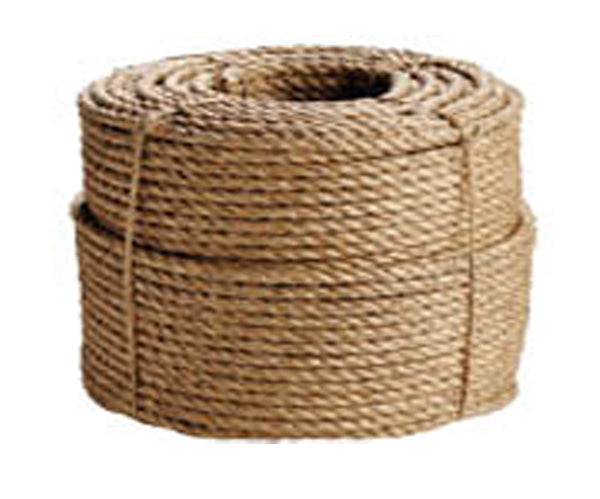

Twisted 3 Strand Manila Rope, Natural Fiber

The Twisted 3 Strand Manila Rope, Natural Fiber is the strongest of all natural fiber ropes. Its premium grade with a minimum 36 becker value. It is sold in many different diameters ranging from 1/4" to 3" in 600 foot and 1,200 foot lengths. The minimum break strength varies depending on the diameter size but ranges from 540 lbs. per foot to 57,600 lbs. per foot.

Features

Features

  • Premium Grade
  • 3 Strand
  • Natural Fiber Rope
  • Strongest of Natural Fiber Rope
  • Minimum Break Strength up to 540 Pounds

Specifications

Specifications

Twisted 3 Strand Manila Rope, Natural Fiber

Diameter (Inches) Length (Feet) Package Type Minimum Break Strength (Lbs) Approximate Density (Lbs/100ft) Approximate Package Weight (Lbs)
1/4 100 Coilette 540 2.0 2.0
1/4 600 Carton 540 2.0 12.0
1/4 1,200 Carton 540 2.0 24.0
5/16 600 Carton 900 2.9 17.4
5/16 1,200 Carton 900 2.9 34.8
3/8 100 Coilette 1,215 4.1 4.1
3/8 600 Carton 1,215 4.1 24.6
3/8 1,200 Carton 1,215 4.1 49.2
1/2 100 Coilette 2,385 7.5 7.5
1/2 600 Carton 2,385 7.5 45.0
1/2 1,200 Carton 2,385 7.5 90.0
5/8 100 Coilette 3,960 13.3 13.3
5/8 600 Carton 3,960 13.3 79.9
5/8 1,200 Carton 3,960 13.3 160.0
3/4 100 Coilette 4,860 16.6 16.6
3/4 600 Carton 4,860 16.6 99.6
3/4 1,200 Coil 4,860 16.6 199.0
7/8 600 Coil 6,930 22.5 135.0
7/8 1,200 Coil 6,930 22.5 270.0
1 100 Coil 8,100 27.0 27.0
1 600 Coil 8,100 27.0 162.0
1 1,200 Coil 8,100 27.0 324.0
1-1/4 100 Coil 12,150 41.8 41.8
1-1/4 600 Coil 12,150 41.8 251.0
1-1/2 100 Coil 16,650 60.0 60.0
1-1/2 600 Coil 16,650 60.0 360.0
2 100 Coil 27,900 107.0 107.0
2 600 Coil 27,900 107.0 642.0
3 100 Reel 57,600 241.0 241.0
3 300 Reel 57,600 241.0 723.0
3 600 Coil 57,600 241.0 1,446.0

Please See Our Care and Use Page

Additional Information

Proper Care and Use

Warning: Misuse of Ropes Could Result in Serious Injury

CAUTION: Use of Working Loads

Because of the wide range of rope use, rope condition and exposure to the various factors affecting the rope, it is impossible to make blanket recommendations as to the correct choice of rope to use. However we have provided the tensile strength for each diameter and type of rope. These strengths are based on tests of new and unused rope, with appropriate splices. Proper choice, care and inspection of the rope are essential for reasonably safe use of the rope. Consult your cordage vendor for proper use.

Dynamic Loading Voids Normal Work Loads

Dynamic Loading occurs when rope is subjected to sudden or extreme stress. Figures given as working loads are void if rope has been subjected to dynamic loading, high temperatures, long periods of load, extreme stress, improper storage.

Effect of Temperature on Tensile Strength

The tensile strength charts apply to ropes tested at normal room temperature (70°F). Ropes have lower tensile strength at higher temperatures. Continued exposure at elevated temperatures causes permanent damage.

Avoid Abrasion

All ropes should be protected against sharp edges and abrasive surfaces. When worn areas are visible, the tensile strength is compromised. Protect the rope's surface with chafing gear around the rope.

Avoid Chemicals

Acids and Alkalis are damaging to ropes and fibers. Caution should be used when ropes are used around building cleaning acids, cast soda and paints. Proper inspection should be made of rope prior to use.

Rope Inspection

Rope Inspection should be a continuous process that takes place before, during and after each use. When fiber shows wear in any given area, the rope should be re-splices, downgraded or replaced.

Knots and Splicing

Splicing should be used instead of knots. Knots can decrease a rope's tensile strength by up to 50%

Rope Storage

All ropes should be stored in a clean dry location, out of direct sunlight and extreme heat. Natural fiber ropes, if not kept dry, will rot over time, reducing tensile strengths dramatically.

Sunlight Degradation

Polypropylene and polyethylene ropes are subject to ultraviolet degradation. The product should be replaced when signs of excessive deterioration is indicated by discoloration or broken filaments. Tensile strengths may be dramatically reduced by sunlight degradation.

Dielectric Properties

Dielectric property testing applies only to new, unused clean rope and holds true only under these ideal conditions. Dirt, grease, entrapped moisture, or other contaminants will increase conductivity greatly. Nylon or natural fiber ropes would not be used around energized lines. Rope dielectric properties must be tested under actual operation conditions.
