Heavy Duty Low Voltage Mounting Bracket - Two Gang

$4.45
SKU: LV2HD
UL Listed CSA logo Made in USA

Description

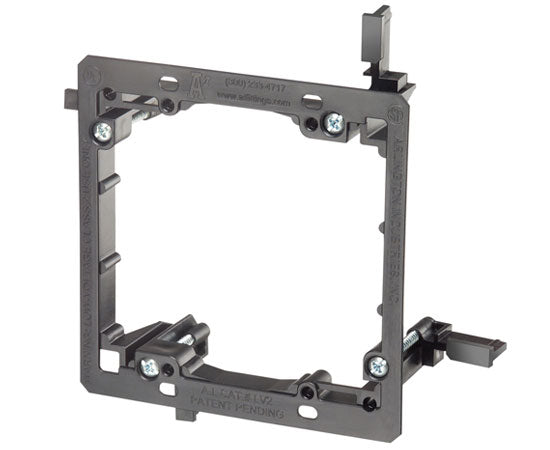

Heavy Duty Low Voltage Mounting Bracket - Two Gang

Our heavy duty mounting brackets have 4 mounting wings that eliminate the need for a box on any class 2 low voltage application. This product saves you money and time when installing class 2 communications, computer, and cable TV wiring in existing walls. When installed correctly this bracket will seat a wall plate flush to the wall. These brackets can adjust to fit 1/4" to 1" thick wallboard, paneling, or drywall. Bracket can also be used for its own template for cut out. These brackets are simply mounted using the "4-mounting wings". They hold the bracket securely against wall once the screws are tightened.

Features

Features

  • Non-metallic - better than metal and costs less too!
  • For communications, cable TV, computer wiring
  • Adjusts to fit 1/4" to 1" thick wallboard, paneling, or drywall
  • Bracket is its own template for cut out
  • 4 Mounting wings hold bracket securely against wall when screws are tightened
  • UL Listed
  • Recessed Screw Hole
  • Thin Front Lip seats wall plate flush with wall surface
  • Oval Hole allows final shifting, straightening of device
  • Works For Low Voltage Fire Alarm Installations too!

Specifications

Specifications

Heavy Duty Low Voltage Mounting Bracket - Two Gang
Adjusts to fit wall thickness Number of mounting wings gangs
1/4" to 1" 4 Two (2)

Dimensions

Dimension "A" Dimension "B" Dimension "C"
4.250 4.185 1.700

What's in the Box

What's in the Box

  • Qty 2 - Gang Low Voltage Non-Metallic Drywall Mud-Ring Mounting Bracket
  • Qty 4 - Mounting Wings
