Description
Description

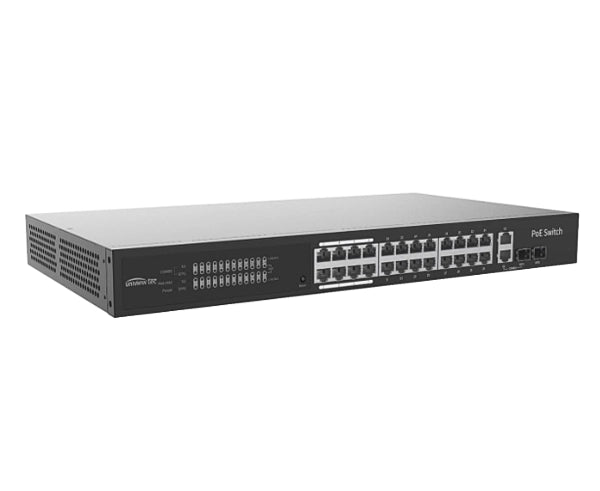

Uniview Tec Cloud Managed, 24-port Gigabit PoE Network Switch
This enterprise-grade 24-port Gigabit PoE network switch delivers powerful cloud management capabilities with comprehensive networking features for large-scale deployments. Featuring 24 × 1000Mbps PoE ports plus additional uplink options (1 × 1000Mbps RJ45, 1 × 1000Mbps SFP, and 1 × 1000Mbps Combo port), this switch provides up to 370W of total PoE power with 30W maximum per port. The switch supports IEEE 802.3af/at/az standards and offers advanced enterprise features including 32 VLANs, QoS, link aggregation, comprehensive security management, and device topology mapping for up to 32 switches and 64 devices. With 54Gbps switching capacity and intuitive cloud management software, this switch is ideal for large enterprise network deployments requiring high-density PoE connectivity.
Features
Features
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- 24 × 1000Mbps PoE ports (RJ45) + 1 × 1000Mbps RJ45 + 1 × 1000Mbps SFP + 1 × 1000Mbps Combo port
- Maximum PoE Power: 370W total capacity with 30W maximum per port
- IEEE 802.3af/at/az compliant for universal PoE device compatibility
- 54Gbps switching capacity with 40.176Mpps forwarding performance
- Advanced VLAN support - up to 32 VLANs with access and trunk modes (IDs 1-4094)
- Cloud management with unified software configuration and monitoring
- Link aggregation group support for enhanced bandwidth and redundancy
- Comprehensive QoS with port rate limiting and broadcast storm control
- Advanced security features including port isolation and IP address locking (up to 64 addresses)
- Port mirroring capabilities for network monitoring and troubleshooting
- 8K MAC address table with dynamic address clearing
- Comprehensive device discovery and network topology mapping (up to 32 switches, 64 devices)
- Full/half duplex auto-negotiation with priority flow control
- Single user management with authentication and password modification
- Comprehensive LED indicators for power, PoE status, and link activity monitoring
- Up to 8 priority ports for enhanced traffic management
- Rack-mountable design: 440 × 189.8 × 44mm (17.3 × 7.4 × 1.7")
Specifications
Specifications
| PoE Network Switch | |
|---|---|
| Ports | 24 × 1000Mbps PoE ports (RJ45); 1 × 1000Mbps port (RJ45) ; 1 x 1000Mbps SFP; 1 x 1000Mbps Combo |
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az |
| Switching Capacity | 54Gbps |
| Forwarding Performance | 40.176Mpps |
| Packet Buffer | 4Mbit |
| MAC | 8K |
| Dimensions (W x D x H) | 440 x 189.8 x 44mm; (17.3 × 7.4 × 1.7") |
| Weight | <2.98kg (6.57lb) |
| Input Voltage | AC: 100-240V, 50/60Hz |
| Maximum Power | 390W |
| Maximum PoE Power | Max capacity: 370W ; Max capacity for single port: 30W; Mode A, 1/2+, 3/6-; Mode B, 4/5+, 7/8- |
| Prior Ports | up to 8 |
| Cooling Fan(s) | 1 |
| Operating Environment | 0° ~ 40°C (32° ~ 104°F); 10% ~ 90% non-condensing |
| Storage Environment | -40° ~ 70°C (104° ~ 158°F); 5% ~ 90% non-condensing |
| Indicator |
POWER: OFF: No AC input; ON (Green): Normal power input; ON (Yellow): PoE power is >85% of the total; PoE: OFF: No PoE power supply; ON: PoE power supply is normal; LINK/ACT: OFF: No link; Steady ON: Linked; FLASHING: Transmitting data; PoE-MAX: OFF: The POE power draw is less than 80%; ON: The POE power draw is greater than 85% |
| Software Specification | |
| Ethernet | Supports Full, Half, and Auto-negotiated Duplex; Auto-negotiation rate, Priority flow control, Link aggregation group, Port flow statistics, Enable/disable ports |
| VLAN | Supports access and trunk modes; allows up to 32 VLANS with IDs from 1 to 4094 |
| MAC | Supports up to 8K, Clearing the dynamic MAC address |
| POE | Allows viewing PoE status and power, enabling and disabling of ports |
| Loop Detection | Loop Detection |
| QoS | Supports port rate limit and broadcast storm control |
| System | Allows viewing of device name, model, serail #, version, IP address, MAC address, DNS, operation time, etc; Edit and manage IP address and device name; Single user management, user authentication, password modification; Manual and NTP time configuration; Up to 32 switch and 64 device topology information |
| Security | Support port isolation; Locking login IP address, up to 64 addresses |
| Maintenance | Supports 1 port mirroring; unified software configuration, management, and search; Device discovery and network topology; Device upgrade, default, import/export configuration, export logs, and restart |
Additional Information
Additional Information
Compatible Accessories
This PoE network switch is compatible with the following accessories
Additional Product Information
This enterprise-grade cloud-managed PoE switch offers comprehensive network management capabilities with support for large-scale deployments. The device includes advanced topology mapping, unified management software, and enterprise-level security features for professional network installations requiring high-density PoE connectivity.
What's in the Box
What's in the Box
- Qty 1 – Uniview Tec Cloud Managed 24-port Gigabit PoE Network Switch (NSW242GPX)
- Qty 1 – Power adapter
- Qty 1 – AC power cable
- Qty 1 – Quick Start Guide / Installation manual
- Qty 1 – Warranty card or document
- Qty 1 – Rack-mount ears and mounting hardware
