Description
Description

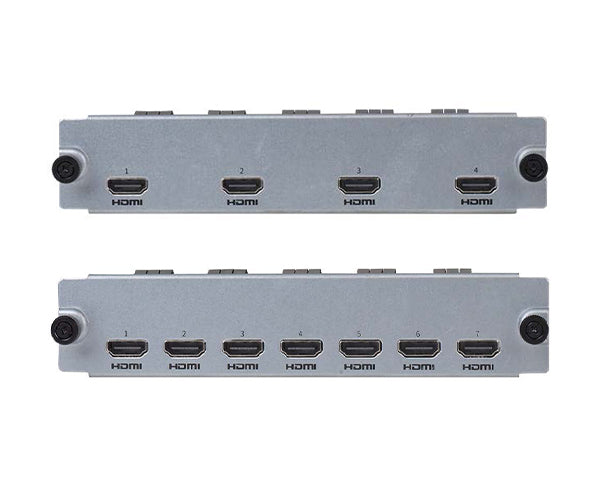

Expand your surveillance system with Uniview Tec’s 4 & 7-ch Decoder Cards, designed for NR6416X & NR12816X network recorders. These cards add 4 or 7 HDMI outputs, perfect for creating dynamic video walls. Enjoy 4K resolution (3840 x 2160) and support for H.265 & H.264 standards, ensuring high-quality video with efficient compression. Record and monitor footage at resolutions up to 16MP, capturing every detail with precision. Ideal for control rooms, security centers, and large-scale installations, these decoder cards are a powerful upgrade for your video monitoring needs.
Features
Features
- Support 4 channels of additional HDMI outputs
- Support 7 channels of additional HDMI outputs
- For use in video walls
- Supports NR6416X & NR12816X network recorders only
- HDMI resolution up to 4K, 3840 x 2160
- H.265 & H.264 standards support
- Up to 16MP Resolution Recording
Specifications
Specifications
| VIDEO TEST MONITOR | |
| HDMI Port | Supports 4 or 7 ch |
| HDMI Output 4-ch | HDMI1 & HDMI2: 4K (3840x2160) 60Hz, 4K (3840x2160) 30Hz, 1920x1080 /60Hz, 1920x1080 /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz HDMI3 & HDMI4: 1920x1080 /60Hz, 1920x1080 /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz |
| HDMI Output 7-ch | HDMI1 & HDMI2 & HDMI3 & HDMI4: 4K (3840x2160) 60Hz, 4K (3840x2160) 30Hz, 1920x1080 /60Hz, 1920x1080 /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz HDMI5 & HDMI6 & HDMI7: 1920x1080 /60Hz, 1920x1080 /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz |
| Camera Capability (fps): 4-ch | 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 12 x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30, 54 x 960P@30, 64x 720P@30 |
| Camera Capability (fps): 7-ch | HDMI1 & HDMI3 & HDMI5 & HDMI7: 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 12 x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30, 54 x 960P@30, 72x 720P@30, 112 x D1 HDMI2 & HDMI4 & HDMI6: 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 12 x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30, 54 x 960P@30, 72x 720P@30, 112 x D1 |
| Multi-window | 1/4/5/6/7/8/9/16 |
| Working Temperature | -10°C to +55°C (14°F to +131°F) |
| Working Humidity | 10% ~ 90% (non-condensing) |
| Weight | 1 Kg (2.2 lb) |
What's in the Box
What's in the Box
- Qty 1 – Uniview Tec HDMI Output Decoder Card (4‑channel or 7‑channel, according to model)
