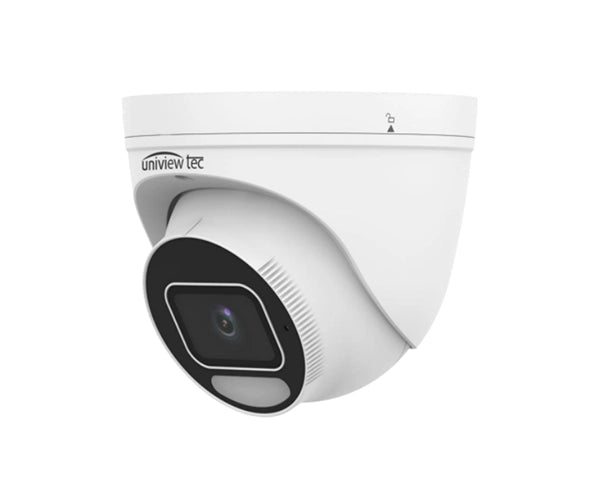

Uniview Tec 4MP ColorHunter WISE ISP WDR AI Turret Camera
This cutting-edge 4MP AI-powered turret camera represents the pinnacle of intelligent surveillance technology with ColorHunter and WISE ISP capabilities. Featuring an advanced 1/1.8" CMOS sensor with F1.0 iris and 2.8mm fixed lens, this camera delivers exceptional low-light performance with color imaging down to 0.0003 lux. The revolutionary 130dB WDR technology and warm light illumination provide superior image quality in all lighting conditions. Enhanced with Smart Intrusion Prevention (SIP), people counting, and attribute collection with color retrieval, this camera offers comprehensive AI-driven security analysis. The rugged IP67/IK10 design ensures reliable operation in extreme environments, while advanced features like triple streaming, two-way audio, and edge storage up to 512GB make it the ultimate choice for professional AI surveillance installations.
Features
Features
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- 4MP (1/1.8") CMOS sensor with ColorHunter technology for ultra-low light performance (0.0003 lux)
- 2.8mm fixed lens with F1.0 iris for maximum light gathering capability
- 130dB WISE ISP WDR for exceptional dynamic range and image clarity
- 30m (98.4ft) warm light illumination with Smart Illumination technology
- Advanced AI analytics: Smart Intrusion Prevention with human/vehicle classification
- People counting with flow monitoring and crowd density analysis
- Attribute collection with color retrieval for enhanced forensic capabilities
- H.265/H.264/MJPEG triple streaming for optimal bandwidth management
- Two-way audio with built-in microphone and speaker support
- Ultra Motion Detection with object removal and tampering detection
- 3-axis adjustment: Pan 0°-360°, Tilt 0°-75°, Rotate 0°-360°
- IP67 weatherproof and IK10 vandal-resistant rating
- PoE (IEEE 802.3af) and 12V DC power with low 4.5W consumption
- ONVIF Profile S, G, T compliant with API and SDK support
- Edge storage support with microSD up to 512GB and ANR/NAS compatibility
- Advanced security with three user levels and comprehensive encryption
- Multiple image enhancements: HLC, BLC, Digital Defog, 2D/3D DNR
Specifications
Specifications
| Camera | |
|---|---|
| Max Resolution | 4MP |
| Sensor | 1/1.8" CMOS |
| Minimum Illumination | Color : 0.0003 lux (F1.0, AGC ON) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotate: 0° ~ 360° |
| S/N | >56dB |
| WDR | 130dB |
| Lens | |
| Focal Length | 2.8 mm |
| Iris Type | Fixed |
| Iris | F1.0 |
| Field of View (H) | 110.4° |
| Field of View (V) | 60.5° |
| Field of View (D) | 115.2° |
| DORI Analysis | |
| DORI Distance(Detect) | 43.4 m (142.5 ft) |
| DORI Distance(Observe) | 17.4 m (57.0 ft) |
| DORI Distance(Recognize) | 8.7 m (28.5 ft) |
| DORI Distance(Identify) | 4.3 m (14.3 ft) |
| Illuminator | |
| Illumination Distance(Warm Light) | 30m (98.4ft) |
| Light On/Off Control | Auto/Manual |
| Video | |
| Video Compression | H.265; H.264; MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 4MP (2560*1440) @30fps; 1080P @30fps; 720P @30fps; D1 (720*576) @30fps; 640*360 @30fps; 2CIF (704*288) @30fps; CIF (352*288) @30fps Sub Stream: 1080P @30fps; 720P @30fps; D1 (720*576) @30fps; 640*360 @30fps; 2CIF (704*288) @30fps; CIF (352*288) @30fps Third Stream: D1 (720*576) @30fps; 640*360 @30fps; 2CIF (704*288) @30fps; CIF (352*288) @30fps |
| Video Bit Rate | 128 Kbps ~ 16 Mbps |
| U-code | Support |
| OSD; Privacy Mask | 8 OSD; 4 Privacy Mask |
| ROI | Support |
| Video Stream | Triple Streams |
| Image Enhancement | |
| White Balance | Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart Illumination | Support |
| Flip | Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti-clockwise |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
| Intelligent Features | |
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| People Counting | Support people flow counting and crowd density monitoring |
| Attribute Collection | SIP with color retrieval |
| Events & Detection | |
| Basic Detection | Motion Detection; Ultra Motion Detection; Tampering Alarm; Audio Detection; Object Removed; Object Left Behind |
| General Function | Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP Authentication, Alarm input, Alarm output |
| Audio | |
| Audio Compression | G.711U; G.711A |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | Support |
| Sampling Rate | 8KHZ |
| Built-in Mic | Support |
| Storage & Network | |
| Edge Storage | Micro SD, up to 512 GB |
| Network Storage | ANR; NAS (NFS) |
| Network | 1 x RJ45 10M/100M Base-TX Ethernet |
| Protocols | IPv4; IPv6; IGMP; ICMP; ARP; TCP; UDP; DHCP; PPPoE; RTP; RTSP; RTCP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; 802.1x; SNMP; QoS; RTMP; SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T); API; SDK |
| User/Host | Up to 32 users, 3 user levels: administrator, common user and operator |
| Security | Password Protection; Strong Password; HTTPS Encryption; Export Operation Logs; Basic and digest authentication for RTSP; Digest authentication for HTTP; TLS 1.2; WSSE and digest authentication for ONVIF |
| Client | Guard Live, Guard Viewer, Guard Station |
| Interface | |
| Audio I/O | 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] |
| Alarm I/O | 1/1 |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B) |
| Safety | CE LVD (EN 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1); CB (IEC 62368-1) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
| Protection | IP67 (IEC 60529); IK10 (IEC 62262) |
| General | |
| Power | DC 12V±25%, PoE (IEEE 802.3af); Power consumption: Max 4.5W |
| Power Interface | Ø 5.5mm coaxial power plug |
| Dimensions | Ø129 × 110 mm (Ø5.1" × 4.3" ) (Ø × H) |
| Weight | 0.67 kg (1.47 lb) |
| Material | Metal |
| Environment | -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 4KV |
| Reset Button | Support |
Additional Information
Additional Information
Compatible Accessories
This turret camera is compatible with the following accessories
Additional Product Information
This professional AI turret camera features advanced ColorHunter technology for exceptional color reproduction in ultra-low light conditions. The WISE ISP (Image Signal Processing) delivers superior image quality with 130dB WDR, while Smart Intrusion Prevention provides intelligent security analytics with human and vehicle classification. Advanced AI capabilities include people counting, crowd density monitoring, and attribute collection with color retrieval for enhanced forensic analysis.
What's in the Box
What's in the Box
- Qty 1 – Uniview Tec 4MP ColorHunter WISE ISP WDR AI Turret Camera (IPT4WI28AIX)
- Qty 1 – Mounting bracket and hardware
- Qty 1 – Waterproof connector
- Qty 1 – Reset tool
- Qty 1 – Quick Start Guide
- Qty 1 – Warranty card or document
