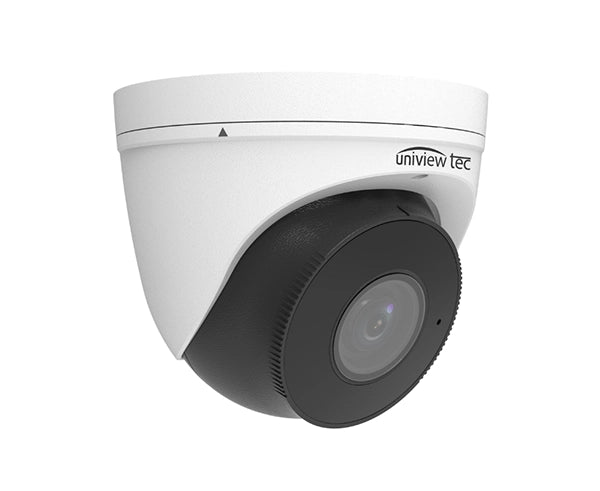

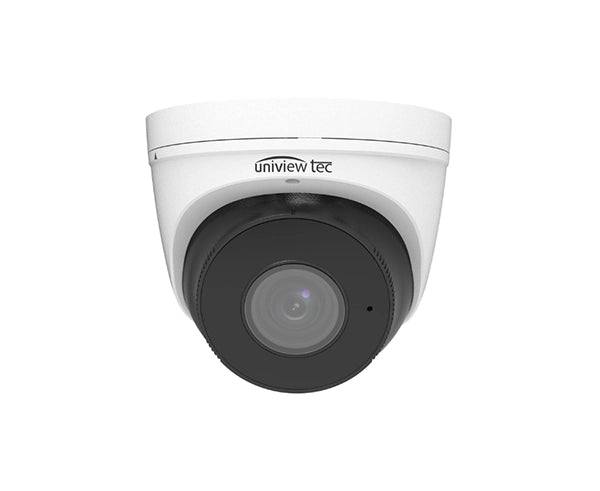

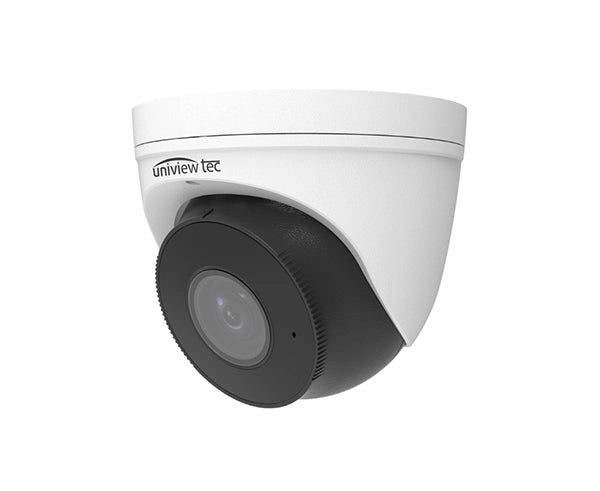

Uniview Tec 4MP True Day/Night WDR IR Turret Camera
This advanced 4MP turret camera delivers superior surveillance performance with cutting-edge True Day/Night technology and enhanced low-light capabilities. Featuring a 1/2.7" CMOS sensor with F1.8 iris and 2.8-12mm varifocal lens, this camera provides exceptional image quality from wide-angle monitoring to telephoto zoom applications. With 120dB True WDR technology, up to 50m IR illumination range, and comprehensive DORI distance analysis capabilities, this camera excels in the most demanding security environments. The rugged IP67-rated design ensures reliable operation in extreme weather conditions from -30°C to 60°C, while advanced features like human body detection, corridor mode, and edge storage up to 512GB make it ideal for professional surveillance installations.
Features
Features
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- 4MP (1/2.7") CMOS sensor with enhanced low-light performance (0.005 lux)
- 2.8-12mm varifocal lens with F1.8 iris for superior light gathering
- 120dB True WDR (Wide Dynamic Range) for exceptional image clarity in high-contrast environments
- Up to 50m (164ft) IR illumination range with Smart IR technology
- Comprehensive DORI analysis with detection up to 270m and identification up to 27m
- True Day/Night functionality with IR-cut filter and auto switch (ICR)
- H.265/H.264 dual stream video compression for bandwidth optimization
- Advanced human body detection with intrusion and motion analysis
- Built-in microphone for audio recording and detection
- 3-axis adjustment: Pan 0°-360°, Tilt 0°-75°, Rotate 0°-360°
- IP67 weatherproof rating for harsh outdoor environments
- PoE (IEEE 802.3af) and 12V DC power options with low 6W consumption
- ONVIF Profile S, G, T compliant for universal compatibility
- Edge storage support with microSD up to 512GB
- Advanced security with three user levels and comprehensive authentication
- Multiple image enhancement features: HLC, BLC, Digital Defog, 2D/3D DNR
- Corridor mode support for optimal monitoring of narrow spaces
Specifications
Specifications
| Camera | |
|---|---|
| Sensor | 1/2.7" CMOS |
| Minimum Illumination | Color: 0.005Lux (F1.8, AGC ON) 0 Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotate: 0° ~ 360° |
| S/N | >52dB |
| WDR | 120dB |
| Lens | |
| Focal Length | 2.8 ~ 12 mm |
| Iris | F1.8 |
| Field of View (H) | 102.79°~ 30.86° |
| Field of View (V) | 54.50°~ 17.49° |
| Field of View (D) | 106.94°~35.49° |
| DORI Analysis | |
| DORI Distance(Lens) | 2.8mm, 12mm |
| DORI Distance(Detect) | 63.0m(206.7ft), 270.0m(885.8ft) |
| DORI Distance(Observe) | 25.2m(82.7ft), 108.0m(354.3ft) |
| DORI Distance(Recognize) | 12.6m(41.3ft), 54.0m(177.2ft) |
| DORI Distance(Identify) | 6.3m(20.7ft), 27.0m(88.6ft) |
| Illuminator | |
| Supplemental Light | IR |
| Illumination Distance(IR) | 50 m (164.0 ft) |
| Wavelength | 850 nm |
| IR On/Off Control | Auto/Manual |
| Video | |
| Video Compression | H.265, H.264 |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps |
| Video Bit Rate | 128 Kbps ~ 6144 Kbps |
| U-code | Support |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Video Stream | Dual Streams |
| Image Enhancement | |
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise |
| Corridor Mode | Support |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
| Smart Detection | |
| Basic Detection | Intrusion (based on Human Body Detection), Motion Detection, Tampering Alarm, Audio Detection |
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 64 Kbps |
| Sampling Rate | 8 KHz |
| Built-in Mic | Support |
| Storage & Network | |
| Edge Storage | Micro SD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Network | 1 x RJ45 10M/100M Base-TX Ethernet |
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, QoS, SNMP |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Client | Guard Live, Guard Viewer, Guard Station |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B) |
| Safety | CE LVD (EN 62368-1) CB (IEC 62368-1) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
| Protection | IP67 (IEC 60529) |
| General | |
| Power | DC 12V±25%, PoE (IEEE 802.3af); Max 6.0W |
| Power Interface | Ø 5.5 mm coaxial power plug |
| Dimensions | Ø129 x 110mm (Ø5.1" x 4.3") |
| Weight | 0.67kg (1.48lb) |
| Environment | -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 6 KV |
| Reset Button | Support |
Additional Information
Additional Information
Compatible Accessories
This turret camera is compatible with the following accessories
Additional Product Information
This professional turret camera features comprehensive DORI (Detect, Observe, Recognize, Identify) analysis capabilities, providing precise distance measurements for optimal security planning. The enhanced 1/2.7" sensor with F1.8 iris delivers exceptional low-light performance, while the 120dB True WDR ensures clear imaging in challenging lighting conditions. Advanced human body detection reduces false alarms and improves security response accuracy.
What's in the Box
What's in the Box
- Qty 1 – Uniview Tec 4MP True Day/Night WDR IR Turret Camera (IPT4U212MX)
- Qty 1 – Mounting bracket and hardware
- Qty 1 – Waterproof connector
- Qty 1 – Reset tool
- Qty 1 – Quick Start Guide
- Qty 1 – Warranty card or document
