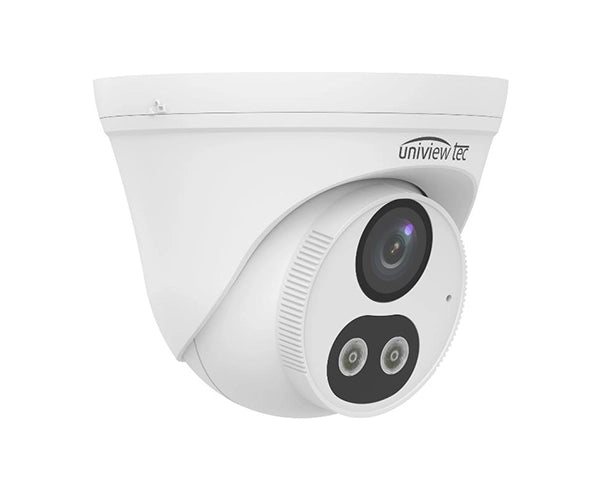

Uniview Tec 5MP Easy ColorHunter WDR AI IR Turret Camera
This efficient 5MP turret camera combines ColorHunter technology with digital WDR for reliable surveillance performance in various lighting conditions. Featuring a compact 1/3" CMOS sensor with F1.6 iris and 2.8mm fixed lens, this camera provides clear imaging with color visibility down to 0.01 lux and excellent wide-angle coverage. The digital WDR and Smart IR technology ensure consistent image quality, while advanced AI features including Ultra Motion Detection and human body detection provide intelligent monitoring capabilities. With ultra-low power consumption of only 2.8W and lightweight design at just 0.29kg, this IP67-rated camera offers an ideal balance of performance and efficiency for professional surveillance installations requiring cost-effective yet reliable security monitoring.
Features
Features
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- 5MP resolution with Easy ColorHunter technology for enhanced low-light performance
- 2.8mm fixed lens with F1.6 iris providing 97° horizontal field of view
- Digital WDR for improved image quality in challenging lighting conditions
- 30m IR illumination range with Smart IR technology
- Advanced AI analytics with Ultra Motion Detection and human body detection
- H.265/H.264/MJPEG compression with 5MP @ 20fps recording capability
- Built-in microphone for audio recording and detection
- Comprehensive DORI analysis with detection up to 63m
- 3-axis adjustment: Pan 0°-360°, Tilt 0°-80°, Rotate 0°-360°
- IP67 weatherproof rating for outdoor installations
- Ultra-low power consumption: only 2.8W maximum
- Lightweight design: 0.29kg (0.64lb) for easy installation
- PoE (IEEE 802.3af) and 12V DC power compatibility
- ONVIF Profile S, G, T compliant with API and SDK support
- Edge storage support with microSD up to 128GB and ANR/NAS compatibility
- Advanced security with password protection and encryption
- Multiple image enhancements: HLC, BLC, Digital Defog, 2D/3D DNR
- Compact dimensions: Φ126 × 93.6mm (Φ5.0" × 3.7")
Specifications
Specifications
| Camera | |
|---|---|
| Resolution | 5MP |
| Sensor | 1/3.0" CMOS |
| Min. Illumination | Color: 0.01 lux ( F1.6, AGC ON); 0 lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment angle | Pan: 0° ~ 360°, Tilt: 0° ~ 80°, Rotate: 0° ~ 360° |
| S/N | >52dB |
| WDR | Digital |
| Lens | |
| Lens Type | 2.8mm |
| Iris Type | Fixed |
| Iris | F1.6 |
| Field of View (H) | 97.0° |
| Field of View (V) | 52.2° |
| Field of View (O) | 107.5° |
| DORI Analysis | |
| DORI Distance(Lens) | 2.8mm |
| DORI Distance(Detect) | 63.0m(206.7ft) |
| DORI Distance(Observe) | 25.2m(82.7ft) |
| DORI Distance(Recognize) | 12.6m(41.3ft) |
| DORI Distance(Identify) | 6.3m(20.7ft) |
| Illuminator | |
| Illumination Distance(IR) | 30m |
| Illumination Distance(Light) | 30m |
| Wavelength | 850 nm |
| IR On/Off Control | Auto/Manual |
| Video | |
| Video Compression | H.265; H.264; MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main: 5MP (2880*1620) @20fps; 4MP (2560*1440) @25fps; 3MP (2304*1296) @30fps;1080P (1920*1080) @30fps; 720P (1280*720) @30fps Sub: D1 (720*576) @30; 640*360 @30; 2CIF(704*288) @30; CIF(352*288) @30 |
| Video Bit Rate | 128 Kbps~6144 Kbps |
| U-code | Support |
| OSD, Privacy Mask | Up to 4 |
| ROI | Up to 8 areas |
| Video Stream | Dual Streams |
| Image Enhancement | |
| White Balance | Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti-clockwise |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
| Events & Detection | |
| Basic Detection | Motion detection; Ultra motion detection; Tampering alarm; Audio detection, Human Body Detection |
| General Function | Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP authentication |
| Audio | |
| Audio Compression | G.711U; G.711A |
| Audio Bitrate | 64 Kbps |
| Sampling Rate | 8KHZ |
| Built-in Mic | Support |
| Storage & Network | |
| Edge Storage | Micro SD，up to 128 GB |
| Network Storage | ANR; NAS(NFS) |
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
| Protocols | IPv4; IGMP; ICMP; ARP; TCP; UDP; DHCP; RTP; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; QoS; SSL/TLS; SNMP |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T); API; SDK |
| User/Host | Up to 32 users, 2 user levels: administrator and common user |
| Security | Password protection; Strong password; HTTPS encryption; Export operation logs; Basic and digest authentication for RTSP; Digest authentication for HTTP; TLS 1.2; WSSE and digest authentication for ONVIF |
| Client | Guard Live, Guard Viewer, Guard Station |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) FCC (FCC 47 CFR part15 B) |
| Safety | CE LVD (EN 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); |
| Protection | IP67 (IEC 60529) |
| General | |
| Power | DC 12V±25%, PoE (IEEE 802.3af); Power consumption: Max 2.8W |
| Power Interface | Ø 5.5mm coaxial power plug |
| Dimensions | Φ126 x 93.6mm (Φ5.0" x 3.7") |
| Weight | 0.29kg (0.64lb) |
| Material | Metal + Plastic |
| Environment | -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 4KV |
Additional Information
Additional Information
Compatible Accessories
This turret camera is compatible with the following accessories
Additional Product Information
This efficient 5MP turret camera features Easy ColorHunter technology for reliable low-light performance with digital WDR capability. The ultra-lightweight design at only 0.29kg and low 2.8W power consumption make this camera ideal for cost-effective surveillance installations. Advanced Ultra Motion Detection and human body detection provide intelligent monitoring while maintaining excellent image quality with comprehensive DORI analysis capabilities.
What's in the Box
What's in the Box
- Qty 1 – Uniview Tec 5MP Easy ColorHunter WDR AI IR Turret Camera (IPT5EC28X)
- Qty 1 – Mounting bracket and hardware
- Qty 1 – Waterproof connector
- Qty 1 – Quick Start Guide
- Qty 1 – Warranty card or document
