Description
The 5MP Turret Dome Camera / 16CH, 16 PoE NVR Kit is a high‑capacity, NDAA‑compliant IP surveillance solution designed for larger commercial, campus, and multi‑building installations that prefer low‑profile turret domes over bullet housings. It combines a 16‑channel 4K‑ready NVR with H.265 compression, dual‑bay SATA support up to 10TB, PoE on every channel, and Automatic Network Recovery (ANR) so video keeps recording to the cameras even if the network link drops. Eight 5MP DWDR turret dome cameras with smart IR up to 98 feet, 2.8mm wide‑angle lenses, and built‑in microphone and speaker provide detailed coverage, two‑way audio capability, and flexible mounting options for interior and exterior areas.
Features
Features
- Kit Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- Includes 16ch network recorder with H.265 Compression for Best-in-Class Recording and Storage Capability
- Supports 2 SATA HDD up to 10TB and has Embedded PoE Switch for all Video Channels
- Supports recording of up to 16MP Resolution
- HDMI Display Output up to 4K(8MP) Resolution
- Concurrent Mirrored Display on HDMI and VGA Monitor Outputs
- Supports Cloud Upgrade for NVR and Cameras, with Automatic Detection of Latest Firmware and Upgrades, and is ONVIF Profile S Compliant
- Supported by uniview tec Guard Station Client Software as well as Guard Live and Guard Viewer Mobile App’s for iPhone and Android Devices
- Features Automatic Network Recovery (ANR) Technology to enhance storage reliability when network is disconnected
- Includes 8 x ANT528CAIX
- Exceptional Video Quality with 5MP, 2880 x 1620 Resolution
- Powerful, Smart IR LED Lights for 0Lux Night Time Operation up to 98 Feet
- 2.8mm fixed lens
- Built-in Microphone and Speaker, Backlight Compensation, 2D/3D DNR (Digital Noise Reduction); ONVIF Profile Series Compliant
Specifications
| NVR – Video & Audio Inputs | |||||
|---|---|---|---|---|---|
| IP Video Input | 16-ch | ||||
| Audio Input | 1-ch, RCA | ||||
| Video & Audio Outputs | |||||
| VGA Output | 1920 x 1080p / 60Hz, 1920 x 1080p / 50Hz, 1600 x 1200 / 60Hz, 1280 x 1024 / 60Hz, 1280 x 720 / 60Hz, 1024 x 768 / 60Hz | ||||
| HDMI Output | 3840 x 2160 / 30Hz, 1920 x 1080p / 60Hz, 1920 x 1080p / 50Hz, 1600 x 1200 / 60Hz, 1280 x 1024 / 60Hz, 1280 x 720 / 60Hz, 1024 x 768 / 60Hz | ||||
| Audio Output | 1-ch, RCA | ||||
| Audio Compression | G.711A, G.711U | ||||
| Synchronous Playback | 16 | ||||
| Live View Display | 1 / 4 / 6 / 8 / 9 / 16 | ||||
| Corridor Mode Screen | 3 / 4 / 5 / 7 / 9 / 10 / 12 / 16 | ||||
| Network | |||||
| Incoming Bandwidth | 320Mbps | ||||
| Outgoing Bandwidth | 160Mbps | ||||
| Remote Users | 128 | ||||
| Protocols | TCP/ IP; P2P; UPnP; DHCP; HTTP; HTTPS; DNS; DDNS; SMTP; RTSP; IPv4 | ||||
| Supported Browsers | IE(IE10/11) for Windows; Firefox (version 52.0 and above) for Windows; Chrome(version 45 and above) for Windows; Edge(version 79 and above) for Windows |
||||
| Decoding | |||||
| Decoding Format | H.265 / H.264 | ||||
| Live View / Playback | 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080P/ 960P/ 720P/ D1/ 2CIF/ CIF | ||||
| Capability | H.265: 2 x 16MP @30, 2 x 12MP @ 30, 4 x 4K @ 30, 6 x 5MP @ 30, 8 x 4MP @ 30, 10 x 3MP @ 30, 16 x 1080P @ 30 H.264: 2 x 16MP (4800 x 2688) @ 30, 2 x 12MP @ 30, 2 x 4K @ 30, 4 x 5MP @ 30, 6 x 4MP @ 30, 8 x 3MP @ 30, 14 x 1080P @ 30 |
||||
| Hard Disk Drives | |||||
| SATA | 2 SATA Interface | ||||
| Capacity | Up to 10TB | ||||
| Smart Features | |||||
| VCA Detection by Camera | Face Detection, Face Comparison, Vehicle Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), UMD (Ultra Motion Detection), Video Metadata, Traffic Monitoring | ||||
| VCA Search | Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human body Search, General Search, People Counting Report | ||||
| People counting | People Flow Counting, Crowd Density Monitoring | ||||
| Smart Intrusion Prevention (SIP), Face Detection, Face Comparison, Vehicle Detection, UMD, Video Metadata, Traffic Monitoring by Camera |
8-ch | ||||
| External Interface | |||||
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface | ||||
| USB Interface | Rear panel: 2 x USB2.0 | ||||
| PoE | |||||
| Interface | 8 x RJ-45 10M/100M self-adaptive Ethernet Interface | ||||
| Max Power | Max 30W for single port Max 75W in total |
||||
| Supported Standard | IEEE 802.3af/at | ||||
| General – NVR | |||||
| Power Supply | 100~240V AC; Power Consumption: ≤ 20W (without HDD) | ||||
| Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) | ||||
| Rack Ears | Included | ||||
| Dimensions (W × D × H) | 380 × 322 × 53mm (15.0 × 12.7 × 2.1") | ||||
| Weight (without HDD) | ≤ 2.6Kg (5.73lb) | ||||
| Certifications | FCC, CE (UL – Power Supply only) | ||||
| Camera | |||||
| Sensor | 5 MP 1/2.7' CMOS | ||||
| Minimum Illumination | Color: 0.02 lux (F1.6, AGC ON); 0 Lux with IR | ||||
| Day / Night | IR-cut filter with auto switch (ICR) | ||||
| Shutter | Auto / Manual, 1 ~ 1/100000s | ||||
| Adjustment Angle (3-way Axis) | Pan: 0° ~ 360°; Tilt: 0° ~ 80°; Rotate: 0° ~ 360° | ||||
| WDR | DWDR | ||||
| S/N | >52dB | ||||
| Lens | |||||
| Lens | 2.8 mm | ||||
| Iris | F1.6 | ||||
| Field of View (H) | 110.0° | ||||
| Field of View (V) | 58.7° | ||||
| Field of View (O) | 130.0° | ||||
| DORI | |||||
| DORI Distance |
|
||||
| Illuminator | |||||
| IR Illumination Distance | 30 m (98.4 ft) | ||||
| IR On / Off Control | Auto / Manual | ||||
| Wavelength | 850nm | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264 | ||||
| H.264 Code Profile | Baseline profile, Main profile, High profile | ||||
| Frame Rate | Main Stream: 5 MP (2880 × 1620), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; Third Stream: D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps; |
||||
| Video Bit Rate | 128 Kbps to 6144 kbps | ||||
| U-code | Supported | ||||
| OSD | Up to 8 OSDs | ||||
| Privacy Mask | Up to 4 areas | ||||
| ROI | Support | ||||
| Video Stream | Triple streams | ||||
| Image | |||||
| White Balance | Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2 | ||||
| Digital Noise Reduction | 2D / 3D DNR | ||||
| Smart Illumination | Supported | ||||
| Flip | Normal; Flip Vertical; Flip Horizontal; 180°, 90° Clockwise, 90° Anti clockwise | ||||
| Dewarping | N/A | ||||
| HLC | Supported | ||||
| BLC | Supported | ||||
| Defog | Digital Defog | ||||
| Events | |||||
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non motor vehicle and vehicle) | ||||
| Face Capture | Support | ||||
| Statistical Analysis | N/A | ||||
| People Counting | Support people flow counting and crowd density monitoring | ||||
| Basic Detection | Human body detection 2.0, Motion detection, Audio detection | ||||
| General Function | Watermark; IP Address Filtering; Alarm input; Alarm output; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP Authentication | ||||
| Audio | |||||
| Audio Compression | G.711U, G.711A | ||||
| Audio Bitrate | 64 Kbps | ||||
| Two way Audio | Support | ||||
| Suppression | Support | ||||
| Sampling Rate | 8 KHz | ||||
| Storage | |||||
| Edge Storage | MicroSD, up to 512 GB | ||||
| Network | |||||
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP | ||||
| Compatible Integration | ONVIF (Profile S, Profile T) , API, SDK | ||||
| User / Host | Up to 32 users. 3 user levels: administrator, common user and operator | ||||
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||
| Client | Guard Station, Guard Live, Guard Viewer | ||||
| Web Browser | Plug in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug in free live view: Chrome 57+, Firefox 58+, Edge 16+ | ||||
| Interface | |||||
| Built-in Microphone | Supported | ||||
| Built-in Speaker | Supported | ||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||
| Conformity Certifications | |||||
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B) | ||||
| Safety | CE LVD (EN 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) | ||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | ||||
| Protection | IP67 (IEC 60529) | ||||
| General – Camera | |||||
| Power | DC 12V ±25%, PoE (IEEE 802.3af). Max: 7.5 W | ||||
| Power Interface | Ø 5.5mm coaxial power plug | ||||
| Dimensions (Ø × H) | Ø111 mm × 95 mm (Ø4.4" × 3.7") (Ø × H) | ||||
| Weight | 0.44kg (0.970lb) | ||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||
| Surge Protection | 4KV | ||||
| Reset Button | N/A | ||||
Additional Information
- TR-JB03-I-IN Junction Box – View Product
- TR-A01-IN Waterproof Plastic Grommet – View Product
- TR-WM03-D-IN Wall Mount – View Product
- TR-JB07-D-IN-V2 Junction Box – View Product
- TR-UP06-IN Pole Mount – View Product
- TR-SE24-IN 200mm Extension – View Product
- TR-SE24-A-IN 500mm Extension – View Product
- TR-CM24-IN 200mm Pendant Mount – View Product
What's in the Box
What's in the Box

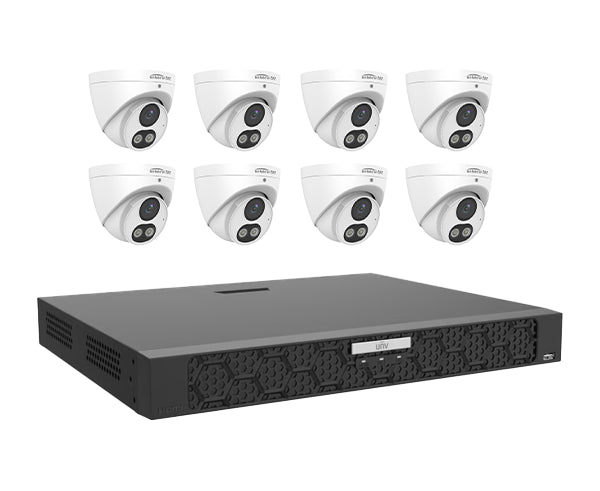

- Qty 1 – 16‑Channel PoE NVR with 4TB HDD (Model KNR164T8TX)
- Qty 8 – 5MP DWDR IR Turret Dome Cameras with Mic and Speaker (Model ANT528CAIX)
- Qty 1 – Power cord
- Qty 1 – Rack ears and mounting hardware set for NVR
- Qty 1 – Quick installation / setup materials
