Description

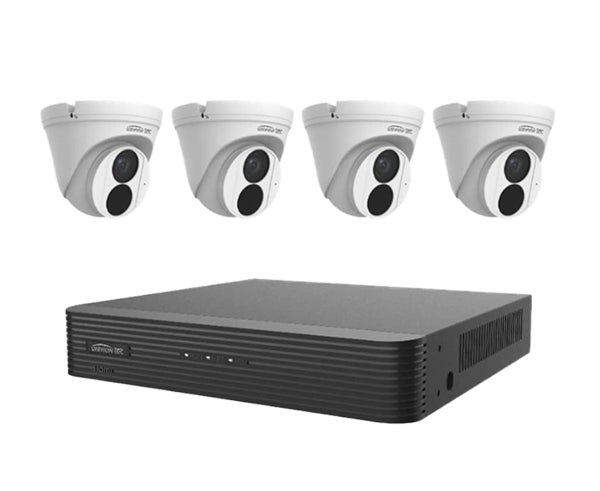

The 5MP Turret Dome / 8CH, 8 PoE NVR Kit is an NDAA‑compliant IP security system designed for jobs that need more coverage and room to grow. You get an 8‑channel 4K‑ready NVR with built‑in PoE on every port plus four 5MP turret dome cameras, giving you sharp DWDR‑processed video, efficient H.265 recording, and one‑cable camera installs. With smart IR night vision up to 98 feet, 2.8mm wide‑angle lenses, and remote access through Uniview Tec Guard Station, Guard Live, and Guard Viewer, this kit is ideal for small to mid‑size businesses, warehouses, and advanced residential systems.
Features
Features
- Kit Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- Includes 8ch network recorder with H.265 Compression for Best-in-Class Recording and Storage Capability
- Supports 1 SATA HDD up to 8TB and has Embedded PoE Switch for all Video Channels
- Supports recording of up to 8MP (3840 x 2160) Resolution
- HDMI Display Output up to 4K(8MP) Resolution
- Concurrent Mirrored Display on HDMI and VGA Monitor Outputs
- Supports Cloud Upgrade for NVR and Cameras, with Automatic Detection of Latest Firmware and Upgrades, and is ONVIF Profile S Compliant
- Supported by uniview tec Guard Station Client Software as well as Guard Live and Guard Viewer Mobile App’s for iPhone and Android Devices
- Includes 4 x IPT5U28X
- Exceptional Video Quality with 5MP, 2592 x 1944 Resolution
- Powerful, Smart IR LED Lights for 0Lux Night Time Operation up to 98 Feet
- 2.8mm fixed lens
- Built-in Microphone, Backlight Compensation, 2D/3D DNR (Digital Noise Reduction); ONVIF Profile Series Compliant
Specifications
| NVR – Video & Audio Inputs | |||||
|---|---|---|---|---|---|
| IP Video Input | 8-ch | ||||
| Audio Input | 1-ch, RCA | ||||
| Video & Audio Outputs | |||||
| VGA Output | 1920 x 1080p / 60Hz, 1920 x 1080p / 50Hz, 1600 x 1200 / 60Hz, 1280 x 1024 / 60Hz, 1280 x 720 / 60Hz, 1024 x 768 / 60Hz | ||||
| HDMI Output | 3840 x 2160 / 30Hz, 1920 x 1080p / 60Hz, 1920 x 1080p / 50Hz, 1600 x 1200 / 60Hz, 1280 x 1024 / 60Hz, 1280 x 720 / 60Hz, 1024 x 768 / 60Hz | ||||
| Audio Output | 1-ch, RCA | ||||
| Audio Compression | G.711A, G.711U | ||||
| Synchronous Playback | 8 | ||||
| Live View Display | 1 / 4 / 6 / 8 / 9 | ||||
| Network | |||||
| Incoming Bandwidth | 50 Mbps | ||||
| Outgoing Bandwidth | 40 Mbps | ||||
| Remote Users | 128 | ||||
| Protocols | TCP/ IP; P2P; UPnP; DHCP; HTTP; HTTPS; DNS; DDNS; SMTP; RTSP; IPv4 | ||||
| Supported Browsers | IE(IE10/11) for Windows; Firefox (version 52.0 and above) for Windows; Chrome(version 45 and above) for Windows; Edge(version 79 and above) for Windows |
||||
| Decoding | |||||
| Decoding Format | H.265 / H.264 | ||||
| Live View / Playback | 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P / D1 / 2CIF / CIF | ||||
| Capability | 1 x 4K@30, 2 x 6MP@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080P@30 | ||||
| Hard Disk Drives | |||||
| SATA | 1 SATA Interface | ||||
| Capacity | Up to 8TB | ||||
| Smart Features | |||||
| VCA Detection by Camera | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, UMD(Ultra Motion Detection) | ||||
| VCA Search | Behavior Search | ||||
| Smart Intrusion Prevention (SIP), UMD by Camera | 4-ch | ||||
| External Interface | |||||
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface | ||||
| USB Interface | Rear panel: 2 x USB2.0 | ||||
| PoE | |||||
| Interface | 8 x RJ-45 10M/100M self-adaptive Ethernet Interface | ||||
| Max Power | Max 30W for single port Max 75W in total |
||||
| Supported Standard | IEEE 802.3af/at | ||||
| General – NVR | |||||
| Power Supply | 52V DC / 1.8A; Power Consumption: ≤ 10W (without HDD) | ||||
| Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) | ||||
| Dimensions (W × D × H) | 260 × 243 × 46mm (10.2 × 9.6 × 1.8") | ||||
| Weight (without HDD) | ≤ 1.2Kg (2.65lb) | ||||
| Certifications | FCC, CE (UL – Power Supply only) | ||||
| Camera | |||||
| Sensor | 5 MP 1/3.0' CMOS | ||||
| Minimum Illumination | Color: 0.01 lux (F2.0, AGC ON); 0 Lux with IR | ||||
| Day / Night | IR-cut filter with auto switch (ICR) | ||||
| Shutter | Auto / Manual, 1 ~ 1/100000s | ||||
| Adjustment Angle (3-way Axis) | Pan: 0° ~ 360°; Tilt: 0° ~ 80°; Rotate: 0° ~ 360° | ||||
| WDR | DWDR | ||||
| S/N | >52dB | ||||
| Lens | |||||
| Lens | 2.8 mm | ||||
| Iris | F2.0 | ||||
| Field of View (H) | 94.3° | ||||
| Field of View (V) | 52.2° | ||||
| Field of View (O) | 99.6° | ||||
| DORI | |||||
| DORI Distance |
|
||||
| Illuminator | |||||
| IR Illumination Distance | 30 m (98.4 ft) | ||||
| IR On / Off Control | Auto / Manual | ||||
| Wavelength | 850nm | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264 | ||||
| H.264 Code Profile | Baseline profile, Main profile, High profile | ||||
| Frame Rate | Main Stream: 5MP (2592*1944), Max 20fps; 4MP (2560*1440), Max 20fps; 3MP (2304*1296), Max 20fps; 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps Sub Stream: 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps |
||||
| Video Bit Rate | 128 Kbps to 6144 kbps | ||||
| U-code | Supported | ||||
| OSD | Up to 4 OSDs | ||||
| Privacy Mask | Up to 4 areas | ||||
| ROI | Support | ||||
| Video Stream | Dual streams | ||||
| Image | |||||
| White Balance | Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2 | ||||
| Digital Noise Reduction | 2D / 3D DNR | ||||
| Smart Illumination | Supported | ||||
| Flip | Normal; Flip Vertical; Flip Horizontal; 180° | ||||
| Dewarping | N/A | ||||
| HLC | Supported | ||||
| BLC | Supported | ||||
| Defog | Digital Defog | ||||
| Events | |||||
| Basic Detection | Human body detection 2.0, Motion detection, Audio detection | ||||
| General Function | Watermark; IP Address Filtering; Alarm input; Alarm output; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP Authentication | ||||
| Audio | |||||
| Audio Compression | G.711U, G.711A | ||||
| Audio Bitrate | 64 Kbps | ||||
| Suppression | Support | ||||
| Sampling Rate | 8 KHz | ||||
| Storage | |||||
| Edge Storage | N/A | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, QoS, SSL/TLS | ||||
| Compatible Integration | ONVIF (Profile S, Profile T) , API, SDK | ||||
| User / Host | Up to 32 users. 3 user levels: administrator, common user and operator | ||||
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||
| Client | Guard Station, Guard Live, Guard Viewer | ||||
| Web Browser | Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+; Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ | ||||
| Interface | |||||
| Built-in Microphone | Supported | ||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||
| Conformity Certifications | |||||
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B) | ||||
| Safety | CE LVD (EN 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) | ||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | ||||
| Protection | IP67 (IEC 60529) | ||||
| General – Camera | |||||
| Power | DC 12V ±25%, PoE (IEEE 802.3af). Max: 3.9 W | ||||
| Power Interface | Ø 5.5mm coaxial power plug | ||||
| Dimensions (Ø × H) | Ø118 x 95mm (Ø4.6” x 3.8”) | ||||
| Weight | 0.25kg (0.55lb) | ||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||
| Surge Protection | 4KV | ||||
| Reset Button | N/A | ||||
Additional Information
This kit’s turret cameras are compatible with the following Uniview Tec mounting accessories:
- TR-JB03-I-IN Junction Box – View Product
- TR-A01-IN Waterproof Plastic Grommet – View Product
- TR-WM03-D-IN Wall Mount – View Product
- TR-JB07-D-IN-V2 Junction Box – View Product
- TR-UP06-IN Pole Mount – View Product
- TR-SE24-IN 200mm Extension – View Product
- TR-SE24-A-IN 500mm Extension – View Product
- TR-CM24-IN 200mm Pendant Mount – View Product
What's in the Box
What's in the Box
- Qty 1 – 8‑Channel PoE NVR with pre‑installed HDD (Model KNR8UT4)
- Qty 4 – 5MP Fixed‑Lens Turret Dome Cameras (Model IPT5U28X)
- Qty 1 – Power adapter and NVR power cord
- Qty 1 – Quick installation / setup materials
- Qty 1 – Set of mounting hardware for cameras and NVR
