Description

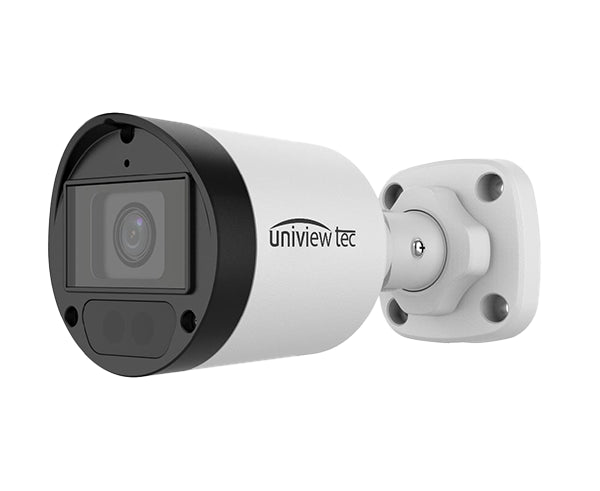

Uniview Tec 5MP HD Analog IR DWDR Bullet Camera
The 5MP HD Analog IR DWDR Bullet Camera delivers high‑resolution 2880 × 1620 video over existing coax infrastructure, making it a practical upgrade path for legacy analog systems. With support for TVI, AHD, CVI, and CVBS formats, this camera integrates easily with UVT hybrid recorders while Smart IR provides up to 131 ft of night vision and DWDR helps manage challenging backlit scenes. The 2.8mm fixed wide‑angle lens, built‑in microphone for audio over coax, IP67 weather resistance, and flexible 12VDC power make it a robust choice for both indoor and outdoor installations that require reliable 5MP performance without rewiring.
Features
Features
Key Features
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- High Video Quality with 5MP, 2880 x 1620 Resolution
- High Definition Analog (HD Analog) over Coax Technology, utilizes existing Coax Cables & BNC Connectors, allowing Mega-pixel Video Images without any rewiring necessary
- Smart IR illumination up to 131 feet, TRUE Day/Night and DWDR functionality
- TVI, AHD, CVI and CVBS Protocol selectable — Engineered to work with UVT Hybrid NVR’s for Maximum Stability and Performance
- 2.8mm fixed lens, Backlight Compensation and 2D DNR (Digital Noise Reduction)
- Built-in Microphone for High Quality Audio Transmission via Coax Cables
- Supports 180° horizontal flip, 180° vertical flip, 3-Axis Mount
- Easy to Operation On Screen Display (OSD) Configuration Menu
- 12VDC Power Options; IP67 Weather Resistant Housing with Optional Mounts
- Supported by uniview tec Guard Station Client Software, Guard Live and Guard Viewer Mobile App’s for iPhone or Android Devices
Specifications
| Sensor | |
|---|---|
| Pixel | 5MP |
| Size | 1/2.7" CMOS |
| Minimum illumination | 0.005 lux (F1.6, AGC ON) 0 lux (IR on) |
| Lens | |
| Focal Length | 2.8mm |
| Angle of View (H x V x D) | 109.1° x 60.9° x 126.7° |
| IR Illumination | |
| IR | 40M (131ft); Smart support |
| Video | |
| Resolution | 5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V) 4MP: 2560(H)×1440(V) 1080P: 1920(H)×1080(V) |
| Frame rate | TVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps AHD: 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVI: 5MP@25fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVBS: PAL, NTSC |
| Shutter time | PAL: 1/25s–1/50000s NTSC: 1/30s–1/50000s |
| Image | |
| Exposure mode | 4 modes: Global (default), BLC, HLC, DWDR |
| Day/Night | Three modes: Auto (default), Day, Night |
| Digital noise reduction | 2D |
| White balance | Two modes: Auto (default), Manual |
| WDR | DWDR |
| Flip | Supports 180° horizontal flip, 180° vertical flip. |
| Defog | N/A |
| Audio | |
| Microphone | Built-in |
| Camera Audio | TVI: 5MP@20fps, 5MP@12.5fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVI: 5MP@25fps, 4MP@25fps, 4MP@30fps |
| Interface | |
| Power | 5.5mm power interface |
| Video output | BNC; supports TVI / AHD / CVI / CVBS |
| Operating Environment | |
| Temperature | -30℃ to 60℃ (-22℉ to 140℉) |
| Humidity | ≤95% (RH, non-condensing) |
| Surge protection | 4KV |
| Ingress protection | IP67 |
| General | |
| Power | DC 12V (±25%), with reverse polarity protection and surge protection, Max 3.4W |
| Mount | Corner Mount and Pole Mount available |
| Dimensions (L x W x H) | 154 x 66 x 66mm (5.9 x 2.6 x 2.6”) |
| Material | Graphene, Metal and Plastic |
| Weight | 240g (0.53lb) |
| Certification | CE, FCC |
What's in the Box
What’s in the Box
- Qty 1 – 5MP HD Analog IR DWDR Bullet Camera (2.8mm fixed lens, IP67-rated housing)
