Description
The 64CH, 32MP Resolution AI H.265 NVR is a high‑channel, NDAA‑compliant recorder built for large campuses, distribution centers, and enterprise surveillance systems that need centralized management of dozens of IP cameras. It supports up to sixty‑four network cameras, records at up to 32MP per channel, and offers dual HDMI and dual VGA outputs for flexible multi‑monitor command‑center style viewing at up to 4K resolution. With eight SATA bays up to 16TB each, dual network interfaces, optional redundant power, and advanced AI functions such as vehicle and face search, smart intrusion, and AcuTrack/AcuSearch, this NVR delivers enterprise‑grade performance and scalability for demanding video security environments.
Key Features
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- 64ch network recorder w/ H.265 compression for best-in-class recording and storage capability
- Supports 8 SATA HDDs up to 16TB each
- Supports recording of up to 32MP Resolution
- HDMI Display Output up to 4K (8MP) Resolution
- Dual Network cards, Dual Monitor outputs, Redundant power supply optional
- Concurrent Mirrored Display between HDMI and VGA Monitor Outputs
- Support 2 HDMI and 2 VGA. VGA1 and HDMI1 simultaneous output, VGA2 and HDMI2 simultaneous output. VGA1/HDMI1 and VGA2/HDMI2 are independent outputs
- Supports Cloud Upgrade for NVR and Cameras, with Automatic Detection of Latest Firmware and Upgrades, and is ONVIF Profile S Compliant
- Supported by uniview tec Guard Station Client Software as well as Guard Live and Guard Viewer Mobile App’s for iPhone and Android Devices
Specifications
| Video & Audio Inputs | |
|---|---|
| IP Video Input | 64-ch |
| Audio Input | 1-ch |
| Video & Audio Outputs | |
| VGA Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| HDMI Output | 4K(3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Audio Output | RCA 2-ch |
| Audio Compression | G.711A, G.711U |
| Two-way Audio | 1-ch, RCA (Using the audio input and output) |
| Synchronous Playback | 16 |
| Live view display | 1 / 4 / 6 / 8 / 9 / 16 / 25 / 36 / 64 |
| Network | |
| Incoming Bandwidth | Smart Off：384Mbps Smart On：200Mbps |
| Outgoing Bandwidth | Smart Off：384Mbps Smart On：200Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP; P2P; UPnP; NTP; DHCP; PPPoE; HTTP; HTTPS; DNS; DDNS; SNMP; SMTP; RTSP; IPv6; IPv4 |
| Supported Browsers | IE(IE10/11) for Windows; Firefox (version 52.0 and above) for Windows; Chrome(version 45 and above) for Windows; Edge(version 79 and above) for Windows |
| Snapshot | |
| FTP/Schedule/Event Snapshot | 16-ch snapshot, up to 4K resolution |
| Decoding | |
| Decoding format | H.265 / H.264 |
| Live view/Playback | 32MP /16MP/ 12MP/ 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080P /960P/ 720P/ D1/ 2CIF/ CIF |
| Capability | Smart Off：2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 10 x 6MP@30, 12 x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30, 64 x 720P@30 Smart On：1 x 32MP@30, 3 x 16MP@30, 4 x 12MP@30, 6 x 4K@30, 8 x 6MP@30, 9 x 5MP@30, 12 x 4MP@30, 16 x 3MP@30, 24 x 1080P@30, 48 x 720P@30 |
| Hard Disk Drives | |
| SATA | 8 SATA Interfaces |
| Capacity | Up to 16TB for each HDD |
| System Alarm | |
| General Alarm | Defocus Detection; Scene Change Detection; Object Left Behind; Object Removed; Auto Tracking; Motion Detection; Tampering; Human Body Detection; Video Loss; Alarm Input; Audio Detection |
| Alert Alarm | IP Conflict; Network Disconnected; Disk Offline; Disk Abnormal; Illegal Access; Hard Disk Space Low; Hard Disk Full; Recording/Snapshot Abnormal; Array Damaged; Array Degraded |
| Smart Features | |
| VCA Detection by Camera | Vehicle Detection; SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area); Ultra Motion Detection(UMD); Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection); People Counting(People Flow Counting, Crowd Density Monitoring); Video Metadata; Traffic Monitoring |
| VCA Search | Motor Vehicle Search; Non-Motor Vehicle Search; Human Body Search; General Search; People Counting Report; Heat Map |
| Smart by Camera | All channels (up to 16 images/s in total) Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring |
| AI Face Comparison by NVR | 16-ch with face detecting cameras; 4-ch with normal cameras |
| AI Search by Image | Support |
| AI AcuTrack/AcuSearch | Support |
| AI Smart Intrusion Prevention (SIP) by NVR | 8-ch |
| AI Ultra Motion Detection (UMD) by NVR | 16-ch |
| Vehicle Picture Library | Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total |
| Face Picture Library | Up to 128 face libraries, with up to 40,000 face pictures in total |
| Capacity of Snapshot Records | 2 million records for vehicle snapshot; 2 million records for SIP; 2 million records for video Metadata |
| External Interface | |
| Network Interface | 2 RJ45 10M/100M/1000 self-adaptive Ethernet Interface |
| USB Interface | Front panel: 2 x USB2.0; Rear panel: 2 x USB3.0 |
| RS485 | 1 |
| RS232 | 1 |
| Alarm In | 16-ch |
| Alarm Out | 10-ch |
| eSATA | 1 |
| General | |
| Power Supply | PWR-DC12-350A-IN; Power Consumption: ≤ 20W (without HDD) |
| Working Environment | -10°C ~ + 50°C ( +14°F ~ +122°F ), Humidity ≤ 90% RH(non-condensing) |
| Dimensions (W × D × H) | 443 × 448 × 93mm (17.4 × 17.6 × 3.7") |
| Weight ( without HDD ) | ≤ 6.5Kg (14.3lb) |
| Certifications | CE, FCC, UL, RoHS, WEEE |
What's in the Box
What's in the Box

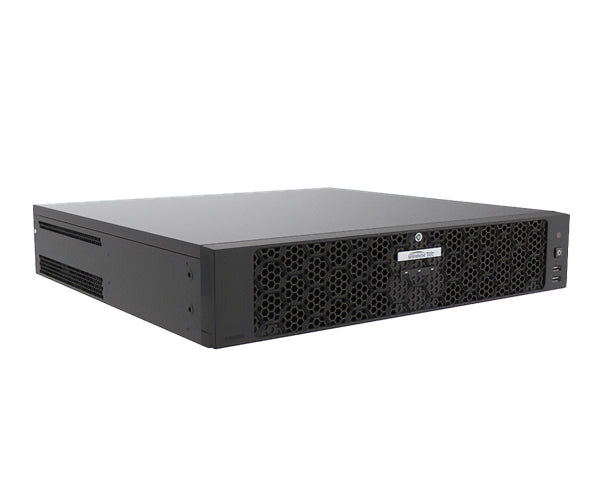

- Qty 1 – 64‑Channel AI Network Video Recorder (Model NR648IXPQ)
- Qty 1 – Power supply / power cord (per manufacturer configuration)
- Qty 1 – Quick installation / setup materials
