Description

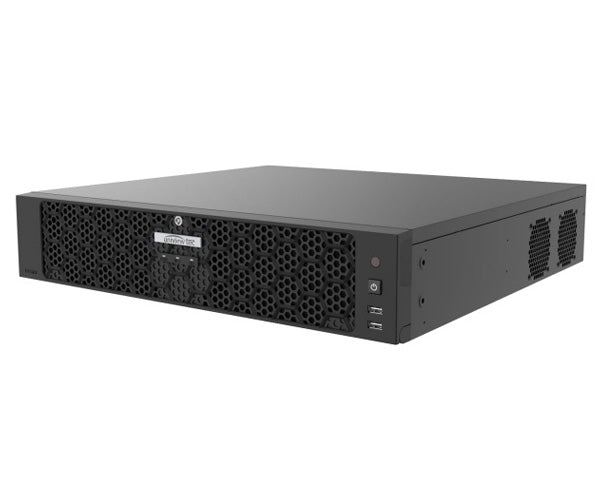

Uniview Tec 64ch, 32MP Resolution, H.265 NVR
Looking for a powerful and efficient NVR to handle your surveillance needs? The Uniview Tec 64-Channel NVR is built for top-tier performance, featuring H.265 compression for maximum recording and storage efficiency. With support for up to 32MP recording resolution and 4K video output on both HDMI ports, you’ll get crystal-clear footage every time. This NVR makes installation a breeze with built-in PoE switches for all channels, ensuring a stable and hassle-free setup. Need plenty of storage? No problem—it supports 8 SATA hard drives, up to 12TB each, so you never have to worry about running out of space. Plus, with automatic cloud firmware updates, you’ll always have the latest features and security enhancements. Reliable, future-ready, and packed with cutting-edge technology—the Uniview Tec 64-Channel NVR is the ultimate choice for your surveillance system.
Features
Features
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- 64ch network recorder with H.265 Compression for Best-in-Class Recording and Storage Capability
- Supports 8 SATA HDD up to 12TB and Supports recording of up to 32MP Resolution Images
- Display Images up to 4K(8MP) Resolution on HDMI Output
- Concurrent Independent Displays on HDMI and VGA Monitor Outputs
- Easy Plug and Play Functionality with Automatic Device Discovery and Display
- ONVIF Profile Series S Compliant
- Supports Cloud Upgrade for NVR and Cameras, with Automatic Detection of Latest Firmware and Upgrades
- Features Automatic Network Recovery (ANR) Technology to enhance storage reliability when the network is disconnected
- Supported by Uniview Tec Guard Station Client Software and Guard Viewer Mobile Apps for iPhone and Android Devices
Specifications
Specifications
| VIDEO & AUDIO INPUTS | |
| IP Video Input | 64-ch |
| Audio Input | 1-ch, RCA |
| NETWORK | |
| Incoming Bandwidth | 384Mbps |
| Outgoing Bandwidth | 384Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1x, IPV6 |
| Supported Browsers | Windows: IE10/11, Firefox (v52+), Chrome (v45+), Edge (v79+) |
| VIDEO & AUDIO OUTPUTS | |
| HDMI / VGA Output | HDMI 1 / HDMI 2: 3840x2160 / 60Hz, 3840x2160 / 30Hz, 1920x1080p / 60Hz, 1920x1080p / 50Hz, 1600x1200 / 60Hz, 1280x1024 / 60Hz, 1280x720 / 60Hz, 1024x768 / 60Hz VGA 1 / VGA 2: 1920x1080p / 60Hz, 1920x1080p / 50Hz, 1600x1200 / 60Hz, 1280x1024 / 60Hz, 1280x720 / 60Hz, 1024x768 / 60Hz |
| Recording Resolution | 16MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF |
| Audio Output | 2-ch, RCA |
| Audio Compression | G.711A, G.711U |
| Synchronous Playback | 16-ch |
| Live View Display | HDMI 1 / VGA 1: 1 / 4 / 6 / 8 / 9 / 16 / 25 / 36 / 64 HDMI 2 / VGA 2: 1 / 4 / 6 / 8 / 9 / 16 / 25 / 36 |
| Corridor Mode Screen | 3 / 4 / 5 / 7 / 9 / 10 / 12 / 16 / 32 |
| SNAPSHOT | |
| FTP/Schedule/Event Snapshot | 16-ch snapshot, up to 1080p resolution |
| DECODING | |
| Decoding Format | Ultra 265, H.265, H.264 |
| Live View / Playback | 32MP / 16MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF |
| Capability | Ultra 265 / H.265: 2 x 32MP @ 30, 4 x 16MP @ 30, 5 x 12MP @ 30, 8 x 4K @ 30, 16 x 4MP @ 30, 32 x 1080P @ 30, 54 x 960P @ 25, 64 x 720P @ 30 |
| HARD DISK DRIVES | |
| SATA | 8 SATA Interfaces |
| Capacity | Up to 12TB per HDD |
| SMART FEATURES | |
| VCA Detection by Camera | Face Detection, Face Comparison, Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), People Counting (People Flow Counting, Crowd Density Monitoring), Video Metadata, Traffic Monitoring |
| VCA Search | Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map |
| Smart by IPC | Total 16-ch (Face Detection, Face Comparison, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring) |
| Face Picture Library | Up to 128 face picture libraries, with up to 500,000 face pictures in total |
| Vehicle Picture Library | Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total |
| SYSTEM ALARM | |
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording / Snapshot Abnormal |
| GUI LANGUAGES | |
| Languages | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
| EXTERNAL INTERFACE | |
| Network Interface | 2 x RJ45 10M/100M/1000M self-adaptive Ethernet Interface |
| USB Interface | Front panel: 2 x USB2.0; Rear panel: 2 x USB3.0 |
| RS232 | 1 |
| RS485 | 1 |
| Alarm In | 16-ch |
| Alarm Out | 10-ch |
| GENERAL | |
| Power Supply | 100~240V AC; Power Consumption ≤ 50W (without HDD) |
| Working Environment | -10°C ~ +55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) |
| Dimensions (W × D × H) | 442mm × 448mm × 93mm (17.4" × 17.6" × 3.7") |
| Weight (without HDD) | ≤ 6Kg (13.23lb) |
| Certifications | FCC, CE (UL – Power Supply only) |
Accessories
Accessories
This NVR is compatible with the following accessories
Additional Product Information
If an NVR is sent in for warranty repair with an after-market hard drive and the hard drive is found to be the issue, diagnosis and repair fees may apply.
