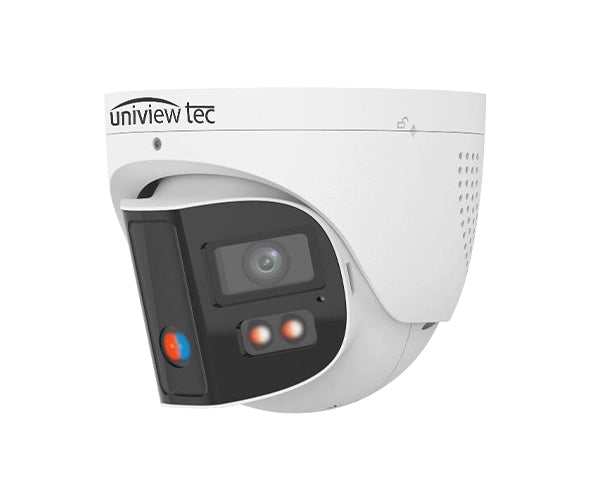

Uniview Tec 4K ColorHunter 180° Multi-Lens Turret Camera
This revolutionary 4K multi-lens turret camera delivers an unprecedented 180° horizontal field of view with ColorHunter technology for exceptional ultra-low light performance. Featuring an advanced 1/2.5" CMOS sensor with F1.0 iris and dual 2.8mm lenses, this camera provides seamless panoramic coverage with color imaging down to 0.0005 lux. The innovative 130dB WDR and Auto Scene Match (ASM) technology ensure optimal image quality in all lighting conditions. Enhanced with dual built-in microphones, built-in speaker, and two-way audio capabilities, this camera offers comprehensive security monitoring with advanced AI analytics including people counting and crowd density monitoring. The rugged IP67/IK10 design with metal construction ensures reliable operation in extreme environments, making it the perfect choice for wide-area surveillance applications requiring complete panoramic coverage.
Features
Features
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- 4K (8MP) multi-lens design with true 180° horizontal panoramic view
- ColorHunter technology with ultra-low light performance (0.0005 lux color)
- Dual 2.8mm lenses with F1.0 iris for maximum light gathering
- 130dB WDR with Auto Scene Match (ASM) for optimal image processing
- IR and warm light dual illumination system up to 30m range
- Advanced DORI analysis with detection up to 63.1m
- H.265/H.264/MJPEG compression with 4K @ 20fps recording capability
- Comprehensive AI analytics: people counting and crowd density monitoring
- Human body detection for cross line, intrusion, area enter/leave monitoring
- Dual built-in microphones and built-in speaker for two-way audio
- Ultra Motion Detection with object removal and tampering alarms
- 3-axis adjustment: Pan 0°-360°, Tilt 0°-75°, Rotate 0°-360°
- IP67 weatherproof and IK10 vandal-resistant metal construction
- PoE (IEEE 802.3af) and 12V DC power compatibility
- ONVIF Profile S, G, T compliant with API and SDK support
- Edge storage support with microSD up to 512GB and ANR/NAS compatibility
- Advanced security with three user levels and comprehensive encryption
- Multiple image enhancements: HLC, BLC, Digital Defog, 2D/3D DNR
Specifications
Specifications
| Camera | |
|---|---|
| Max Resolution | 8MP |
| Sensor | 1/2.5" CMOS |
| Minimum Illumination | Color: 0.0005 lux ( F1.0, AGC ON); 0 Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotate: 0° ~ 360° |
| S/N | >52dB |
| WDR | 130dB |
| Lens | |
| Focal Length | 2.8 mm |
| Iris Type | Fixed |
| Iris | F1.0 |
| Field of View (H) | 180° |
| Field of View (V) | 65° |
| Field of View (D) | 180° |
| DORI Analysis | |
| DORI Distance(Lens) | 2.8mm |
| DORI Distance(Detect) | 63.1m(206.7ft) |
| DORI Distance(Observe) | 25.2m(82.7ft) |
| DORI Distance(Recognize) | 12.6m(41.3ft) |
| DORI Distance(Identify) | 6.3m(20.7ft) |
| Illuminator | |
| Supplemental Light | IR, Warm light |
| Illumination Distance(IR) | 30 m (98.4 ft) |
| Wavelength | 850 nm |
| IR On/Off Control | Auto/Manual |
| Video | |
| Video Compression | H.265; H.264; MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main: 8MP (4096*1860) @ 20fps Sub: 2048*936 @ 20fps |
| Video Bit Rate | 128 Kbps ~ 16 Mbps |
| U-code | Support |
| Privacy Mask | Up to 4 |
| OSD, ROI | Up to 8 |
| Video Stream | Dual Streams |
| Image Enhancement | |
| Auto Scene Match (ASM) | Support (Only WDR) |
| White Balance | Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
| Events & Analytics | |
| Basic Detection | Cross Line (based on Human Body Detection); Intrusion (based on Human Body Detection); Enter Area; Leave Area; Motion Detection; Ultra Motion Detection; Tampering Alarm; Audio Detection |
| Statistical Analysis | People Counting; Support People Flow Counting and Crowd Density Monitoring |
| General Function | Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP Authentication |
| Audio | |
| Audio Compression | G.711U; G.711A |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | Support |
| Sampling Rate | 8 KHz |
| Built-in Mic | Support x 2 |
| Built-in Speaker | Support |
| Storage & Network | |
| Edge Storage | Micro SD, up to 512 GB |
| Network Storage | ANR; NAS (NFS) |
| Network | 1 x RJ45 10M/100M Base-TX Ethernet |
| Protocols | IPv4; IGMP; ICMP; ARP; TCP; UDP; DHCP; RTP; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; QoS; SSL/TLS; 802.1x; SNMP; SSH |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T); API; SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | Password Protection; Strong Password; HTTPS Encryption; Export Operation Logs; Basic and Digest Authentication for RTSP; Digest Authentication for HTTP; TLS 1.2; WSSE and Digest Authentication for ONVIF |
| Client | Guard Live, Guard Viewer, Guard Station |
| Interface | |
| Audio I/O | 1 Input: impedance 35kΩ; amplitude 2V [p-p]; 1 Output: impedance 600Ω; amplitude 2V [p-p] |
| Alarm I/O | 1/1 |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B) |
| Safety | CE LVD (EN 62368-1); CB (IEC 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); |
| Protection | IK10 (IEC 62262), IP67 (IEC 60529) |
| General | |
| Power | DC 12V±25%, PoE (IEEE 802.3af); |
| Power Interface | Ø 5.5 mm coaxial power plug |
| Dimensions | Φ128.7 x 109.9mm (Φ5.1" x 4.3") |
| Weight | 0.86kg (1.9lb) |
| Material | Metal |
| Environment | -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 4KV |
| Reset Button | Support |
Additional Information
Additional Information
Compatible Accessories
This turret camera is compatible with the following accessories
Additional Product Information
This revolutionary multi-lens panoramic camera features ColorHunter technology for exceptional ultra-low light color performance combined with Auto Scene Match (ASM) for intelligent WDR optimization. The unique 180° horizontal field of view eliminates blind spots in wide-area surveillance applications, while dual microphones and built-in speaker enable comprehensive two-way audio communication. Advanced people counting and crowd density monitoring provide valuable analytics for retail and public space management.
What's in the Box
What's in the Box
- Qty 1 – Uniview Tec 4K ColorHunter 180° Multi-Lens Turret Camera (IPT4K180CIAX)
- Qty 1 – Mounting bracket and hardware
- Qty 1 – Waterproof connector
- Qty 1 – Reset tool
- Qty 1 – Quick Start Guide
- Qty 1 – Warranty card or document
