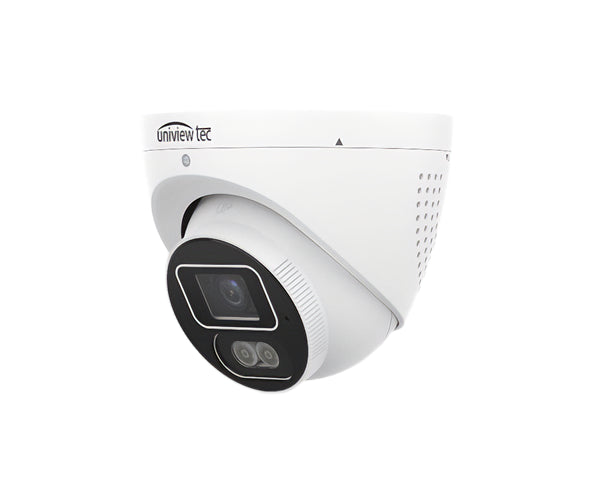

Uniview Tec - 8MP Wise-ISP, 2-Way Audio, WDR, AI Turret

Uniview Tec - 8MP Wise-ISP, 2-Way Audio, WDR, AI Turret

BY Uniview

$669.00 USD
$669.00 USD
Sale Sold out

SKU: IPT4KD28AIX

 ⚠ Various lead times may apply to this product. Please contact us for more details.

View full details

Description

The 8MP Wise-ISP Color Hunter Turret is an NDAA‑compliant IP camera that delivers 24/7 full‑color video, even in very low light, making it ideal for entrances, parking areas, and high‑risk zones where detail and color are critical. Its 1/2.7″ 8MP CMOS sensor, 2.8mm wide‑angle lens, 130 dB true WDR, and dual warm/IR deterrence lighting provide clear, balanced images in challenging lighting, while built‑in microphone and speaker support true two‑way audio for deterrence and interaction. With smart intrusion analytics, people and vehicle classification, on‑board microSD storage up to 512GB with ANR, and an IP67 metal housing, this turret offers a robust, AI‑driven solution for both commercial and higher‑end residential surveillance.

Features

Features

  • Fully Adheres to National Defense Authorization Act (NDAA) Guidelines

  • Color Hunter with Wise-ISP technology ensures 24-hour full-color images

  • High quality image with 8 MP, 1/2.7″ CMOS sensor; H.265, H.264, MJPEG

  • Smart Intrusion prevention, support false alarm filtering, Cross Line Detection, Intrusion Detection

  • 130 dB true WDR technology ensures clear image in strong backlight scene

  • Two-way Audio, Built in Mic and Speaker

  • Smart IR, up to 30 m (98.4 ft) IR distance

  • DC12V or PoE (IEEE 802.3af) power supply

  • Built-in Micro-SD Card Slot enables local storage up to 512GB and ANR

  • IP67 Weather Resistant Housing and Optional Mounts Available

Specifications

Camera
Sensor 1/2.7", 8 megapixel, CMOS
Minimum Illumination Color: 0.002 Lux (F1.4, AGC ON), 0 Lux with light
True Day / Night IR-cut filter with auto switch (ICR)
Smart Illumination Support
Shutter Auto / Manual, 1 ~ 1/100000s
Adjustment Angle Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360°
WDR 130dB
S/N >56dB
Lens
Lens 2.8 Fixed
Iris F1.4
Field of View (H) 98.7°
Field of View (V) 53.6°
Field of View (O) 113.4°
DORI
DORI Distance

Detect(m)

84.0 m (275.6 ft.)

Observe(m)

33.6 m (110.2 ft.)

Recognize(m)

16.8 m (55.1 ft.)

Identify(m)

8.4 m (27.6 ft.)
Illuminator
IR Range 30m (98.4 ft.)
Warm Light Range 30 m (98.4 ft.)
Wavelength 850nm
Supplemental Light Dual light with Red and Blue Deterrence Lights
Video
Video Compression H.265, H.264, MJPEG
Frame Rate 8 MP (3840 × 2160), max. 30 fps (Main Stream)
5 MP (3072 × 1728), max. 30 fps (Main Stream)
4 MP (2560 × 1440), max. 30 fps (Main Stream)
1080P (1920 × 1080), max. 30 fps (Main Stream, Sub Stream)
720P (1280 × 720), max. 30 fps (Main Stream, Sub Stream)
D1 (720 × 576), max. 30 fps (Sub Stream, Third Stream)
640 × 360, max. 30 fps (Sub Stream, Third Stream)
2CIF (704 × 288), max. 30 fps (Third Stream)
CIF (352 × 288), max. 30 fps (Third Stream)
Video Bit Rate 128 Kbps~ 16 Mbps
ROI Support
OSD Up to 8
Privacy Mask Up to 4 areas
Video Stream Support
Video Stream Triple streams
White Balance Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2
Digital Noise Reduction 2D/3D DNR
Flip Normal / Vertical / Horizontal / 180° / 90° Clockwise / 90° Anti-clockwise
HLC Support
BLC Support
Defog Digital Defog
Dewarping N/A
Events
Basic Detection Motion detection, Ultra motion detection, Tampering alarm, Audio detection
Smart Detection Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle); People flow counting and crowd density monitoring
General Function Watermark, IP Address Filtering, Alarm input, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Other Function N/A
Audio
Audio Compression G.711U, G.711A
Audio Bitrate 64 Kbps
Two-way Audio Support
Suppression Support
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 512GB
Network Storage ANR; NAS (NFS)
Network
Protocols IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, 802.1x, SNMP, QoS, SSL/TLS, SSH, HTTPS, SMTP
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host Up to 32 users. 3 user levels: administrator, common user and operator
Client Guard Station, Guard Viewer, Guard Live
Web Browser Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+; Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Pan & Tilt (N/A)
Optical Zoom N/A
Pan N/A
Tilt N/A
Presets N/A
Patrols N/A
Dwell Times N/A
Home Position N/A
Auto Tracking N/A
Interface
Audio I/O 0/0
Alarm I / O 0/0
Built-in Mic Support
Built-In Speaker Support
Network 1 x RJ45 10M/100M Base-TX Ethernet
Additional Ports N/A
General
Power DC 12V (±25%) on Ø5.5 mm coaxial power plug, PoE+ (IEEE 802.3af); Max. 11.5W; 4 KV Surge
Dimensions (Ø × H) Ø111 mm × 98 mm (Ø4.4" × 3.8") (Ø × H)
Material Metal
Environment Working: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Screws & Offset 3- Ø4.5mm; Ø 98.0mm
Reset Button N/A
Conformity Certifications IP67, CE, UL

Additional Information

What's in the Box

What's in the Box

  • Qty 1 – 8MP Wise-ISP Color Hunter Turret Camera (Model IPT4KD28AIX)

  • Qty 1 – Mounting hardware kit

  • Qty 1 – Quick installation / setup materials
