This product is intended to be purchased by installers only
Description
Description

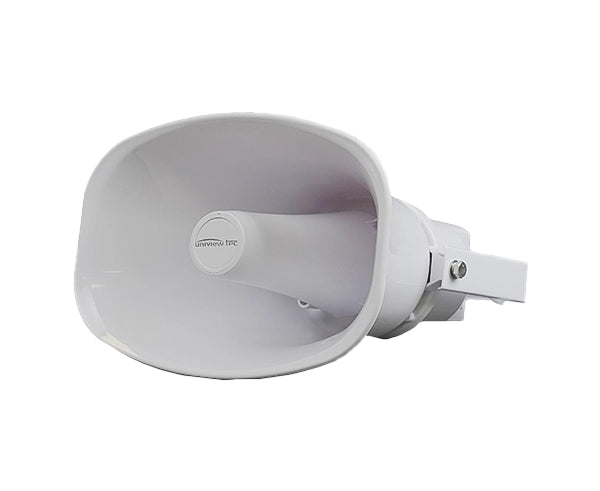

Uniview Tec 30W Horn IP Speaker
This professional 30W horn IP speaker delivers powerful network-based audio broadcasting with exceptional sound pressure and comprehensive integration capabilities. Featuring 30W rated power with 130dBSPL maximum acoustic pressure, this speaker provides clear, long-range audio coverage with wide frequency response from 300Hz to 12.5KHz. The advanced network capabilities support multiple broadcast modes including regular broadcast, live broadcast, and alarm broadcast, while ONVIF compliance ensures seamless integration with existing security systems. With built-in microphone for two-way audio communication, comprehensive alarm I/O, and support for up to 100 audio files with 64MB storage, this IP66-rated horn speaker offers an ideal solution for professional installations requiring powerful networked audio broadcasting with flexible deployment options for security alerts, public announcements, and emergency communications.
Features
Features
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- High-quality loud speaker with clear sound over a long range
- Support alarm broadcast with uniview tec NVR, video and audio linkage
- Built in storage, support uploading custom audios
- Support two-way audio
- Support PoE power supply
Specifications
Specifications
| Power | |
|---|---|
| Rated Power | 30W |
| Max. Acoustic Pressure | 130dBSPL |
| Frequency Response | 300Hz to 12.5KHz |
| Impedance | 8Ω |
| Network | |
| Network Protocol | IPv4; HTTP; HTTPS; SSL/TLS; DNS; TCP; UDP; DHCP; UPnP; ARP; SSH |
| Interface Protocol (API) | ONVIF; RTSP; RTP; LAPI |
| Browser | Windows: Firefox (version 87 and above), Chrome (version 90 and above), Edge (version 90 and above) ; MAC: Safari (version 17 and above) |
| Built in Mic | |
| Frequency Response | 100Hz to 8KHz |
| Sensitivity | -37 dBV/Pa |
| Sampling Rate | 8KHz |
| Quantization Bits | 16 bit |
| Audio | |
| Broadcast | Regular Broadcast, Live Broadcast, Alarm Broadcast |
| Two-Way Audio | Support |
| Audio Compression | G.711U |
| Audio File Format | MP3, WAV |
| Audio File Size | 2KB ≤ Audio File Size ≤ 10MB |
| Audio File Max Storage | 64MB |
| Audio Files Limit | 100 (Include system built-in files ) |
| Interface | |
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| Audio In | 1, RCA |
| Alarm In | 2 |
| Boolean output | 1 relay output, withstand voltage: AC 125V/0.3A, DC 30V/1A |
| Power Supply | PoE (IEEE 802.3at); DC 24V/2A |
| General | |
| Working Environment | -30 °C ~ 60 °C (-22 °F ~ 140 °F); ≤ 90% RH (non-condensing) |
| Dimensions | 282mm × 205mm× 285mm (11.1"×8.1"×11.2") |
| Material | ABS Plastic |
| Protection | IP66 |
Additional Information
Additional Information
Additional Product Information
This professional 30W horn IP speaker delivers powerful network-based audio broadcasting with 130dBSPL maximum acoustic pressure for long-range coverage. The comprehensive broadcast capabilities including regular, live, and alarm modes combined with ONVIF compliance ensure seamless integration with existing security systems. The built-in microphone enables two-way audio communication while supporting up to 100 audio files with 64MB storage provides flexible pre-recorded message deployment. With IP66 weatherproof rating, dual power options, and comprehensive alarm I/O, this horn speaker is ideal for professional installations requiring powerful networked audio broadcasting for security alerts, public announcements, and emergency communications.
What's in the Box
What's in the Box
- Qty 1 – Uniview Tec 30W Horn IP Speaker (IPHS302X)
- Qty 1 – Mounting bracket and hardware
- Qty 1 – Power adapter (if applicable)
- Qty 1 – Quick Start Guide
- Qty 1 – Warranty card or document
