Description
Description

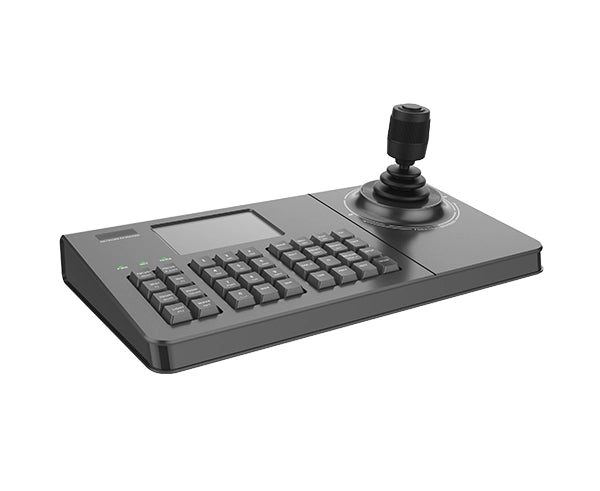

Uniview Tec Network PTZ Joystick Keyboard
This professional network PTZ joystick keyboard delivers comprehensive camera control with an intuitive interface designed for professional surveillance installations. Featuring a 4-inch display screen providing clear image visualization with exceptional detail, this keyboard controller offers precise PTZ camera operation through its advanced 4-dimensional joystick. The simple appearance and button layout ensure aesthetic appeal and comfortable operation for extended use. With flexible connectivity including 10/100M Ethernet, RS-232, and dual RS-485 serial interfaces, this keyboard supports versatile integration with NVRs and PTZ cameras. Operating efficiently on 12VDC with only 5W power consumption, and featuring a wide operating temperature range, this NDAA-compliant keyboard controller offers an ideal solution for professional installations requiring reliable, precise PTZ camera control with clear visual feedback.
Features
Features
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- 4 inch display screen provides clear image with more details
- Simple appearance and buttons layout, aesthetic and user friendly
- 4D joystick for PTZ control (move up/down//left/right, focus, zoom)
- Uses Hoare joystick with high control precision and stability, effectively extending the lifetime
- Power on/off button on the keyboard, convenient and energy saving
- Simple and clear keyboard configuration, easy for use and maintenance
- Supports playing video on video wall and control video
- Supports keyboard lock
- Allows for setting multiple level user permissions
- Supported by uniview tec Guard Station Software and Guard Viewer Mobile App's for iPhone and Android Devices
Specifications
Specifications
| General | |
|---|---|
| Screen Size | 4 inches |
| Joystick | Four-dimensional joystick |
| Max Power Consumption | ＜5W |
| Product Dimensions (W × H × D) |
13.58 x 7.47 x 5.05" (345.00 x 189.82 x 128.16mm) |
| Weight | 2.64lbs (1.2kg) |
| Operating Temperature | 14°F to 131°F (-10°C to 55°C) |
| Operating Humidity | 10% to 90% RH, noncondensing |
| Interfaces | |
| Serial Port | 1 x RS232 (DB9, reserved) 2 x RS485 (half-duplex, reserved) |
| Console | 1 x Console/RS485 shared interface (RJ45) |
| USB | 2 x USB (reserved) |
| Network Interface | 1 x RJ45, 10M/100M/1000M Based-T adaptive interface |
| Power | DC 12 V |
| RST | 1 x Reset button |
Additional Information
Additional Information
Rear Panel Interface
| No. | Interface | Description |
|---|---|---|
| 1 | RS232 | Serial Interface |
| 2 | RS485 | Serial Interface |
| 3 | Console / RS485 | Console / RS485 shared interface (RJ45) |
| 4 | USB | 2 x USB 2.0 |
| 5 | Network | RJ45, 10M/100M/1000M Based-T adaptive |
| 6 | RST | Reset Button |
| 7 | Power supply | 12VDC |
| 8 | Power switch | Power on / off |
Additional Product Information
This professional network PTZ joystick keyboard features a 4-inch display screen for clear visual feedback with comprehensive PTZ camera control through its advanced 4-dimensional joystick. The simple, aesthetic button layout ensures comfortable operation while flexible connectivity options including Ethernet, RS-232, and dual RS-485 interfaces provide versatile integration capabilities. With low 5W power consumption and wide operating temperature range, this keyboard controller is ideal for professional installations requiring reliable, precise PTZ camera control with intuitive operation.
What's in the Box
What's in the Box
- Qty 1 – Uniview Tec Network PTZ Joystick Keyboard (KB-1100-E-NB)
- Qty 1 – Power adapter
- Qty 1 – User Manual
- Qty 1 – Warranty card or document
