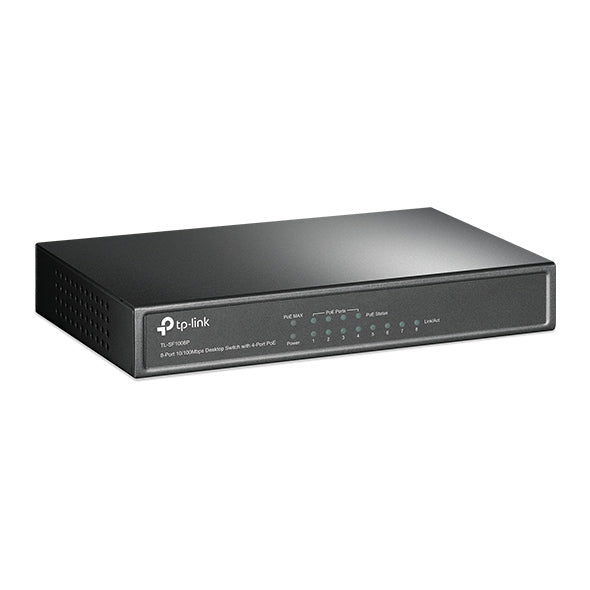

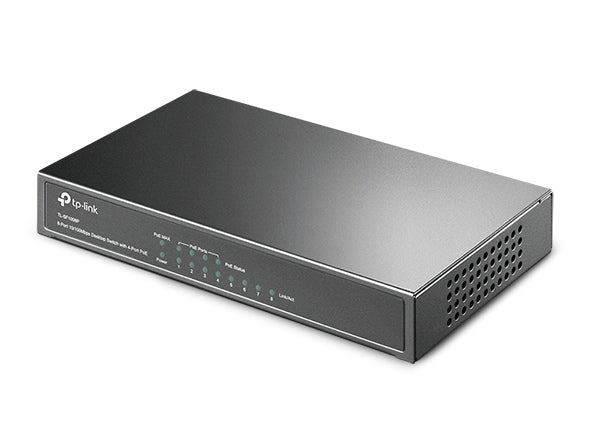

Unmanaged 8 Port Switch with 4 PoE Ports, 10/100Mbps

$61.52
SKU: NT1-3193-8P
FCC Verified logo CE Verified logo RoHS Compliant

Description

8 Port Switch with 4 PoE Ports, Steel Case

What This Product Does: 8 Port 10/100Mbps Desktop Switch with 4 Port PoE provides the seamless network connection. It integrates 100Mbps Fast Ethernet and 10Mbps Ethernet network capabilities.

How This Product Works

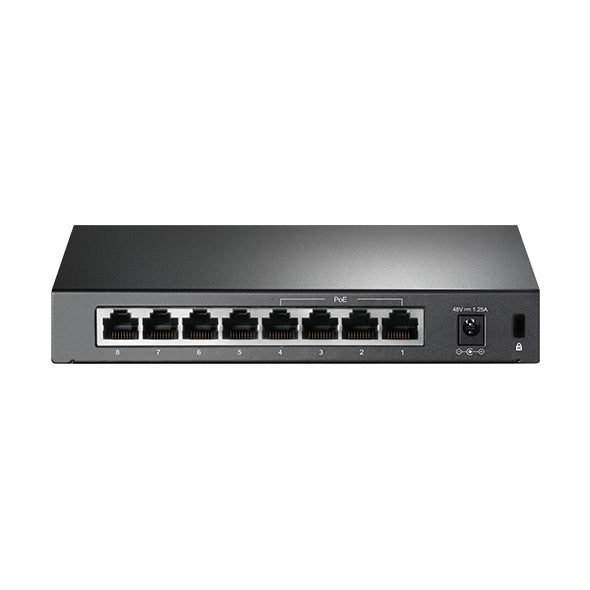

4 of the 8 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

Overload Arrangement

NT1-3193-8P has the priority* function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 53W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.

Port Priority Function

*Priority (Port-1=Port-2=Port-3>Port-4) This function will help protect the system if the system power becomes overloaded. For example, Port 1, 2 and 4 are using 15.4w (maximum power per port is 15.4W), the system power is 46.2w in total (PoE max LED is red ). If there is an additional PD inserted to Port 3 with 10w then the system will cut off Port 4 to protect the system, this means Port 1, 2 will use 15.4w, and Port3 will use 10w, and no power will be supplied to Port 4.

Easy to Use

NT1-3193-8P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the NT1-3193-8P8-Port 10/100Mbps Desktop Switch with 4-Port PoE is a great selection for expanding your home or office network.

*The above information apply ONLY to NT1-3193-8P Version 3.0.

Features

Features

  • Supports PoE power up to 15.4W for each PoE port
  • Supports PoE power up to 57W for all PoE ports
  • Supports PoE IEEE 802.3af compliant PDs
  • Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
  • 2K entry MAC address table of the TL-SF1008P with auto-learning and auto-aging

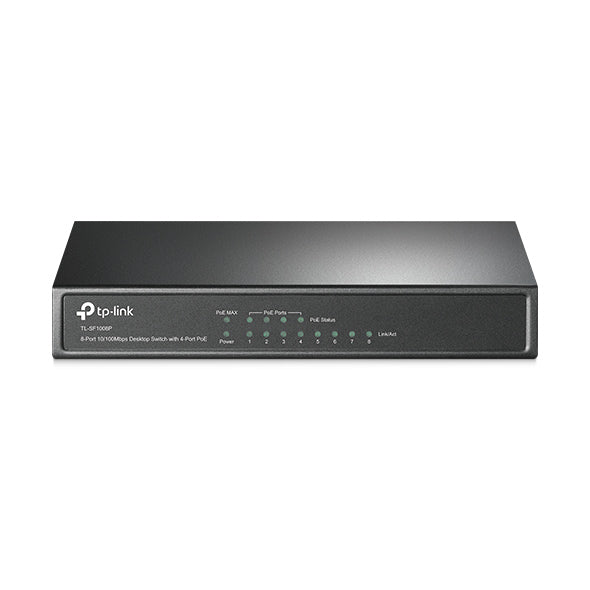

  • LED indicators for monitoring power, link, activity
  • External power adapter supply

Specifications

Hardware Features

Interface 8 10/100Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Power Consumption Maximum (PoE on): 60.2W (220V/50Hz)
Maximum (PoE off): 3.2W (220V/50Hz)
External Power Supply External Power Adapter(Output: 48VDC / 1.25A)
PoE Ports (RJ45) Standard: 802.3 af compliant
PoE Ports: Port1- Port4
Power Supply: 57W
Backbound Bandwidth 1.6Gbps
Mac Address Table 2K
Dimensions ( W x D x H ) 6.7 x 3.9 x 1.1 in. (171 x 98 x 27 mm)

Software Features

Transmission Method Store-And-Forward
Advanced Functions Compatible With IEEE 802.3af Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode

Others

Certification FCC, CE, RoHS
Package Contents 8 Port 10/100Mbps Desktop Switch with 4 Port PoE
Power Adapter
User Guide
Consumption 2.3 watts (max. no PD connected)
59.3 watts (max. with 57w PD connected)
Environment Operating Temperature: 0º~40º (32º~104º)
Storage Temperature: -40º~70º (-40º~158º)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Additional Information

Ethernet Switch Accessories

An Ethernet network switch is a telecommunication device that receives data transmitted from a connected device and relays it to a specific device. Ethernet switches create separate collision domains per switch port, allowing for simultaneous data transfers to occur without interference. They also reduce the number of broadcast domains, and don't require heavy CPU usage. The Ethernet switch manages the flow of network traffic more efficiently and in a safer manner than repeater hubs. It allows for the flow of data between connected devices. Ethernet switches come in both managed and unmanaged varieties. Unmanaged switches are the easy to install, plug and play variety. To learn more about our Ethernet Switches please visit our overview page. Our Switches can be combined with a wide array of products such as:

What's in the box?

What's in the box?

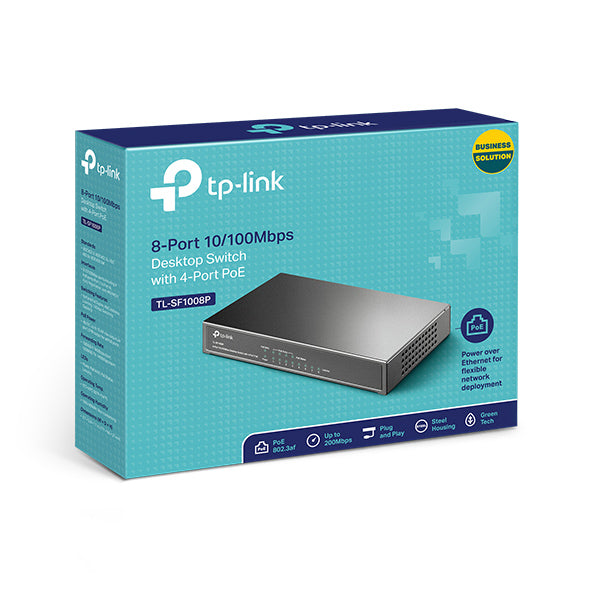

  • Qty 1 - 8-Port 10/100Mbps Desktop Switch with 4-Port PoE
  • Qty 1 - Power Adapter
  • Qty 1 - User Guide
