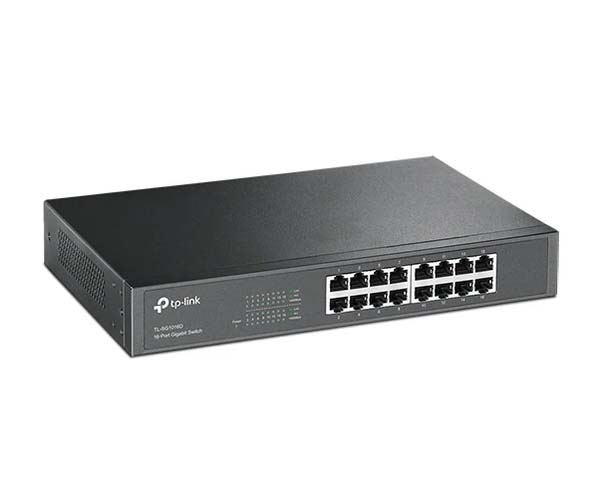

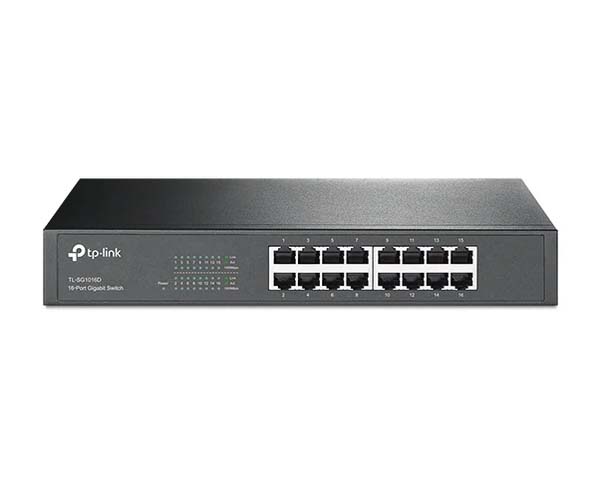

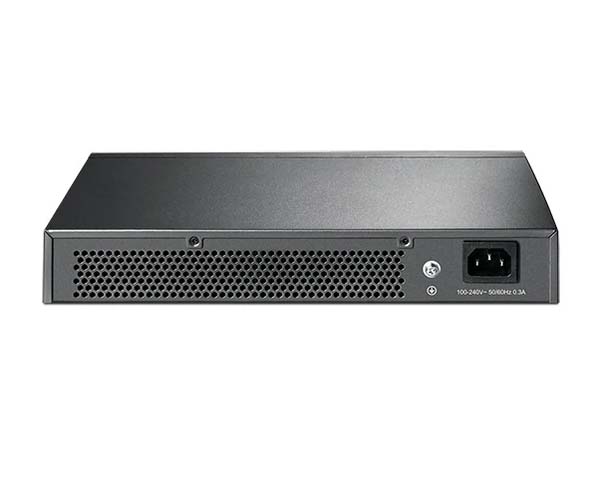

Unmanaged 16 Port Desktop/Rackmount Switch, 10/100/1000Mbps
16 Port Unmanaged Switch, 1U, Steel Case
What This Product Does
The 16-Port Gigabit switch provides an easy way to make the transition to Gigabit Ethernet. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the ES2-1016-16D can save up to 40%* of the power consumption, making it an eco-friendly solution for your business network.
Featured with 16 10/100/1000Mbps ports, ES2-1016-16D greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.
Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This new generation 16 Port Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
Power down Idle Ports
When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The ES2-1016-16D can automatically detect the link status of each port and reduce the power consumption of ports that are idle.
Power Budget According to Cable Length
Ideally, shorter cables would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of whether it is 10 or 50 meters (32.8 or 164.0 feet )in length. The ES2-1016-16D analyzes the length of the Ethernet cable connected and adjusts the power usage accordingly, rather than keeping the power consumption in a conventional solution.
Ease of Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
* Maximum power savings when compared to our conventional switch, the real saving rate may vary based on the usage condition.
- Innovative energy-efficient technology saves power up to 15%
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
- Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
- 32Gbps Switching Capacity
- 10K Jumbo frame improves performance of large data transfers
- Auto-MDI/MDIX eliminates the need for crossover cables
- Supports MAC address auto-learning and auto-aging
- Store and forward Switching scheme
- Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware
- Plug and Play design simplifies installation
|Standards and Protocals||IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x|
|Interface||16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)|
|Network Media||10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
|Power Supply||100-240VAC, 50/60Hz|
|Dimensions ( W x D x H )||11.6 x 7.1 x 1.7 in. (294 x 180 x 44 mm)|
|Max Power Consumption||9.26W (220V/50Hz)|
|Max Heat Consumption||31.60BTU/h|
|Packet Forwarding Rate||23.8Mpps|
|MAC Address Table||8K|
|Package Contents||16 Port Gigabit Desktop/Rackmount Switch
|Environment||Operating Temperature: 0°C~40°C (32°F~104°F);
Storage Temperature: -40°C~70°C (-40°F~158°F);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
Ethernet Switch Accessories
An Ethernet network switch is a telecommunication device that receives data transmitted from a connected device and relays it to a specific device. Ethernet switches create separate collision domains per switch port, allowing for simultaneous data transfers to occur without interference. They also reduce the number of broadcast domains, and don't require heavy CPU usage. The Ethernet switch manages the flow of network traffic more efficiently and in a safer manner than repeater hubs. It allows for the flow of data between connected devices. Ethernet switches come in both managed and unmanaged varieties. Unmanaged switches are the easy to install, plug and play variety. To learn more about our Ethernet Switches please visit our overview page. Our Switches can be combined with a wide array of products such as:
- CAT6 Ethernet Cables
- CAT6A Ethernet Cables
- CAT5E Ethernet Cables
- PoE Splitter, Fast Ethernet, 1 Port
What's in the box?
What's in the box?

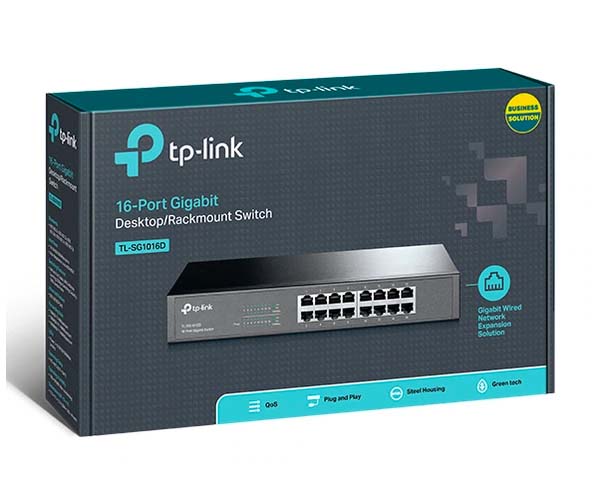

- Qty 1 - 16 Port Gigabit Desktop/Rackmount Switch
- Qty 1 - Power Cord
- Qty 1 - Installation Guide
- Qty 1 - Rackmount Kits
- Qty 1 - Rubber Feet
