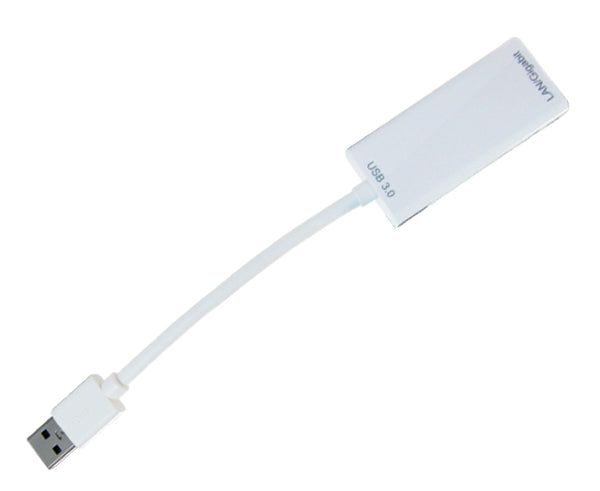

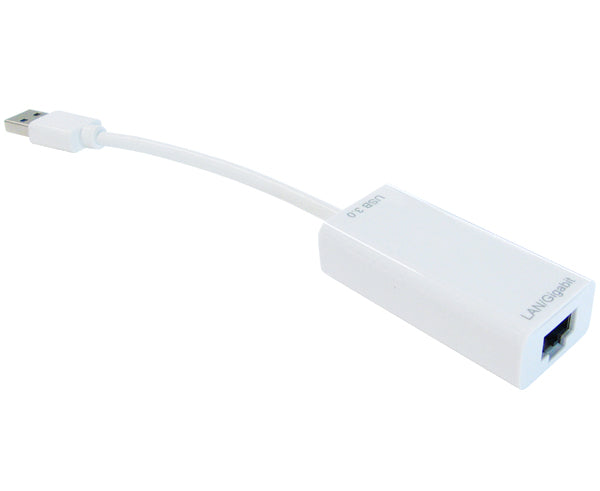

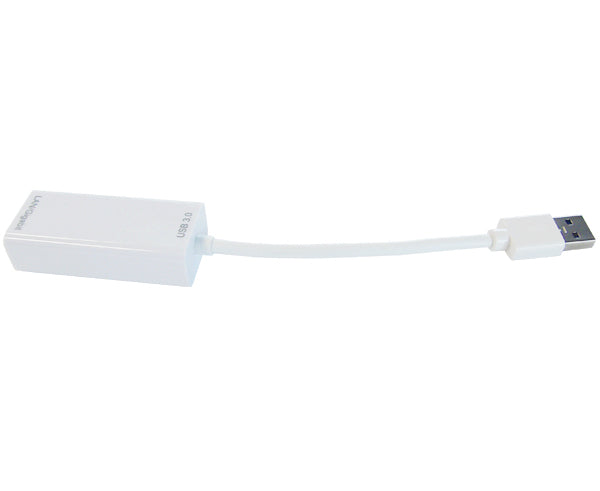

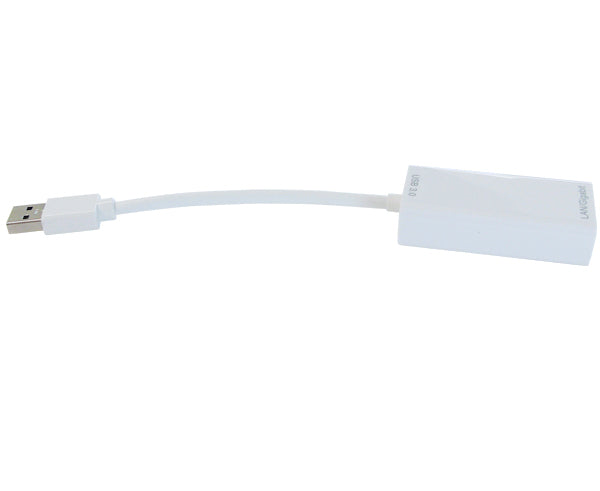

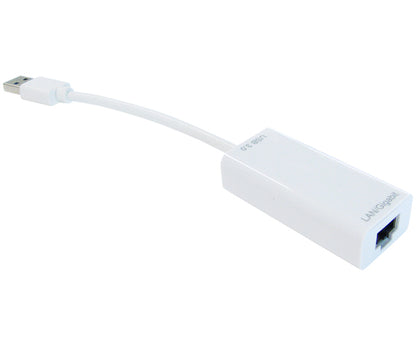

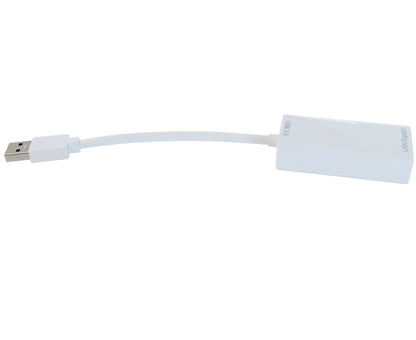

USB 3.0 to Gigabit Ethernet Adapter with Driver Software CD

SKU: USB-AD-5688
Various lead times may apply to this product. Please contact us for more details.


USB 3.0 to Gigabit Ethernet Adapter with driver software CD

The USB 3.0 to Gigabit Ethernet Adapter is a high performance and low cost solution. It enables Gigabit Ethernet network connection capability for desktops, ultra book with standard USB port. It resolves the trouble of the computers without an Ethernet port. With this adapter you can easy connect a computer to Ethernet through a USB port.



  • Integrates on-chip USB 3.0 PHY and controller compliant to USB Spec 3.0, 2.0 and 1.1
  • Supports all USB 3.0 power saving modes (U0, U1, U2, and U3)
  • Supports USB Super/High/Full Speed modes with Bus-power or Self-power device auto-detect capability
  • Supports IEEE 802.3az (Energy Efficient Ethernet)
  • Supports parallel detection and automatic polarity correction
  • Supports IPv4/IPv6 packet Checksum Offload Engine (COE) to reduce CPU loading
  • Supports TCP Large Send Offload V1
  • Supports full duplex operation with IEEE 802.3x flow control and half duplex operation with back-pressure flow control
  • Supports IEEE 802.1P Layer 2 Priority Encoding and Decoding
  • Supports Jumbo frame
  • PHY loop-back diagnostic capability
  • Support Wake-on-LAN Function
  • Supports suspend mode and remote wakeup via link-change, Magic Packet, Microsoft Wakeup Frame and external wakeup pin
  • Support windows 8, windows 7, windows vista, Apple 10.6 and Apple 10.8



Signal Inputs/Output

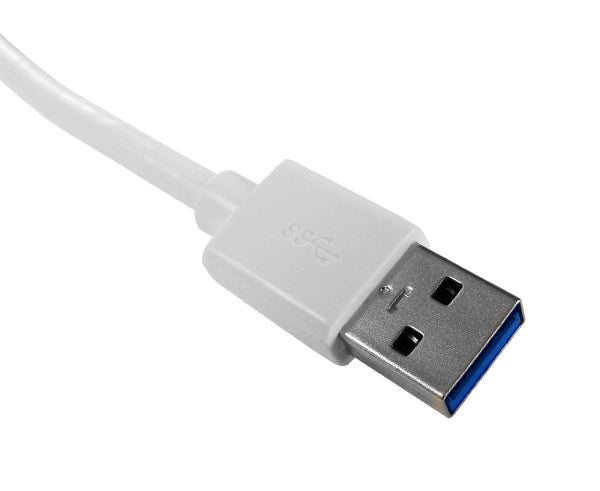

Input Port USB 3.0 A Male x1

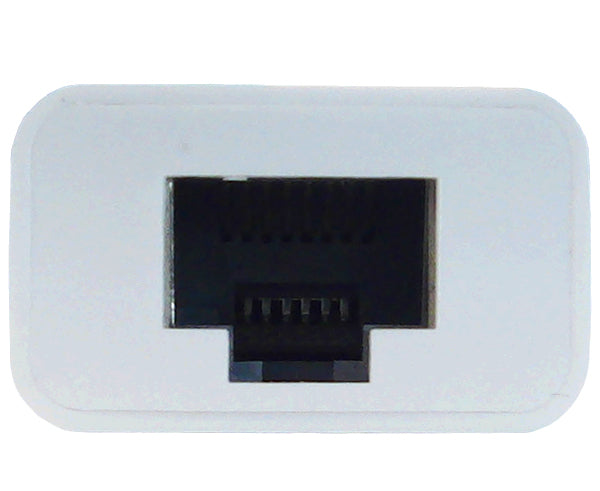

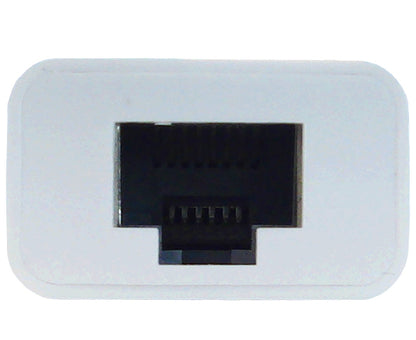

Output Port Female RJ45

Power Requirement

External Power Supply NO
Power consumption (Max) 0.5W


Operating Temperature 0 ℃ to +70℃
Operating Humidity 10% to 85 % RH
(no condensation)
Storage Temperature -10℃ to +80℃
Storage Humidity 5% to 90 % RH
(no condensation)

Additional Information

Additional Information

1. Connection:

  1. Connect USB 3.0 port of this product to computer.
  2. Connect RJ45 output of this product to Ethernet Router or Networking by a male to male networking cable (Patch Cord).

2. Driver Installation:

  1. In the CD there is a windows & mac driver, which supports Windows 7, Windows Vista, Windows XP, Mac OSX v10.7, Mac OSX v10.8.
  2. Insert the CD to computer, and the driver will be installed automatically.
  3. Select your operating system. (Windows, Mac, or Linx).
  4. Open the Setup and follow the prompts.

What's in the Box

What's in the Box

Before attempting to use this unit please check the packaging and make sure the following items are contained in the shipping carton.

  • 1x - USB to RJ45 Gigabit Ethernet Adapter Converter
  • 1x - CD Driver (1x - Contains User's Manual)
