Description

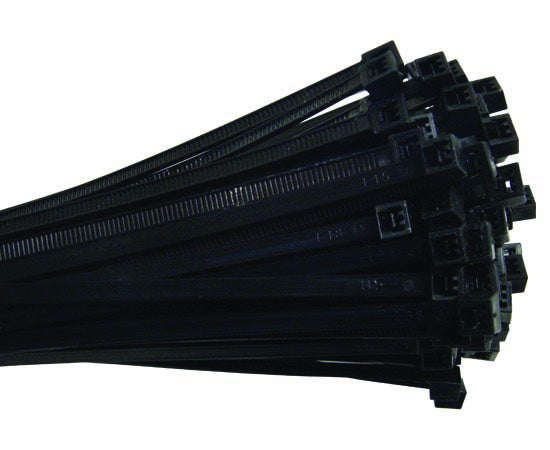

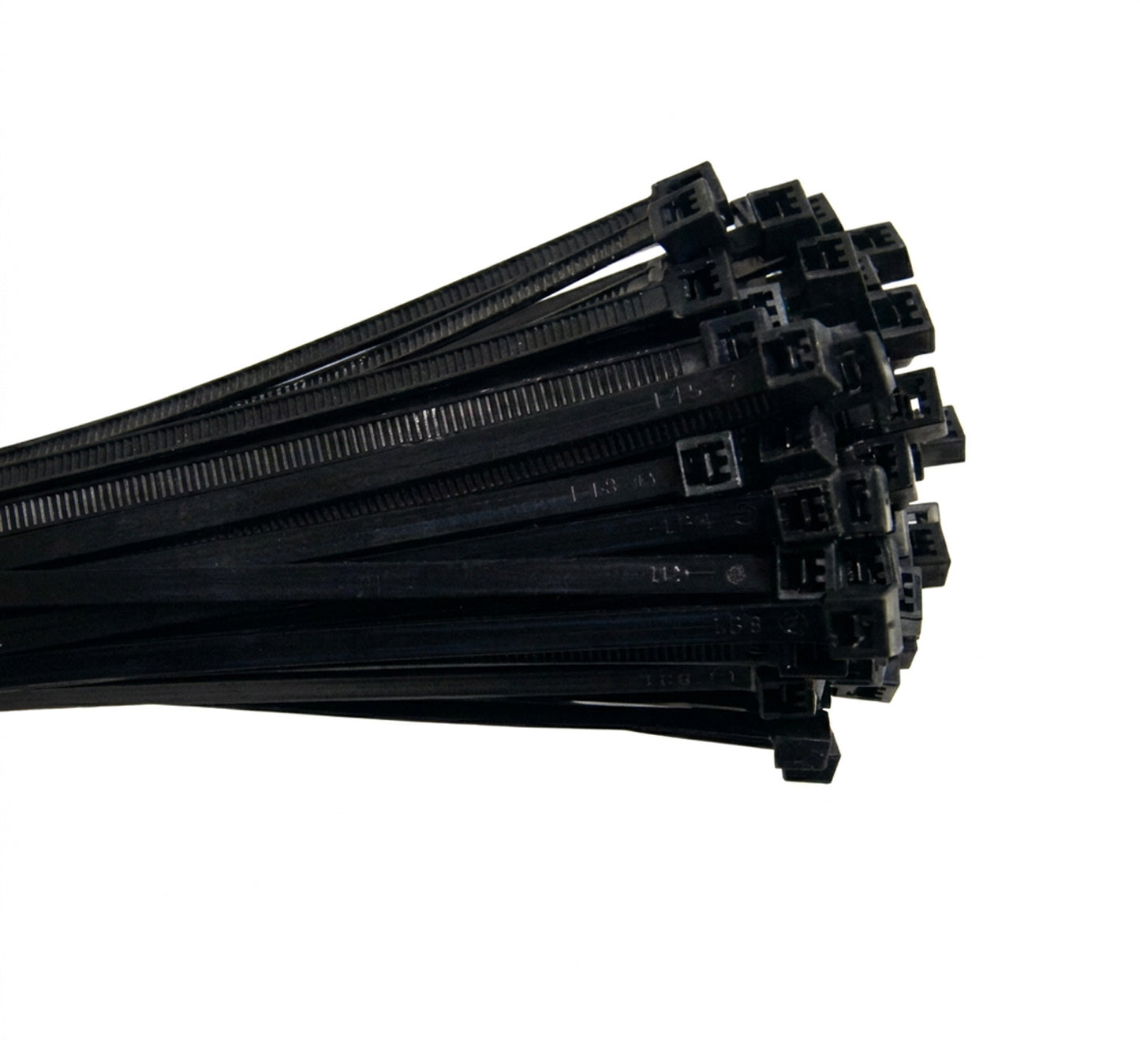

UV Cable Tie, 100 pack
Our UV Cable Tie is great for reducing tangled wires and cables. This product comes in a 100 pack and is great for holding items together, primarily electrical cables or wires. Because of the low cost and ease of use, cable ties are ubiquitous, offering use in a wide range of other applications.
Features
Features
- Faster - Low insertion and pull through
- Stronger - High tensile strength achieved from one piece design
- Advanced pawl and teeth design
- Manufactured from filter nylon reducing particle contamination
- Easier - Angled tail provides quicker initial insertion alignment
- Safer - Rounded edges provides added safety and eliminates insulation damage
- Consistent - Formulated molding process
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| DIMENSIONS | |
|
A LENGTH (IN / MM) |
4.12" / 104.77MM |
|
B THICKNESS |
0.042" / 1.066MM |
|
C WIDTH 1 |
0.095" / 2.413MM |
|
D WIDTH 2 |
0.180" / 4.572MM |
|
E HEIGHT |
0.150" / 3.810MM |
|
F LENGTH 2 |
0.220" / 5.588MM |
| TENSILE STRENGTH (POUND FORCE) | 18 LBS. |
| TENSILE STRENGTH (NEWTONS) | 80 LBS. |
| TEMPERATURE RATINGS | |
| MAX OPERATING TEMP (°F) | 185 |
| MAX OPERATING TEMP (°C) | 85 |
| MIN OPERATING TEMP (°F) | -40 |
| MIN OPERATING TEMP (°C) | -40 |
| MIN INSTALLATION TEMP (°F) | -4 |
| MIN INSTALLATION TEMP (°C) | -20 |
| COLOR & MATERIAL / COMPLIANCE | |
| COLOR & MATERIAL | UV BLACK NYLON |
| UL LISTED | UL LISTED TYPE 21 |
| AIR HANDLING APPROVED | UL & CSA AH‑2 RATED |
| UL MATERIAL FLAME RATING | 94 V‑2 |
| CSA CERTIFIED | CSA CERTIFIED TYPE 21 |
| CE COMPLIANCE | TYPE 2 |
| ROHS COMPLIANT | ROHS COMPLIANT |
| WEIGHT PER BAG | C = .09 LBS, M = .8 LBS |
| WEIGHT PER CASE | C = 9 LBS, M = 8 LBS |
What's in the box
What's in the box
- Qty 1 - UV Cable Ties 18 lbs Black (100 pack)
