Description
Vertical Wall Mount Bracket
Vertical Wall Mount Brackets allow servers and other networking equipment to mount vertically and flush to a wall, providing a cost-effective mounting solution for environments with limited space. Featuring universal cage hole mounting and an opening in the rear panel for in-wall cable access, this bracket has the versatility to support a wide variety of equipment regardless of depth. Load capacity of 75 lbs.
Features
Features
-
Space-saving vertical wall mount design
-
Strong 14-gauge steel with black powder coating
-
Universal fit with cage hole mounting
-
Cable access through rear panel opening
-
Includes hardware (10 M6 cage nuts and screws)
-
Compliance & Standards: RoHS, ANSI / EIA RS-310D,
IEC60297-2, DIN41494; Part 1, DIN41494; Part 7
Specifications
| 2U SPECIFICATIONS - VB2-021 | |
|---|---|
| Size | 2U |
| Width | 19.23" |
| Depth | 4.20" |
| Height | 7.80" |
| Weight | 5.35 lbs |
| Loading Capacity | 75 lbs. |
| Material(s) | 14 Gauge CRS (Cold Rolled Steel) |
| Color/Finish | Black Powder Coated Finish |
| 4U SPECIFICATIONS - VB2-041 | |
|---|---|
| Size | 4U |
| Width | 19.23" |
| Depth | 7.70" |
| Height | 7.80" |
| Weight | 6.75 lbs |
| Loading Capacity | 75 lbs. |
| Material(s) | 14 Gauge CRS (Cold Rolled Steel) |
| Color/Finish | Black Powder Coated Finish |
| 6U SPECIFICATIONS - VB2-061 | |
|---|---|
| Size | 6U |
| Width | 19.23" |
| Depth | 11.20" |
| Height | 7.80" |
| Weight | 10.70 lbs |
| Loading Capacity | 75 lbs. |
| Material(s) | 14 Gauge CRS (Cold Rolled Steel) |
| Color/Finish | Black Powder Coated Finish |
What's in the Box
What's in the Box

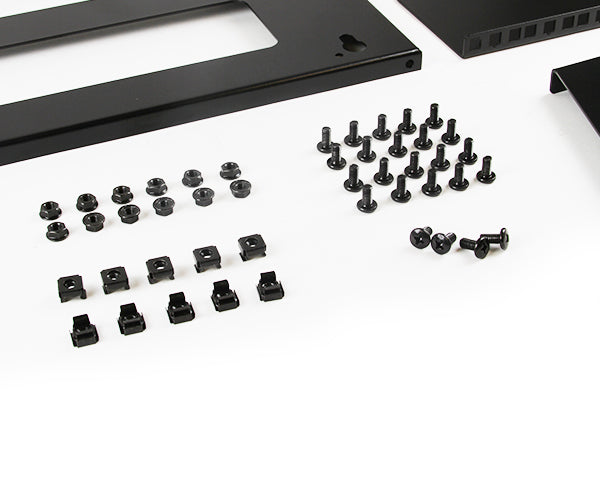

- Qty 1 - Vertical Wall Mount Bracket
- Qty 10 - M6 Cage Nuts And Screws Included
