Description

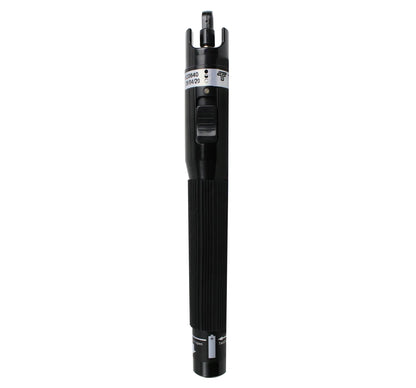

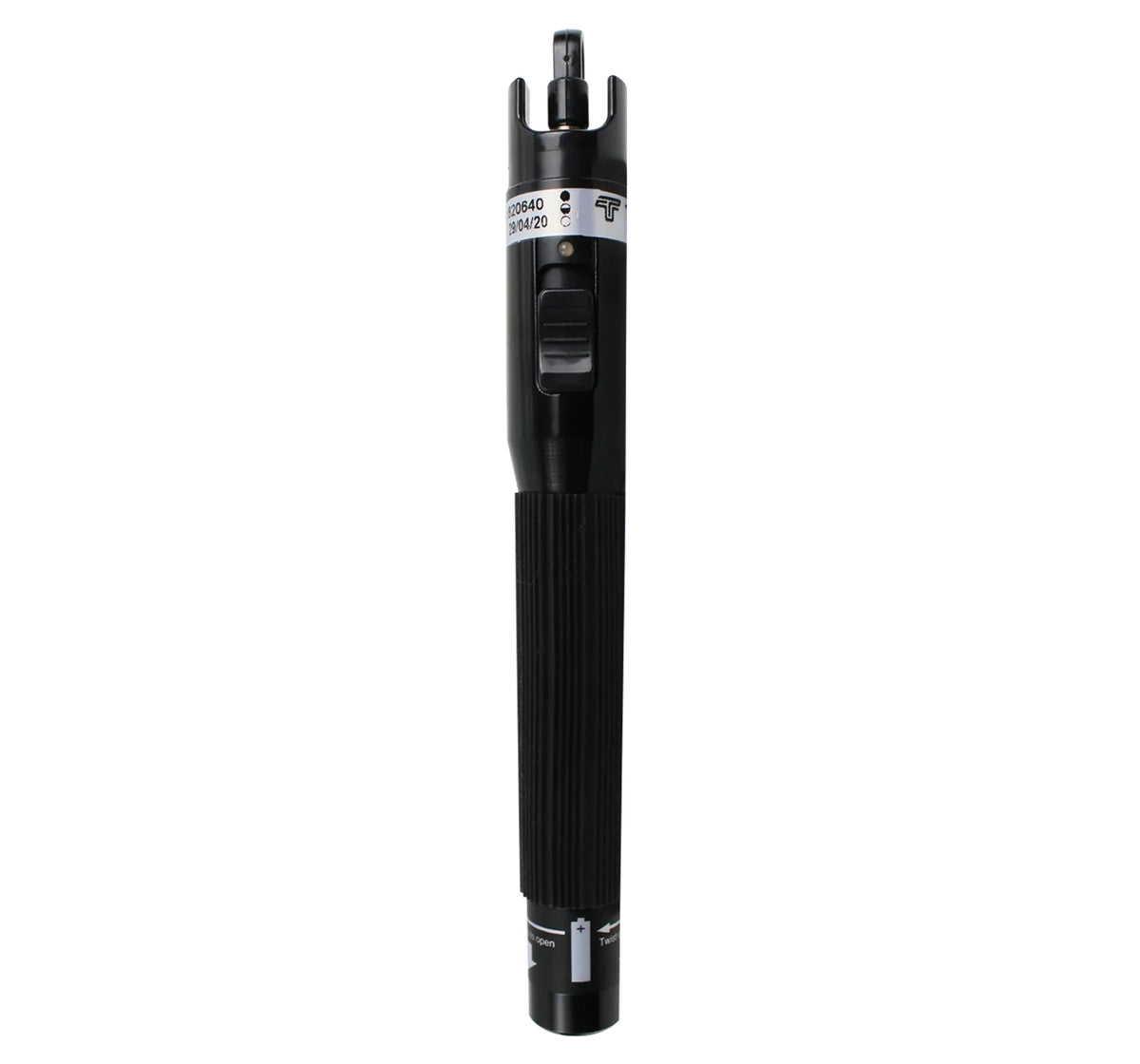

Visual Fault Locator Kit

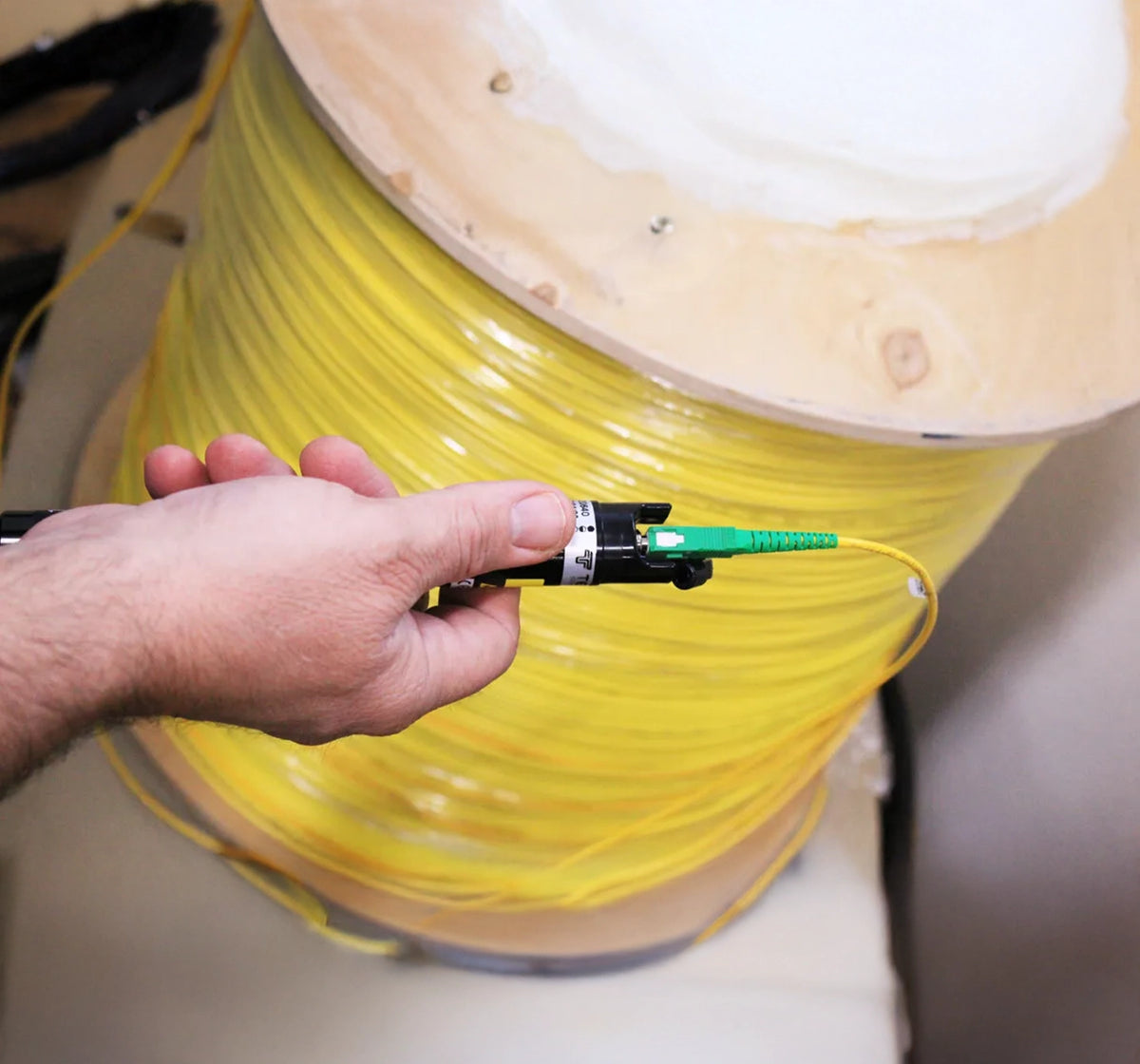

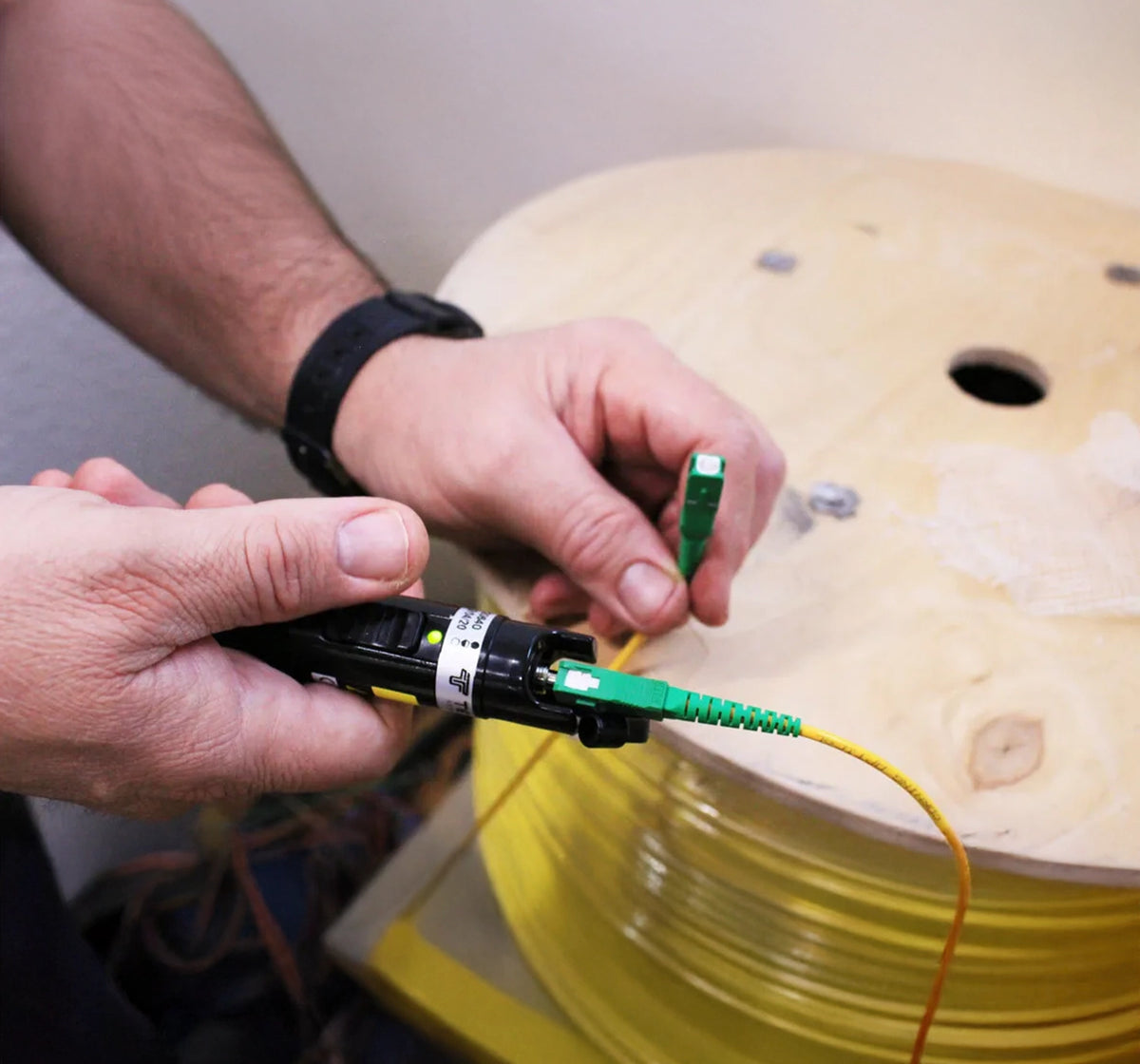

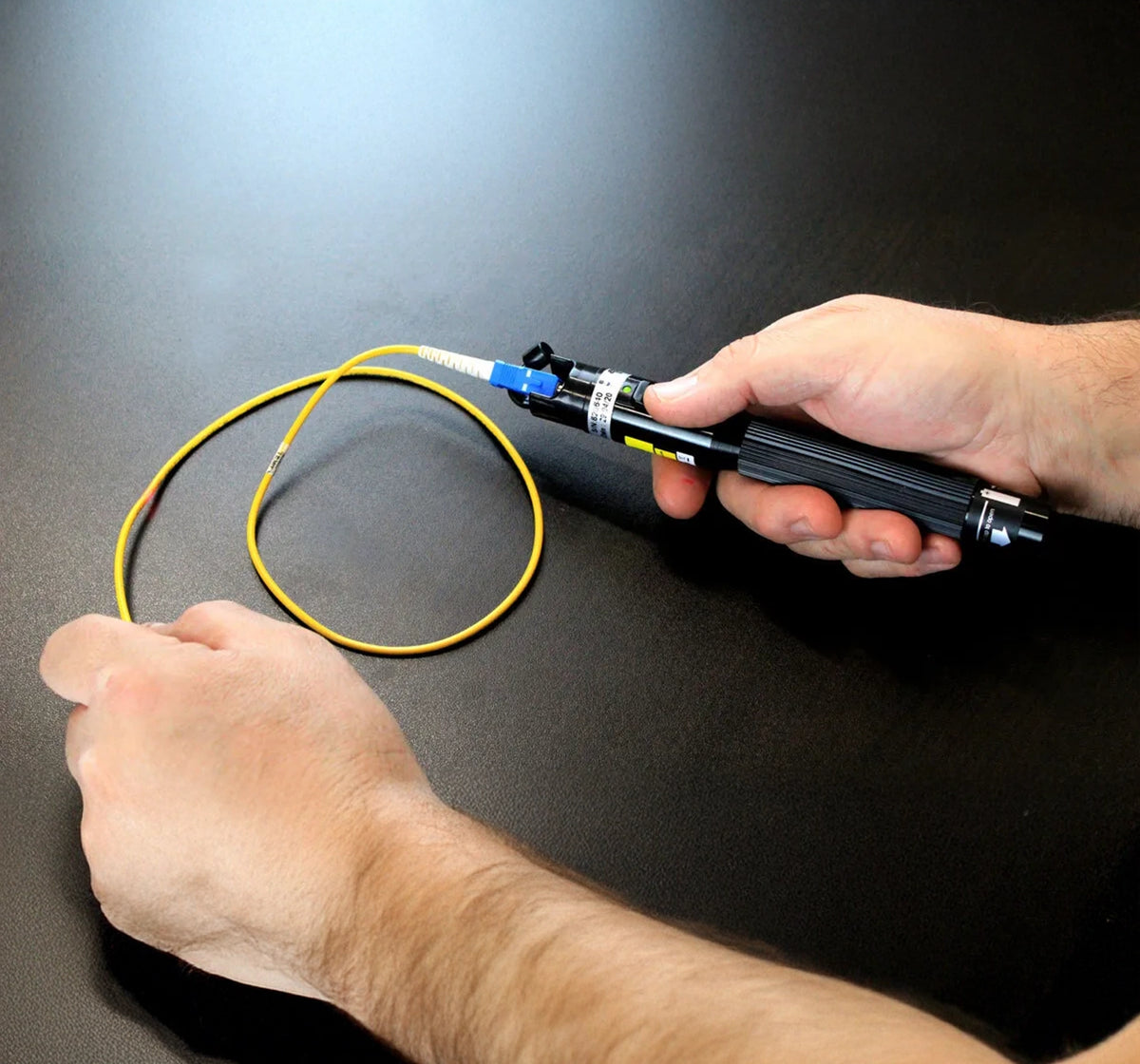

The 180XL visual fault locator allows the technician to quickly and safely visually locate broken and pinched fibers, faulty connectors, and bad splices. The long reach of the 180XL allows the technician to safely confirm fiber continuity.
Features
Features
- Visual fault locating
- Confirm fiber continuity
- Allows the technician to quickly locate faults without the use of more expensive equipment
- Class 2 designation provides safe light levels for the technician
- 5km distance
- Universal 2.5mm bulkhead
- Optional 1.25mm adapter available
- Class 2 certification, 1 mW maximum output power
- Compatible with Singlemode and Multimode fibers
- 2Hz modulation mode
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Wavelength | 650nm +/-10nm |
| Maximum Output Power | 1 mW |
| Typical Output Power | 700μW |
| Laser Classification | Class 2 |
| Modes | CW and 2Hz Modulation |
| Display | Red/Green LED |
| Fiber Type | Singlemode, Multimode |
| Connector Interface | 2.5mm Universal, Optional 1.25mm adapter |
| Battery | AA (2 Included) |
| Battery Life | 80 Hours with 3.9 Wh Batteries |
| Weight | 0.26 lbs (120g) (not including batteries) |
| Dimensions | 7.08” x 0.91” Dia (180mm x 23mm Dia) |
| Operating Temperature | -10ºC to +45ºC |
| Storage Temperature | -40ºC to +70ºC |
| Maximum Distance | 5km |
Additional Information
| Product Videos | |
|---|---|
TEMPO'S 180XL VISUAL FAULT LOCATOR FOR FIBER OPTIC CABLE - TRAINING VIDEO |
What's In The Box
What's In The Box

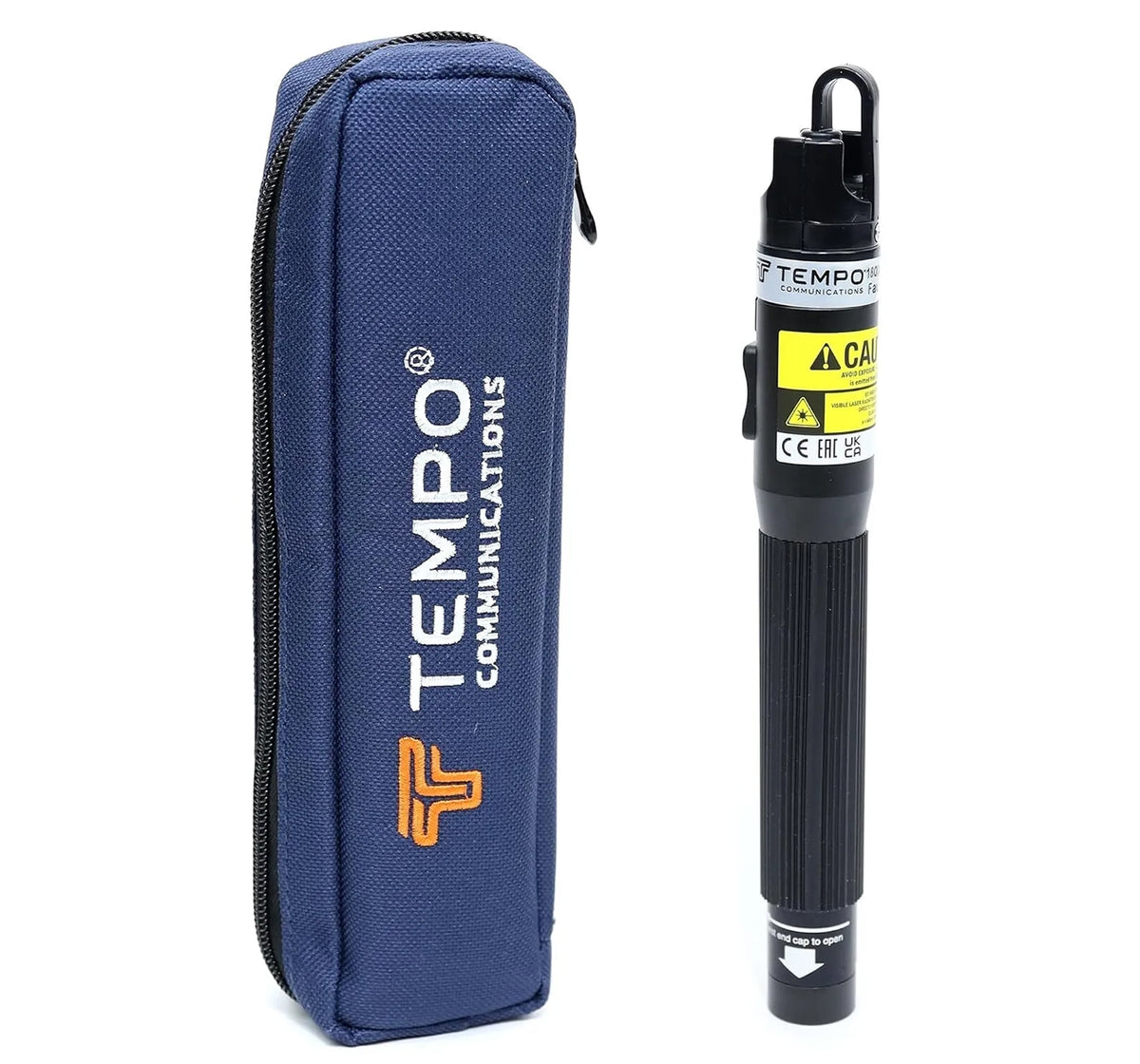

- Qty 1 - 180XL Visual Fault Locator unit
- Qty 2 - AA batteries
- Qty 1 - Holster or carrying case
