Wall Mount Enclosure, UL Listed, NEMA 1 and 4, 100% Weatherproof, Metal

Color: Gray
Size & Depth
Various lead times may apply to this product. Please contact us for more details.

Made in USA logo UL Listed

Mounting bracket kit sold separately

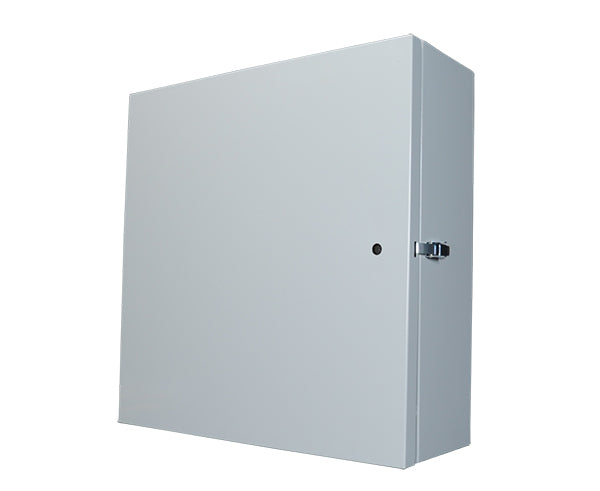

Multi-Dwelling Wall Mount Enclosure, UL Listed, NEMA 1 and 4, 100% Weatherproof Gasket, Metal

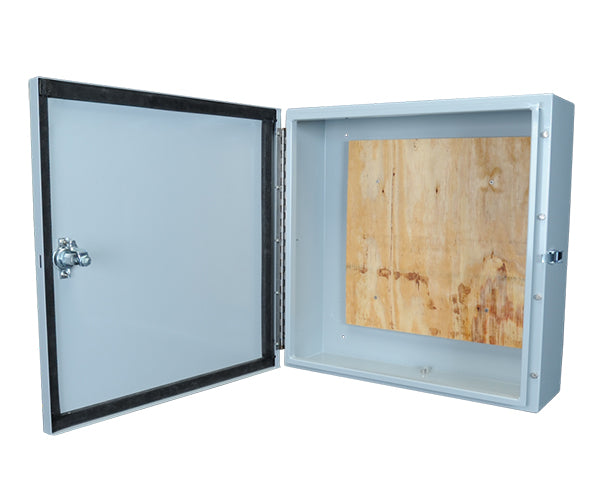

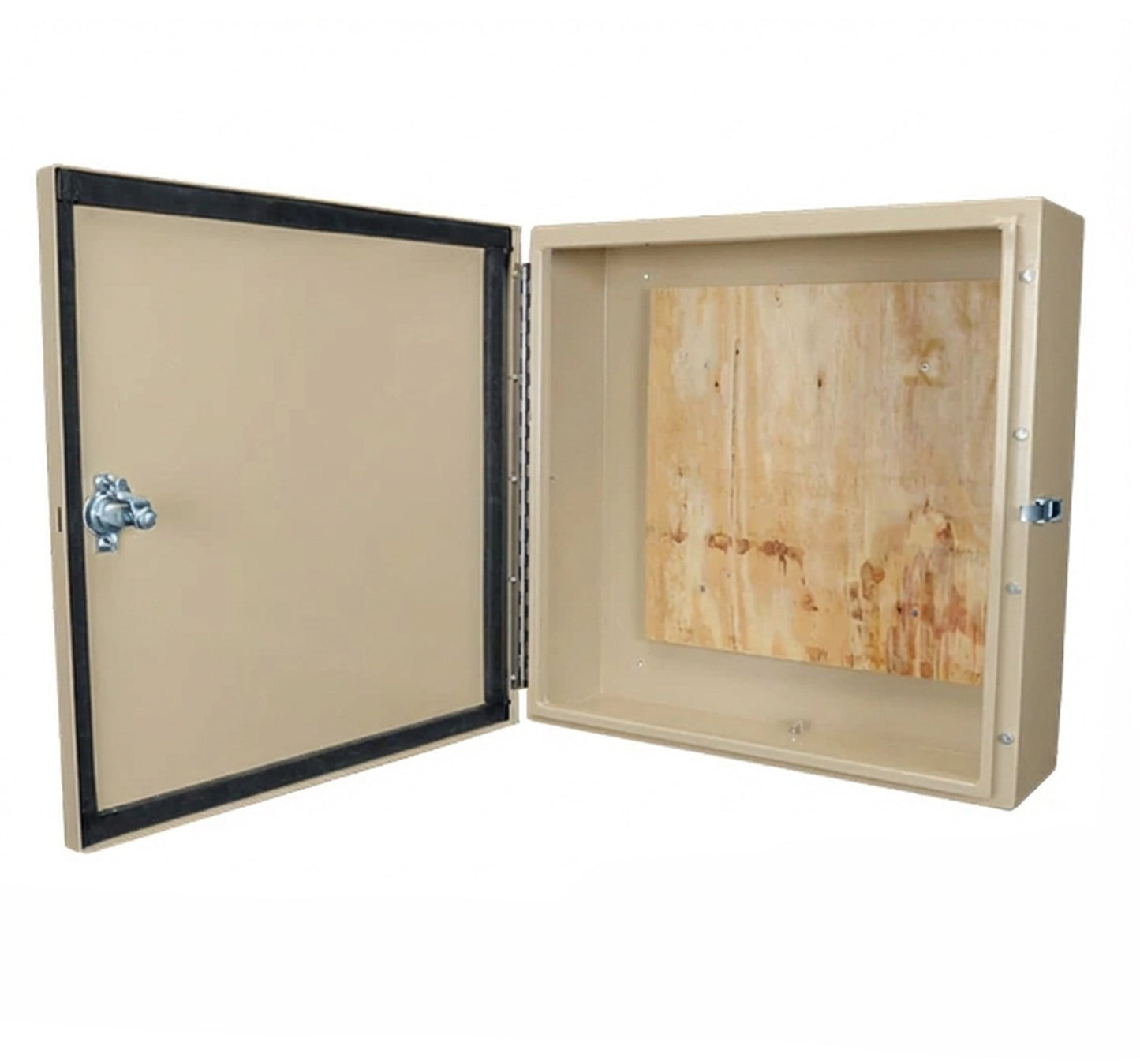

This Multi-Dwelling Wallmount Enclosure is UL listed with 100% weatherproof gasket. Additional features include a compression latch, reversible door, 3/4" inch plywood backboard, padlockable over center draw latch. Comes in your choice of beige or gray.

Note: In order to maintain NEMA 4 rating, the external mounting bracket kit (FB26-1146-WM) must be installed.



  • 216 can wrench compression latch
  • Reversible door
  • 3/4" plywood backboard
  • Padlockable over center draw latch
  • 100% weatherproof gasket
  • UL listed
  • NEMA type 1 and 4* Rated
  • Available in 6 different sizes
  • Standard colors: beige; gray

* Installation of external mounting bracket kit required for NEMA 4 rating.



NEMA Rating: Type 1, Type 4*
Backboard: 3/4" Plywood
Latch Style: Padlockable Over Center Draw
Door Style: Hinged, Reversible

Physical Dimensions

NPNB-RN1H-24248-BE/PG 24"W x 24"L x 8"D
NPNB-RN1H-24244-BE/PG 24"W x 24"L x 4"D
NPNB-RN1H-20168-BE/PG 20"W x 16"L x 8"D
NPNB-RN1H-20164-BE/PG 20"W x 16"L x 4"D
NPNB-RN1H-18148-BE/PG 18"W x 14"L x 8"D
NPNB-RN1H-12128-BE/PG 12"W x 12"L x 8"D

Additional Information

Fixed Wall Mount Enclosures Accessories

Wall mount racks and enclosures are a cost effective solution for protecting your server equipment from physical damage, as well as protecting it from tampering. We offer a variety of fixed wall mount racks and adjustable rail kits to help you protect and organize your data network.

To learn more about our Fixed Wall Mount Enclosures please visit our overview page.
