Note: Adapters and Pigtails Sold Separately
Description
Description

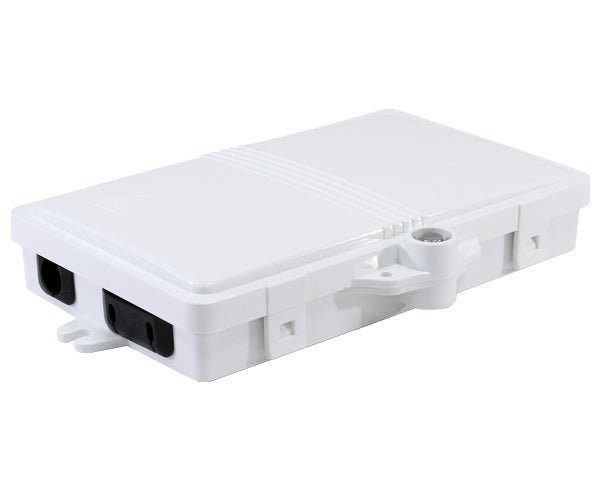

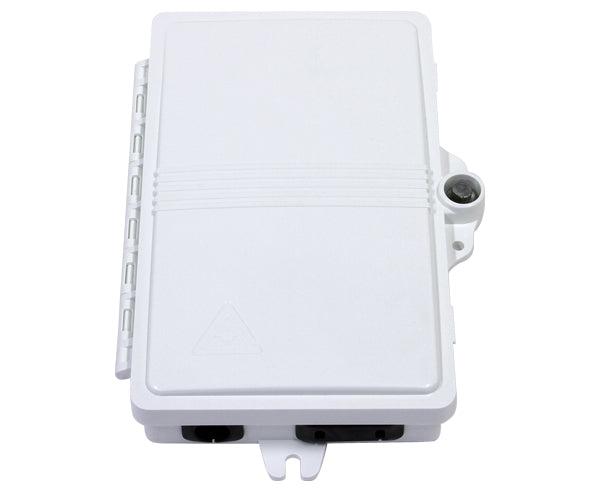

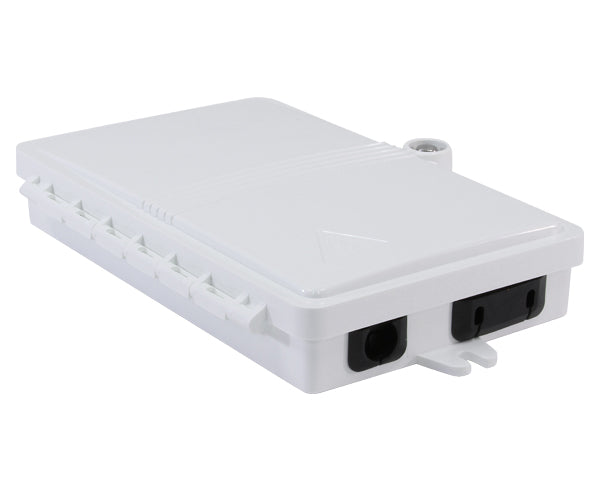

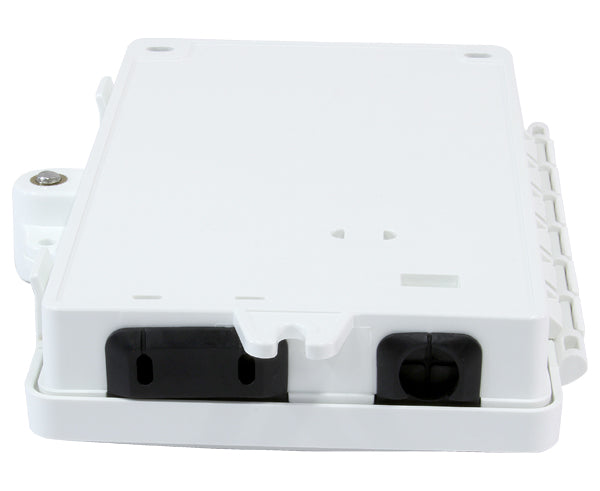

Wall Mount 2-Fiber Termination/Distribution Unit with Integrated Splice Tray and Spool in White
This outdoor wall mount 4-fiber termination/distribution box includes a waterproof design and low-profile interconnection between central office and multi-dwelling units of FTTx application. Its multi-layer design allows installers to access only the components necessary for initial installation or subscriber turn-up.
This FDU is capable of housing 2 simplex SC adapters or 2 duplex LC adapters and is offered in a white PC+ABS plastic with a lock for security. Applications include: FTTH, FTTB, FTTC, Telecommunication Network, CATV, Local Area Network.
Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with fiber cleaning kits, pens, fluids, and wipes.
Features
Features
- Fiber Distribution Unit (FDU) for FTTH/FTTB Applications

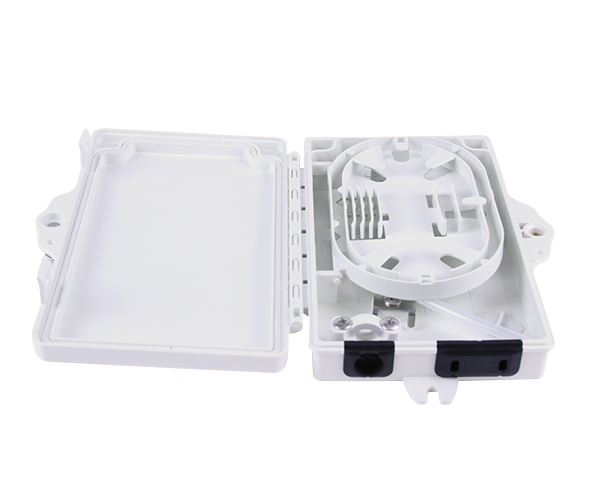

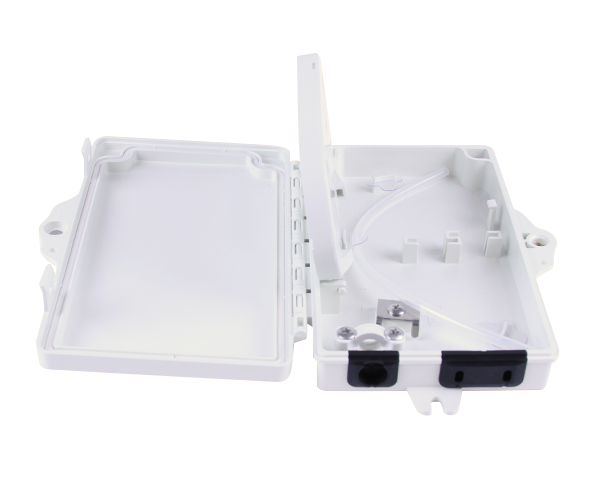

- Integrated with splice cassette and cable management rods
- Holds 2 Simplex SC Adapters Or 2 Duplex LC Adapters
- Integrated Spice cassette and Cable Management rods

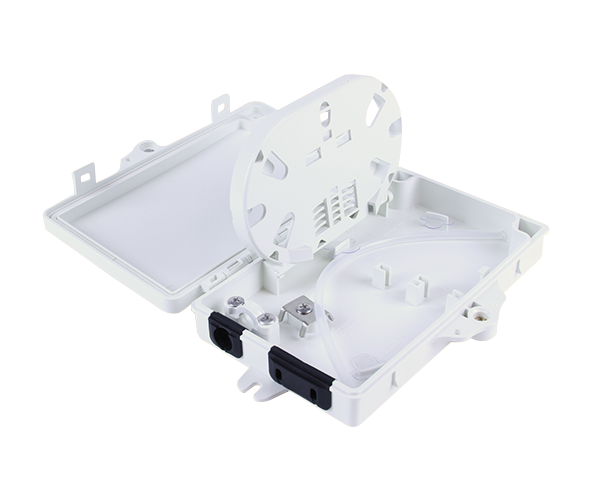

- Integrated 4 Fiber Splice Tray
- IP-65 Rated for Dust & Water Proof Outdoor Applications
- Made From A Durable PC+ABS Plastic
- Manage fibers in a reasonable fiber radius condition
- Water-proof design with IP-65 Protection level
- Easy to maintain and extend the capacity.

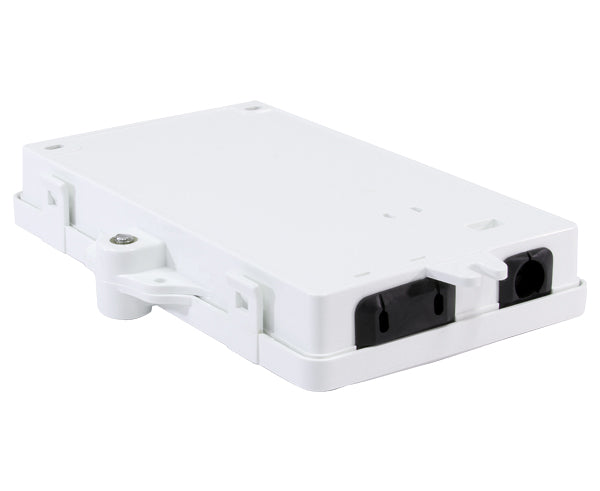

- 2 ports cable entrance for drop cable
Specifications
Specifications
| Material | Size | Max Capacity | Installation Size | Color | ||
| PC+ABS | A*B*C (mm) 168*102*32 | SC 2 ports |
LC 4 ports |
PLC 1x2(SC) |
159*80 D*E(mm) | Light Gray |
What's in the Box
What's in the Box

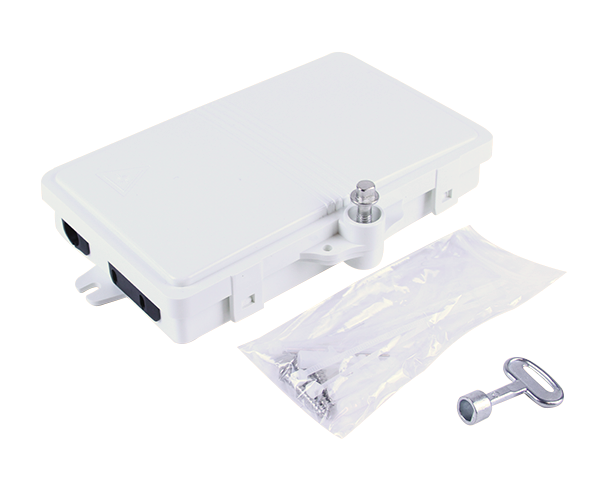

- Qty 1 - Wall Mount White Plastic Fiber Distribution Box
- Qty 1 - Integrated Splice Tray Fits 2 Splices
- Qty 1 - Integrated Cable Management
- Qty 2 - Fiber Splicing Sleeves
