Wall Mount Fiber Enclosure, Up to 576 Splices

$1,014.99
SKU: FB23-3956OSEB
Update
Various lead times may apply to this product. Please contact us for more details.
##SHAREDCONTENT[BULLET_USA_LOGO]##

Splice trays NOT included.

This fiber wall mount enclosure is only compatible with our FB25 splice trays. To find out more, give us a call at ##STOREPHONE## or email us at ##STOREEMAIL##.

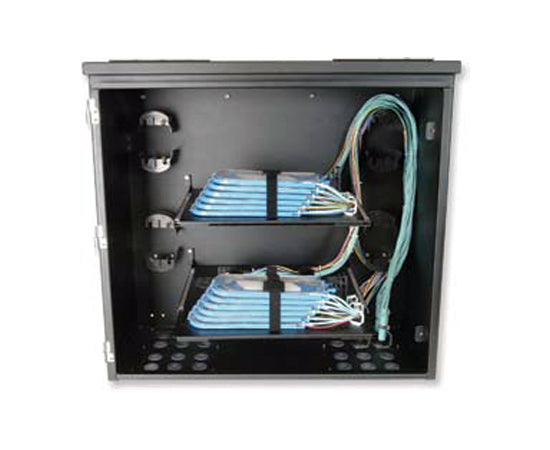

Optical Enclosure, Holds 16 Splice Trays, Up to 576 Splices, Black

The ##STORENAME## FB23-3956OSEB OSE (Optical Splice Enclosure) is a wall mounted central splicing and cable management enclosure with a weather tight design for indoor or outdoor applications. The unit is manufactured with top and bottom mounted cable entry plates each supporting up to (8) liquid tight cable seals. The enclosure's interior compartment has two slide-out splice tray support shelves each with a (8) tray stacker. Depending on the tray elected, the enclosure supports up to 24F or 36F single fused fibers and if mass fusing, the enclosure can support >2000 mass fused fibers. Each splice tray incorporates the "open keyhole" hinging mechanism to allow for ease in tray entry without tray removal. Aluminum, black.

Optical Splice Enclosure Features

  • All Corrosion resistant materials with outer protective polyester powder coating.
  • Compact design with high splice storage capacity.
  • Lightweight but durable .080™ Aluminum.
  • Single outer and removable door.

Capacity

Splice Trays
(16) 24 Fiber Splice Trays Sold Separately or
(16) 36 Fiber Splice Trays Sold Separately


Dimensions

Depth
14.5"
Height
28"
Width
25.25"
Weight
48 lbs


Physical Properties

Color
Black
Material
16 Gauge Powder Coated Steel
