Wall Mount Fiber Patch Panel, Added Security, Up to 24 Ports

SKU: FB23-3960WAS4B
Various lead times may apply to this product. Please contact us for more details.

Adapter panels and splice trays NOT included.

This fiber patch panel is only compatible with our FB24 adapter panel inserts and FB25-3995STP12 splice tray. To find out more, give us a call or email us.

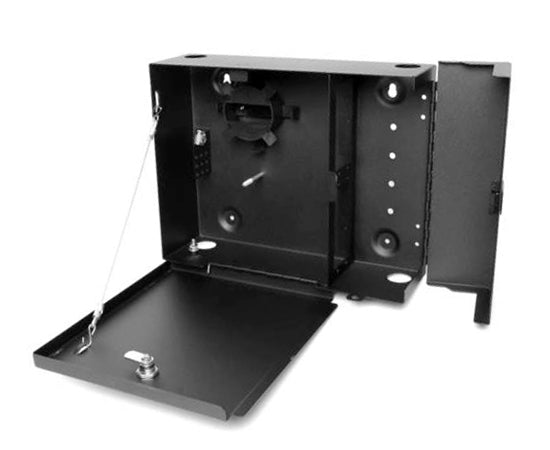

Wall Mount Fiber Patch Panel, Added Security, Holds 2 Splice Trays and 4 Adapter Panels, Up to 24 Ports, Black

This very compact wall mount fiber patch panel is designed to support patching and splicing in one fiber enclosure. The fiber housing has 4 adapter panel positions allowing for the termination of a wide variety of fiber connector styles. The housing has a drop down removable outer Network compartment door which can be used as a work shelf for splicing. The two outer doors with a lockable Network compartment are designed to maintain termination security. The FB23-3960WAS4B is one of a family of units that support fiber termination and splicing in wall mount applications. Black, Steel.


Wall Mount Cabinet Features:

  • 2 splice tray capacity.
  • 4 adapter panel capacity.
  • Can be customized with custom logo.
  • Designed to support patching and splicing in one unit.
  • Drop down removeable network door.
  • Lockable network door for added security.



Splice Trays: (2) 12 Fiber Splice Tray Sold Separately
Panels: (4) Panels Sold Separately


Depth: 4.5"
Height: 11"
Width: 14"
Weight: 13 lbs

Physical Properties

Color: Black
Material: 16 Gauge Powder Coated Steel
