Wall Mount Fiber Patch Panel, Added Security, Up to 96 Ports

SKU: FB23-3962WAS8B
Various lead times may apply to this product. Please contact us for more details.

Adapter panels and splice trays NOT included.

This fiber patch panel is only compatible with our FB24 adapter panel inserts and FB25-3996STA24 splice tray. To find out more, give us a call or email us.

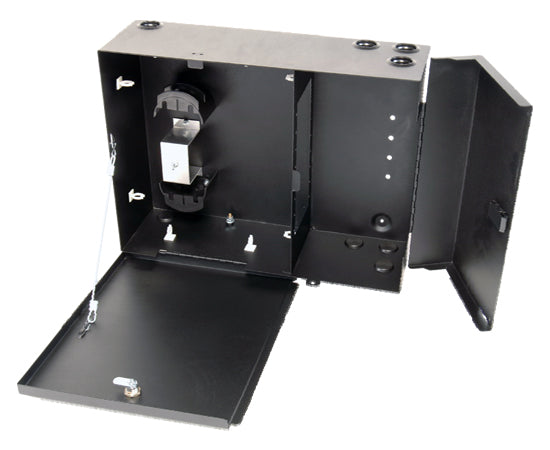

Wall Mount Fiber Patch Panel, Added Security, Holds 4 Splice Trays and 8 Adapter Panels, Up to 96 Ports, Black

This very compact wall mount fiber patch panel is designed to support patching and splicing in one fiber enclosure. The fiber housing has 4 adapter panel positions allowing for the termination of a wide variety of fiber connector styles. The housing has a drop down removable outer Network compartment door which can be used as a work shelf for splicing. The two outer doors with a lockable Network compartment are designed to maintain termination security. The FB23-3962WAS8B is one of a family of units that support fiber termination and splicing in wall mount applications. Black, Steel.


Wall Mount Cabinet Features:

  • 4 splice tray capacity.
  • 8 adapter panel capacity.
  • Designed to support patching and splicing in one unit.
  • Drop down removeable network door.
  • Lockable network door for added security.



Splice Trays: (4) 24 Fiber Aluminum Splice Trays (Sold Separately)
Panels: (8) Panels (Sold Separately)


Depth: 6.5"
Height: 16"
Width: 20"
Weight: 25 lbs

Physical Properties

Color: Black
Material: 16 Gauge Powder Coated Steel
