Wall Mount Fiber Patch Panel, Dual Door, Up to 48 Ports

SKU: FB23-3950WD4B

Adapter panels and splice trays NOT included.

This fiber patch panel is only compatible with our FB24 adapter panel inserts and FB25-3995STP12 splice tray. To find out more, give us a call or email us.

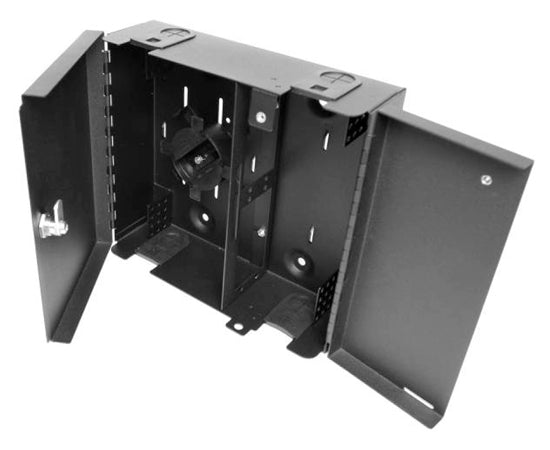

Wall Mount Fiber Patch Panel, Dual Outer Doors, Holds 4 Splice Trays and 4 Adapter Panels, Up to 48 Ports, Black

This compact wall mount fiber patch panel is designed to support patching and splicing in one fiber enclosure. The fiber housing has 4 adapter panel positions allowing for a wide variety of fiber termination connector types and is equipped with a double door maintaining separation and security for the Network and Distribution sides of the termination panels.

This dual door fiber wall mount enclosure is ideal for applications where space is limited. There are non-captive cable entries on the top and bottom. A grounding lug, and fiber management kit are included. This enclosure can accommodate four 12 fiber splice trays. Black, steel.

Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with fiber cleaning kits, pens, fluids, and wipes.



  • Can be installed upside down to have jumpers exit to opposite side.
  • Compact size.
  • 4 adapter panel capacity.
  • 4 splice tray capacity.
  • Locking door for added security of your investment.



Splice Trays: (4) 12 Fiber Splice Trays Sold Separately
Panels: (4) Panels Sold Separately


Depth: 4"
Height: 10.8"
Width: 12"
Weight: 11 lbs

Physical Properties

Color: Black
Material: 16 Gauge Powder Coated Steel
