Wall Mount Fiber Patch Panel, Dual Door, Up to 72 Ports

SKU: FB23-3952WD9B
Various lead times may apply to this product. Please contact us for more details.

Adapter panels, splice trays, and pigtails NOT included.

This fiber patch panel is only compatible with our FB24 adapter panel inserts and FB25-3996STA24 splice tray. To find out more, give us a call or email us.

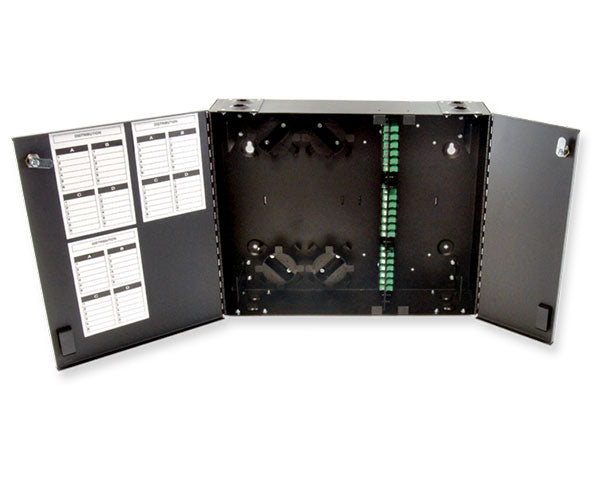

Wall Mount Fiber Patch Panel, Dual Outer Doors, Holds 3 Splice Trays and 9 Adapter Panels, up to 72 Ports, Black

This high density wall mount fiber patch panel is designed to support patching and splicing in one fiber enclosure. The fiber housing has 9 adapter panel positions allowing for a wide variety of fiber termination connector types and is equipped with a set of double lockable doors maintaining separation and security for the Network and Distribution sides of the termination panels. The FB23-3952WD9B is a member of a larger family of Fiber Distribution Units. Black, Steel.


Wall Mount Cabinet Features:

  • 3 splice tray capacity.
  • 9 adapter panel capacity.
  • Designed to support patching and splicing.
  • Dual lockable doors for seperation and security.



Splice Trays: (3) 24 Fiber Aluminum Splice Trays Sold Separately
Panels: (9) Panels Sold Separately


Depth: 5"
Height: 21.2"
Width: 17"
Weight: 24 lbs

Physical Properties

Color: Black
Material: 16 Gauge Powder Coated Steel
