Wall Mount Fiber Patch Panel, NEMA 1 & 4 Rated, Up to 144 Ports

$441.32
SKU: FB23-3966WN4D12
Update
Various lead times may apply to this product. Please contact us for more details.
Made in USA

Adapter panels and splice trays NOT included.

Mounting kit required for NEMA 4 compliance.

Comparable to Corning's WCH-12P

This fiber patch panel is only compatible with our FB24 adapter panel inserts and FB25-3997STA24S splice tray.

Description

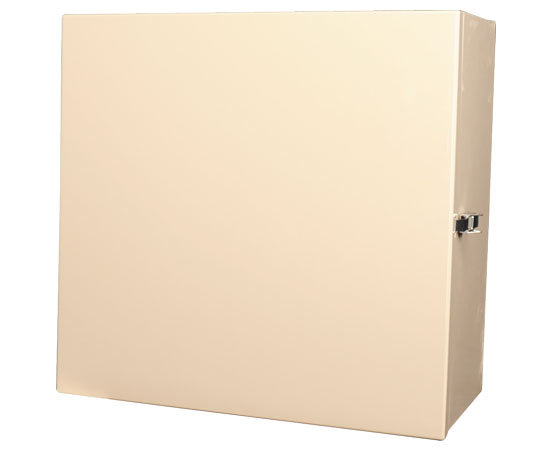

Wall Mount Fiber Patch Panel, NEMA 1 & 4 Rated, Holds 12 Adapter Panels and 6 Splice Trays, Up to 144 Ports, Beige

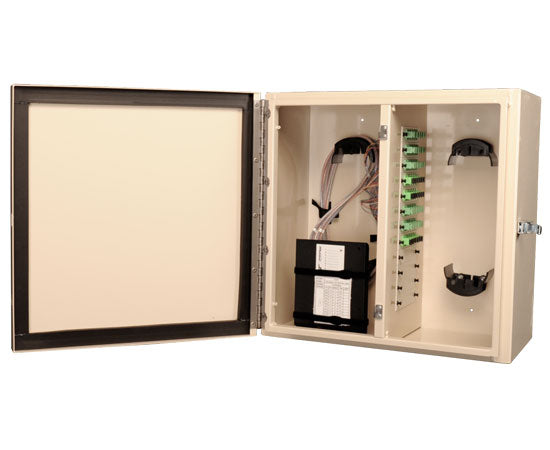

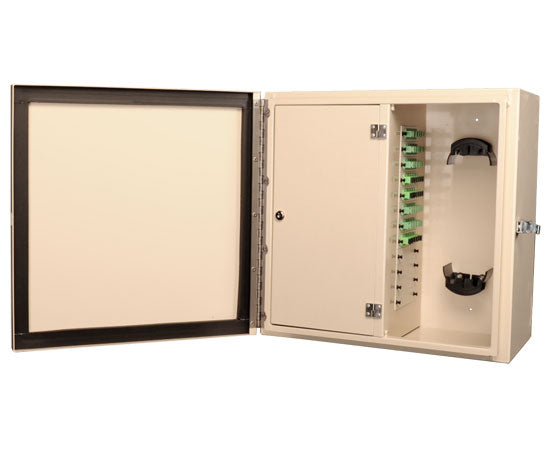

The FB23-3966WN4D12 is an outdoor rated NEMA 1 & NEMA 4 (mounting kit required for NEMA 4 compliance) wall mount fiber patch panel. The enclosure is designed for environments where durability, security, and weather resistance is required. The Network compartment has a removable and lockable internal door with capacity for splice trays, cable management, and cable entry.

The Subscriber compartment has capacity for adapter panels, cable management, and cable entry. Enclosure also includes (2) Cable Strain Relief kits, (1) Danger "Laser" Sticker, and blank identification labels.

Optional Accessories: Pole Kit NPNB-072-061-10 and Mounting kit NPNB-072-105-11 (to make unit NEMA 4 compliant)

Features

  • 12 termination panel capacity.
  • 6 splice tray capacity.
  • Lockable network compartment door for added security.
  • NEMA 4 rated—Mounting kit required for NEMA 4 compliance.

Specifications

Capacity

Splice Trays
(6) 24 Fiber Aluminum Splice Trays (Sold Separately)
Panels (12) Panels (Sold Separately)

Dimensions

Depth 10.5"
Height 22.4"
Width 19.5"
Weight 17 lbs.

Physical Properties

Material
.08" Powder Coated Aluminum
Color Beige

Additional Information

NEMA Rating

In Non-Hazardous Locations, the specific enclosure types, their applications, and the environmental conditions they are designed to protect against, when completely and properly installed, are as follows:

NEMA 1 Enclosures

Constructed for indoor use to provide a degree of protection to personnel against access to hazardous parts and to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt).

NEMA 4 Enclosures

Constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and windblown dust); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow, splashing water, and hose directed water); and that will be undamaged by the external formation of ice on the enclosure.
